Instruments and Controls
Inst rument s and Cont rols55

Canadian models only
This indicator lights when you turn
the ignition switch to ON (II) with
the headlight switch of f and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This light comes on with the high
beam headlights. See page for
inf ormation on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
The lef t or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
The appropriate light comes on in
this display if the trunk or any door
is not closed tightly.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the car should f lash.
All the lights in the monitor display
come on f or a f ew seconds when you
turn the ignition switch ON (II).
69
70
270
Indicator L ights
Inst rument s and Cont rols
‘‘Daytime Running
Lights’’ Indicator
High Beam Indicator
Turn Signal and
Hazard Warning
Indicators
Door and T runk Open Monitor
62

The odometer shows the total dis-
tance your car has been driven. It
measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.To reset a trip meter, display it, and
then press and hold the Reset button
until the number resets to ‘‘0.0’’.
Both trip meters will reset if the car’s
battery goes dead or is disconnected.
The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the Select
button repeatedly. Each trip meter
works independently, so you can
keep track of two dif f erent distances.
When you turn the ignition switch
ON (II), what you last selected is
displayed.
Inst rument s and Cont rols
Gauges
Trip Meter
Odometer
65
R RE ES
SE ET
T
B
BU UT TT
TO
ON N
S
SE
EL
LEE C
CT T
B
BU UT TT
TO
ON N

This shows how much f uel you have.
It is most accurate when the car is on
level ground. It may show slightly
more or less than the actual amount
whenyouaredrivingoncurvyor
hilly roads.
The needle returns to the bottom
after you turn off the ignition. The
gauge shows the f uel level reading
immediately af ter you turn the
ignition switch back ON (II).
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to near
the upper red mark. If it reaches the
red (Hot) mark, pull saf ely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
This indicator displays the outside
temperature in Fahrenheit in U.S.
models, and in Centigrade in
Canadian models.
The temperature sensor is located in
the f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road sur-
f ace, engine heat, and the exhaust
f rom the surrounding traf f ic. This
can cause the temperature reading
not to be correct when your speed is
under 19 mph (30 km/h).
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
299
Inst rument s and Cont rols
Gauges
Fuel Gauge
Temperature Gauge
Outside Temperature Indicator
66
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

You can use R to quickly set the time
to the nearest hour. If the displayed
time is before the half hour, pressing
Rsetstheclockbacktotheprevious
hour. If the displayed time is af ter
the half hour, pressing R sets the
clock f orward to the beginning of the
next hour.
For example:1:06 would RESET to 1:00.
1:52 would RESET to 2:00.
To set the clock: Press and hold the H button until
the hour advances to the desired
time.
Press and hold the M button until
the numbers advance to the
desired time.
The digital clock displays the time
with the ignition switch in any
position.
1.
2.Cars without Navigation System
Digital Clock
Inst rument s and Cont rols105
R R
M
M
H
H

The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature. To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button and set the
f an control dial to AUTO, then set
the desired temperature by turning
the temperature control dial. You will
see FULL AUTO in the system’s
display. The light in thebuttonalsoshowsyouwhich
mode, Recirculation or Fresh Air, is
selected.
When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature. When the temperature is set
between the lower and upper limits,
the system regulates the interior
temperature to the set value.
Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fully-automatic Operation
3.2 T L wit hout Navigat ion Syst em
118
T T
E
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L F
FA
A N
N C
COON NTTR
RO OL L D
DI
IAA L
L
O
OF FFF B
BUUT TT
TO
ON N
A
A U
UT TO
O B
BUUT TT
TO
ON N F
FU
UL LLL A
AU
UT TO
O
D
D I
ISSP PL
LAA Y
Y

CONT INUED
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Making any
manual selection causes the word
FULL to go out.
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
on, use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
119
R REEC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N
A
A
I
IRR C
COON NDDI
ITT I
IOON NIINNG G B
BUUT TT
TO
ON N
T
T
E
EM
M P
PE
ER
RA A T
TU
UR REE C
COON NTTR
RO OL L D
DI
IAA L
L

You can manually select the f an
speedbyturningthefancontroldial.
When you turn the dial clockwise,
the fan is taken out of automatic
mode and starts to run at its lowest
speed. Turning the dial f ully
clockwise increases the f an’s speed,
which increases air flow. This button controls the source of
the air going into the system. When
the indicator in this button is lit, air
from the car’s interior is sent
through the system again
(Recirculation mode). When the
indicator is of f , air is brought in f rom
outside the car (Fresh Air mode).
You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the side vents and the
dashboard corner vents in all modes.
Each time you press the MODE
button, the display shows the mode
selected. Press the button four times
to see all the modes.
Mode Button

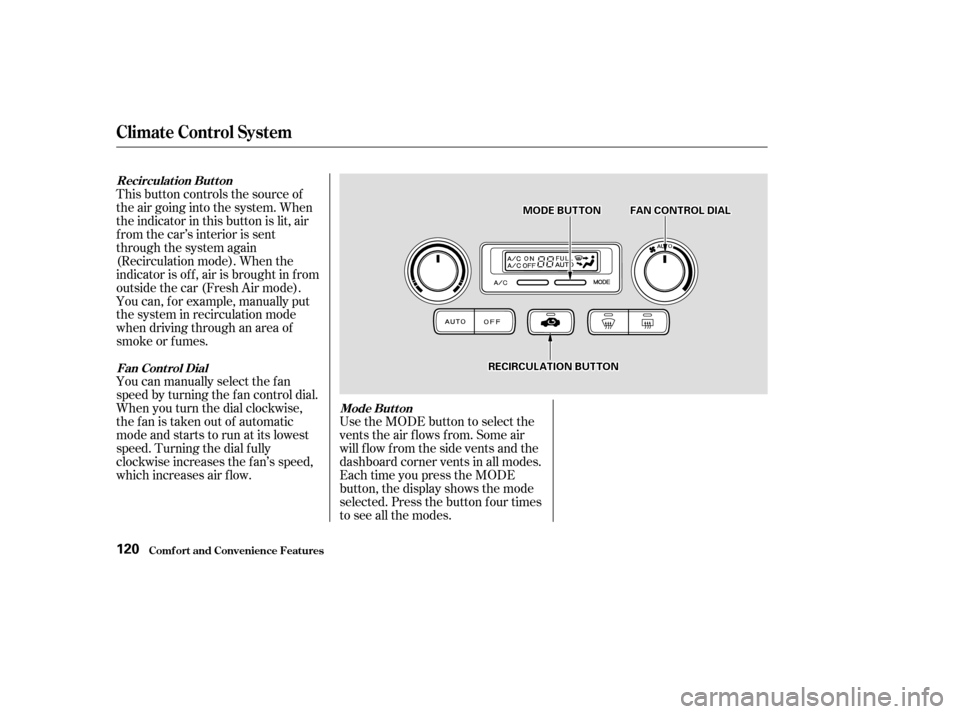

Fan Cont rol Dial
Recirculat ion But t on
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures120
M M
O
ODDE
E B
BUUT TT
TO
ON N
F
FAA N
N C
COON NTTR
RO OL L D
DI
IAA L
L
R
RE EC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N

ÛÝ
Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button. The
indicator in the button will light.
Then set the desired temperature by
pressing either side of the TEMP
button: to raise the temperature
above the displayed value, or to
lower the temperature. The light in
the button also shows you
which mode, Recirculation or Fresh
Air, is selected.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature.
When the temperature is set
between the lower and upper limits,
the system regulates the interior
temperature to the set value.
Fully-automatic Operation
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
3.2 T L wit h Navigat ion Syst em
123
O OF
FFF B
BUUT TT
TO
ON N
T
T E
EM
M P
PE
ER
RA A T
TU
UR REE D
DI
ISSP PL
LAA Y
Y A
A
U
UT TO
O B
BUUT TT
TO
ON N
R
RE
EC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N T
T
E
EM
M P
PE
ER
RA A T
TU
UR REE B
BUUT TT
TO
ON N

You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain
automatically controlled. Some of
these functions appear in the
Navigation System display. Press the
A/C button next to the display to
show these f unctions. Making any
manual selection causes the
indicator in the AUTO button to go
out.
Pressing ‘‘ON’’ or ‘‘OFF’’ in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF activated in the display. Semi-automatic Operation
A /C (A ir Condit ioning) On/Of f Icons
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures124
A A/
/C
C O
ONN//O
OF FFF I
ICCO ON NSS
A
A/
/C
C B
BUUT TT
TO
ON N
R
RE EC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N T
TE
EM
M P
PE
ER
RA A T
TU
UR REE B
BUUT TT
TO
ON N
