Acura TL 2004 Owner's Manual

228

This section covers the more
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.......................
Compact Spare Tire .230
....................
Changing a Flat Tire .231
.............
If the Engine Won’t Start . 236
................................
Jump Starting .238
..............
If the Engine Overheats . 240
.........
Low Oil Pressure Indicator . 242
..........
Charging System Indicator . 242
.......
Malf unction Indicator Lamp . 243
...............
Brake System Indicator . 244
..............................................
Fuses .245
..............................
Fuse Locations .247
......................
Emergency Towing .249
..........
If Your Vehicle Gets Stuck . 251
Taking Care of the Unexpected
T aking Care of t he Unexpect ed229

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced
and put it back on your vehicle as
soon as you can.
Check the inf lation pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road sur-
f aces. Use greater caution while
driving.
Do not mount snow chains on it.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Turn of f the VSA system (see
page ).
Driving with the compact spare
tiremayactivatetheVSAsystem. Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
On models with manual
transmission, do not drive f or a
long period with the compact
spare tire mounted on a f ront
wheel; it will damage the limited
slip dif f erential. 191
Compact Spare Tire
T aking Care of t he Unexpect ed230
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
(The M/T compact spare is shown.)
60 psi (420 kPa , 4.2 kgf/cm)

If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or Reverse (manual). Apply the
parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire.Open the trunk. Raise the trunk
f loor by lif ting up on the back edge.
Take the tool case out of the spare
tire.
Unscrew the wing bolt and take
the spare tire out of its well.
5. 4.
3.
2. 1.
CONT INUED
Changing a Flat T ire
T aking Care of t he Unexpect ed231
TOOL CASE
JACK
TRUNK FLOOR
SPARE TIRE
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.

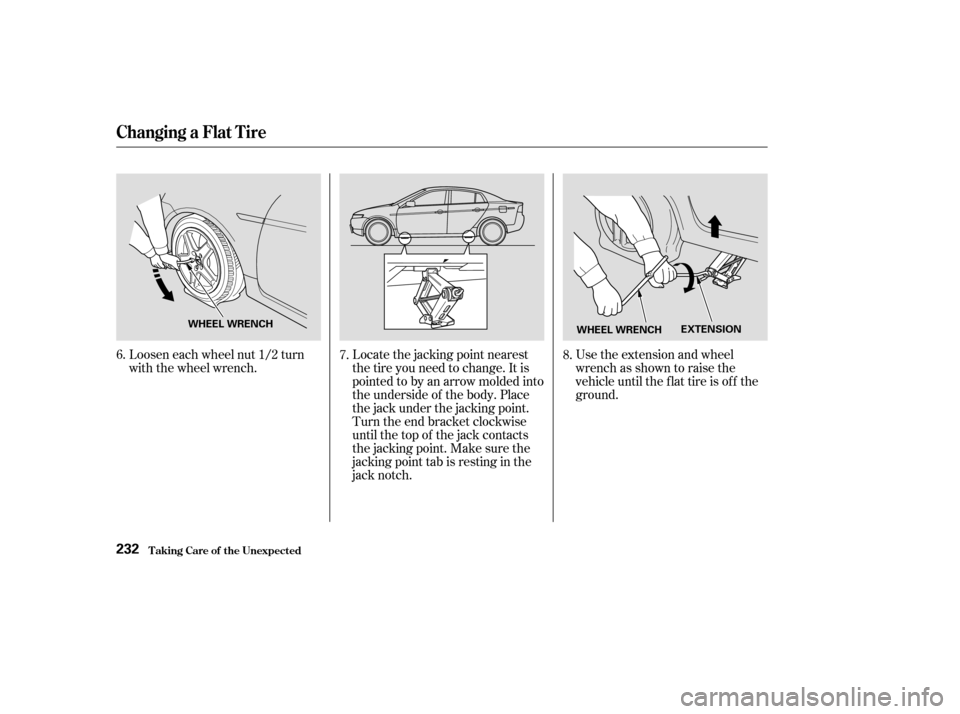

Loosen each wheel nut 1/2 turn
with the wheel wrench.Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.Use the extension and wheel
wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
6.
7.8.
Changing a Flat T ire
T aking Care of t he Unexpect ed232
WHEEL WRENCH
WHEEL WRENCHEXTENSION

Remove the wheel nuts, then
remove the f lat tire. Temporarily
place the f lat tire on the ground
with the outside surface of the
wheel f acing up. You could scratch
the wheel if you put it f ace down.Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is f irmly against
the hub. Do not try to tighten
them f ully.
9.
10. 11.
CONT INUED
Changing a Flat T ire
T aking Care of t he Unexpect ed233
BRAKE HUB

Lower the vehicle to the ground,
and remove the jack.Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:Place the flat tire face down in the
spare tire well.
Remove the spacer cone f rom the
wing bolt, turn it over, and put it
back on the bolt. Attach the wing
bolt to the bolt extension over the
spacer cone.
Secure the f lat tire by screwing
the wing bolt back into its hole.
Remove the center cap before
storing the f lat tire in the trunk
well.
12.
13.
14. 15.
16.
17.
Changing a Flat T ire
T aking Care of t he Unexpect ed234
WING BOLT SPACER
CONE
BOLT
EXTENSION
80 lbf·ft (108 N·m , 11 kgf·m)

Store the jack and tools in the tool
case. Place the tool case in the f lat
tire.
Store the center cap in the trunk.
Lower the trunk f loor, and close
the trunk lid.
18.
19. 20.
Changing a Flat T ire
T aking Care of t he Unexpect ed235
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.

Diagnosing why the engine won’t
start f alls into two areas, depending
on what you hear when you turn the
key to START (III):You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run. When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Turn the ignition switch to ON (II).
Turn on the headlights, and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. See on page . Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the f uses. If
the f uses are OK, there is
probably something wrong with
the electrical circuit f or the
ignition switch or starter motor.
You will need a qualif ied
technician to determine the
problem (see
on page ).
Check these things:
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the vehicle
f rom a booster battery (see page).
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the f loor or the
starter will not operate. With an
automatic transmission, the shif t
lever must be in Park or Neutral.
238 226
238 249
If theEngineWon’tStart
T aking Care of t he Unexpect ed
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting Emergency T owing
236

In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Are you using the proper starting
procedure? Ref er to on page . There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. See
on page .
Do you have f uel? Check the f uel
gauge; the warning indicator may
not be working.
56
177 245
249
If theEngineWon’tStart
T he Starter Operates Normally
Starting the
Engine Emergency
Towing
T aking Care of t he Unexpect ed237
