Page 18 of 283
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the f orces of a crash
over the strongest bones in your
upper body.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.This could cause
very serious injuries in a crash. To adjust the height of a f ront seat
belt anchor, press and hold the
release buttons, and slide the anchor
up or down as needed (it has f our
positions).
CONT INUED
Protecting A dults and Teens
Never place t he shoulder port ion of a
lap/shoulder belt under your arm orbehind your back.
Driver and Passenger Saf ety15
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Page 61 of 283
The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages. Some of
the messages help you operate your
vehiclemorecomfortably.
Others help to keep you aware of the
periodic maintenance your vehicle
needs f or continued trouble-f ree
driving.
Here is a list of the messages you
can see. The f ollowing pages give
you more inf ormation on these
messages.Driver 1 or 2 Detected
Door and Trunk Open
Fasten Seat Belt
Release Parking Brake
Check Fuel Cap
Odometer
Trip Meter
Outside Temperature
Engine Oil Lif e Maintenance Messages
Trip Computer
Keyless Memory Settings
HandsFree Link
Language Selection (Canada only)
With the multi-information display
and the two buttons next to it, you
can also customize these vehicle
control settings to your liking. Auto door lock conditions
Auto door unlock conditions
Whenever unlocking (driver’s
door, or all doors)
Keyless lock acknowledgment
conditions
Security relock timer
Headlight auto of f timer
Interior light dimming time
To customize these control settings,
see page .
Low Windshield Washer Fluid
Level (Canada only) 66
Multi-Inf ormation Display
Inst rument s and Cont rols58
SELECT/
RESET
BUTTON
INFO
BUTTON
TM
TM
Page 89 of 283
The driving position memory
activated (Driver 1, Driver 2) is
shownonthebackof each
transmitter. Make sure you store
your desired driving position in the
memory that is activated by the
transmitter you normally carry.
You can turn of f this driving position
memory activation. Press and hold
the LOCK and UNLOCK buttons at
thesametime.TheLEDinthe
remote transmitter will blink twice.
Then release the buttons. Doing this
also cancels the keyless memory
settings f or that remote and restores
the default settings.
To turn it back on, repeat this
procedure. The LED will come on
for 1 second to indicate the feature
has been turned on.Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your Acura
dealer.
Each remote transmitter also
activates the Driving Position
Memory System and changes the
keyless memory settings related to
that remote (see page ). When
you open the driver’s door af ter
unlocking it with the remote
transmitter, you will hear a beep.
The driver’s seat and outside mirrors
move to the positions stored in that
memory location. You will hear two beeps when the movement is
completed.
93
Remote Transmitter
Inst rument s and Cont rols
Recalling a Memorized Driving
PositionRemote Transmitter Care
86
With Driver 1 With Driver 2
Page 96 of 283
Your Acura has a memory f eature
f or the driver’s seat and outside
mirror positions.
Two seat and outside mirror
positions, can be stored in separate
memories. You select a memorized
position by pushing the appropriate
button or using the appropriate
remote transmitter (Driver 1 or
Driver 2).Press and release the MEMO
buttononthecontrolpanel.You
will hear a beep. Immediately
press and hold one of the memory
buttons (1 or 2) until you hear two
beeps. The indicator in the
memory button will come on. The
current positions of the driver’s
seat and outside mirrors are now
stored.
Adjust the outside mirrors f or best
visibility (see page ). Adjust the seat to a comfortable
position (see page ). Turn the ignition switch to ON (II).
You cannot add a new driving
position in the memory unless the
ignition switch is in the ON (II)
position. You can recall a
memorized position with the
ignition switch in any position.
Store a driving position only when
the vehicle is parked.
3.
1.
2.
91
88
CONT INUED
Driving Posit ion Memory Syst em
Inst rument s and Cont rols
Storing a Driving Position in
Memory
93
MEMO BUTTON
MEMORY BUTTONS
Page 97 of 283
Doing any of the f ollowing af ter
pressing the MEMO button will
cancel the storing procedure.Not pressing a memory button
within 5 seconds.
Readjusting the seat position.
Readjusting the outside mirror
position.
Each memory button stores only one
driving position. Storing a new
position erases the previous setting
stored in that button’s memory. If
you want to add a new position while
retaining the current one, use the
other memory button. To select a memorized position, do
this:
Make sure the parking brake is set
(M/T) or the shif t lever is in Park
(A/T).
Press the desired memory button
(1 or 2) until you hear a beep, then
release the button. The system will move the seat and
outside mirrors to the memorized
positions. The indicator in the
selected memory button will f lash
during movement. When the
adjustments are complete, you will
hear two beeps, and the indicator will
remain on.
You cannot select a memorized
position if the transmission is in
Reverse. Shif t to another gear,
then select.
If the parking brake is not set, you
must press and hold the memory
button until the adjustment is
complete.
1.
2.
Notes f or vehicles with M/T
Driving Posit ion Memory Syst em
Inst rument s and Cont rols
Selecting a Memorized Position
94
MEMORY BUTTONS
Page 112 of 283
The climate control systems in your
Acura provide a comf ortable driving
environment in all weather
conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them..............
Vents, Heating, and A/C . 110
...........................
Air Flow Buttons .112
.............................
Climate Control .115
..........................
Playing the Radio .117
............................
Radio Reception .122
Playing the XM Satellite Radio ............................
(U.S. models) .124
.................................
Playing Discs .129
..................
Protecting Your Discs . 134
.....
Disc Change Error Messages . 135
...............................
Playing a Tape .136
................................
Audio System .139
.................
Radio Thef t Protection . 140
............................
Security System .141
...............................
Cruise Control .142
HomeLink Universal ................................
Transceiver .145
.............................
HandsFreeLink .149
Comf ort and Convenience Features
Comf ort and Convenience Feat ures109
Page 113 of 283
Vents, Heating, and A/C
Comf ort and Convenience Feat ures110
TEMPERATURE DISPLAY
DRIVER’S SIDE MODE
CONTROL BUTTON
OFF BUTTON REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
Vehicles without Navigation System
DUAL BUTTON DRIVER’S AUTO BUTTON
PASSENGER’S AUTO BUTTON
AIR CONDITIONING BUTTON
RECIRCULATION BUTTON
WINDSHIELD
DEFROST
BUTTON PASSENGER’S SIDE MODE
CONTROL BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
Page 114 of 283

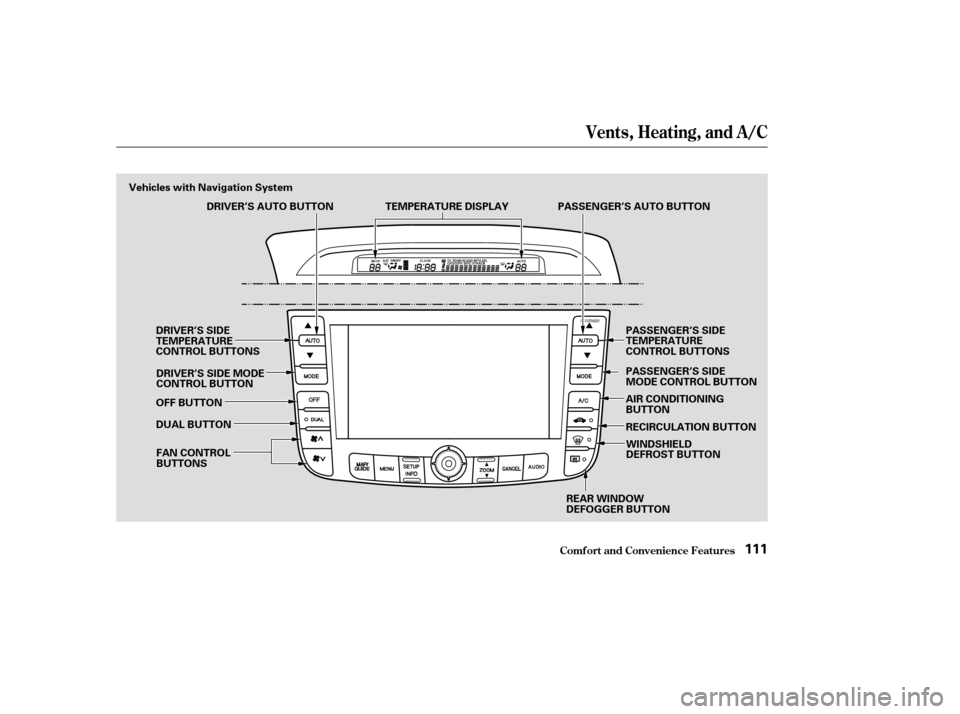

Vents, Heating, and A/C
Comf ort and Convenience Feat ures111
OFF BUTTONWINDSHIELD
DEFROST BUTTON
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
Vehicles with Navigation System
PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
DUAL BUTTON RECIRCULATION BUTTON AIR CONDITIONING
BUTTON PASSENGER’S SIDE
MODE CONTROL BUTTON
DRIVER’S SIDE MODE
CONTROL BUTTON PASSENGER’S AUTO BUTTON
DRIVER’S AUTO BUTTON TEMPERATURE DISPLAY
Page 115 of 283
Û
Ý
Û
Ý
Press the button to increase
the fan speed and air flow. Press the
button to decrease them.
The driver’s side temperature and
passenger’s side temperature can be
set separately. Press either side’s
button to increase the temperature
of air f low. Press either side’s
button to decrease it. When you set
the temperature to its lower limit or
its upper limit, it will be displayed as
‘‘Lo’’ or ‘‘Hi’’.
This button turns the air
conditioning on and of f . The A/C
ON indicator comes on in the display
when the A/C is on.
When the indicator in the button is
on, air f rom the vehicle’s interior is
recirculated throughout the system. When the indicator is off, air is
brought in f rom the outside of the
vehicle (Fresh Air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
Fresh Air mode. Airf low is divided between
the vents in the dashboard and the
f loor vents. Air flows from the center
and corner vents in the dashboard.
Use the mode control button to select the vents the air flows from.
Some air will flow from the
dashboard vents in all modes.
Airf low is drivided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
77
Comf ort and Convenience Feat ures
Fan Control Buttons
Temperature Control Buttons
Air Conditioning (A/C) Button
Recirculation Button Rear Window Def ogger Button
Mode Control Button
Airf low Buttons
112
Page 116 of 283
When you select , the system
automatically switches to Fresh Air
mode and turns on the A/C.
Thedriver’ssidemodeand
passenger’s side mode can be
selected separately when the dual
button is pressed. However, whenis selected on the driver’s
side, mode selection on the
passenger’s side is not possible. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
Set the temperature to maximum.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system. Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control buttons. Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set
to maximum heat.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
When is selected, the
passenger’s temperature cannot be
set separately f rom the driver’s.
You can set the temperatures and
modes f or the driver’s side and the
passenger’s side separately when
this button is pressed (indicator on).
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature and
mode with the driver’s side
temperature control buttons and
mode control button. 1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
5.57
If the interior is very warm,
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Ventilation
Using the Heater
Using the A /C
Dual Button
113
