This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem in the
ABS. If this happens, take your
vehicle to a dealer to have it checked.
With this indicator on, your vehicle
still has normal braking ability but no
anti-lock. For more inf ormation, see
page .This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your f ront airbags or automatic seat
belt tensioners. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
driver’s seat position sensor, f ront
passenger’s weight sensors, or side
curtain airbags. For complete
inf ormation, see page .This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
30 31
201
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator Supplemental Restraint
System Indicator
Side A irbag Of f
Indicator
Inst rument s and Cont rols
61
U. S. Canada

¶¶µµµµ
µ µµµ
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected. This shows the outside Fahrenheit
temperature in U.S. models, and
Centigrade temperature in Canadian
models.
To reset a trip meter, display it, then
press and hold the Select/Reset
button until the number resets to
‘‘0.0.’’
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
button f or 10 seconds. The f ollowing
sequence will appear f or 1 second
each:0,1,2,3,4,5, 5, 4, 3, 2,1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When it reaches the desired value,
release the Select/Reset button. You
should see the new outside
temperature displayed.
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your speed is under 19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
Outside Temperature
Multi-Inf ormation Display
Inst rument s and Cont rols
72
SELECT/
RESET
BUTTON

ÛTheclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
When you press a f an control button,
the fan is taken out of AUTO mode
and starts to run at its lowest speed.
Press the button to make
the fan run faster.
You can manually select various
f unctions of the climate control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
Press the OFF button. However, a
lack of airf low can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause f ogging.
Climat e Cont rol
Sunlight and T emperature
Sensors
Semi-automatic Operation
To Turn Everything Off
126
SUNLIGHT SENSOR TEMPERATURE SENSOR

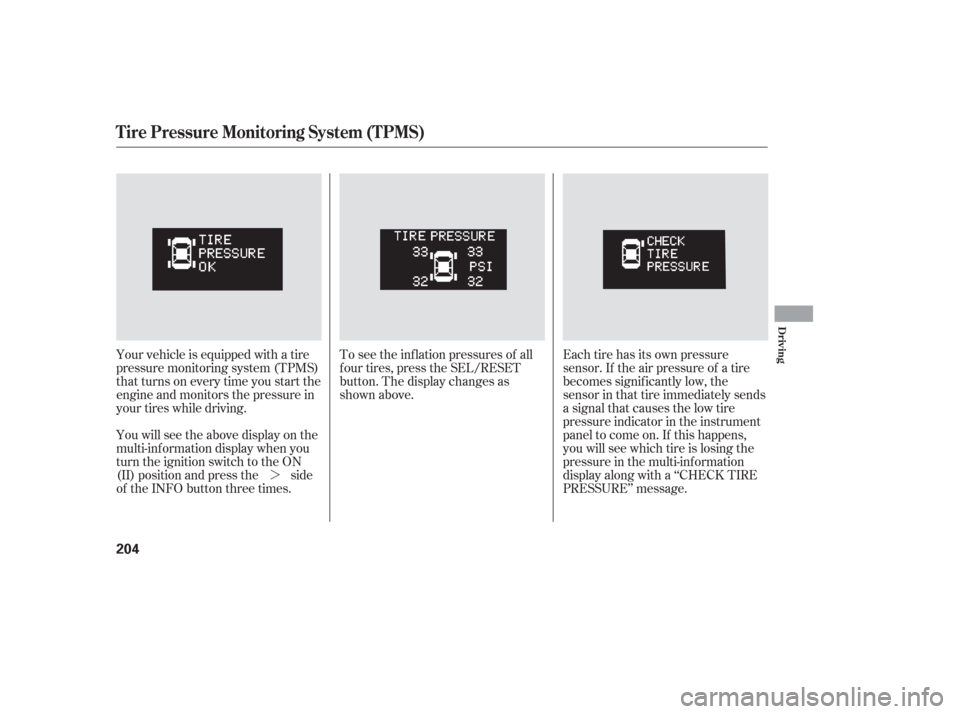

¼To see the inf lation pressures of all
f our tires, press the SEL/RESET
button. The display changes as
shown above.
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes signif icantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure indicator in the instrument
panel to come on. If this happens,
you will see which tire is losing the
pressure in the multi-information
display along with a ‘‘CHECK TIRE
PRESSURE’’ message.
Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
You will see the above display on the
multi-inf ormation display when you
turn the ignition switch to the ON
(II) position and press the side
of the INFO button three times.
Tire Pressure Monitoring System (TPMS)
Driving
204

Check the condition of the wiper
blades at least every 6 months.
Replace them if you f ind signs of
cracking in the rubber, areas that are
getting hard, or if they leave streaks
and unwiped areas when used.Raise the wiper arm of f the
windshield.
If you use non-Acura f loor mats,
make sure they f it properly and that
theycanbeusedwiththefloormat
anchors. Do not put additional f loor
mats on top of the anchored mats. If you remove a f loor mat, make sure
tore-anchoritwhenyouputitback
in your vehicle.
The driver’s and right rear
passenger’s f loor mats that came
with your vehicle hook over the f loor
mat anchors. This keeps the f loor
mats f rom sliding f orward and
possibly interf ering with the pedals
(driver’s floor mat) or with the seat
weight sensors (right rear f loor mat). 1.
Floor Mats, Wiper Blades
Floor Mats
Wiper Blades
232
FLOOR MAT ANCHORSDo not open the hood when the wiper
arms are raised, or you will damage the
hood and wiper arms.

The exhaust emissions controls
include f our systems: PGM-FI,
ignition timing control, exhaust gas
recirculation, and three way catalytic
converter. These f our systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
come out the tailpipe. The exhaust
emissions control systems are
separate f rom the crankcase and
evaporative emissions control
systems.The emissions control systems are
designed and certif ied to work
together in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Acura replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor. The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manif old. Adding exhaust gas to the
air/f uel mixture reduces the amount
of NOx produced when the f uel is
burned. This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The PGM-FI system uses sequential
multiport f uel injection.
It has three subsystems: air intake,
engine control, and f uel control. The
powertrain control module (PCM) in
automatic transmission vehicles or
the engine control module (ECM) in
manual transmission vehicles uses
various sensors to determine how
much air is going into the engine. It then controls how much f uel to inject
under all operating conditions.
2
2
Emissions Cont rols
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Three Way Catalytic Converter
Exhaust Gas Recirculat ion (EGR)
Syst em
Ignit ion T iming Cont rol Syst em
Technical Inf ormation
275

Î
CONT INUED
...................................
Seat Belts .10,20
...............
Additional Information .20
.....................................
Cleaning .231
......................
Lap/Shoulder Belt .20
................................
Maintenance .22
Reminder Light and ................................
Beeper .20,60
...................
System Components .20
...............
Use During Pregnancy .18
..................................
Seat Heaters .106
........................
Seats, Adjusting the .98
............................
Security System .152
........
Sequential SportShif t Mode .195
...............................
Serial Number .268
...........................
Service Intervals .209
...........................
Service Manual .283
.........
Service Station Procedures .177
..........................
Setting the Clock .112
.....
Shif t Lever Position Indicator .193
........................
Shif t Lock Release .197
...........................................
Shif ting .193
..............................
Side Airbags .11,28
........
Side Airbag Of f Indicator .31,61
......................
Side Curtain Airbags .30
...............................
Signaling Turns .84
.....................................
Snow Tires .239................................
Sound System .127
Spare Tire ......................................
Inf lating .244
............................
Specif ications .271
....................
Specif ications Charts .270
................................
Speed Control .153
..........
SRS, Additional Inf ormation .38
...
Additional Safety Precautions .33
....................
Airbag Components .23
.............................
Airbag Service .32
How the SRS Indicator .......................................
Works .30
How Your Front Airbags .........................................
Work .25
...
How Your Side Airbags Work .28
How Your Side Curtain Airbags
.........................................
Work .30
.............................
SRS Indicator .30,61
....
START (Ignition Key Position) .90
.......................
Starting the Engine .189
................
With a Dead Battery .252
..............
State Emissions Testing .277
........
Steam Coming f rom Engine .254
Steering Wheel
..................................
Adjustment .88
.............
Anti-theft Column Lock .90 ...................
Stereo Sound System .127
....................
Storing Your Vehicle .241
........................
Sunglasses Holder .117
....
Supplemental Restraint System .23
......................................
Servicing .32
...............................
SRS Indicator .30
...................
System Components .23
.....................................
Tachometer .66
.
Taking Care of the Unexpected .243
....................................
Tape Player .147
Technical Descriptions ......
DOT Tire Quality Grading .272
.....
Emissions Control Systems .274
Three Way Catalytic
...............................
Converter .276
.......................
Temperature Gauge .66
....................
Temperature, Outside .72
........
Temperature, Inside Sensor .126
..............
Tether Anchorage Points .47
..
Three Way Catalytic Converter .276
..................
Tilt the Steering Wheel .88
