Acura TL 2007 Owner's Manual

The front ceiling light has a three-
position switch; ON, Door Activated,
and OFF. When
neither side is pushed in
(Door Activated), the lights come on
when you:
Open any door.
Unlock the doors with the key or
remote transmitter.
After all doors are closed tightly,
both front and rear ceiling lights
fade out in 5, 15, or 30 seconds
depending on your custom setting
(see page ). Both f ront and rear ceiling lights
work as individual map lights. To
turn a map light on or of f , press its
lens. You can use the f ront map
lights regardless of the position of
the f ront ceiling light switch.
With the f ront ceiling light switch in
the OFF position, the rear map lights
do not work, and the interior lights
do not come on when you open a
door.
Whenthe‘‘ ’’sideispushedin,
the lights are of f all the time. Whenthe‘‘ ’’sideof theswitch
is pushed in, both f ront and rear
ceiling lights are ON all the time. 83
Ceiling L ight
Interior Lights
118
——
y
y
(%y
y

Interior Convenience Items
Inst rument s and Cont rols
119
GLOVE BOX
CONSOLE COMPARTMENT
FRONT DOOR POCKET
BEVERAGE
HOLDERS
SEAT-BACK POCKETS
ACCESSORY POWER SOCKETS
——
y
y
(%y
y

Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can
damage the upholstery, carpeting,
and electrical components in the
interior.
Open the f ront beverage holder by
sliding its cover backward.The rear beverage holder is in the
rear seat armrest. Open the
beverage holder by pushing the f ront
of it, and pulling the holder all the
way out.
There are two accessory power
sockets. One is in the f ront of the
center console under the utility
pocket lid. The other is under the
armrest in the console compartment
storage area.
These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps). A ccessory Power Sockets
Beverage Holders
Interior Convenience Items
120
——
y
y
(%y
y

Open the glove box by squeezing the
handle. Close it with a f irm push.
Lock or unlock the glove box with
the master key.To open the console compartment
storage area, pull up on the lef t lever,
and lif t the armrest. To close, lower
the armrest, and push it down until it
latches.You can put small items in the tray
located in the console compartment
lid. To use the tray, pull up on the
right lever and lif t up the armrest.
Glove Box
Console Compartment
Interior Convenience Items
Inst rument s and Cont rols
121
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
——
y
y
(%y
y

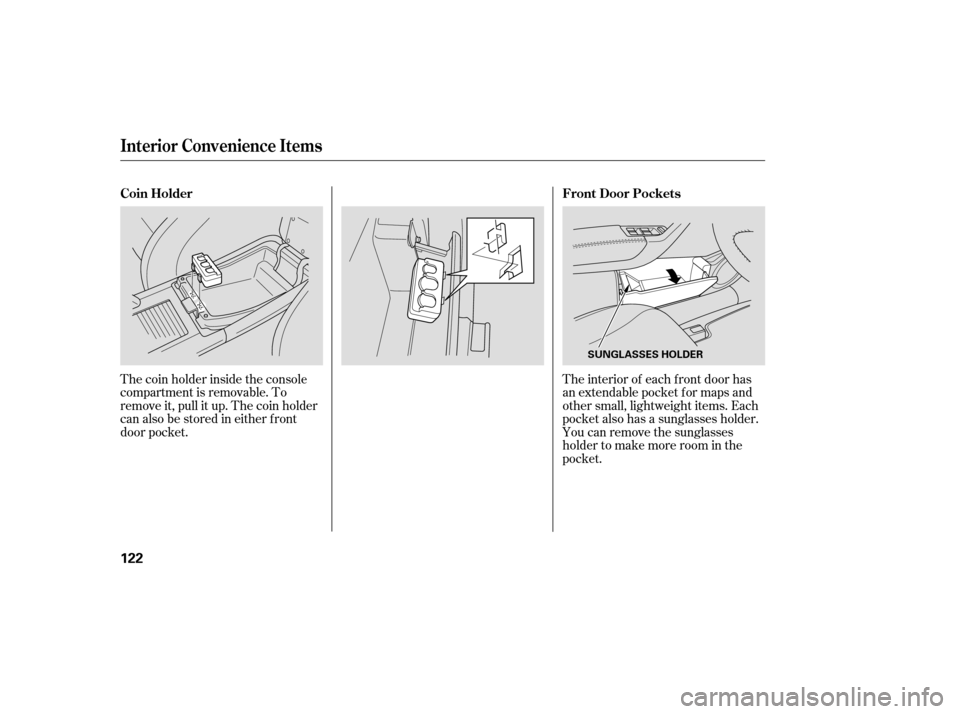

The interior of each f ront door has
an extendable pocket f or maps and
other small, lightweight items. Each
pocket also has a sunglasses holder.
You can remove the sunglasses
holder to make more room in the
pocket.
The coin holder inside the console
compartment is removable. To
remove it, pull it up. The coin holder
canalsobestoredineitherfront
door pocket. Front Door Pockets
Coin Holder
Interior Convenience Items
122
SUNGLASSES HOLDER
——
y
y
(%y
y

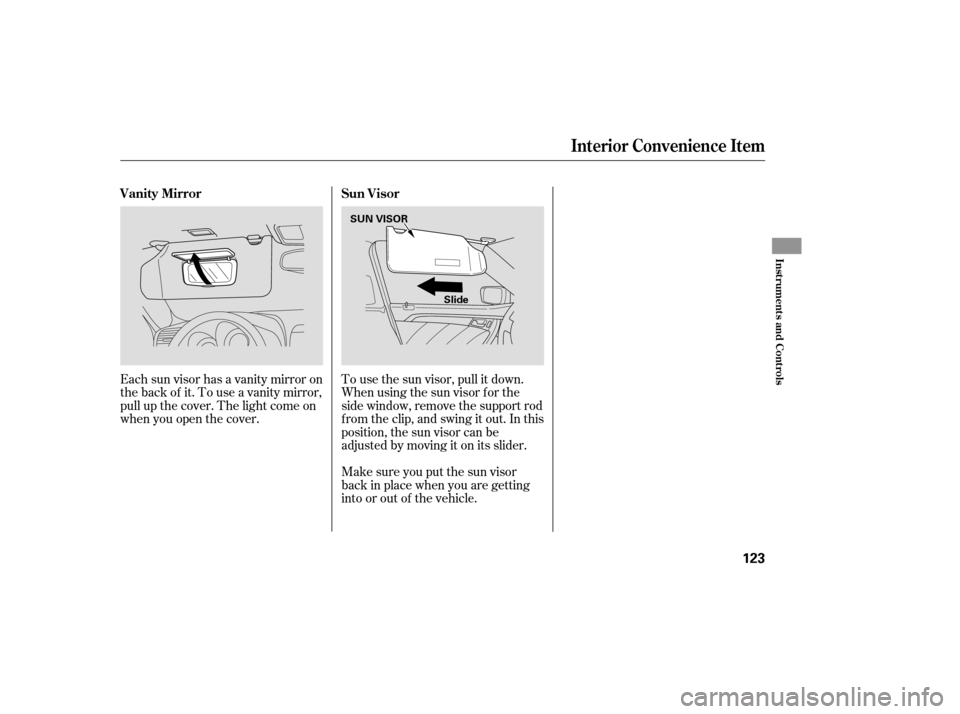

To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out. In this
position, the sun visor can be
adjusted by moving it on its slider.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Each sun visor has a vanity mirror on
thebackof it.Touseavanitymirror,
pull up the cover. The light come on
when you open the cover. Vanity Mirror
Sun Visor
Interior Convenience Item
Inst rument s and Cont rols
123
SUN VISOR
Slide
——
y
y
(%y
y

The climate control systems in your
vehicle provide a comfortable driving
environment in all weather
conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to dis-
courage vandalism and thef t of your
vehicle..............
Vents, Heating, and A/C . 126
.............................
Airflow Buttons .128
.............................
Climate Control .131
................................
Audio System .133
Audio System (Models without ..............
Navigation System) . 134
......
Playing the AM/FM Radio . 135
Playing the XM
Satellite
......................................
Radio .139
...
Operating the Disc Changer . 145
...........................
Playing a Tape .152
Audio System (Models with ..............
Navigation System) . 155
...............
Voice Control System . 155
......
Playing the AM/FM Radio . 156
Playing the XM
Satellite
......................................
Radio .159
...
Operating the Disc Changer . 165
...........................
Playing a Tape .173
...
Disc Changer Error Messages . 176
..................
Protecting Your Discs . 177
............
AM/FM Radio Reception . 178
......................
Auxiliary Input Jack .180
................
Remote Audio Controls . 181
.................
Radio Thef t Protection . 182
............................
Security System .183 ...............................
Cruise Control .184
HomeLink Universal ................................
Transceiver .187
.............................
HandsFreeLink .190
......................................
AcuraLink .217
.........................................
Compass .228
.
Rear View Camera and Monitor . 231
Features
Features
125
——
y
y
(%y
y

Vents, Heating, and A/C
126
DRIVER’S SIDE MODE
CONTROL BUTTON
OFF BUTTON
FAN CONTROL
BUTTONS DUAL BUTTON
AIR CONDITIONING BUTTON
RECIRCULATION BUTTON PASSENGER’S SIDE MODE
CONTROL BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
TEMPERATURE DISPLAY
DRIVER’S AUTO BUTTON PASSENGER’S AUTO BUTTON
WINDSHIELD
DEFROST BUTTON
REAR WINDOW
DEFOGGER BUTTON
Vehicles without navigation system
——
y


y
(%y

y

Vents, Heating, and A/C
Features
127
OFF BUTTONWINDSHIELD
DEFROST BUTTON
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
DUAL BUTTON RECIRCULATION BUTTON AIR CONDITIONING
BUTTON PASSENGER’S SIDE
MODE CONTROL BUTTON
DRIVER’S SIDE MODE
CONTROL BUTTON DRIVER’S AUTO BUTTON TEMPERATURE DISPLAY
PASSENGER’S AUTO BUTTON
Vehicles with navigation system
——
y

y
(%y
y
