Acura TL 2007 Owner's Manual

Search Imported Phonebook: This
option allows you to search the
phone numbers stored in the HFL.
When you enter a keyword for a
person’s name, such as the first
name or last name, the system will
find the number you want and let
you make calls.
Delete Imported Phonebook: This
option allows you to delete the stored
phonebook from the HFL. When you
link your phone to the HFL and
select this option, the system will
automatically delete the phonebook
of the linked phone from the HFL
(see page ). HFL
does not allow you to pair
your phone if the vehicle is
moving.
Up to six phones can be paired to
the HFL.
For information on linking to the
HFL, see page .
You can import the phonebook of
your cellular phone into the HFL.
Link your phone to the HFL, and
select ‘‘Import Cellular Phonebook’’
f rom the ‘‘Select an option’’ screen.
When the message ‘‘The import was
successf ul.’’ is displayed, push in on
the joystick to select ‘‘OK.’’
211 197To import the cellular phonebook
HandsFreeL ink
NOT E:
208
TM
——
y

y
(%y
y

To search the imported phonebookSelect a phonebook f rom the
displayed list. If the phonebook you
select has a PIN icon, you will need
the 4-digit PIN number to access the
phonebook. The f ollowing screen
will appear.The system will display a list of
person’s names, with the closest
match to the name you entered at
the top of the list.
You can search the stored number
by entering keywords.
Select ‘‘Search Imported Phonebook’’
f rom the ‘‘Select an option’’ screen.
The display will change as shown
above.
Enter the PIN number. You cannot
access a PIN protected phonebook if
you do not use the correct PIN
number.Enter the keyword f or a person’s
name, such as the f irst name or last
name, using the joystick. If the
system does not f ind an exact match,
say or select ‘‘LIST’’ when you f inish
entering the keyword.
CONT INUED
HandsFreeL ink
Features
209
TM
——
y


y
(%y
y

µ
Select the number (1 6) of the
desired person f rom the list.
Up to three category icons are
displayed in the right side of the list.
These category icons indicate how
many numbers are stored f or the
person. If a name has more than
threecategoryicons,‘‘ ’’is
displayed.
The f ollowing category icons will
appear:
Select the desired number f rom the
list to make a call. Af ter selecting a person, the system
will display a list of the person’s
phone numbers.Select the desired number f rom the
list to store it in the HFL. Say or select ‘‘STORE IN
HandsFreeLink’’ f rom the ‘‘Select a
number to call’’ screen. The screen
shown above will appear.
···To store an imported phonebook
number
HandsFreeL ink
210
Work Home Preference
Mobile Pager Fax
Car
Voice
Other
TM
——
y

y
(%y
y

To delete the imported phonebook
You can delete the stored
phonebook f rom the HFL.
Link your phone to the HFL and
select ‘‘Delete Imported Phonebook’’
f rom the ‘‘Select an option’’ screen.
The display will change as shown

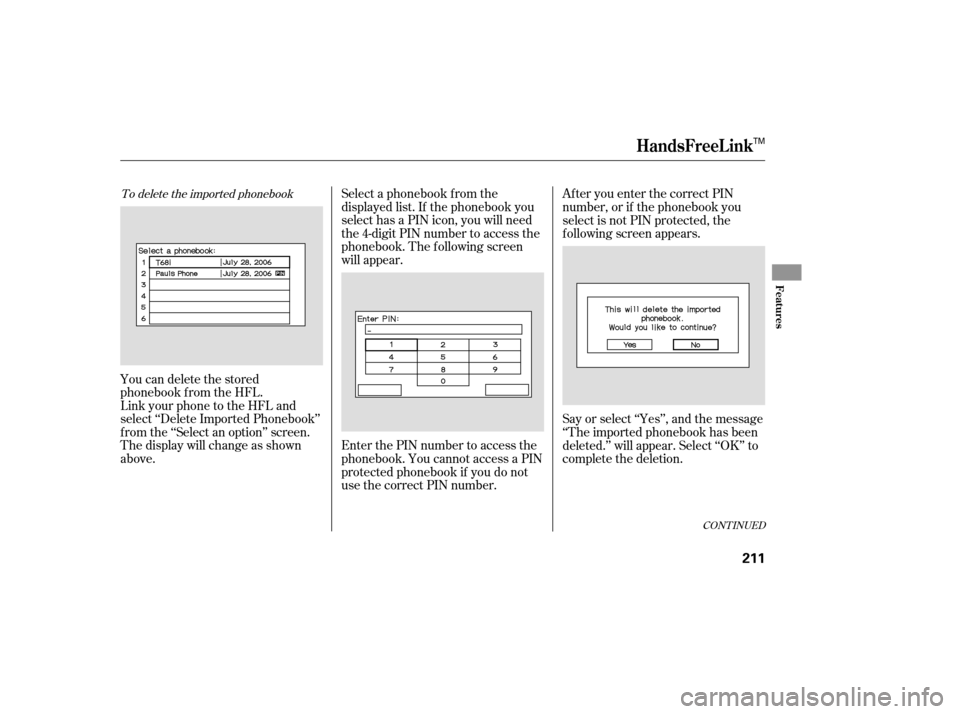

above.Select a phonebook f rom the
displayed list. If the phonebook you
select has a PIN icon, you will need
the 4-digit PIN number to access the
phonebook. The f ollowing screen
will appear.
After you enter the correct PIN
number, or if the phonebook you
select is not PIN protected, the
f ollowing screen appears.
Enter the PIN number to access the
phonebook. You cannot access a PIN
protected phonebook if you do not
use the correct PIN number. Say or select ‘‘Yes’’, and the message
‘‘The imported phonebook has been
deleted.’’ will appear. Select ‘‘OK’’ to
complete the deletion.
CONT INUED
HandsFreeL ink
Features
211
TM
——
y

y
(%y
y

To add, change, or remove a PINnumber f rom any phonebook To add a PIN number
You can add, change or remove a
PIN number f rom any phonebook.
Select ‘‘PIN Number’’ f rom the
‘‘Select an Option’’ screen. The
display will change as shown above.Select the phonebook you wish to
add the PIN number to. The
phonebook you select cannot
already have a PIN icon. The
display will change as shown
above.Enter the 4-digit PIN number. You
will be asked to re-enter the PIN to
verify.
1.
2.
HandsFreeL ink
212
TM
——
y

y
(%y
y

To change a PIN number
Select the phonebook you wish to
change the PIN number f or. The
display will change as shown
above.Enter your current PIN number. Enter your new 4-digit PIN
number. You will be asked to re-
enter the PIN to verif y.
1.
2.3.
HandsFreeL ink
Features
213
TM
——
y

y
(%y
y

This operation clears the HFL of
your passcode, your paired phones,
all names in the HFL phonebook,
and all imported phonebooks.
Clearing is recommended bef ore you
sell your vehicle.Press and release the Talk button.
Af ter the beep, say ‘‘System.’’ The
HFL response is, ‘‘System options
are setup and clear.’’
Press and release the Talk button.
After the beep, say ‘‘Clear.’’ The
HFL response is, ‘‘This process
will clear all paired phones, clear
all entries in the phonebook, and
clear the passcode. Is this what
you would like to do?’’ Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ The
HFL response is ‘‘Preparing to
clear all paired phones, all
phonebook entries, and the
passcode. This may take up to 2
minutes to complete.’’ Press and
release the Talk button. After the
beep, say ‘‘OK’’ to proceed, or say
‘‘Go back’’ or ‘‘Cancel.’’
If you said ‘‘OK,’’ af ter a short
period of time, the HFL response
is, ‘‘System has been cleared.
Returning to the main menu.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Change
language.’’ The HFL response is
‘‘English or French?’’
Press and release the Talk button.
Af ter the beep, say ‘‘French.’’ The
HFL response is ‘‘Vous avez
selectionne Francais. Les noms
enregistres en mode Anglais ne
seront pas accessible en mode
Francais. Voulez-vous continuer?
You have selected French. Name
tags that were stored while in
English mode will not be
accessible in French mode. Would
you like to continue? ’’
1.
2. 3.
4.
1.
2.
To clear the system, do this: Canadian models only
To change f rom English to French, dothis:
Clearing the System Changing Language
HandsFreeL ink
214
TM
——
y

y
(%y
y

»¼»
¼
Press and release the Talk button.
Af ter the beep, say ‘‘Oui or Yes,’’ If
there are no paired phones
without French name tags, the
HFL response is ‘‘Venillez
attendre que le systeme change de
langue. Please wait while the
language is changed.’’ ‘‘La langue
a ete changee. Retour au menu
principal.’’
If there are paired phones
without French name tags, the
f ollowing prompts will continue.
If there are paired phones without
French name tags, the HFL
response is ‘‘Pour que le système
identif ie les téléphones qui ont été
jumelés dans une autre langue, les
noms des téléphones doivent être
ré-enregistrés.’’ The HFL response is, f or example,
‘‘Quel est le nom Français pour
Paul’s phone ?’’ Press and
release the Talk button. After the
beep, say ‘‘Téléphone de Paul.’’
The HFL response is, ‘‘Quel est le
nom Français pour Pat’s
phone ?’’ Press and release the
Talk button. Say ‘‘Téléphone de
Pat.’’ Af ter all paired phones
missing a French name tag are re-
recorded, the HFL will prompt,
‘‘Retour au menu principal.’’ Press and release the Talk button.
Af ter the beep, say ‘‘Changer
Langue.’’ The HFL response is,
‘‘Anglais ou Francais?’’
3.
4.
1.
To change f rom French to English, dothis:
CONT INUED
HandsFreeL ink
Features
215
NOTE:
TM
——
y

y
(%yy
Press and release the Talk button.
Af ter the beep, say ‘‘Anglais.’’ The
HFL response is, ‘‘You have
selected English. Name tags that
were stored while in French mode
will not be accessible in English
mode. Would you like to continue?
Vous avez selectionne Anglais. Les
noms enregistres en mode
Francais ne seront pas accessible
en mode Anglais. Voulez-vous
contnuez?’’
2.

»¼»
¼
Press and release the Talk button.
Af ter the beep, say ‘‘Yes or Oui.’’ If
there are no paired phones
without English name tags, the
HFL response is ‘‘Please wait
while the language is changed.
Venillez attendre que le systeme
change de langue.’’ ‘‘The language
has been changed. Returning to
the main menu.’’
If there are paired phones
without English name tags, the
f ollowing prompts will continue.
If there are paired phones without
English name tags, the HFL
response is ‘‘The language has
been changed. For the system to
identif y phones that were paired
while in another language, the
phone names need to be re-
recorded.’’ The HFL says, f or example, ‘‘What
is the English name f or
Téléphone de Paul ?’’ Press
and release the Talk button. After
the beep, say ‘‘Paul’s phone. ’’ The
HFL response is ‘‘What is the
English name f or Téléphone de
Pat ?’’ Press and release the Talk
button. After the beep, say ‘‘Pat’s
phone.’’ Af ter all paired phones
missing an English name tag are
re-recorded, the HFL will say
‘‘Returning to the main menu.’’ You cannot use the HFL while using
AcuraLink.
3.
4.
HandsFreeL ink
HFL L imitation
216
NOTE:
TM
——
y


y
(%y
y

AcuraLink enhances your ownership
experience by providing a direct
communication link between your
vehicleandtheAcuraServer.
Working through the XM radio
satellite, AcuraLink works in
conjunction with the navigation
system, HandsFreeLink (HFL), and
audio system in your vehicle. It
displays and receives several kinds
of messages, including:Operating tips and inf ormation on
your vehicle’s f eatures.
Important recall and safety
inf ormation.
Maintenance inf ormation to keep
your vehicle in top condition.
Diagnostic inf ormation to provide
inf ormation about any problems
with your vehicle.The touch panel controls most of the
AcuraLink f unctions.
On vehicles with navigation system
