Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.
Remove the cover from the fuse
box.

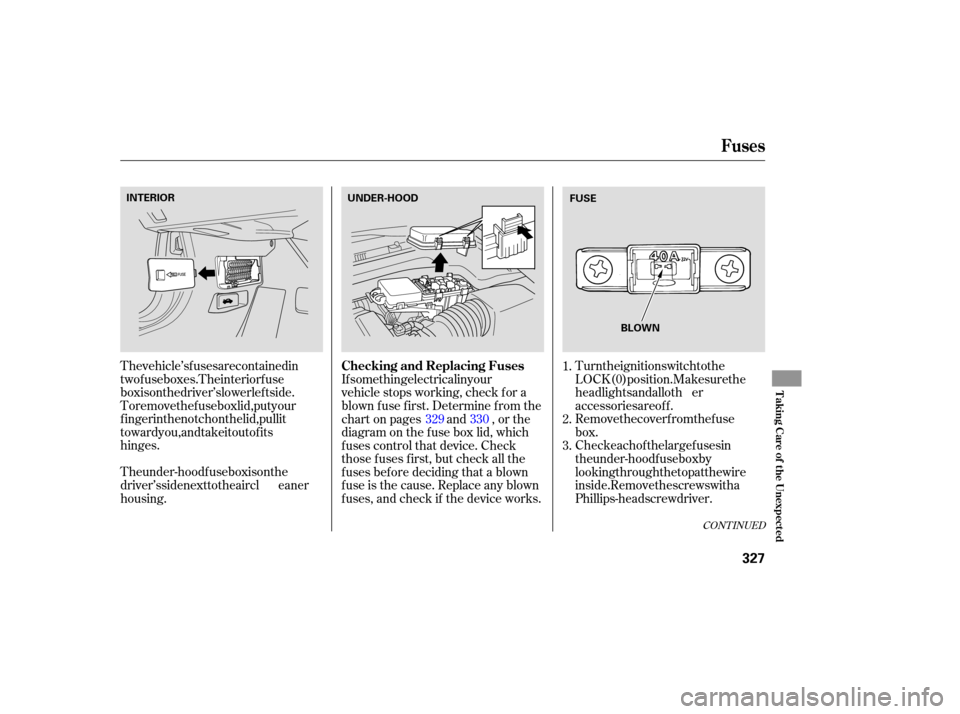

The vehicle’s fuses are contained in
two fuse boxes. The interior fuse
box is on the driver’s lower left side.
To remove the fuse box lid, put your
finger in the notch on the lid, pull it
toward you, and take it out of its
hinges.
The under-hood fuse box is on the
driver’s side next to the air cl
eaner
housing. Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wire
inside. Remove the screws with a
Phillips-head screwdriver.
If something electrical in your
vehicle
stops working, check for a
blown fuse first. Determine from the
chart on pages and , or the
diagram on the f use box lid, which
f uses control that device. Check
those fuses first, but check all the
f uses bef ore deciding that a blown
f use is the cause. Replace any blown
f uses, and check if the device works. 1.
2.
3.
329 330
CONT INUED
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
327
UNDER-HOOD
INTERIOR
FUSE
BLOWN
——
