Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
The display shows up to about 16
characters of selected text data (the
foldername,filename,etc.).If the
text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When you insert a disc, and the
system begins to play. Use the SEEK or SEEK button
while a disc is playing to select
passages and change tracks (f iles in
MP3/WMA mode).
Each time you press and
release the SEEK button, the
player skips f orward to the
beginning of the next track (f ile in
MP3 or WMA). Press and release
the SEEK button to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
When loading a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
T ext Dat a Display Funct ion T o Change or Select T racks/Files
SEEK
Audio System (Models without Navigation System)
148
\f—\f—
y


y
(%\fy\f
y
2008 TL

µµ µ
In MP3 or WMA mode
In MP3 or WMA mode
To take the system out of disc mode,
press the AM/FM button, or insert a
tape in the tape player. To return to
disc mode, press the DISC/TAPE
button.
If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .
This
feature, when activated, plays all
f iles in each f older in random order.
To activate folder random, press the
RDM button twice. You will see
F-RDM in the display. The system
will then select and play f iles
randomly. This continues until you
deactivate f older random by pressing
the RDM button again, or by
selecting a dif f erent f older with the
TUNE knob.
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press the
SCAN button. In MP3 or WMA
mode, press the SCAN button to
select SCAN. You will see SCAN in
the display. You will get a 10 second
sampling of each track/f ile on the
disc. Press the SCAN button again to
get out of scan mode and play the last track/f ile sampled.
This
feature, when activated, samples the
f irst f ile of each f older on the disc.
To activate folder scan, press the
SCAN button twice. You will see
F-SCAN in the display.
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the remaining
f olders f or 10 seconds each. Af ter
playing the f irst f ile of the last f older,
the system plays normally.
To turn folder scan off, press either
SEEK button, select a dif f erent
f older with the TUNE knob, or press
the SCAN button. To Stop Playing a Disc
FOLDER-RANDOM
SCA N (T RA CK /FIL E SCA N) F-SCAN (FOLDER SCAN)
Audio System (Models without Navigation System)
150
\f—\f—
y


y
(%\fy\f
y
2008 TL

Û
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. The
indicates the side you inserted
upward is now playing. If you want to
play the other side, press the PLAY/
PROG (preset 2) button. When the
player reaches the end of the tape, it
will automatically reverse direction
and play the other side.
Audio System (Models without Navigation System)
Playing a T ape
152

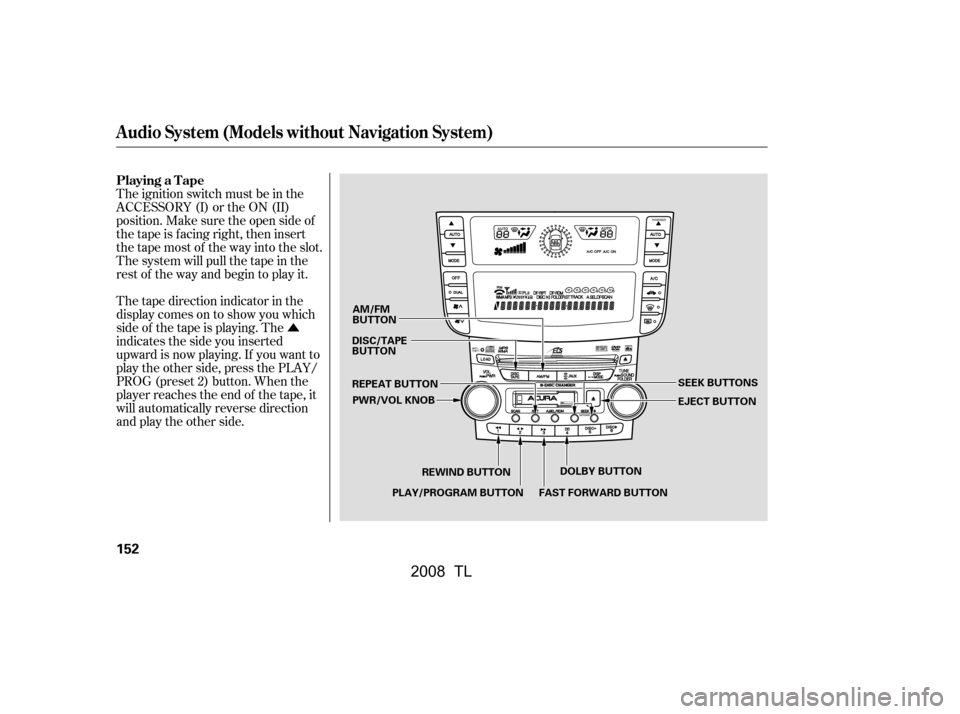

EJECT BUTTON
REWIND BUTTON DOLBY BUTTON
PLAY/PROGRAM BUTTON
DISC/TAPE
BUTTON
AM/FM
BUTTON
PWR/VOL KNOB
REPEAT BUTTON
FAST FORWARD BUTTONSEEK BUTTONS
\f—\f—
y


y
(%\fy\f
y
2008 TL

Î
Î
µ
µµ ´
µ
Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the (preset 4) button. Dolby
remains of f until you press the
button again. To remove the tape, press the eject
button. If you want to turn the player
of f , press the power/volume knob or
turn off the ignition. The tape will
remain in the drive. When you turn
the system back on, the tape will
begin playing where it lef t of f . To rewind the tape,
push the (preset 1) button. You
will see REW in the display. To f ast
f orward the tape, push the (preset 3) button. You will see
FF displayed. Press the , ,
or PLAY/PROG button to take the
system out of rewind or f ast f orward.
Press the SEEK button
to f ind the beginning of the current
song or passage. Press the SEEK
button to f ind the beginning of the
next song or passage. When the
system reaches the beginning of a
song or passage, it begins to play it.
Press the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
To switch to the AM/FM radio, XM
Radio, or disc changer while a tape is
playing, press the AM/FM button,
XM button, or DISC/TAPE button.
To change back to the tape player,
press the DISC/TAPE button.
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
CONT INUED
T o Stop Playing a T ape T ape Search Functions FF/REW
SK IP
REPEAT
Audio System (Models without Navigation System)
Features
153
\f—\f—
y

y
(%\fy\f
y
2008 TL

The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam in the drive.If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Store tapes in their cases to protect
them f rom dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
Never try to insert f oreign objects
into the tape player.
Caring f or the Player and Tapes
Audio System (Models without Navigation System)
154
NOTE:
\f—\f—
y

y
(%\fy\f
y
2008 TL

´µ
µ ´
µ
¼
Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
The display shows up to about 16
characters of selected text data (the
foldername,filename,etc.).If the
text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When you insert a disc, and the
system begins to play.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name. Use the SEEK or SEEK button
while a disc is playing to select
passages and change tracks (f iles in
MP3/WMA mode).
Each time you press and
release the SEEK button, the
player skips f orward to the
beginning of the next track (f ile in
MP3 or WMA). Press and release
the SEEK button to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
T ext Dat a Display Funct ion T o Change or Select T racks/Files
SEEK
Audio System (Models with Navigation System)
168
\f—\f—
y


y
(%\fy\f
y
2008 TL

ÛÝ
If the disc was not recorded with text
data, only the track number is shown.
To scroll through the display, touch
the or icononthesideof
thedisplay.Togobacktothe
previous display, touch the Return
icon on the display.
Select the desired track/f ile by
touching the icon on the display. The
selected icon will be highlighted in
blue. The system begins to play the
selected track/f ile. With a disc in
MP3 or WMA, touch the f older icon
on the upper lef t of the screen to
move to the parent folder. The
current f older is highlighted in blue. To take the system out of disc mode,
press the AM/FM button, or insert a
tape in the tape player. To return to
disc mode, press the DISC/TAPE
button.
If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .
You can also select a track/f ile
directly f rom a track list on the audio
display. Touch the TRACK LIST
icon. The track list menu appears on
the audio display.
When playing a CD recorded with
text data, each track name is shown
on the audio display. With a disc
recorded in MP3 or WMA, the f older
number and the location are also
displayed.
Using a T rack L ist T o Stop Playing a Disc
Audio System (Models with Navigation System)
Features
171
FOLDER ICON TRACK FILE ICON
FOLDER NUMBER RETURN ICON
\f—\f—
y

y
(%\fy\f
y
2008 TL

The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. Theindicates the side you inserted
upward is now playing. If you want to
play the other side, press the PLAY/
PROG (preset 2) button or touch the or icon. When the player
reaches the end of the tape, it will
automatically reverse direction and
play the other side.
CONT INUED
Audio System (Models with Navigation System)
Playing a T ape
Features
173

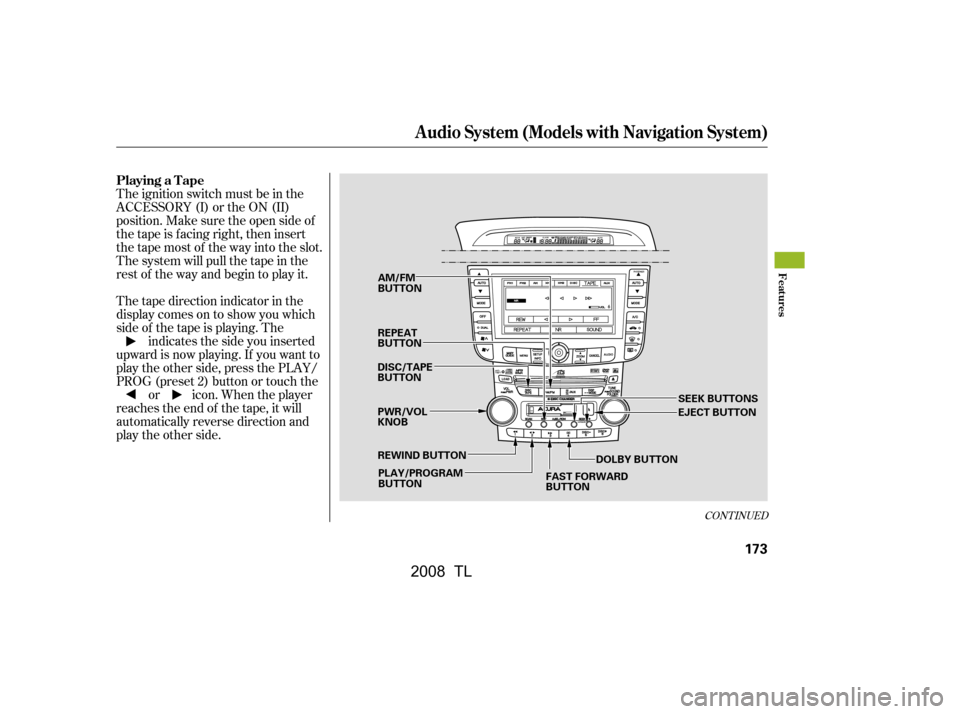

REWIND BUTTON AM/FM
BUTTON
DISC/TAPE
BUTTON PWR/VOL
KNOB
REPEAT
BUTTON
FAST FORWARD
BUTTON
PLAY/PROGRAM
BUTTON DOLBY BUTTONEJECT BUTTON
SEEK BUTTONS
\f—\f—
y

y
(%\fy\f
y
2008 TL

Î
µ
µµ ´
Î
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
To remove the tape, press the eject
button. If you want to turn the player
of f , press the power/volume knob or
turn off the ignition. The tape will
remain in the drive. When you turn
the system back on, the tape will
begin playing where it lef t of f . To rewind the tape,
push the (preset 1) button or
touch the REW on the audio screen.
You will see REW in the display. To
fast forward the tape, push the (preset 3) button or touch the
FF icon. You will see FF displayed.
Press the , , or PLAY/
PROG button or touch the REW, FF,
or icon to take the system
outofrewindorfastforward.
Dolby noise reduction turns on
when you insert a tape. The ‘‘NR’’
indicator will come on in the display.
If the tape was not recorded in Dolby,
turn it of f by pressing the
(preset 4) button or touch the
NR icon. Dolby remains of f until you
press the button again.
Press the SEEK button
to f ind the beginning of the current
song or passage. Press the SEEK
button to f ind the beginning of the
next song or passage. When the
system reaches the beginning of a
song or passage, it begins to play it.
To switch to the AM/FM radio, XM
Radio, or disc changer while a tape is
playing, press the AM/FM button,
XM button, or DISC/TAPE button.
To change back to the tape player,
press the DISC/TAPE button.
T o Stop Playing a T ape T ape Search Functions
FF/REW
SK IP
Audio System (Models with Navigation System)
174
\f—\f—
y

\fy
(%\fy\f
y
2008 TL

µThetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam in the drive. If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Store tapes in their cases to protect
them f rom dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
Never try to insert f oreign objects
into the tape player.
Press the RPT button
or touch the REPEAT icon on the
audio display to continuously play a
song or passage. You will see RPT
displayed. The track will repeat until
you press the button or touch the
icon again.
The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. Caring f or the Player and Tapes
REPEAT
Audio System (Models with Navigation System)
Features
175
NOTE:
\f—\f—
y



y
(%\fy\f
\fy
2008 TL
