TPMS Acura TL 2008 Owner's Manual

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
57
VSA ACTIVATION
INDICATORLOW OIL PRESSURE INDICATOR
CRUISE MAIN INDICATOR
SEAT BELT REMINDER INDICATOR
CRUISE CONTROL INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
HIGH BEAM
INDICATOR
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
INDICATOR
CHARGING
SYSTEM
INDICATOR
DAYTIME RUNNING
LIGHT INDICATOR MESSAGE
INDICATOR
LOW FUEL
INDICATOR ANTI-LOCK BRAKE SYSTEM INDICATOR
FOG LIGHT INDICATOR MULTI-INFORMATION
DISPLAY PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
MALFUNCTION INDICATOR
(P.59,331)
(P.59) (P.61)
(P.61) (P.63)
(P.62) (P.59)
(P.64)
(P.63)
(P.66)
(P.62)
SIDE AIRBAG OFF
INDICATOR(P.61)
(P.58)
(P.61)
(P.60)
(P.60)
(P.59) (P.60)
(P.62) LOW TIRE PRESSURE/
TPMS INDICATOR
(P.64)
LIGHTS ON INDICATOR
IMMOBILIZER SYSTEM INDICATOR
(P.63)
 — —
y
y
(% y  y
2008 TL

This indicator comes on when there
is a system message on the multi-
inf ormation display. Press the INFO
button on the steering wheel (see
page ) to see the message (see
page ).
Most of the time, this indicator
comes on along with other indicators
in the instrument panel such as the
seat belt reminder indicator, SRS
indicator, VSA system indicator, etc.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator has two f unctions:
If this indicator begins to f lash,
there is a problem with the tire
pressure monitoring system
(TPMS). You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display. The indicator continues to
f lash f or a while (approximately 1
minute), then stays on. If this
happens, have your dealer check
the system as soon as possible.
For more inf ormation, see page.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure on the multi-
inf ormation display, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service.
For more inf ormation, see page .
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
You will also see a ‘‘CHECK TIRE
PRESSURE’’ message on the
multi-inf ormation display (see
page ).
Check the tire pressure monitor
on the multi-information display
and determine the cause (see page
). 66
68
1.
2.
275 319
272
274
273 Message Indicator
Low Tire Pressure/
TPMS Indicator
Instrument Panel Indicators
64
\f—\f—
y
\f\fy
(%\fy\f\fy
2008 TL

When the tire pressure monitoring
system (TPMS) is f unctioning
normally and the tires are properly
inf lated, you will see the above
display on the multi-inf ormation
display as it cycles through its main
menu.To see the inf lation pressures of all
f our tires, press the SEL/RESET
button. The display changes as
shown above.
Each tire pressure is shown in PSI
(U.S. models) or in kPa (Canadian
models).If one or more of your vehicle tires
are low on pressure, you will see a
‘‘CHECK TIRE PRESSURE’’
message in the display.
If there is a problem with the TPMS,
you will see a ‘‘CHECK TPMS
SYSTEM’’ message.
See page through f or more
inf ormation.
272 276
Multi-Inf ormation Display
Tire Pressure Monitor
Inst rument s and Cont rols
75
U.S.
Canada
 — —
y
 y
(% y   y
2008 TL

This section gives you tips on
starting the engine under various
conditions, and how to operate the
manual and the automatic
transmission. It also includes
important inf ormation on parking
your vehicle, the braking system, the
vehicle stability assist (VSA) system
and the tire pressure monitoring
system (TPMS).........................
Preparing to Drive .252
.......................
Starting the Engine .253
...................
Manual Transmission .256
..............
Automatic Transmission .259
...........................................
Parking .266
.............................
Braking System .267
...............
Anti-lock Brakes (ABS) .268
Vehicle Stability Assist (VSA)
........................................
System .270
Tire Pressure Monitoring ........................
System (TPMS) .272
...........................
Towing a Trailer .276
Driving
Driving
251
\f—\f—
y
y
(%\fy\fy
2008 TL

Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes signif icantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure/TPMS indicator in the
instrumental panel and the
appropriate tire position indicator on
thetirepressuremonitoronthe
multi-inf ormation display (see page)tocomeon. When the low tire pressure/TPMS
indicator is on, one or more of your
tires is signif icantly underinf lated.
The multi-inf ormation display also
shows a ‘‘CHECK TIRE PRESSURE’’
message (see page ). You should
stop and check your tires as soon as
possible, and inflate them to the
proper pressure as indicated on the
vehicle’s tire inf ormation placard.
Driving on a signif icantly under-
inf lated tire causes the tire to
overheat and can lead to tire failure.
Under-inf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Becausetirepressurevariesby
temperature and other conditions,
the low tire pressure/TPMS
indicator may come on unexpectedly. For example, if you check and f ill
your tires in a warm area, then drive
in extremely cold weather, the tire
pressure will be lower than
measured and could be underinflated
and cause the low tire pressure/
TPMS indicator to come on. Or, if
youcheckandadjustyourtire
pressure in cooler conditions, and
drive into extremely hot conditions,
the tire may become overinf lated.
However, the low tire pressure/
TPMS indicator will not come on if
the tires are overinflated.
Refer to page for tire inflation
guidelines.
If there is a problem with the TPMS,
this indicator begins to f lash. It stops
flashing after approximately 1
minute, then stays on. You will also
see a ‘‘CHECK TPMS SYSTEM’’
message on the multi-information
display (see page ).
273 274
306
275
Tire Pressure Monitoring System (TPMS)
Low Tire Pressure/
TPMS Indicator
272
\f—\f—
y
y
(%\fy\fy
2008 TL

CONT INUED
Toselectthetirepressuremonitor,
press the INFO button several times
with the ignition switch in the ON
(II) position.
You will see the above display on the
multi-inf ormation display when all
tire pressures are normal.To see the inf lation pressures of all
f our tires, press the SEL/RESET
buttononthesteeringwheel.The
display changes as shown above.
Although your tire pressure is
monitored, you must manually check
thetirepressuresmonthly.
Each tire, including the spare, should
be checked monthly when the
vehicle is cold, and set to the
recommended inf lation pressure as
specif ied on the vehicle placard and
intheowner’smanual(seepage
).
If you think you can saf ely drive a
short distance to a service station,
proceed slowly to the station, then
inflate the tire to the recommended
pressure shown on the driver’s
doorjamb.
If the tire is f lat, or if the tire
pressure is too low to continue
driving, replace the tire with the
compact spare tire (see page ). Each tire pressure is shown in PSI
(U.S. models) or in kPa (Canadian
models).
319
308
Tire Pressure Monitoring System (TPMS)
Tire Pressure Monitor
Driving
273
U.S. model
\f—\f—
y
y
(%\fy\fy
2008 TL

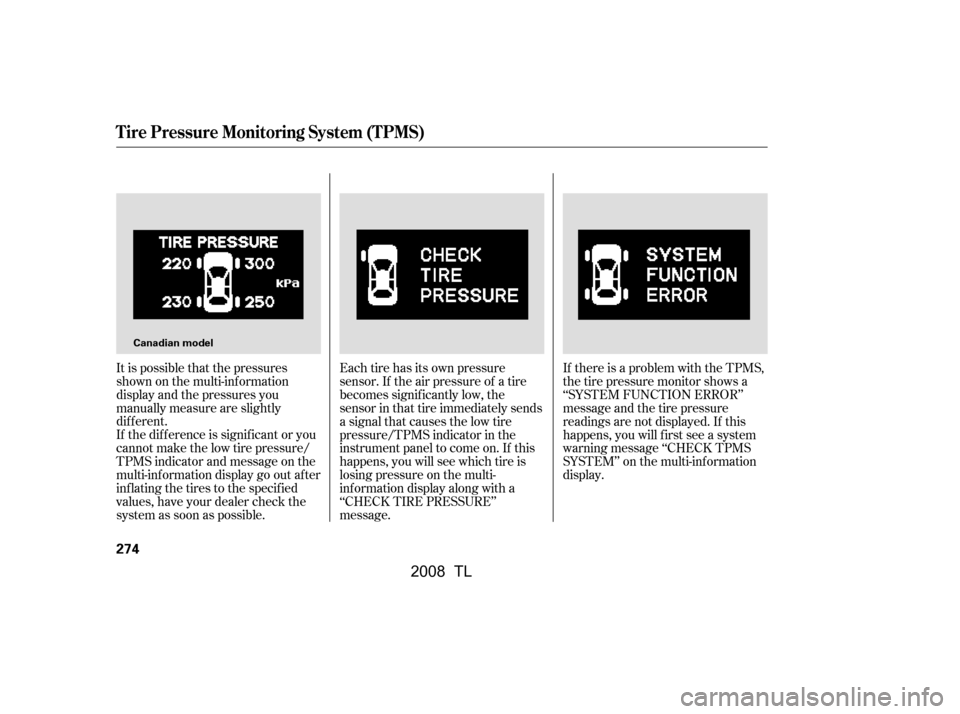

Each tire has its own pressure
sensor. If the air pressure of a tire
becomes signif icantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure/TPMS indicator in the
instrument panel to come on. If this
happens, you will see which tire is
losing pressure on the multi-
inf ormation display along with a
‘‘CHECK TIRE PRESSURE’’
message.If there is a problem with the TPMS,
thetirepressuremonitorshowsa
‘‘SYSTEM FUNCTION ERROR’’
message and the tire pressure
readings are not displayed. If this
happens, you will f irst see a system
warning message ‘‘CHECK TPMS
SYSTEM’’ on the multi-inf ormation
display.
It is possible that the pressures
shown on the multi-inf ormation
display and the pressures you
manually measure are slightly
dif f erent.
If the dif f erence is signif icant or you
cannot make the low tire pressure/
TPMS indicator and message on the
multi-inf ormation display go out af ter
inf lating the tires to the specif ied
values, have your dealer check the
system as soon as possible.
Tire Pressure Monitoring System (TPMS)
274
Canadian model
\f—\f—
y
y
(%\fy\fy
2008 TL

CONT INUED
If there is a problem with the TPMS,
you will see the above message on
the multi-information display.
Also, the low tire pressure/TPMS
indicator begins to f lash, then stays
on (see page ).
If you see this message, the system
is of f and is not monitoring the tire
pressures. Have the system checked
by your dealer as soon as possible.If you have a f lat tire, the low tire
pressure/TPMS indicator and tire
monitor indicator will come on.
Replace the indicated f lat tire with
thecompactsparetire(seepage
).
After the flat tire is replaced with the
spare tire, the low tire pressure/
TPMS indicator stays on while
driving. Af ter several miles
(kilometers) driving, this indicator
begins to f lash, then stays on again.
You will also see a ‘‘CHECK TPMS
SYSTEM’’ message on the multi-
inf ormation display. This is normal;
the system cannot monitor the spare
tire pressure. Manually check the
spare tire pressure to be sure it is
correct. This indicator and the warning
message on the multi-information
display will go of f , af ter several miles
(kilometers) driving, when the spare
tire is replaced with the specified
regular tire equipped with the tire
pressure monitor sensor.
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specif ic wheels. It is
recommended that you always have
your tires serviced by your dealer or
a qualif ied technician.
272 319
Tire Pressure Monitoring System (TPMS)
TPMS System Failure Changing a Tire with TPMS
Driving
275
\f—\f—
y
y
(%\fy\f\fy
2008 TL

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Your vehicle is not designed to tow a
trailer. Attempting to do so can void
your warranties.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
When you restart the vehicle with
thecompactsparetire,theTPMS
system message will also be
displayed on the multi-inf ormation
display af ter several miles
(kilometers) driving.
If the low tire pressure/TPMS
indicator and the low tire position on
the low tire pressure monitor do not
go out after inflating the tires to the
specified values, have your dealer
check the system as soon as possible.
Tire Pressure Monitoring System (TPMS), Towing a Trailer
Towing a Trailer
276
\f—\f—
y
y
(%\fy\f
y
2008 TL

CONT INUED
The tire pressure monitoring system
(TPMS) warns you when a tire
pressure is low. See page f or
more inf ormation.
Even though your vehicle is
equipped with TPMS, we
recommend that you visually check
your tires every day. If you think a
tire might be low, check it
immediately with a tire gauge.
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf /cm ) per
month.
Remember to check the spare tire at
thesametimeyoucheckallthe
other tires.Check the air pressures when the
tires are cold. This means the
vehicle has been parked f or at least 3
hours, or driven less than 1 mile (1.6
km). Add or release air, if needed, to
match the recommended cold tire
pressures.
If you check air pressure when the
tires are hot [driven f or several miles
(kilometers)], you will see readings 4
to6psi(30to40kPa,0.3to0.4
kgf /cm ) higher than the cold
readings. This is normal. Do not let
air out to match the recommended
cold air pressure. The tire will be
underinf lated.
While tubeless tires have some
ability to self -seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
Youshoulduseyourowntire
pressure gauge whenever you check
your tire pressures. This will make it
easier f or you to tell if a pressure
loss is due to a tire problem and not
due to a variation between gauges.
272
Tires
Maint enance
307
\f—\f—
y
y
(%\fy\f
y
2008 TL
