The component parts in the engine
compartment are protected by
several covers. You may need to
remove the covers when you
perf orm some simple maintenance
work.When reinstalling the covers, make
sure the pins and tabs are in their
proper positions.
To remove the covers:
Remove the right and lef t engine
compartment covers by sliding
them apart.
Pull the bulkhead cover straight
uptoremove.Whenremovingthe
cover, make sure to move the
bulkhead cover slightly to the lef t
so that the hood latch handle does
not get in the way.
Af ter replacing the right engine
compartment cover, make sure the
washer f luid cap is f irmly in place. 1.
2.
Engine Compartment Covers
508
RIGHT ENGINE COMPARTMENT
COVER
BULKHEAD COVER LEFT ENGINE COMPARTMENT COVER
09/07/29 18:28:03 31TK4610_513
2010 TL

Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustmentsshouldbedonebyyour
dealer or another qualif ied
technician.Your vehicle has halogen high beam
headlight bulbs which are also used
f or the daytime running light.
Handle it by its base and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Open the hood.
Remove all engine compartment
covers (see page ). If youarereplacingthebulbon
the driver’s side, remove the three
holding clips with a f lat-tip
screwdriver. Then remove the
upper part of the air intake duct by
pulling it straight up.
The low beam headlight bulbs are a
type of high voltage discharge tube.
High voltage can remain in the
circuit even with the light switch of f
and the key removed (or the vehicle
is in VEHICLE OFF (LOCK) mode
on models with keyless access
system). Because of this, you should
not attempt to examine or change a
low beam headlight bulb yourself . If
a low beam headlight bulb fails, take
the vehicle to your dealer to have it
replaced.
1.
2.
508
CONT INUED
Headlight A iming
L ow Beam Headlight Bulb
Replacement Replacing a High Beam
Headlight/Daytime Running
Light Bulb
Lights
Maint enance
521
HOLDING CLIP
Halogen bulbs get very hot when lit. Oil,
perspiration, or a scratch on the glass
can cause the bulb to overheat and
shatter.
09/07/29 18:30:32 31TK4610_526
2010 TL

Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
To change a bulb on the
passenger’s side, remove the
engine coolant reserve tank by
pulling it out of its stay. Turn on the headlights to test the
new bulb.
Install the upper part of the air
intake duct securely. Reinstall the
holding clips. (Driver’s side)
Install all engine compartment
covers. Install the engine coolant reserve
tank. (Passenger’s side)
4.
5. 6.
7.
8.
3. 9.
10.
Lights
522
RESERVE TANK BULB
CONNECTOR
STAY
09/07/29 18:30:47 31TK4610_527
2010 TL

Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Use a f lat-tip screwdriver to
remove the holding clips f rom the
edge of the inner f ender cover,
and pull the inner f ender cover
back. 3.
2.
1.
CONT INUED
Replacing the Front Side Marker
Light Bulb
Lights
Maint enance
523
HOLDING CLIP
HOLDING
CLIP SPOILER
BOLTS
09/07/29 18:30:56 31TK4610_528
2010 TL

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.
Remove the bulb by pulling it
straight out of its socket. Install the new bulb in the socket
by pushing it straight in the socket
until it bottoms.
Insert the socket into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Push the under cover in place and
set the spoiler and inner f ender
cover in the original position.
Install the bolts and tighten them
securely. Put the holding clip, and
lock it by pushing on its center.
4.
5. 6.
7.
8.
1.
9. Replacing a Front T urn Signal/
Parking L ight Bulb
Lights
524
SOCKET
BULB
09/07/29 18:31:06 31TK4610_529
2010 TL

Remove the socket f rom the light
assembly by turning it one-quarter
turn counterclockwise.
Remove the bulb f rom the socket
bypushingitinandturningit
counterclockwise until it unlocks.
Use a f lat-tip screwdriver to
remove the three holding clips
f rom the inner f ender.
Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Pull down the under cover f rom
the bumper caref ully.
3.
2. 4.
5.
CONT INUED
Lights
Maint enance
525
HOLDING CLIP
SOCKET
BULB
COVER
HOLDING
CLIP
SPOILER
BOLTS
09/07/29 18:31:17 31TK4610_530
2010 TL

Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket into the light
assembly. Turn it clockwise to
lock it in place.Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth. Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.
Thefoglightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment should be done by your
dealer or another qualif ied
technician.
Turn on the lights to make sure
the new bulb is working.
Push the under cover in place and
set the spoiler and inner f ender
cover in the original position.
Install the bolts and tighten them
securely. Put the holding clip, and
lock it by pushing on its center.
6.
7.
8.
9.
1.
Replacing a Front Fog L ight Bulb
Lights
526
Halogen bulbs get very hot when lit. Oil,
perspiration, or a scratch on the glass
can cause the bulb to overheat and
shatter.
09/07/29 18:31:27 31TK4610_531
2010 TL

Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it
about one-quarter turn
counterclockwise.
Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Pull down the under cover f rom
the bumper caref ully.
Use a f lat-tip screwdriver to
remove the three holding clips
f rom the inner f ender.
4.
5.
3.
2.
CONT INUED
Lights
Maint enance
527
HOLDING
CLIP
CONNECTOR
BOLTS
HOLDING CLIP
COVER BULB
SPOILER
09/07/29 18:31:38 31TK4610_532
2010 TL

Remove the nuts f rom the stud
bolts with a socket or wrench.
Open the trunk.
Remove the screw in the center of
theholdingcliponthesideof the
trunk lining. Pull the lining back.
Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the f og lights to test the
new bulb.
Push the under cover in place and
set the spoiler and inner f ender
cover in the original position.
Install the bolts and tighten them
securely. Put the holding clip, and
lock it by pushing on its center.
1.
2.
6.
7.
8.
9.
Lights
Replacing Rear Bulbs
528
SCREW
NUTS
09/07/29 18:31:49 31TK4610_533
2010 TL

Push a new bulb straight into the
socket until it bottoms, and
reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.
Put the holding clip into the hole
on the side of the trunk lining.
Reinstall the screw.
Determine which of the three
bulbs is burned out: back-up light,
turn signal, or side marker.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.
Pull the taillight assembly straight
back out of the body. 6.
7.
8.
9.
5. 4.
3.
Lights
Maint enance
529

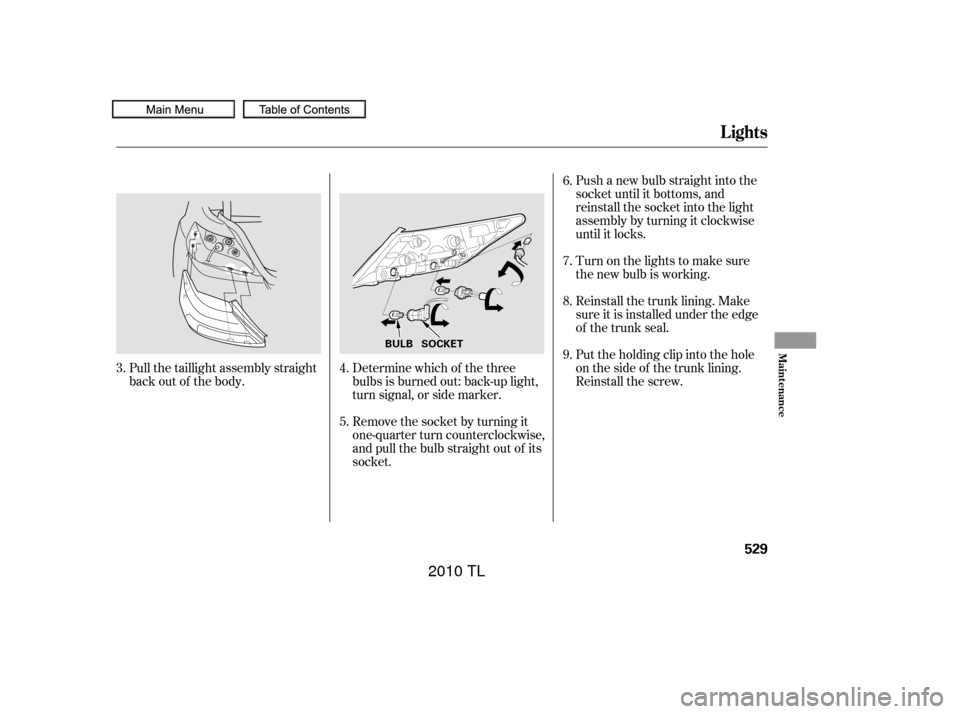

BULB SOCKET
