This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .62
............................
Instrument Panel .63
..........
Instrument Panel Indicators . 64
.............................................
Gauges .75
..................................
Fuel Gauge .75
...................
Temperature Gauge . 76
.............
Multi-Inf ormation Display . 77
Controls Near the Steering .........................................
Wheel .130
Windshield Wipers and .....................................
Washers .131
.......
Turn Signals and Headlights . 133
Automatic Lighting Off ...................................
Feature .135
.........
Daytime Running Lights . 136
.....................................
Fog Lights .137
......
Instrument Panel Brightness . 137
...............
Hazard Warning Button . 139
...............
Rear Window Def ogger . 139
......
Steering Wheel Adjustments . 140
.............................
Keys and Locks .141
......................
Immobilizer System .143
..............................
Ignition Switch .145
....................................
Door Locks .146
............
Childproof Door Locks . 147..............................................
Trunk .148
......
Emergency Trunk Opener . 150
.....................
Remote Transmitter .151
...............................................
Seats .155
......
Trunk Pass-through Cover . 160
...........................................
Mirrors .161
Driving Position Memory ........................................
System .164
................
Keyless Access System . 167
...........
Keyless Access Remote . 173
........
Engine Start/Stop Button . 177
..................................
Seat Heaters .196
............................
Power Windows .198
.......................................
Moonroof .202
...............................
Parking Brake .204
.........
Interior Convenience Items . 205
.....................
Beverage Holders .206
........
Accessory Power Sockets . 207
..................................
Glove Box .208
.............
Console Compartment . 208
............................
Vanity Mirror .209
...................................
Sun Visor .209
...........................
Center Pocket .210
....................
Sunglasses Holder .210
..................................
Coat Hook .211
...............................
Interior Lights .211
Instruments and Controls
Inst rument s and Cont rols
61
09/07/29 16:52:42 31TK4610_066
2010 TL

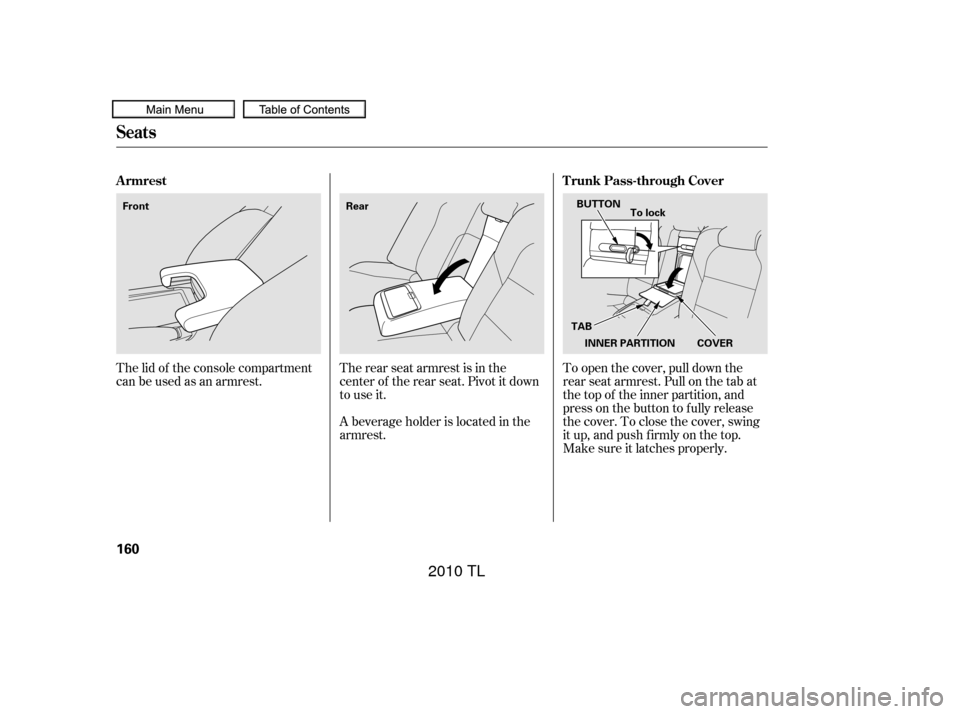

The lid of the console compartment
canbeusedasanarmrest.The rear seat armrest is in the
center of the rear seat. Pivot it down
to use it.
A beverage holder is located in the
armrest.To open the cover, pull down the
rear seat armrest. Pull on the tab at
the top of the inner partition, and
press on the button to f ully release
the cover. To close the cover, swing
it up, and push f irmly on the top.
Make sure it latches properly. T runk Pass-through Cover
Armrest
Seats
160
Front Rear
TABINNER PARTITION COVER
BUTTON
To lock
09/07/29 17:09:17 31TK4610_165
2010 TL

Interior Convenience Items
Inst rument s and Cont rols
205
CONSOLE COMPARTMENTSIDE POCKETSUN VISOR
VANITY MIRROR
SUNGLASSES HOLDER
REAR DOOR POCKET USB ADAPTER
CABLE
ACCESSORY POWER SOCKETGLOVE BOX
CENTER POCKET
ACCESSORY POWER SOCKET
COAT HOOK
FRONT DOOR POCKET with BEVERAGE HOLDER
BEVERAGE HOLDER
CARGO HOOKS BEVERAGE HOLDER in REAR
SEAT ARMRESTAUXILIARY INPUT JACK
09/07/29 17:17:01 31TK4610_210
2010 TL

Pushing this button also turns the
power mirror heaters on and of f .This button directs the main airflow
to the windshield for faster
def rosting. It also overrides any
mode selection you may have made.
Air f lows f rom the f loor
vents.
This button turns the rear window
def ogger on and of f (see page ).
Thedriver’ssidemodeandthe
passenger’s side mode can be
selected separately. Use the
appropriate mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard vents in all modes.
Airf low is divided between
the f loor and corner vents and the
defroster vents at the base of the
windshield.
This mode can only be selected f rom
the driver’s side, however the
passenger’s side controls can still
change the temperature. When you select , the system
automatically switches to f resh air
mode and turns on the A/C. For
f aster def rosting, the f an speed
automatically increases. You can also
increase airf low to the windshield by
closing the corner vents on the
dashboard. To close the vents, rotate
the wheel on the side of each corner
vent.
When you turn of f by
pressing the button again, the
system returns to its former settings. Select to help clear the rear
window.
Airf low is divided between
the vents in the dashboard and the
back of the center console, and the
f loor vents.
Air flows from the center
and corner vents in the dashboard,
and the vents on the back of the
center console.
Each time you press the mode
control button, the display shows the
mode selected.
139
CONT INUED
Rear Window Def ogger But t on
Windshield Def rost er But t on
Mode Cont rols
Climate Control System
Features
221
09/07/29 17:20:10 31TK4610_226
2010 TL

Your vehicle has several convenient
storage areas:Glove box
Door and seat-back pockets
Trunk Console compartment
Center and side pockets
In addition, the trunk pass-through
allows you to carry longer items.
However, carrying too much cargo,
or improperly storing it, can af f ect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsaf e. Bef ore carrying any
type of cargo, be sure to read the
f ollowing pages.
Carrying Cargo
Bef ore Driving
455
TRUNK SEAT-BACK
POCKETS CENTER POCKET
GLOVE BOX
CONSOLE
COMPARTMENT
DOOR POCKETS
SIDE
POCKET
