Voice Command Index
Navigation System171
Fan speed up
Fan speed down
Fan speed # (#:1-7) (for best voice
control, lower the fan speed)
Driver temperature # degrees
(#: 57 - 87 degrees F)
Passenger temperature # degrees (#: 57 - 87 degrees F)
Driver temperature up
Driver temperature down
Passenger temperature up
Passenger temperature down
Driver temperature max hot
Driver temperature max cold
Passenger temperature max hot
Passenger temperature max cold Radio Voice Commands
The system accepts these commands on
most screens.
Audio on*
Audio off*
Audio
Radio on*
Radio off*
Radio
Radio select FM1
Radio select FM2
Radio select AM
Radio tune to # FM (#: frequency. Example Radio 95.5 FM)
Radio tune to # AM (#: frequency. Example Radio 1020 AM)
Radio seek up
Radio seek down
Radio next station
Radio preset # (#: 1-6)
Radio FM preset # (#: 1-6)
Radio FM1 preset # (#: 1-6)
Radio FM2 preset # (#: 1-6)
Radio AM preset # (#: 1-6)
Radio auto select*
Radio scan*
Radio select XM1
Radio select XM2 XM channel # (#: 1-255)
XM channel up
XM channel down
XM category up
XM category down
XM preset # (#: 1-6)
XM1 preset # (#: 1-6)
XM2 preset # (#: 1-6)
XM scan*
XM category scan*
XM channel scan*
XM category mode
XM channel mode
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
NOTE:
Radio volume levels cannot be
controlled using voice control. Use
the buttons on your steering wheel.
See your owner’s manual for more
information.

Voice Command Index
172 Navigation System

Disc Voice Commands
The system accepts these commands on
most screens.
DISC play
DISC play track # (#: 1-30)
DISC skip forward
DISC skip back
DISC track random*
DISC track repeat*
DISC track scan
DISC folder up
DISC folder down
DISC folder random*
DISC folder repeat*
DISC folder scan*
DISC normal play (resumes “Play” from these commands: “DISC
track random,” “DISC track
repeat,” and “DISC track scan”)
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
HDD Voice Commands
The system accepts these commands on
most screens.
HDD play
HDD play track # (#:1-30)
HDD skip forward
HDD skip back
HDD album up
HDD album down
HDD genre up
HDD genre down
HDD artist up
HDD artist down
HDD track up
HDD track down
HDD playlist up
HDD playlist down
HDD track repeat*
HDD track scan*
HDD track random*
HDD normal play (resumes “Play” from the random-, repeat-, or
scanplay)
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
AUX Voice Commands
The system accepts these commands on
most screens.
AU X pl ay
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.

Voice Command Index
Navigation System173
USB Voice Commands
The system accepts these commands on
most screens.
USB play
USB play track # (#:1-30)
USB skip forward
USB skip back
USB track random*
USB track repeat*
USB track scan*
USB folder up
USB folder down
USB folder random*
USB folder repeat*
USB folder scan*
USB normal play
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
iPod Voice Commands
The system accepts these commands on
most screens.
iPod play
iPod play track # (#:1-30)
iPod skip forward
iPod skip back
iPod track shuffl e*
iPod album shuffl e*
iPod track repeat*
iPod normal play (resumes “Play” from the shuffl e- or repeat-play)
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
Bluetooth® Audio Commands
The system accepts these commands on
most screens.
Bluetooth AUDIO play
Bluetooth AUDIO skip forward
Bluetooth AUDIO skip back
Bluetooth AUDIO pause
Bluetooth AUDIO resume
Bluetooth AUDIO group up
Bluetooth AUDIO group down
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.

Voice Command Index
174 Navigation System
Song By Voice™ Commands
The system accepts these commands on
most screens.
iPod Search (activates Song By Vo i c e™ )
HDD Search (activates Song By Vo i c e™ )
What/Who am I listening to?
Who is this?
What’s playing?
Who’s playing?
What album is this?
List album (specify album)
List artist (specify artist)
List composer (specify composer)
List genre (specify genre)
List playlist (specify playlist)
Play album (specify album)
Play artist (specify artist)
Play composer (specify composer)
Play genre (specify genre)
Play playlist (specify playlist)
Play song (specify song)
Cellular Phone Commands
The system accepts these commands on
any screen.
Dial/Call by number
Dial/Call by voice tag
NOTE:
Voice tags can be recorded for each of
your speed dial entries. Please see your
owner’s manual for storing speed dial
and voice tags.
Voice Command Index
SET
UP Screen (Main Set up)
Commands
The system accepts these commands
on SET UP screen (Main Set up ).
(For SET UP screen (Other), simply
say what is written on the screen, and
follow the voice prompts)
Brightness up
Brightness down
Brightness minimum/min.
Brightness maximum/max.
Contrast up
Contrast down
Contrast minimum/min.
Contrast maximum/max.
Black level up
Black level down
Black level minimum/min.
Black level maximum/max.
Vo l u m e u p
Vo l u m e d o w n
Volume minimum/min.
Volume maximum/max.
Vo l u m e o f f
Interface dial feedback off
Interface dial feedback auto
Interface dial feedback on

Voice Command Index
Navigation System175

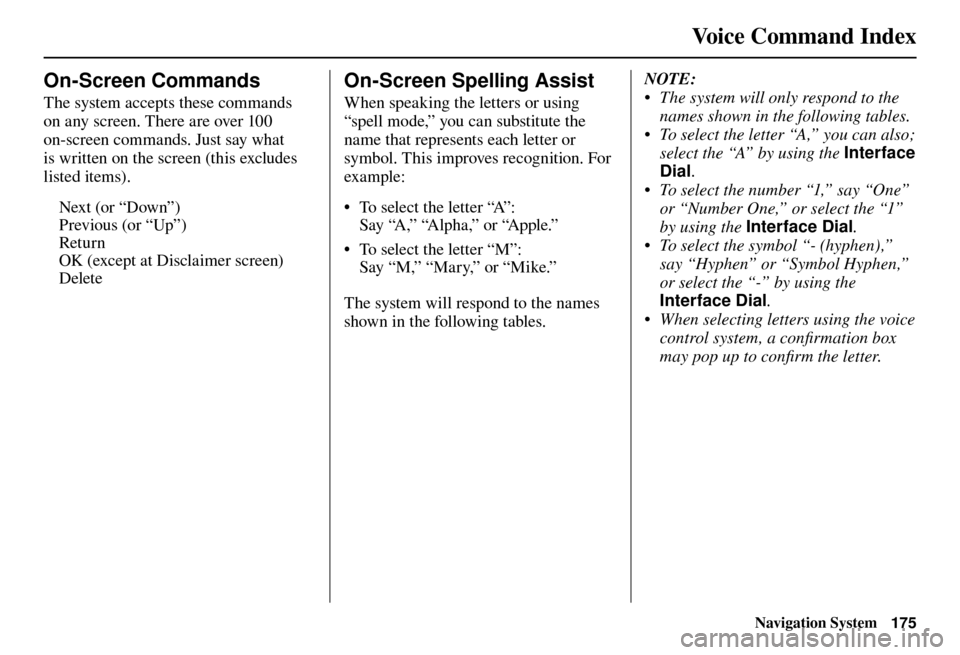

On-Screen Commands
The system accepts these commands
on any screen. There are over 100
on-screen commands. Just say what
is written on the screen (this excludes
listed items).
Next (or “Down”)
Previous (or “Up”)
Return
OK (except at Disclaimer screen)
Delete
On-Screen Spelling Assist
When speaking the letters or using
“spell mode,” you can substitute the
name that represents each letter or
symbol. This improves recognition. For
example:
• To select the letter “A”: S a y “A ,” “A l p h a ,” o r “A p p l e .”
• To select the letter “M”: Say “M,” “Mary,” or “Mike.”
The system will respond to the names
shown in the following tables. NOTE:
• The system will only respond to the
names shown in the following tables.
• To select the letter “A,” you can also; select the “A” by using the Interface
Dial .
• To select the number “1,” say “One” or “Number One,” or select the “1”
by using the Interface Dial .
• To select the symbol “- (hyphen),” say “Hyphen” or “Symbol Hyphen,”
or select the “-” by using the
Interface Dial .
• When selecting letters using the voice control system, a confi rmation box
may pop up to confi rm the letter.

Voice Command Index
176 Navigation System
Letters Assist Defi nitions:
Say Or say “...” Say Or say “...” Say Or say “...” Say Or say “...”
A Apple /Alpha
HHenry/Hotel
OOscar
VVictor
B Boy/Bravo
IIgloo /India
PPaul/Papa
W William /Whiskey
C Charlie
J John /Juliet
QQueen/Québec
X X-R ay
D Dog/Delta
KKing/Kilo
RRober t / Romeo
Y Ye l l o w / Ya n k e e
E Edward/Echo
LLarry/Lima
SSam /Sierra
Z Zebra/Zulu
F Frank/Foxtrot
MMary/Mike
TTo m / Ta n g o
Enter
G George/Golf
NNancy/ November
UUncle / Uniform

Voice Command Index
Navigation System177
Symbol Assist Defi nitions:
Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
À A grave
îI circumfl
ex
_Underscore
 A circumfl
ex
ïI umlaut
`Back quote
Ä A umlaut
ÔO circumfl
ex
,Comma
Ç C cedilla
Ù U grave
.Dot
È E grave
Û U circumfl
ex
?Question Mark
É E acute
Ü U umlaut
:Colon
Ê E circumfl
ex
@At sign
;Semi colon
Ë E umlaut
^ Caret
+ Plus
ì I grave
* Asterisk
Enter
NOTE:
The term “grave” (used for symbols À, È, Ì, and Ù) is pronounced like “save.”

Voice Command Index
178 Navigation System
Numbers and Additional Symbol Assist Defi nitions:
Numbers Say “...” or “Number ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
1 One
- Hyphen
~ Tilde
2 Tw o
! Exclamation point
/Slash
3 Three
” Double quote
4 Four
# Pound
> Greater than
5 Five
$ Dollar
{ Open brace
6 Six
% Percent
} Close brace
7 Seven
& Ampersand
Enter
8 Eight
’ Apostrophe
9 Nine
( Open parenthesis
0 Zero
) Close parenthesis

INDEX
Navigation System179
A
Accessing the Address Book List ...... 98
Acura Client Relations .................... 134
AcuraLink Messages ......................... 81
AcuraLink Real-Time Traffi c
™.......... 23
AcuraLink Weather ........................... 84
Address ................................. 28, 29, 99
Address Book ........................ 28, 34, 97
Address Book PIN .......................... 102
Advanced .......................................... 38
AUDIO button ................................... 10
Auto Daylight ................................... 116
Auto Service ...................................... 38
Auto Time Zone ............................... 116
Avoid Streets ..................................... 77
B
BACK button ..................................... 13
Banking ............................................. 38
Basic Settings .................................. 106
Black Level ........................................ 96
Bluetooth
® Audio Commands ..........173
Bluetooth® HandsFreeLink® ............. 19
Breadcrumbs ............................... 20, 66
Brightness.......................................... 96 By Address ........................................ 29
By Address Book .............................. 34
By Coordinate ................................... 44
By Go Home 1 or 2 ........................... 50
By Intersection .................................. 45
By Map Input .................................... 46
By Place Category ............................. 37
By Place Name .................................. 36
By Place Phone Number ................... 41
By Previous Destinations .................. 35
C
Calculator .......................................... 92
Calendar .......................................19, 90
CALL ........................................... 19, 52
CANCEL button ............................... 11
Cancel Route ..................................... 77
Category ............................... 28, 37, 100
Cautions .............................................. 7
Cellular Phone ................................... 83
Cellular Phone Commands ..............174
Change Route Preference .................. 77
Change State ..................................... 29
Changing the Route ........................... 76
Changing the Routing Method .......... 53 Changing Your Destination ............... 79
City .............................................. 30, 47
City Vicinity ...................................... 40
Client Assistance ............................. 134
Clock Adjustment ............................. 116
Color .................................................119
Community ....................................... 38
Continental USA ............................... 50
Contrast ............................................. 96
Correct Vehicle Position ................... 118
Coverage Areas ............................... 136
Current Location ..........................21, 65
Current Position ................................ 99
D
Database Limitations ...................... 132
Delete an Address ............................101
Delete Pictures on HDD .................. 124
Destination ............................ 28, 52, 78
Destination Icon ................................ 67
Destination Lists ......................... 78, 79
DEST/ROUTE button ....................... 10
Destination Map ................................ 54
Detour ............................................... 77
Directions .......................................... 60

INDEX
180 Navigation System
Disc Voice Commands .....................172
Display Mode button ......................... 10
Driving to Your Destination .............. 52
E
Edit Address ...................................... 99
Edit Avoid Area ................................112
Edit Name ......................................... 99
Edit Waypoint Search Area .............. 114
Emergency ......................................... 38
Entering a Destination ....................... 28
Entering an Address .......................... 98
Entering the Security Code ............. 128
Entering the Street Number .............. 33
Entering Your Schedule .................... 91
Error Message ..................................163
EXIT INFO ....................................... 61
F
Find Place Commands .................... 169
Frequently Asked Questions ........... 155
G
Getting Started .................................. 10
Global Command .............................167
Glossary .......................................... 164
Go Home 1 ........................................ 28
Go Home 2 ........................................ 29
Go Home 1 or 2 ................................. 50
Go home 1 or 2 PIN ........................ 103
Going Off the Route .......................... 72
GPS Initialization ............................ 129
Guidance Mode ................................115
Guidance Screen ............................... 58
H
HDD Voice Commands ...................172
Home Address ..................................101
HOTEL/MOTEL .............................. 38
I
Icon Bar ............................................. 63
Improving Voice Recognition ........... 14
Incident Icons .................................... 69
INFO button .................................10, 83
INFO Screen ..................................... 83
Interface Dial .................................... 11 Interface Dial Feedback .................... 97
Interface Dial knob ........................... 11
Intersection ...................................29, 45
iPod Voice Commands .....................173
K
Key to Zagat Ratings ......................... 94
L
Landmark Icons ................................ 68
Leisure............................................... 38
Lodging ............................................. 38
Lower Display ................................... 12
M
Map Color ........................................119
Map Coverage ................................. 136
MAP/GUIDE button ....................10, 58
Map Input .................................... 29, 46
Map Legend ...................................... 62
Map Matching ................................. 129
Map Orientation ................................ 64
Map Scale .......................................... 66
Map Screen ................................. 20, 55
Menu Color ......................................119
Messages ........................................... 81
