As an incoming call notif ication, you
will see the f ollowing display:Some phones may send battery,
signal strength, and roaming status
inf ormation to HFL. To answer the call and show the
HFL inf ormation, press the PICK-UP
button on the steering wheel.
HFL Display
BluetoothHandsFreeL ink(Models with navigation system)
Features
427
CALLER NAME
PHONE DIALINGBATTERY LEVEL
STATUS
SIGNAL STRENGTH
LENGTH OF CALL TIME ROAM STATUS
BLUETOOTH INDICATOR
When the audio is in use.
U.S. model is shown.
12/07/20 11:25:26 31TK4640_432
2013 TL

BluetoothHandsFreeL ink(Models with navigation system)
How to Use HFL
428
Voice commands can be used for all above options. Voice commands for the HFL system can only be used from the
Cellular Phone screen. To quickly access the Cellular Phone screen, press the Pick-Up button on the steering wheel.
Press and release the Talk button each time you give a command.All
Dial
Receive Missed
Call History
More
Speed Dial
The power mode must be in ACCESSORY or ON (see page ).
Dial
Phone Book
Redial
Cellular
Phone (see page444).
(see page 446).
Display the paired phone’s previously imported phonebook (or import a new one)
Displays a list of all 20 speed dial entries. The first 4 speed dial numbers are shown on the
Cellular Phone screen (see page
446).
Push and hold the interface selector (ENTER) to redial the last number called by HFL 184
Display the last 20 incoming, outgoing, or missed calls (see page 445).
(Appears only when a phone is connected to the system via HFL.)
(see page445).
Display the last 20 outgoing calls
(Appears only when a phone is connected to the system via HFL.)
(see page445).
Display the last 20 incoming calls
(Appears only when a phone is connected to the system via HFL.)
(see page445).
Display the last 20 missed calls
(Appears only when a phone is connected to the system via HFL.)
Enter a phone number to dial (see page 445).
12/08/03 20:58:38 31TK4640_433
Features
2013 TL

CONT INUED
BluetoothHandsFreeL ink(Models with navigation system)
Features
429
Voice commands can be used for all above options. Voice commands for the HFL system can only be used from the
Cellular Phone screen. To quickly access the Cellular Phone screen, press the Pick-Up button on the steering wheel.
Press and release the Talk button each time you give a command.Add New Phone
Connect
Disconnect Delete
Store Voice Tag Delete
Speed Dial Store
Speed Dial
Delete Voice Tag Pass-key
Connection
Phone Setup
Edit
Speed Dial
Cellular
Phone Connect a paired phone to the system
Disconnect a paired phone from the system Pair a phone to the system
Delete a previously paired phone
Delete a previously stored speed dial number (see page
436).
(see page 435).
(see page
432).
(see page 436).
Create a Pass-key number for a paired phone (see page 435).
(see page 444).
(see page 443).
(see page 443).
Select a number from the Call History, Phone Book, or manual
entry to store as a speed dial number (see page
442).
Delete a voice tag for a speed dial number Create a voice tag for a speed dial number
12/08/03 20:58:45 31TK4640_434
2013 TL

BluetoothHandsFreeL ink(Models with navigation system)
430
Voice commands can be used for all above options. Voice commands for the HFL system can only be used from the
Cellular Phone screen. To quickly access the Cellular Phone screen, press the Pick-Up button on the steering wheel.
Press and release the Talk button each time you give a command.Auto Answer
Auto Transfer
Phone Setup Edit Phone
Name/PIN
Cellular
Phone
Clear CellularPhone
Information (see page
439).
(see page 439).
Create a phone name/PIN number for a paired phone
Set calls to automatically transfer from your phone to HFL when you enter the vehicle
Set incoming calls to be automatically answered
Clear the system of all paired phones, phonebook entries, speed dials, and pass-keys
(see page
437).
(see page 439).
12/08/03 20:58:49 31TK4640_435
Features
2013 TL

To use HFL, you need to pair your
Bluetooth-compatible cell phone to
the system.
HFLusesaClass2Bluetooth,which
means, the maximum range between
your phone and vehicle is 30 feetPress the PHONE button or PICK-
UPbuttontogototheCellular
Phone screen.
Select ‘‘PHONE SETUP’’ f rom the
Cellular Phone screen.You can set up your phone and other
system options with this menu.
CONT INUED
Phone Setup
Cellular Phone
BluetoothHandsFreeL ink(Models with navigation system)
Features
431
Push the selector down for
PHONE SETUP.
12/07/20 11:25:48 31TK4640_436
10 meters).
2013 TL

To pair a cell phone (when there is nophone paired to the system):
Press the PHONE button or
PICK- UP button. The system
starts pairing when there is no
phone paired to the system.
Press the PHONE button or PICK-
UP button. The system prompts
you to pair a phone. Select ‘‘Yes’’
on the conf irmation screen.Make sure your phone is set to
discoverable or visibility is ON,
and select ‘‘OK.’’ HFL begins to
searchforyourphone.
1.
2.
Set up Bluet oot h Phone
BluetoothHandsFreeL ink(Models with navigation system)
432
12/07/20 11:25:55 31TK4640_437
Features
2013 TL

HFL gives you a 4-digit pass-key
that you will need to input on
When your phone prompts you,
input the 4-digit pass-key.
You will receive a notif ication on
the screen and your phone if
pairing is successf ul.
If your phone doesn’t appear on
the list, select ‘‘Phone not f ound?’’
and search f or Bluetooth devices
using your phone. From your
phone, select ‘‘HandsFreeLink.’’ If your phone is f ound, it is
displayed on the screen. Select it
and press ENTER.
You will receive a notification to set
up an AcuraLink
connection. If you
want to do this, please see page ,
or select ‘‘Setup Later.’’
5.
3.
4. 6.
7. 449
On U.S. models
CONT INUED
BluetoothHandsFreeL ink(Models with navigation system)
Features
433
U.S. model is shown.
12/07/20 11:26:04 31TK4640_438
your phone.
2013 TL

You cannot pair your phone while
the vehicle is moving.
Up to six phones can be paired.
Your phone’s battery may drain
f aster when it is paired to HFL.
Select ‘‘PHONE SETUP’’ f rom the
Cellular Phone screen.
Select ‘‘Connection’’ f rom the
Phone Setup screen. Select ‘‘Add New Phone.’’
Followsteps2through7fromthe
previous page.
1.
2. 4.
3.
To pair a cell phone (when there are one
or more phones paired to the system): Phone pairing tips
BluetoothHandsFreeL ink(Models with navigation system)
434
12/08/08 20:02:58 31TK4640_439
Features
2013 TL

To delete a paired phone:
To change the pass-key setting:
Select ‘‘Connection’’ f rom the
Phone Setup screen.
Select ‘‘Delete.’’
Select the phone you want to
delete. The Bluetooth icon shows
you the currently linked phone.
To create your own pass-key, select
‘‘Fixed’’ and f ollow steps 3 and 4.
Delete the current pass-key.
Enter a new pass-key, and select
‘‘OK.’’
The def ault pass-key ‘‘0000’’
is used until you change the setting.
For a randomly generated pass-key
each time you pair a phone, select
‘‘Random.’’ Select ‘‘Pass-key.’’ Select ‘‘Connection’’ f rom the
Phone Setup screen.
1.
2.
3.
3.
4.
1.
2.
CONT INUED
BluetoothHandsFreeL ink(Models with navigation system)
Features
435
NOTE:
TRASH ICON
BLUETOOTH ICON
Example
Push the selector to left to delete.
12/07/20 11:26:26 31TK4640_440
2013 TL

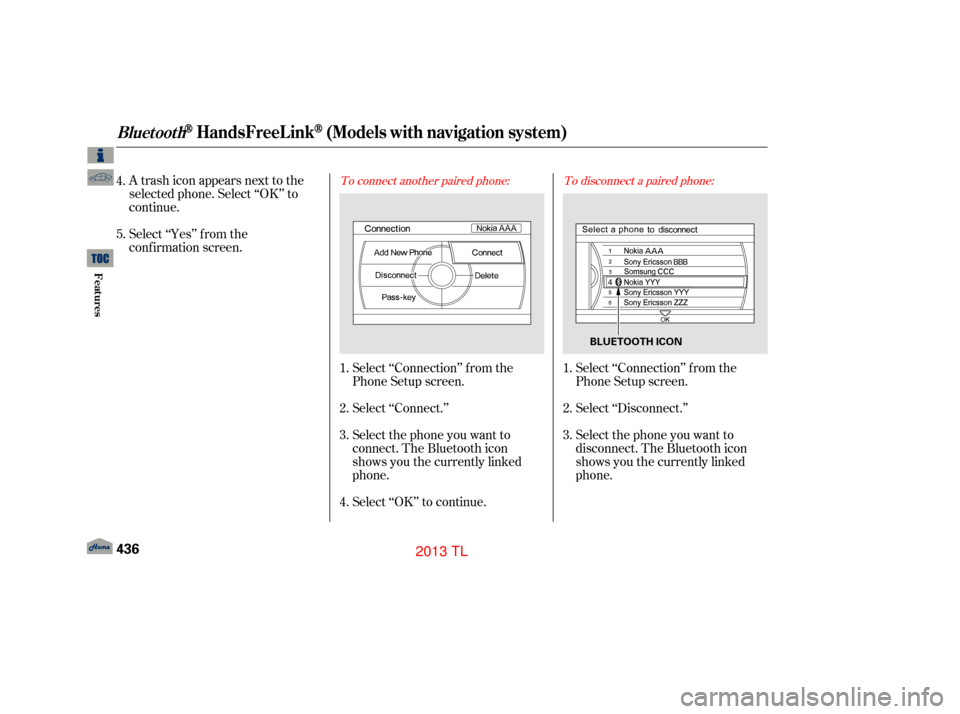

To disconnect a paired phone:
To connect another paired phone:
Select ‘‘Connection’’ f rom the
Phone Setup screen.
Select ‘‘Disconnect.’’
Select the phone you want to
disconnect. The Bluetooth icon
shows you the currently linked
phone.
A trash icon appears next to the
selected phone. Select ‘‘OK’’ to
continue.
Select ‘‘Yes’’ f rom the
conf irmation screen.
Select ‘‘Connection’’ f rom the
Phone Setup screen.
Select the phone you want to
connect. The Bluetooth icon
shows you the currently linked
phone. Select ‘‘Connect.’’
Select ‘‘OK’’ to continue.1.
2.
3.
1.
2.
3.
4.
4.
5.
BluetoothHandsFreeL ink(Models with navigation system)
436
BLUETOOTH ICON
