engine Acura TL 2013 Service Manual

µ
ÃŽ
CONT INUED
See pages f or important saf etyinf ormation and warnings about how toproperly position the seats and seat-backs.
Driver’s seat only:
1513
The passenger seat has the same
adjustments as the driver’s seat but
without any lumbar adjustment.
Raises or lowers the seat.Moves the whole seat up
and f orward, or down
and backward. The front
of the seat also tilts up or
down at the same time.
Adjusts the seat-back
angle f orward or
backward.
The controls f or the power
adjustable front seats are on the
outside edge of each seat bottom.
You can adjust the seats with the
ignition switch in any position.
Make all seat adjustments bef ore
you start driving.
Moves the seat forward
and backward.
Moves the f ront of the
seat up or down.Increases or decreases
the lumbar support.
Seats
Front Seat Power A djustments
Inst rument s and Cont rols
161
Driver’s seat
12/07/20 10:50:05 31TK4640_166
ÃŽ
Models equipped with the
keyless access system have an engine
start/stop button instead of
an ignition switch. VEHICLE OFF
(LOCK) Mode is the equivalent of
LOCK (0) and ACCESSORY Mode
is the equivalent of ACCESSORY (I).
For more information, see pages
and .
:
184 187
2013 TL

ÃŽÃŽ
This heated mirror f unction has a
timer (see page ).
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, or the power mode ON,
turn on the heaters by pressing the
button. The indicator in the button
comesonasareminder.Pressthe
button again to turn the heaters off.
Pressing this button also turns the
rear window def ogger on and of f . If the outside temperature is below
41°F (5°C), the heated mirror
function will come on automatically
for 10 minutes when you turn the
ignition switch to the ON (II)
position.
145
Mirrors
Power Mirror Heaters
Inst rument s and Cont rols
169
HEATED MIRROR BUTTON
12/07/20 10:51:02 31TK4640_174
ÃŽ
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON Mode is the equivalent of
ON (II). For more information, see
pages
and .
:
184 187
2013 TL

Always keep the remote and the
built-in key away from any
magnetic material.
Youshouldhavereceivedakey
number tag with your built-in key.
You will need this key number if you
ever have to get a lost key replaced.
UseonlyAcura-approvedkeyblanks.
Your vehicle has a keyless access
system. This system allows you to
operate the vehicle without an
ignition key. When you carry the
remote with you, you can lock/
unlock the door(s), unlock the trunk,
and start the engine.
When the vehicle battery is dead. When the remote battery is dead. A vehicle is being operated with a
transmitter nearby. The remote is covered by metal. You carry a cell phone, a laptop
computer, or other electrical
device near the remote. There is strong electrical current
nearby. Thebatteryof theremoteisweak.
The system may not work if: Each keyless access remote has a
built-in key. This key is used to lock/
unlock the doors when the remote
battery becomes weak and the
power door lock/unlock operation is
disabled. You cannot start the engine
with this key.
Make sure the driver always carries
the remote/built-in key set.
Protect the remote and the built-in
key f rom direct sunlight, high
temperature, and high humidity.
Do not drop the remote or the
built-in key, and do not set heavy
objects on them.
Keep the remote and the built-
in key away from liquids. If they get
wet, dry them immediately with a
soft cloth.
The built-in keys do not contain
batteries.On models with navigation system
K eyless A ccess System
Inst rument s and Cont rols
173
12/07/20 10:51:40 31TK4640_178
2013 TL

The f ollowing keys come with your
vehicle. Refer to page for how to
separate the keys.
This key is used to lock/unlock the
doors, glove box, and trunk pass-
through cover.This remote is used to lock/unlock
the doors and unlock the trunk.
When you carry the remote, you can
lock/unlock the doors, unlock the
trunk, and start the engine.
Anyone can lock/unlock a door or
open the trunk if the remote is
within the operating range of the
door or the trunk. You can lock/unlock the doors
within about a 32 inch (about 80 cm)
radius f rom the outside door handle.
You can open the trunk within about
a 32 inch (about 80 cm) radius f rom
thetrunkreleaseswitch.
201
Keys
K eyless A ccess System
Built -in K ey
K eyless A ccess Remot e
174
BUILT-IN KEYS
OPERATING
RANGE
KEYLESS ACCESS
REMOTES
KEY NUMBER TAG
12/07/20 10:51:48 31TK4640_179
Inst rument s and Cont rols
2013 TL

The engine may not run, and some
malf unctions may occur, if the
remote is outside the vehicle.The engine may not start if the
remote is subjected to strong radio
waves.
Also, the engine may not start if the
remote is too close to the windows.
K eyless A ccess System
Engine Start/Stop Button Operating Range
Inst rument s and Cont rols
183
Make sure you know where the remote
is when you are inside the vehicle.
Remember that you can start the engine
when the remote is inside the vehicle.
Make sure you always carry the remote
with you.
12/07/20 10:53:08 31TK4640_188
2013 TL

The keyless access system has f our
power modes: VEHICLE OFF
(LOCK), ACCESSORY, ON, and
START.
This system uses the engine start/
stop button instead of an ignition
switch to start and stop the engine. If
you are carrying the keyless access
remote, you can start the engine by
pressing the engine start/stop
button with the brake pedal
(automatic transmission) or the
clutch pedal (manual transmission)
depressed. You can also stop the
engine by pushing this button when
the vehicle is stopped. Each time you press the engine
start/stop button without pressing
the brake pedal (automatic
transmission) or the clutch pedal
(manual transmission) while
carrying the keyless access remote,
the power mode switches between
VEHICLE OFF (LOCK),
ACCESSORY, and ON.
You can start the engine at any time
by pressing the engine start/stop
button, while pressing the brake
pedal, with the shift lever in Park or
neutral position.
You can start the engine at any time
by pressing the engine start/stopbutton, while pressing the clutch
pedal f ully, with the shif t lever in any
gear position.
To change the power mode without
turning on the engine, press the
engine start/stop button without
pressing the brake pedal (automatic
transmission) or the clutch pedal
(manual transmission). The power
mode will be changed as shown on
the
next page.
Automatic transmission:
Manual transmission:
K eyless A ccess System
Engine Start/Stop
ButtonOperationSwit ching t he Power Modes Changing the Power Mode without Starting the Engine
184
12/07/20 10:53:16 31TK4640_189
Inst rument s and Cont rols
2013 TL

CONT INUED
K eyless A ccess System
Inst rument s and Cont rols

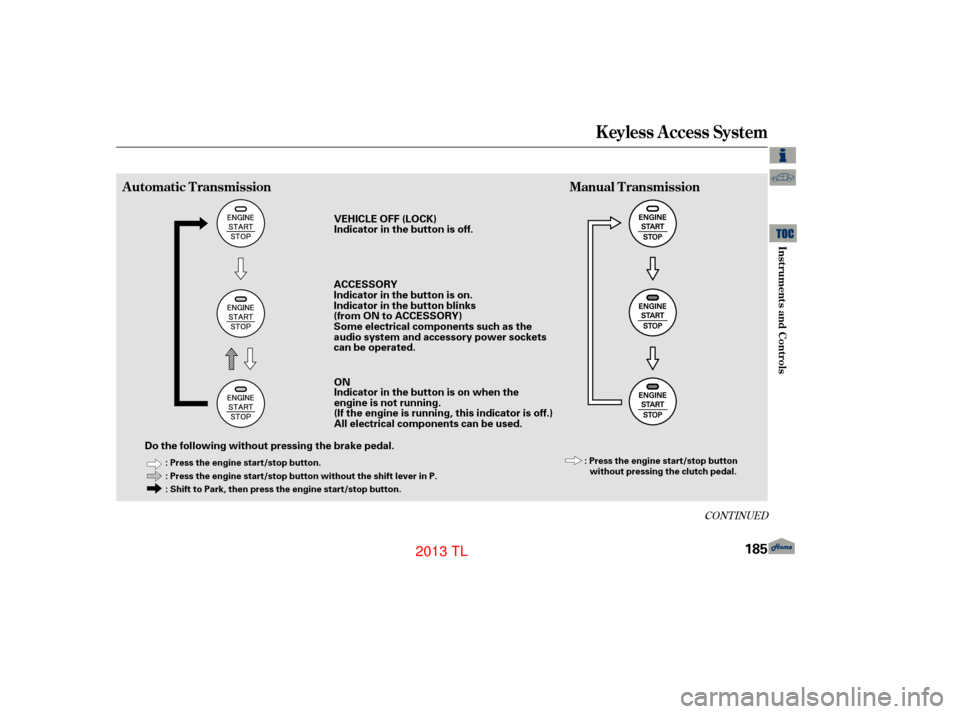

Automatic TransmissionManual Transmission
185
: Press the engine start/stop button.
: Press the engine start/stop button without the shift lever in P.
: Shift to Park, then press the engine start/stop button.
Do the following without pressing the brake pedal. VEHICLE OFF (LOCK)
Indicator in the button is off.
ACCESSORY
ON
: Press the engine start/stop button without pressing the clutch pedal.
Indicator in the button is on.
Indicator in the button blinks
(from ON to ACCESSORY)
Some electrical components such as the
audio system and accessory power sockets
can be operated.
Indicator in the button is on when the
engine is not running.
(If the engine is running, this indicator is off.)
All electrical components can be used.
12/07/20 10:53:24 31TK4640_190
2013 TL

Automatic TransmissionManual Transmission
How the mode is switched depends
on if the shif t lever is in Park or not.Each time you press the engine
start/stop button without pressing
the clutch pedal, the power mode
switches between VEHICLE OFF
(LOCK), ACCESSORY, and ON
modes. To change the mode f rom
ON to ACCESSORY, or
ACCESSORY to VEHICLE OFF
(LOCK), press the engine start/stop
button twice. If the keyless access system
main switch in the glove box is of f ,
make sure to insert the keyless
access remote into the keyless
access slot to turn on your vehicle’s
power mode. For more inf ormation,
ref er to page .
To remove the keyless access
remote from the slot, make sure the
power mode is VEHICLE OFF
(LOCK).
With the shift lever in Park, the
power mode changes f rom ON to
VEHICLE OFF (LOCK) when you
push the engine start/stop button.
TochangethemodefromONto
ACCESSORY with the shift lever
position in Park, take your f oot of f
the brake and press the engine
start/stop button twice.
Tochangethemodefrom
ACCESSORY to VEHICLE OFF
(LOCK),shifttoPark,thenpress
the engine start/stop button twice. 195
K eyless A ccess System
186
NOTE:
12/07/20 10:53:31 31TK4640_191
Inst rument s and Cont rols
2013 TL

Engine is turned of f and
power is shut down.
The steering wheel is
locked.
No electrical components
can be used.
Indicator-Of fEngine is turned of f
and power is shut
down.
The steering wheel is
locked.
No electrical
components can be
used. Use this position to start
the engine.
The ignition switch
returns to the ON (II)
position when you
release the key.
Engine is turned of f .
Some electrical components
such as the audio system
and accessory power
sockets can be operated.
Normal key position while
driving.
All electrical components
can be used.
Indicator-Of fThe mode
automatically returns
to ON after the
engine starts.
Indicator-On or blinking
Engine is turned of f .
Some electrical
components such as the
audio system and
accessory power sockets
can be operated. Indicator-
On (engine is turned off)
Of f (engine is running)
All electrical components
can be used.
VEHICLE OFF
(LOCK) ACCESSORY
ST ART
Ignition Switch
Position
Power Mode LOCK (0)
ON (II)
ACCESSORY (I)
Without Keyless
Access System
With Keyless
Access System and
Engine Start/Stop
Button ST ART (III)
Of f
Indicator is: ON
On
Ignition Switch and Power Mode Comparison
K eyless A ccess System
Inst rument s and Cont rols
187
12/07/20 10:53:42 31TK4640_192
2013 TL

You can start the engine in any
power mode.
To start the engine:Depress the brake pedal and press
the engine start/stop button. Move the shift lever to Park (P). Af ter you unlock and open the
driver’s door, you will see the ‘‘TO
START ENGINE:’’ message on the
multi-inf ormation display.
The ‘‘ TO TURN ACCESSORY ON:’’
message will be shown af ter
three seconds.
The display switches between the
‘‘TO START ENGINE:’’ and ‘‘TO
TURN ACCESSORY ON:’’ messages
every three seconds.
Apply the parking brake.
Press the clutch pedal down all the
way.
The engine does not start unless
the clutch pedal is pressed.
Press the engine start/stop button.
1.
2. 1.
2.
3.
Automatic Transmission
Manual Transmission
K eyless A ccess System
Starting the EngineStarting Guidance
188
ENGINE START/STOP BUTTON
BRAKE PEDAL
AUTOMATIC TRANSMISSION ENGINE START/STOP BUTTON
MANUAL TRANSMISSION CLUTCH PEDAL
M/TTO TURN
ACCESSORY ON:
A/T
TO START ENGINE:
12/07/20 10:53:55 31TK4640_193
Inst rument s and Cont rols
2013 TL
