This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine cooling system. If the pointer of the temperaturegauge reaches to or above the red
mark, you will also see the ‘‘WATER
TEMP HOT’’ message on the multi-
information display. This will alert
you that the engine should be
593
Temperature Gauge
Gauges
Inst rument s and Cont rols
77
12/07/20 10:39:34 31TK4640_082
cooled down.
2013 TL

Before you begin driving your
vehicle, you should know what
gasoline to use and how to check
the levels of important fluids.
You also need to know how
to properly store luggage or
packages. The information in this
section will help you. If you plan to
add any accessories to your vehicle,
please read the information in this
section first..............................
Break-in Period .468
.................
Fuel Recommendation . 468
.........
Service Station Procedures . 470
....................................
Ref ueling .470
.....
Tighten Fuel Cap Message . 471
Opening and Closing the .......................................
Hood .472
...................................
Oil Check .474
.............
Engine Coolant Check . 475
...............................
Fuel Economy .476
...
Accessories and Modif ications . 479
.............................
Carrying Cargo .481
Bef ore Driving
Bef ore Driving
467
12/07/20 11:30:47 31TK4640_472
2013 TL

Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, seeon pagefor
information on adding the
proper coolant. To access the radiator reserve tank,
remove the right-side engine
compartment cover (see page ).
See page f or the engine coolant
location.
Refer to
on page f or inf ormation
about checking other items on your
vehicle.
546 542
539
541
Service Station Procedures
Engine Coolant Check
A dding
Engine Coolant Owner’s Maintenance
Checks
Bef ore Driving
475
MAX RESERVE TANK
MIN
12/07/20 11:31:40 31TK4640_480
2013 TL

µ
Your vehicle’s starting system has an
auto control mode. When you turn
the ignition switch to the START
(III) position, this f eature keeps the
engine’s starter motor running until
the engine starts. Follow these
instructions to start the engine:
Make sure the shif t lever is in
Park. Press on the brake pedal. In cold weather, turn of f all
electrical accessories to reduce
the drain on the battery. Apply the parking brake. Without touching the accelerator
pedal, turn the ignition switch to
the START (III) position, then
release the ignition switch. You do
not need to hold the ignition
switch in the START (III) position
to start the engine. The starter
motor runs until the engine starts
or a maximum of 10 25 seconds
depending on engine coolant
temperature.
If the engine does not start, wait at
least 10 seconds bef ore trying
again.
1.
2.
3. 4.
Starting the Engine (Models without Keyless Access System)
Driving
487
The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
T he immobilizer system protects your
vehicle f rom thef t. If an improperly
coded key (or other device) is used, the
engine’s f uel system is disabled. For
more inf ormation, see page . 149
12/07/20 11:33:26 31TK4640_492
2013 TL

µ
The keyless access remote battery
becomes weak or dead. The keyless access remote system
main switch is of f .
In either of the f ollowing cases, you
should insert the keyless access
remote into the keyless remote slot.
For more inf ormation, see pages
and .
Your vehicle’s starting system has an
auto control mode. When you have
your keyless access remote and push
the engine start/stop button while
depressing the brake pedal (A/T) or
clutch pedal (M/T), this f eature
keeps the engine’s starter motor
running until the engine starts.
Follow these instructions to start the
engine:
Make sure the shif t lever is in
Park. Press on the brake pedal. Press the clutch pedal down all the
way. The power mode f rom ON to
START does not f unction unless
the clutch pedal is pressed. In cold weather, turn of f all
electrical accessories to reduce
the drain on the battery. Apply the parking brake. Without touching the accelerator
pedal, push and release the engine
start/stop button. You do not need
to hold the engine start/stop
button to start the engine. The
starter motor runs until the engine
starts or a maximum of 10 25
seconds depending on engine
coolant temperature.If the engine does not start, wait at
least 10 seconds bef ore trying
again.
1.
2.
3. 4.194 195
Automatic transmission:
Manual transmission:
Starting the Engine (Models with Keyless Access System)
Driving
489
T he immobilizer system protects your
vehicle f rom thef t. If an improperly
coded keyless access remote (or other
device) is used, the engine’s f uel system
is disabled. For more inf ormation, see
page .
The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem. 149
12/07/20 11:33:41 31TK4640_494
2013 TL

This section explains why it is
important to keep your vehicle well
maintained and how to f ollow basic
maintenance saf ety precautions.
This section also includes
instructions on how to read the
Maintenance Minder messages on
the multi-information display, and
instructions f or simple maintenance
tasks you may want to take care of
yourself .
If you have the skills and tools to
perf orm more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer.U.S. Vehicles:
......................
Maintenance Saf ety .530
.................
Maintenance Minder . 531
..............................
Fluid Locations .541
......
Engine Compartment Covers . 542
........................
Adding Engine Oil .543
Changing the Engine Oil and ...........................................
Filter .544
..............................
Engine Coolant .546
....................
Windshield Washers .548
.......................
Transmission Fluid .549
..........
Automatic Transmission . 549
..............
Manual Transmission . 551
................
Brake and Clutch Fluid . 553
....................................
Timing Belt .554
.............................................
Lights .555
................
Cleaning the Seat Belts . 564
.....................................
Floor Mats .565
..................
Dust and Pollen Filter . 566
.................................
Exterior Care .566
.................................
Wiper Blades .566
...............................................
Tires .568
...................
Checking the Battery . 577
.............................
Vehicle Storage .578
..................................
Interior Care .579
633
Maintenance
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.
Maint enance
529
TM
12/07/20 11:38:22 31TK4640_534
2013 TL

µ
µ
µµ
µ
µ
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Lights Check the operation of
all the lights monthly. See
page .
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the fluid level monthly. See
page .
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page .
474
475
549 553
568 555
CONT INUED
Maintenance Minder
Owner’s Maintenance Checks
Maint enance
539
TM
12/07/20 11:39:35 31TK4640_544
2013 TL

Î
Î
Ì Ì Î
Î
µµÌ
Î
Î
Maintenance Minder
540
:
TM
If the message ‘‘SERVICE DUE NOW’’ does not appear more than 12 months
after the display is reset, change the engine oil every year.
See information on maintenance and emissions warranty on page .
Inspect idle speed every 160,000 miles (256,000 km). Independent of the Maintenance Minder information, replace the brake
fluid every 3 years.
Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
NOTE:
2:
1:
SH-AWD only
538
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items: Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and line (including ABS/VSA)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections Maintenance Sub Items
Rotate tires
Replace air cleaner element If you drive in dusty conditions, replace every
15,000 miles (24,000 km).
Replace dust and pollen filter If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Inspect drive belt
Replace transmission fluid
Replace transmission and transfer fluid
Replace spark plugs
Replace timing belt and inspect water pump If you drive regularly in very high temperatures (over
110°F, 43°C), or in very low temperatures (under20°F, 29°C), replace every 60,000 miles (U.S.)/
100,000 km (Canada).
Inspect valve clearance
Replace engine coolant
Replace rear differential fluid Driving in mountainous areas at very low vehicle
speeds results in higher level of mechanical (shear)
stress to fluid. This requires differential fluid changes
more frequently than recommended by the
Maintenance Minder. If you regularly drive your
vehicle under these conditions, have the differential
fluid changed at 7,500 miles (12,000 km), then every
15,000 miles (24,000 km).
A
B
Symbol
Symbol
3
4
5 1
2
61
1
2
2
12/07/20 11:39:42 31TK4640_545
Maint enance
2013 TL

ÎÎ
Î
Î

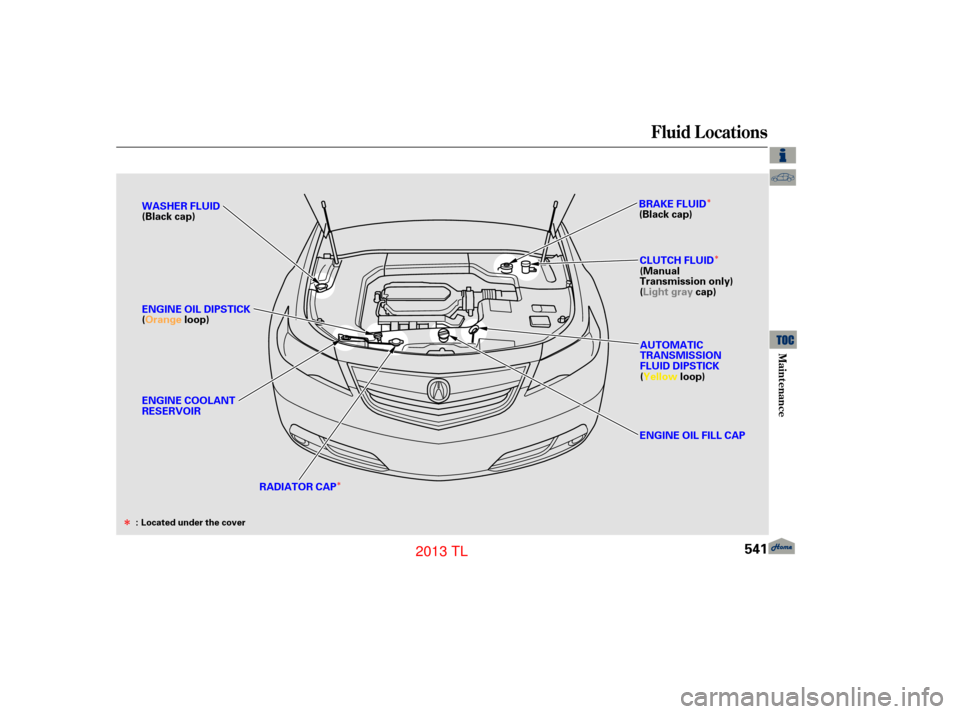

Fluid Locations
Maint enance
541
WASHER FLUID
(Black cap)
ENGINE OIL FILL CAPAUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow
loop)
ENGINE OIL DIPSTICK
(Orange
loop)
RADIATOR CAP BRAKE FLUID
(Black cap)
ENGINE COOLANT
RESERVOIR CLUTCH FLUID
(Manual
Transmission only)
(Light
graycap)
: Located under the cover
12/07/20 11:39:45 31TK4640_546
2013 TL

Always use Honda Long-lif e Anti-
f reeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antif reeze and 50 percent distilled
water. Never add straight antif reeze
or plain water.
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporary replacement. Make sure
it is a high-quality coolant
recommended for aluminum
engines. Continued use of any
non-Honda coolant can result
in corrosion, causing the
cooling system to malfunction or fail.
Have the cooling system flushed
and refilled with Honda antifreeze/
coolant as soon as possible.
Reinstall the engine oil f ill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn of f the
engine and check your work.
Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine, let it sit f or
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.
To access the radiator reserve tank,
remove the right-side engine
compartment cover (see page ).
7.
8.
9.
542
A dding Engine Coolant
Changing the Engine Oil and Filter, Engine Coolant
546
RESERVE TANK
MIN
MAX
Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container, and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
12/07/20 11:40:27 31TK4640_551
Maint enance
2013 TL
