Acura TL 2014 Owner's Manual

Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustmentsshouldbedonebyyour
dealer or another qualif ied
technician.Your vehicle has halogen high beam
headlight bulbs which are also used
f or the daytime running light.
Handle it by its base and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Open the hood.
Remove all engine compartment
covers (see page ).
The low beam headlight bulbs are a
type of high voltage discharge tube.
High voltage can remain in the
circuit even with the light switch of f
and the key removed (or the vehicle
is in VEHICLE OFF (LOCK) mode
on models with keyless access
system). Because of this, you should
not attempt to examine or change a
low beam headlight bulb yourself . If
a low beam headlight bulb fails, take
the vehicle to your dealer to have it
replaced.
If youarereplacingthebulbon
the driver’s side, remove the
holding clips with a f lat-tip
screwdriver. Then remove the
upper part of the air intake duct by
pulling it straight up.
1.
2. 542
CONT INUED
Headlight A iming
L ow Beam Headlight Bulb
Replacement Replacing a High Beam
Headlight/Daytime Running
Light Bulb
Lights
Maint enance
555
HOLDING CLIP
Halogen bulbs get very hot when lit. Oil,
perspiration, or a scratch on the glass
can cause the bulb to overheat and
shatter.
12/07/20 11:41:36 31TK4640_560

Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
To change a bulb on the
passenger’s side, remove the
engine coolant reserve tank by
pulling it out of its stay. Turn on the headlights to test the
new bulb.
Install the upper part of the air
intake duct securely. Reinstall the
holding clips. (Driver’s side)
Install all engine compartment
covers. Install the engine coolant reserve
tank. (Passenger’s side)
4.
5. 6.
7.
8.
3. 9.
10.
Lights
556
RESERVE TANK BULB
CONNECTOR
STAY
12/07/20 11:41:46 31TK4640_561

Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Use a f lat-tip screwdriver to
remove the holding clips f rom the
edge of the inner f ender cover,
and pull the inner f ender cover
back.
Pull down the under cover f rom
the bumper caref ully.
3.
2.
1.
4.
CONT INUED
Replacing the Front Side Marker
Light Bulb
Lights
Maint enance
557
HOLDING CLIPUNDER COVER
BOLT
HOLDING CLIP BOLT
12/07/20 11:41:54 31TK4640_562

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.
Remove the bulb by pulling it
straight out of its socket. Install the new bulb in the socket
by pushing it straight in the socket
until it bottoms.
Insert the socket into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Push the under cover in place and
set the inner f ender cover in the
original position. Install the bolts
and tighten them securely. Insert
each holding clip, and lock it by
pushingonitscenter.
5.
6. 7.
8.
1.
9.
10. Replacing a Front T urn Signal/
Parking L ight Bulb
Lights
558
SOCKET
BULB
12/07/20 11:42:01 31TK4640_563

Remove the socket f rom the light
assembly by turning it one-quarter
turn counterclockwise.
Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Pull down the under cover f rom
the bumper caref ully.
Use a f lat-tip screwdriver to
remove the holding clips f rom the
edge of the inner f ender cover,
and pull the inner f ender cover
back.
Remove the bulb by pulling it
straight out of its socket.
3.
2. 4.
5.
CONT INUED
Lights
Maint enance
559
HOLDING CLIP COVER
HOLDING CLIP UNDER COVER SOCKET
BOLT
BOLT BULB
12/07/20 11:42:08 31TK4640_564

Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.
Thefoglightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment should be done by your
dealer or another qualif ied
technician.
Install the new bulb in the socket
by pushing it straight in the socket
until it bottoms.
Push the under cover in place and
set the inner f ender cover in the
original position. Install the bolts
and tighten them securely. Insert
each holding clip, and lock it by
pushingonitscenter. Turn on the lights to make sure
the new bulb is working. Insert the socket into the light
assembly. Turn it clockwise to
lock it in place.
6.
7.
8.
9. 1.
Replacing a Front Fog L ight Bulb
Lights
560
Halogen bulbs get very hot when lit. Oil,
perspiration, or a scratch on the glass
can cause the bulb to overheat and
shatter.
12/07/20 11:42:16 31TK4640_565

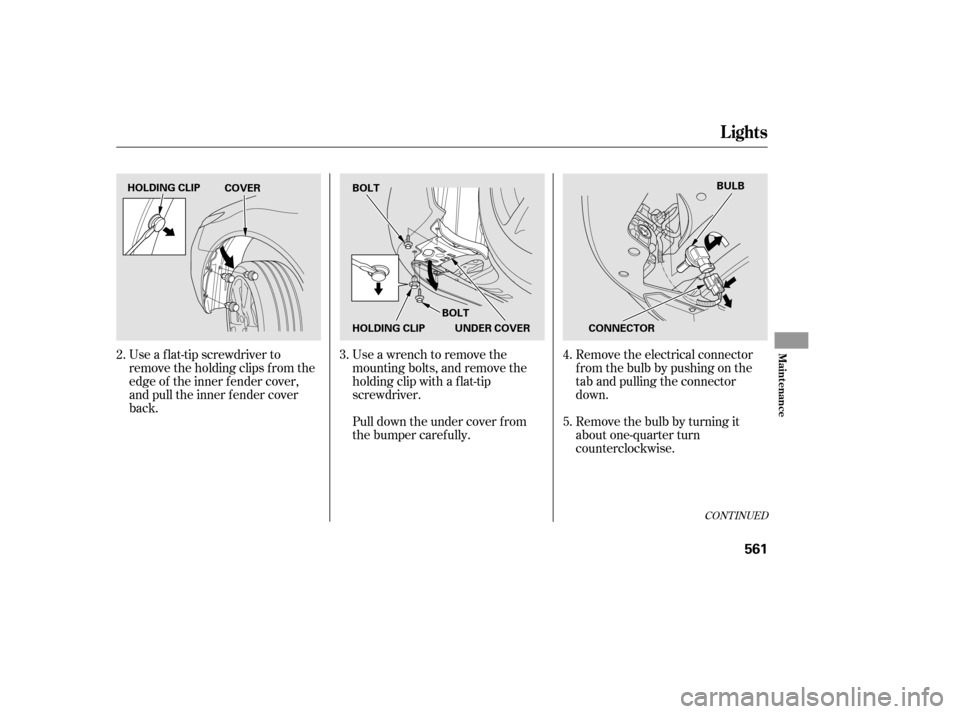

Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it
about one-quarter turn
counterclockwise.
Use a wrench to remove the
mounting bolts, and remove the
holding clip with a f lat-tip
screwdriver.
Pull down the under cover f rom
the bumper caref ully.
Use a f lat-tip screwdriver to
remove the holding clips f rom the
edge of the inner f ender cover,
and pull the inner f ender cover
back.
4.
5.
3.
2.
CONT INUED
Lights
Maint enance
561
HOLDING CLIP
UNDER COVER
COVER BOLT
HOLDING CLIPBOLT
CONNECTORBULB
12/07/20 11:42:24 31TK4640_566

Remove the nuts f rom the stud
bolts with a socket or wrench.
Open the trunk.
Remove the screw in the center of
theholdingcliponthesideof the
trunk lining. Pull the lining back.
Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the f og lights to test the
new bulb.
Push the under cover in place and
set the inner f ender cover in the
original position. Install the bolts
and tighten them securely. Insert
each holding clip, and lock it by
pushingonitscenter.
1. 2.
6.
7.
8.
9.
Lights
Replacing Rear Bulbs
562
SCREW
NUTS
12/07/20 11:42:33 31TK4640_567

Push a new bulb straight into the
socket until it bottoms, and
reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.
Put the holding clip into the hole
on the side of the trunk lining.
Reinstall the screw.
Determine which of the three
bulbs is burned out: back-up light,
turn signal, or side marker.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.
Pull the taillight assembly straight
back out of the body. 6.
7.
8.
9.
5. 4.
3.
Lights
Maint enance
563
BULB SOCKET
12/07/20 11:42:41 31TK4640_568

Each outside mirror has side turn
signal lights. The lights should be
replaced by your dealer.
This light should be replaced by your
dealer.
The license plate has two lights
above it. The bulbs should be
replaced by your dealer.If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry bef ore
you use the vehicle.Dirt build-up around the openings of
the seat belt anchors can cause the
belts to retract slowly. Wipe the
openings with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
Lights, Cleaning the Seat Belts
Side T urn Signal L ights
High-mount Brake L ight
Rear License Plate Light Bulbs
Cleaning the Seat Belts
564
OPENING
12/07/20 11:42:49 31TK4640_569
