engine Acura TLX 2015 Owner's Manual

519

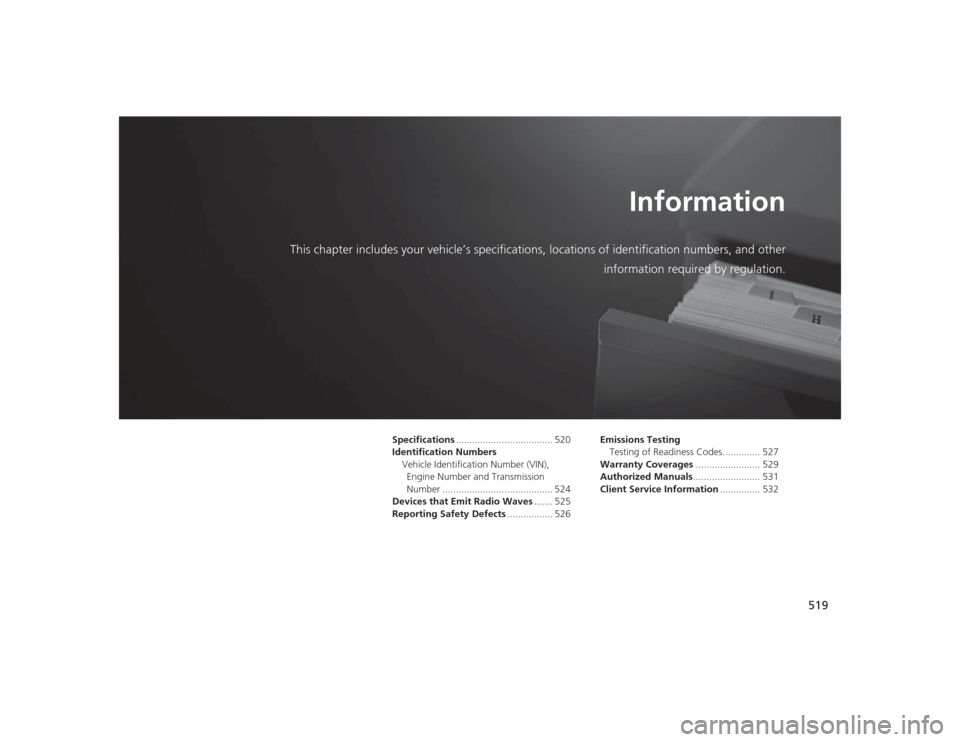

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 520
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 524
Devices that Emit Radio Waves ....... 525
Reporting Safety Defects ................. 526Emissions Testing
Testing of Readiness Codes.............. 527
Warranty Coverages ........................ 529
Authorized Manuals ......................... 531
Client Service Information ............... 532

520Information
Specifications■Vehicle SpecificationsModel
Acura TLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 4,442 lbs (2,015 kg)
Canada: 2,055 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,370 lbs (1,075 kg)
Canada: 1,105 kg
Gross Axle Weight
Rating (Rear)
U.S.: 2,094 lbs (950 kg)
Canada: 965 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant Type ND-OIL 8
4-cylinder models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
144 cu-in (2,356 cm
3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.7 US qt (5.4 ℓ)
■ Light BulbsHeadlights (High/Low Beam)
LED
Front Side Marker/Parking Lights LED
Front Turn Signal Lights
24 W
(PWY 24W Amber/Silver)
Side Turn Signal Lights
(on Door Mirrors) LED
Brake/Taillights/Rear Side Marker
Lights
LED
Brake/Taillights LED
Back-Up Lights
21 W
Rear Turn Signal Lights 21 W
High-Mount Brake Light
LED
Rear License Plate Lights LED
Interior Lights
Front and Rear Map Lights
LED
Front and Rear Ambient Lights
LED
Vanity Mirror Lights
1.4 W
Center Pocket Light
LED
Door Courtesy Lights
3.4 W
Console Compartment Light
1.4 W
Glove Box Light
1.4 W
Door Inner Handle Lights
LED
Trunk Lights
5 W

521
uuSpecifications u
Continued
Information
■Brake Fluid
■ Dual Clutch Transmission FluidSpecified
Acura Heavy Duty Brake Fluid DOT 3
Specified
Acura Automatic Transmission Fluid
ATF-TYPE 2.0
Capacity Change 4.3 US qt (4.1 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
Specified
Acura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 ℓ)
(change including the remaining
0.21 US gal (0.8 ℓ) in the reserve tank)
■ Tire*1: Vehicles with optional spare tireRegular
Size
225/55R17 97H
Pressure
psi (kPa [kgf/cm
2])
32 (220 [2.2])
Compact
Spare
*1
Size
T135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
17 x 7 1/2J
Compact Spare
*1
17 x 4T

522
uuSpecifications u
Information
■Vehicle Specifications*1: 2WD models
*2: AWD modelsModel
Acura TLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 4,586 lbs (2,080 kg)
*1
U.S.: 4,751 lbs (2,155 kg)
*2
Canada: 2,095 kg
*1
Canada: 2,170 kg
*2
Gross Axle Weight
Rating (Front)
U.S.: 2,535 lbs (1,150 kg)
*1
U.S.: 2,579 lbs (1,170 kg)
*2
Canada: 1,165 kg
*1
Canada: 1,180 kg
*2
Gross Axle Weight
Rating (Rear)
U.S.: 2,072 lbs (940 kg)
*1
U.S.: 2,194 lbs (995 kg)
*2
Canada: 945 kg
*1
Canada: 1,005 kg
*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant Type ND-OIL 86-cylinder models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
212 cu-in (3,471 cm
3)
Spark Plugs NGK DILZKR7B11G
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.7 US qt (5.4 ℓ)
■ Light BulbsHeadlights (High/Low Beam)
LED
Fog Lights
*
LED
Front Turn Signal Lights
24 W
(PWY 24W Amber/Silver)
Front Side Marker/Parking Lights LED
Side Turn Signal Lights
(on Door Mirrors)
LED
Brake/Taillights/Rear Side Marker
Lights LED
Brake/Taillights
LED
Back-Up Lights 21 W
Rear Turn Signal Lights
21 W
High-Mount Brake Light LED
Rear License Plate Lights
LED
Puddle Lights
*
LED
Interior Lights
Front and Rear Map Lights
LED
Front and Rear Ambient Lights
LED
Vanity Mirror Lights
1.4 W
Center Pocket Light
LED
Door Courtesy Lights
3.4 W
Console Compartment Light
1.4 W
Glove Box Light
1.4 W
Door Inner Handle Lights
LED
Trunk Lights
5 W
* Not available on all models

523
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid
*
Specified
Acura Heavy Duty Brake Fluid DOT 3
Specified
Acura Automatic Transmission Fluid
ATF-TYPE 3.0
Capacity Change 3.5 US qt (3.3 ℓ)
Specified
Acura DPSF-II
Capacity Change 1.97 US qt (1.86 ℓ)
Specified
·Acura Hypoid Gear Oil HGO-1
·Hypoid gear oil SAE 75W-85 or SAE 90 (API
grade GL4 or GL5)
Capacity Change 0.45 US qt (0.43 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
Specified
Acura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
2.22 US gal (8.4 ℓ)
(change including the remaining
0.21 US gal (0.8 ℓ) in the reserve tank)
■ Tire*1: Vehicles with optional spare tireRegular
Size
225/50R18 95H
Pressure
psi (kPa [kgf/cm
2])
32 (220 [2.2])
Compact
Spare
*1
Size
T135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
18 x 7 1/2J
Compact Spare
*1
17 x 4T
* Not available on all models

524Information

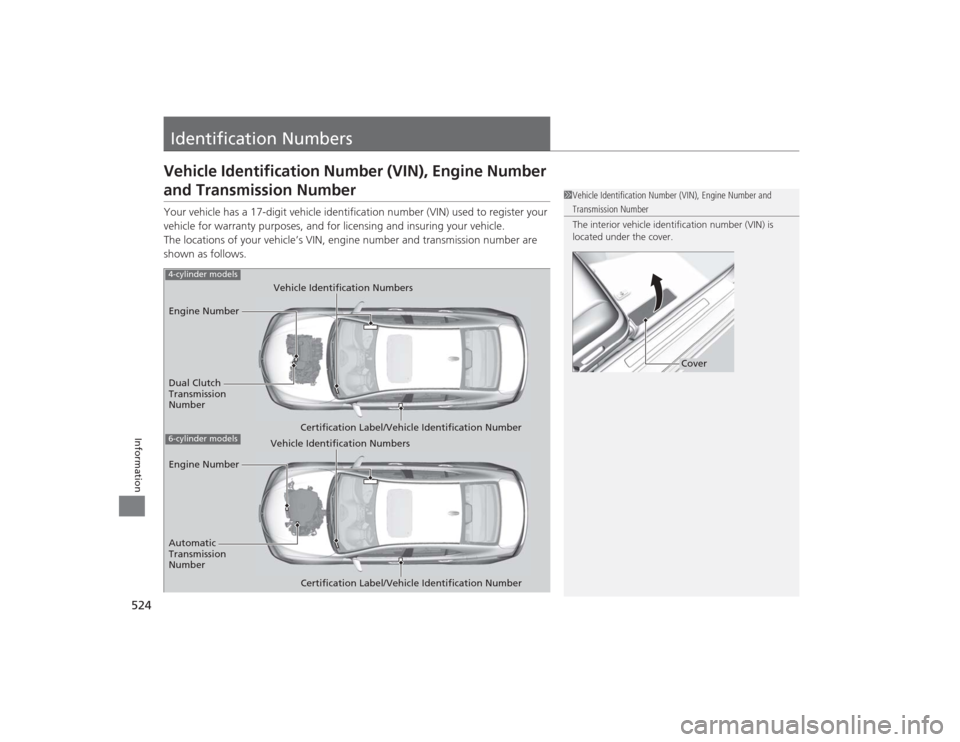

Identification NumbersVehicle Identification Number (VIN), Engine Number and Transmission NumberYour vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
1Vehicle Identification Number (VIN), Engine Number and Transmission Number
The interior vehicle iden tification number (VIN) is
located under the cover.
Cover
Vehicle Identification Numbers
Engine Number
Dual Clutch
Transmission
Number Certification Label/Vehicle Identification Number
Vehicle Identification Numbers
Engine Number
Automatic
Transmission
Number Certification Label/Vehicle Identification Number
4-cylinder models6-cylinder models

525Information
Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in operation.Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.This device complies with industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.AcuraLink
*
Audio SystemBlind Spot Information System
*
Bluetooth ® AudioBluetooth® HandsFreeLink ®Collision Mitigation Braking System
TM *
HomeLink® Universal TransceiverImmobilizer SystemKeyless Access SystemTire Pressure Monitoring System (TPMS)Remote Engine Start with Vehicle Feedback
*
* Not available on all models

527
Continued
Information
Emissions TestingTesting of Readiness CodesYour vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P
.
Increase the engine speed to 2,000 rpm, and hold it there until the temperature
gauge rises to at least 1/4 of the scale (about 3 minutes).
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing faci lity determines the readiness codes
are still not set, see a dealer.

528
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
. Do not use cruise control. When traffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

532Information
Client Service InformationAcura dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership’s service manager or general manager. If you are dissatisfied with the
decision made by the dealership’s management, contact Acura Client Relations/
Services.
U.S. Owners:
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop 500-2N-7E 1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238Canadian Owners:
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546
1 Client Service Information
When you call or write, please give us the following
information:•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 524•Date of purchase•Odometer reading of your vehicle•Your name, address, and telephone number•A detailed description of the problem•Name of the dealer who sold the vehicle to you
