engine Acura TLX 2015 User Guide

Quick Reference Guide23
Handling the Unexpected
(P475)
Flat Tire
(P477)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On (P505)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kitVehicles with optional spare tire
Engine Won’t Start
(P495)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse
(P510)
● Check for a blown fuse if an electrical
device does not operate.
Overheating
(P503)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P515)
● Call a professional towing service if you
need to tow your vehicle.

24Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.●Move the steering wheel left and right
while pressing the ENGINE START/STOP
button.
The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?
The shift lever should be moved to
(P
.
Why does the brake pedal
pulsate slightly when
applying the brakes?
This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
The rear door cannot be
opened from inside the
vehicle. Why?
Check if the childproof lock is in
the LOCK position. If so, open the
rear door with the outside door
handle.
To cancel this function, push the
lever to the UNLOCK position.
Canadian modelsModels with shift lever

26Quick Reference Guide
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?
●Fasten the driver’s seat belt.●Check if the transmission is in
(P
or
(N
. If so, select any other
position.
Why does the gear position
automatically change to
(P

when I open the driver's
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.●Close the driver's door and manually change the gear
position. u
When opening the driver’s door
(P333)
Unleaded gasoline with a
Pump Octane Number
(PON) of 91 or higher is
recommended.
Is it possible to use
unleaded gasoline with a
Pump Octane Number
(PON) of 87 or lower on
this vehicle?
Unleaded gasoline with a Pump Octane Number (PON) of 91 or
higher is recommended.
Use of lower octane gasoline can cause occasional metallic
knocking noise in the engine and wi ll result in decreased engine
performance.
Use of gasoline with a pump octane less than 87 can lead to
engine damage.
Models with electronic gear selector

66Safe Driving
Exhaust Gas HazardCarbon Monoxide GasThe engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.■Have the exhaust system inspected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately after starting the engine.
3
WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.

70Instrument Panel
Indicators*1:On the left: Models with full color displayOn the right: Models without full color displayIndicator
Name
On/Blinking
Explanation
Message
*1
Brake System
Indicator (Red)
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.●Comes on when the brake
fluid level is low.●Comes on if there is a
problem with the brake
system.
●Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator comes
on while driving P. 506
●Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you normally
do.●Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 506
Low Oil
Pressure
Indicator
●Comes on when you set the
power mode to ON, and goes
off when the engine starts.●Comes on when the engine
oil pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 505
U.S.Canada(Red)

74
uuIndicators u
Instrument Panel
*1:On the left: Models with full color display
On the right: Models without full color displayIndicator
Name
On/Blinking
Explanation
Message
*1
Malfunction
Indicator Lamp
●Comes on when you set the
power mode to ON, and goes
off either when the engine
starts or after several seconds
if the engine is not started. If
“readiness codes” have not
been set, it blinks five times
before it goes off.●Comes on if there is a
problem with the emissions
control system.●Blinks when a misfire in the
engine’s cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 527
●Comes on while driving - Have your
vehicle checked by a dealer.●Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the engine for 10 minutes or more, and
wait for it to cool down. Then, take the
vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 506
Charging
System
Indicator
●Comes on when you set the
power mode to ON, and goes
off when the engine starts.●Comes on when the battery is
not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce electricity consumption.
2 If the Charging System Indicator
Comes On P. 505

76
uuIndicators u
Instrument Panel
*1:On the left: Models with full color display
On the right: Models without full color display
*2:Models with full color display
*3:Models without full color displayIndicator
Name
On/Blinking
Explanation
Message
*1
Transmission
Indicator
●The indicated current gear
selection blinks if there is a
problem with the
transmission system.
●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may
light for several seconds, and
go off.
●When all the gear positions light,
immediately stop your vehicle in a safe place.●Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.
●The indicated current gear
selection or all the gear
positions blink if there is a
problem with the
transmission system, and the
vehicle no longer moves.
●Immediately stop in a safe place.
2 Emergency Towing P. 515
●Have your vehicle checked by a dealer.
●The indicated current gear
selection or all the gear
positions blink if you cannot
select
(P
due to the
transmission system failure.
●The engine can be activated as a temporary
measure.
2
If the Transmission Indicator Blinks along
with the Warning Message
P. 509
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
Models with electronic gear selector
*2*3

80
uuIndicators u
Instrument Panel
*1:On the left: Models with full color display
On the right: Models without full color displayIndicator
Name
On/Blinking
Explanation
Message
*1
Supplemental
Restraint
System
Indicator
●Comes on for a few seconds
when you set the power
mode to ON, then goes off.●Comes on if a problem with
any of the following is
detected:
-Supplemental restraint
system
- Side airbag system
- Side curtain airbag system
●Stays on constantly or does not come
on at all - Have your vehicle checked by a
dealer.
Electric Power
Steering (EPS)
System
Indicator
●Comes on when you set the
power mode to ON, and goes
off when the engine starts.●Comes on if there is a
problem with the EPS system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by a
dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 507

83
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.●Blink if you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2Replacing Light Bulbs P. 447, 448, 450
—
High Beam
Indicator
●Comes on when the high beam
headlights are on.
—
—
Lights On
Indicator
●Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.
●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
—
Fog Light
Indicator
*
●Comes on when the fog lights are
on.
—
—
Immobilizer
System Indicator
●Comes on briefly when you set the
power mode to ON, then goes off.●Comes on if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF (LOCK),
then select the ON mode again.●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by a dealer.●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
* Not available on all models

91
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message

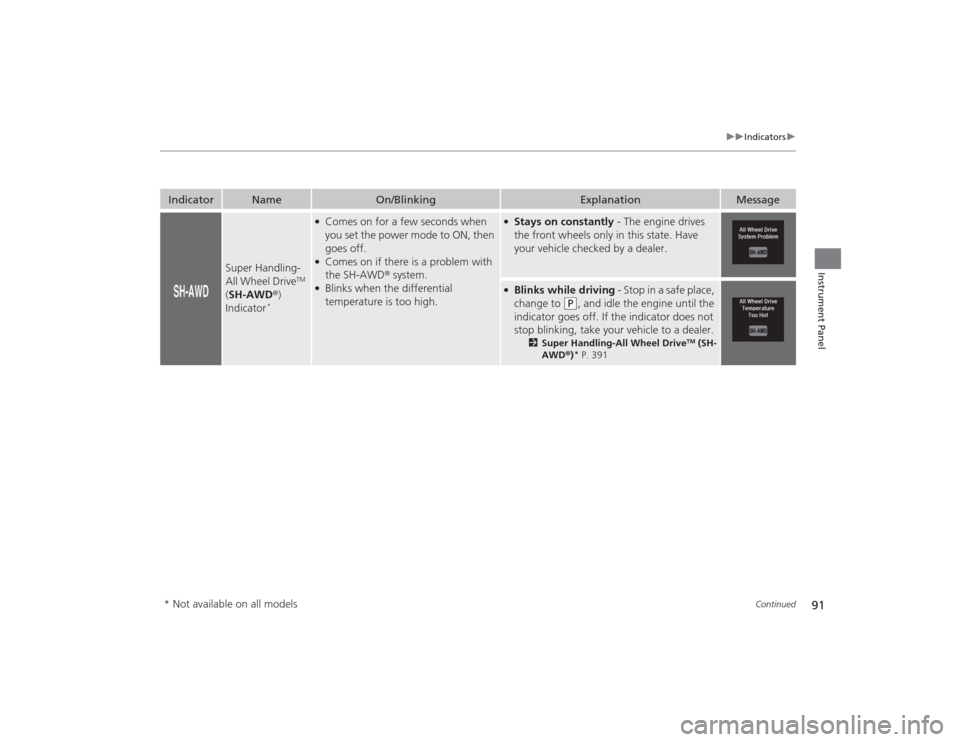

Super Handling-
All Wheel Drive
TM
( SH-AWD ®)
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on if there is a problem with
the SH-AWD ® system.●Blinks when the differential
temperature is too high.
●Stays on constantly - The engine drives
the front wheels only in this state. Have
your vehicle checked by a dealer.●Blinks while driving - Stop in a safe place,
change to
(P
, and idle the engine until the
indicator goes off. If the indicator does not
stop blinking, take your vehicle to a dealer.
2 Super Handling-All Wheel Drive
TM (SH-
AWD ®)
* P. 391
* Not available on all models
