Auto idle Acura TLX 2015 Owner's Guide

Continued
343
uuWhen Driving uAuto Idle Stop
*
Driving
The vehicle stops with the gear position in
(D
and the brake pedal depressed.
■Auto idle stop does not activate when:
• The driver’s seat belt is not fastened.
• The engine coolant temperature is low or high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again before the vehicle speed reaches 5 km/h after
the engine starts.
• Stopped on a steep incline.
• A gear position other than
(D
or in Sport+.
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.
• The battery charge is low.
• The internal temperature of the battery is 14°F (−10°C). or less.
• The climate control system is in use, and the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system temperature is set to the Hi or Lo.
• is ON (indicator on).
■
Auto Idle Stop Activates When:
1Auto Idle Stop Activates When:
When ACC with LSF is in operation, the vehicle stops
without depressing the brake pedal and Auto Idle
Stop may activate.
Do not open the hood while the Auto Idle Stop
function is activated. If the hood is opened, the
engine will not restart automatically.
In this case, restart the engine with the ENGINE
START/STOP button.
2 Starting the Engine P. 322
Pressing the ENGINE START/STOP button changes
the power mode to ACCESSORY even while Auto Idle
Stop is in operation. Once in ACCESSORY, the engine
no longer restarts automatically. Follow the standard
procedure to start the engine. 2 Starting the Engine P. 322Models with ACC with LSF

uuWhen Driving uAuto Idle Stop
*
344Driving
■Auto idle stop may not activate when:
• The vehicle is stopped by braking suddenly.
• The steering wheel is operated.
• The fan speed is high.
• Altitude is high.
• The vehicle is repeatedly accelerat ed and decelerated at a low speed.
• The climate control system is in use, and there is a significant difference between
the set temperature and the actual interior temperature.
• Humidity in the interior is high.
The brake pedal is released and the automatic brake hold system is off.■The engine restarts even if the brake pedal is depressed or the automatic
brake hold system is activated when:
• The Auto Idle Stop OFF button is pressed.
• When a steering wheel is operated.
• The gear position is in a position other than
(D
or in Sport+.
• The pressure on the brake pedal is reduced and the vehicle starts moving while
stopped on an incline.
• The pressure on the brake pedal is repeatedly applied and released slightly during
a stop.
• The battery charge becomes low.
• The accelerator pedal is depressed.
• The driver’s seat belt is unlatched.
• is ON (indicator on).
• The climate control system is in use, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is being used to dehumidify the interior.
■
The Engine Automatically Restarts When:
1The Engine Automatically Restarts When:•If you are using an electronic device during Auto
Idle Stop, the device may temporarily be turned off
when the engine restarts.

345
uuWhen Driving uAuto Idle Stop
*
Driving
Briefly keeps the brakes applied after releasing the brake pedal to restart the engine.
This can keep your vehicle from unexpectedly moving while on an incline.■
Starting Assist Brake Function

427
uuBefore Performing Maintenance uSafety When Performing Maintenance
Maintenance
Safety When Performing MaintenanceSome of the most important safety precautions are given here.
However, we cannot warn you of every conc eivable hazard that can arise in
performing maintenance. Only you can decide whether or not you should perform
a given task.
• To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them causing a fire.
• To clean parts, use a commercially available degreaser or parts cleaner, not
gasoline.
• Wear eye protection and protective clothing when working with the battery or
compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Operate the engine only when there is sufficient ventilation.
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on level ground, the parking brake is set, and
the engine is off.
• Be aware that hot parts can burn you.
u Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not start the engine unless instructed, and keep your hands and limbs away
from moving parts.
u Do not open the hood while the Auto Idle Stop function
* is activated.
■
Maintenance Safety
■
Vehicle Safety
1Safety When Performing Maintenance
3
WARNING
Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3
WARNING
Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow th e procedures and
precautions in this owner’s manual.
* Not available on all models

436
uuMaintenance Under the Hood uOpening the Hood
Maintenance
Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
lower left corner of the dashboard.
u The hood will pop up slightly.
3. Slide the hood latch lever in the center of
the hood to release the lock mechanism,
and open the hood.
4. Lift the hood up most of the way.
u The hydraulic supports will lift it up the
rest of the way and hold it up.
When closing, lower it to approximately 12
inches (30 cm), then press down firmly with
your hands.
1 Opening the HoodNOTICEDo not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifting the lever, the latch
mechanism should be cleaned and lubricated.
Do not open the hood while the Auto Idle Stop
function is activated.Models with Auto Idle Stop
Pull
Hood Release Handle
Lever

466

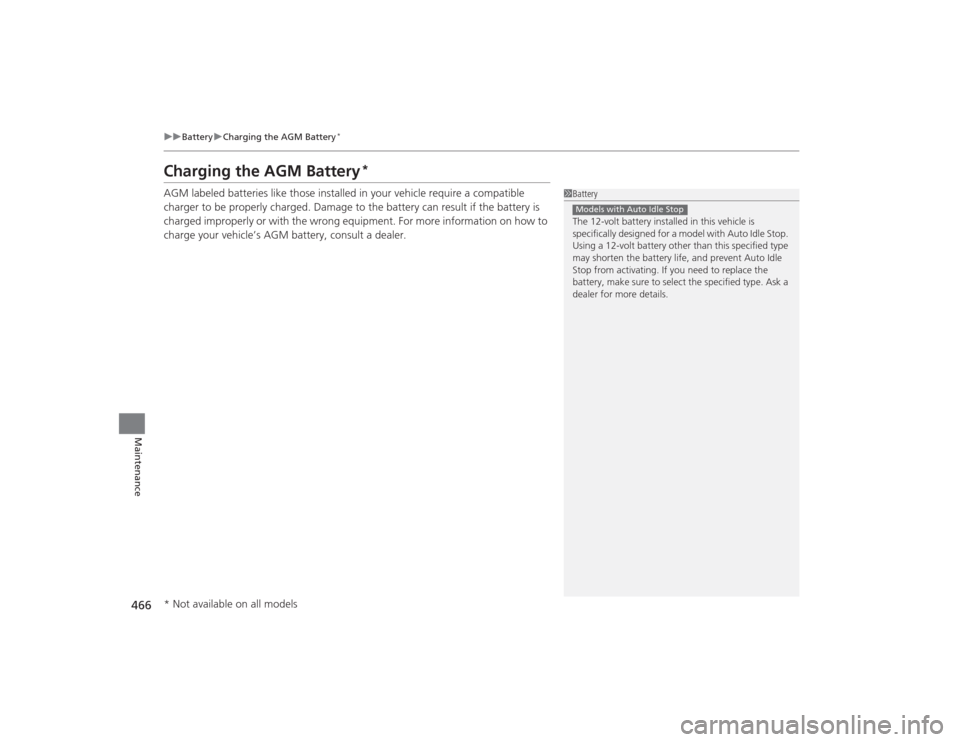

uuBattery uCharging the AGM Battery
*
Maintenance
Charging the AGM Battery
*
AGM labeled batteries like those installed in your vehicle require a compatible
charger to be properly ch arged. Damage to the battery can result if the battery is
charged improperly or with the wrong equipment. For more information on how to
charge your vehicle’s AGM battery, consult a dealer.
1 Battery
The 12-volt ba ttery installed in this vehicle is
specifically designed for a model with Auto Idle Stop.
Using a 12-volt battery other than this specified type
may shorten the battery life, and prevent Auto Idle
Stop from activating. If you need to replace the
battery, make sure to select the specified type. Ask a
dealer for more details.Models with Auto Idle Stop
* Not available on all models

Index
534Index
Index
AAAC.................................................... 235, 245
ABS (Anti-lock Brake System) ................... 402
Accessories and Modifications ................. 423
Accessory Power Sockets .......................... 193
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 89, 352
Additives
Coolant ................................................... 443
Engine Oil ................................................ 437
Washer .................................................... 446
Additives, Engine Oil ................................ 437
Adjusting Armrest ................................................... 186
Front Seats .............................................. 180
Head Restraints........................................ 182
Mirrors .................................................... 177
Steering Wheel ........................................ 176
Temperature ............................................ 123
Agile Handling Assist System ................... 388
Aha
TM Menu .............................................. 244
AhaTM Radio .............................................. 254
Air Conditioning System (Climate Control System) .................................................... 199
Changing the Mode ................................ 202
Defrosting the Windshield and Windows ............................................... 206
Dust and Pollen Filter ............................... 469
Recirculation/Fresh Air Mode ................... 204
Sensors .................................................... 207
Synchronized Mode ................................. 203 Using Automatic Climate Control ............ 199
Air Pressure ............................... 457, 521, 523
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care............................................... 53
Driver’s Knee Airbag.................................. 46
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 51, 80
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 39
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
AM/FM Radio ............................................ 228
Anti-lock Brake System (ABS) .................. 402
Indicator.................................................... 79
Armrest ..................................................... 186
Audio Remote Controls ........................... 214
Audio System ............................................ 210
Adjusting the Sound................................ 226
Auxiliary Input Jack.................................. 212
Error Messages ........................................ 250
General Information ................................ 255
Internet Radio ......................................... 242
iPhone............................................. 242, 258
iPod ........................................................ 238
MP3/WMA/AAC .............................. 235, 245
Reactivating ............................................ 213
Recommended CDs ................................. 256
Recommended Devices............................ 258
Remote Controls ..................................... 214 Security Code ......................................... 213
Shortcuts ................................................ 217
Theft Protection ...................................... 213
USB Flash Drives...................................... 258
USB Port ................................................. 211
Audio/Information Screen ....................... 222
Authorized Manuals ................................ 531
Auto Door Locking/Unlocking ................ 151
Customize ...................................... 132, 270
Auto Idle Stop .......................................... 342
OFF Button ............................................. 342
Auto Idle Stop Indicator (Green) .............. 92
Auto Idle Stop System Indicator (Amber) ..................................................... 92
Automatic Brake Hold ............................. 400
Indicator ........................................... 72, 400
Automatic Brake Hold System
Indicator ........................................... 72, 400
Automatic Lighting .................................. 166
Automatic Transmission .......................... 330
Creeping................................................. 330
Kickdown ............................................... 330
Operating the Shift Button ................ 18, 332
Shifting ................................................... 331
Auxiliary Input Jack ................................. 212
Average Fuel Economy ............................ 123
Average Speed ......................................... 124

538Index
IIdentification Numbers............................ 524
Vehicle Identifi cation Number (VIN),
Engine Number and Transmission
Number ............................................... 524
IDS (Integrated Dynamics System) ........... 346
IDS Button ................................................. 346
Illumination Control ................................. 172
Immobilizer System .................................. 155
Indicator .................................................... 83
Indicators ..................................................... 70
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 89, 352
Anti-lock Brake System (ABS) ..................... 79
Auto Idle Stop (Green) ............................... 92
Auto Idle Stop System (Amber) .................. 92
Automatic Brake Hold........................ 72, 400
Automatic Brake Hold System ............ 72, 400
Blind Spot Information (BSI) ............... 90, 390
Brake System (Amber)................................ 73
Brake System (Red) ............................ 70, 506
Charging System ............................... 74, 505
Collision Mitigation Braking System
TM
(CMBS
TM) ........................................... 93, 94
CRUISE CONTROL .............................. 84, 349
CRUISE MAIN .................................... 84, 348
Door and Trunk Open .......................... 31, 81
ECON (Econ mode) .................................... 88
Electric Parking Brake................................. 71
Electric Parking Brake System ............. 71, 507
Electric Power Steering (EPS) System .. 80, 507 Fog Lights ................................................. 83
Forward Collision Warning (FCW) .............. 85
Gear Position............................................. 75
High Beam ................................................ 83
Immobilizer System ................................... 83
Keyless Access System ............................... 84
Lane Departure Warning (LDW) ................. 86
Lane Keeping Assist System (LKAS) .... 89, 381
Lights On .................................................. 83
Low Fuel ................................................... 79
Low Oil Pressure ................................ 70, 505
Low Tire Pressure/TPMS ............. 82, 392, 394
Malfunction Indicator Lamp............... 74, 506
Precision All Wheel Steer System ............... 88
Road Departure Mitigation (RDM) ............. 87
Seat Belt Reminder .............................. 33, 78
Security System Alarm ............................... 84
SPORT (Sport mode) .................................. 88
Super Handling-All Wheel Drive
TM
(SH-AWD ®) .............................................. 91
Supplemental Restraint System ............ 51, 80
System Message ........................................ 82
Transmission ....................................... 76, 77
Turn Signal ................................................ 83
Vehicle Stability Assist (VSA ®)
System ............................................ 81, 386
VSA ® OFF .......................................... 81, 387
Information .............................................. 519
Instant Fuel Economy ............................... 124
Instrument Panel ........................................ 69
Brightness Control................................... 172 Integrated Dynamics System (IDS)
.......... 346
IDS Button .............................................. 346
Interface Dial ............................................ 215
Interior Lights ........................................... 187
Interior Rearview Mirror ......................... 177
Internet Radio .......................................... 242
iPhone ............................................... 242, 258
iPod ................................................... 238, 258
JJack (Wheel Nut Wrench) ........................ 492
Jump Starting ........................................... 498KKey Number Tag ...................................... 141
Keyless Access System .............................. 143
Keyless Lockout Prevention ..................... 146
Keys ........................................................... 139
Lockout Prevention ................................. 146
Number Tag............................................ 141
Rear Door Won’t Open ........................... 150
Remote Transmitter ................................ 142
Two-way Keyless Access Remote ................................. 139, 147, 325
Types and Functions................................ 139
Kickdown (Automatic Transmission) ...... 330
Kickdown (Dual Clutch Transmission) .... 330
