Acura TLX 2016 Owner's Manual

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
190
Controls

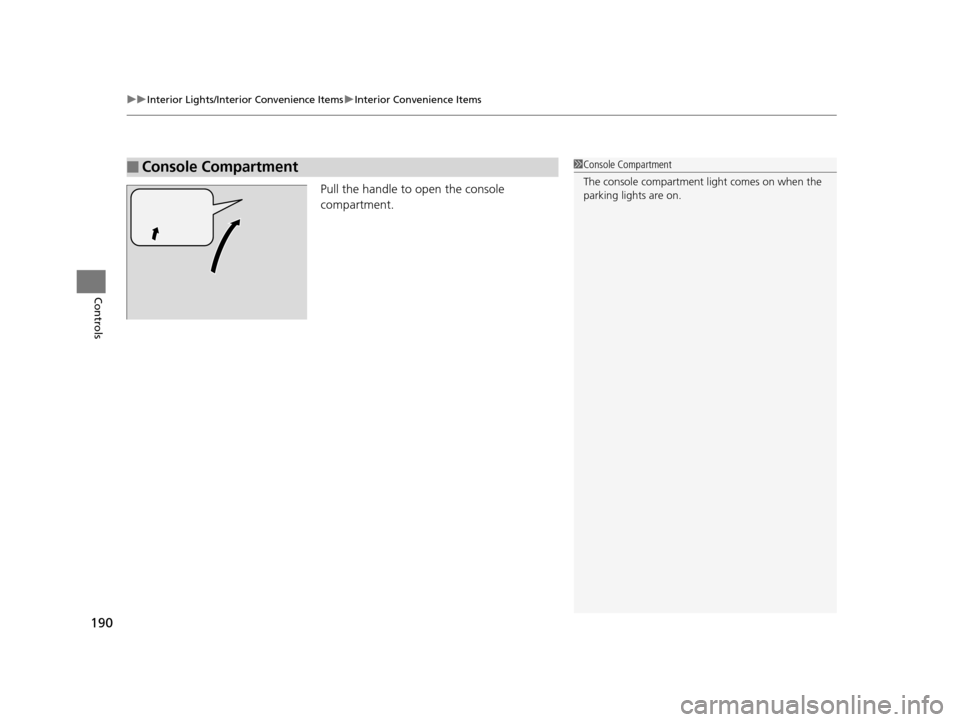

Pull the handle to open the console
compartment.
■Console Compartment1 Console Compartment
The console compartment light comes on when the
parking lights are on.
16 ACURA TLX-31TZ36100.book 190 ページ ２０１５年８月２６日　水曜日　午後１時５４分

191
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

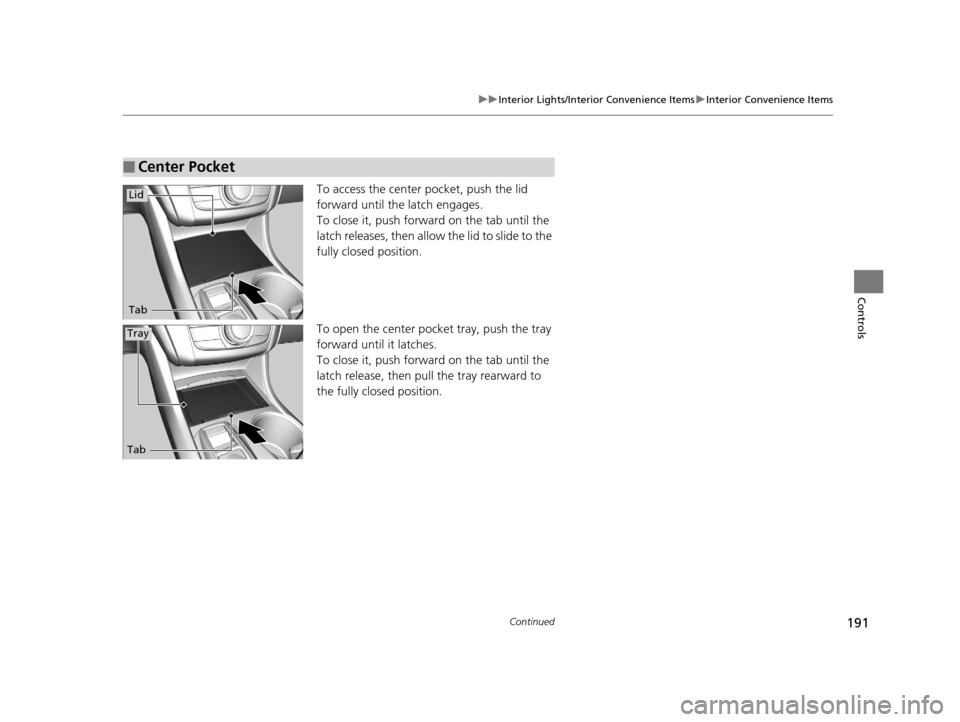

To access the center pocket, push the lid
forward until the latch engages.
To close it, push forward on the tab until the
latch releases, then allow the lid to slide to the
fully closed position.
To open the center pocket tray, push the tray
forward until it latches.
To close it, push forward on the tab until the
latch release, then pull the tray rearward to
the fully closed position.
■Center Pocket
Tab
Lid
Tab
Tray
16 ACURA TLX-31TZ36100.book 191 ページ ２０１５年８月２６日　水曜日　午後１時５４分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
192
Controls
■Front seat beverage holders
Are located in the console between the front
seats.
■Front door side beverage holders
Are located on the both of front door side
pockets.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
16 ACURA TLX-31TZ36100.book 192 ページ ２０１５年８月２６日　水曜日　午後１時５４分

Continued193
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

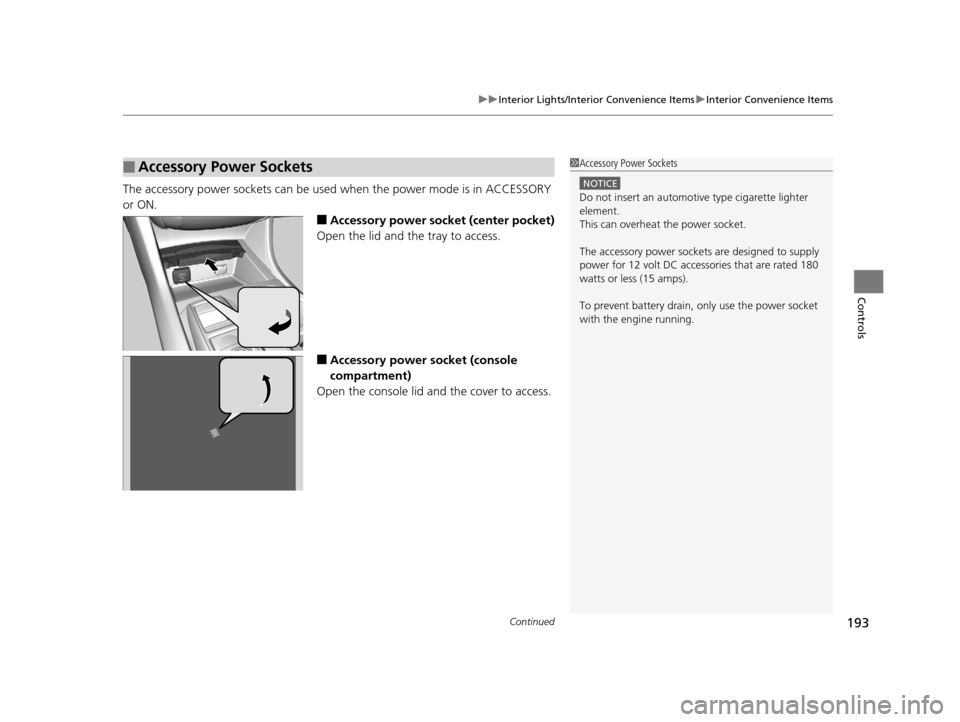

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (center pocket)
Open the lid and the tray to access.
■Accessory power socket (console
compartment)
Open the console lid and the cover to access.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket s are designed to supply
power for 12 volt DC access ories that are rated 180
watts or less (15 amps).
To prevent battery drain, only use the power socket
with the engine running.
16 ACURA TLX-31TZ36100.book 193 ページ ２０１５年８月２６日　水曜日　午後１時５４分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
194
Controls

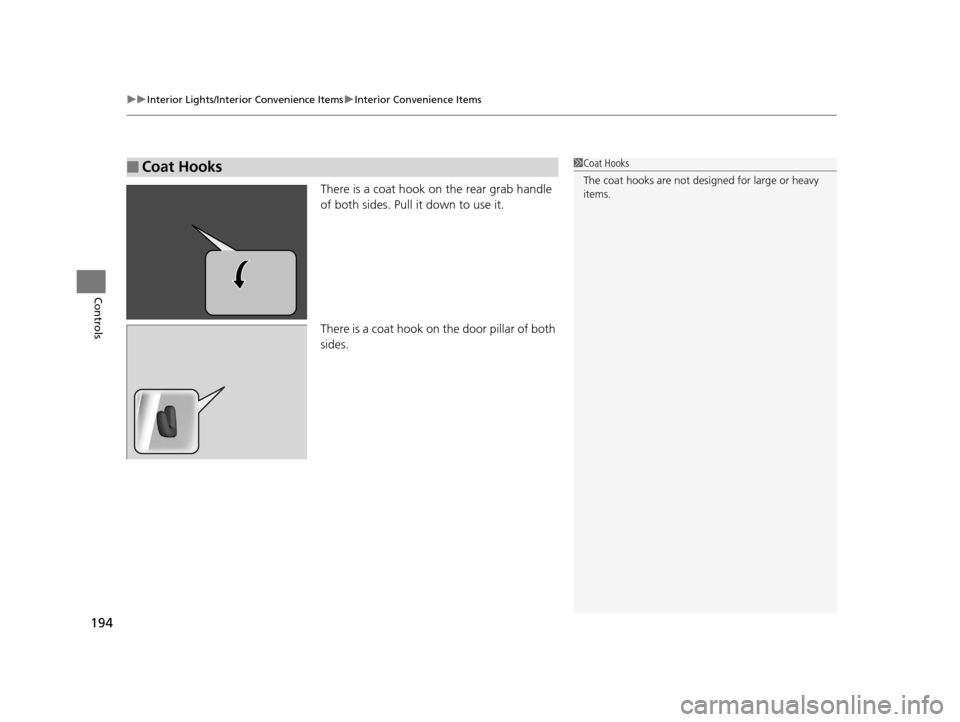

There is a coat hook on the rear grab handle
of both sides. Pull it down to use it.
There is a coat hook on the door pillar of both
sides.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
16 ACURA TLX-31TZ36100.book 194 ページ ２０１５年８月２６日　水曜日　午後１時５４分

Continued195
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

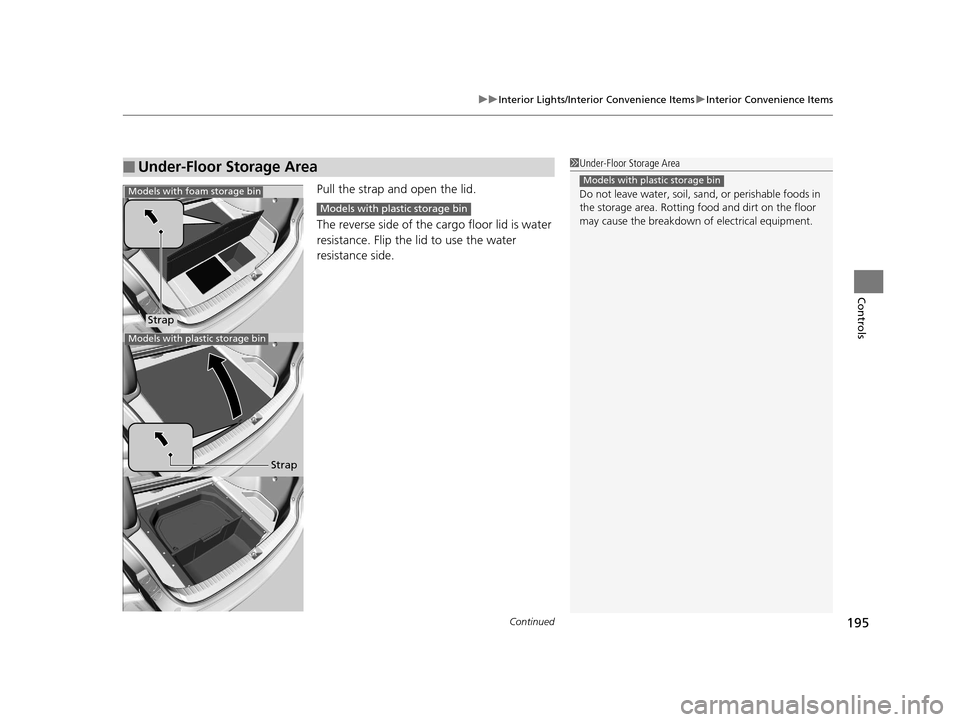

Pull the strap and open the lid.
The reverse side of the cargo floor lid is water
resistance. Flip the lid to use the water
resistance side.
■Under-Floor Storage Area1 Under-Floor Storage Area
Do not leave water, soil, sand, or perishable foods in
the storage area. Rotting f ood and dirt on the floor
may cause the breakdown of electrical equipment.
Models with plastic storage bin
Strap
Models with foam storage bin
Models with plastic storage bin
Strap
Models with plastic storage bin
16 ACURA TLX-31TZ36100.book 195 ページ ２０１５年８月２６日　水曜日　午後１時５４分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
196
Controls
The power mode must be in ON to use the
heated steering wheel.
Press the button on the left side of the
steering wheel.
When a comfortable temperature is reached,
press the button again to turn it off.
The heated steering wheel is turned off every
time you start the engine, even if you turned it
on the last time you drove the vehicle.
■Heated Steering Wheel*
Canadian models1Heated Steering Wheel*
Do not use the heated steering wheel continuously
when the engine is off. Under such conditions, the
battery may be weaken ed, making the engine
difficult to start.
* Not available on all models
16 ACURA TLX-31TZ36100.book 196 ページ ２０１５年８月２６日　水曜日　午後１時５４分

Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

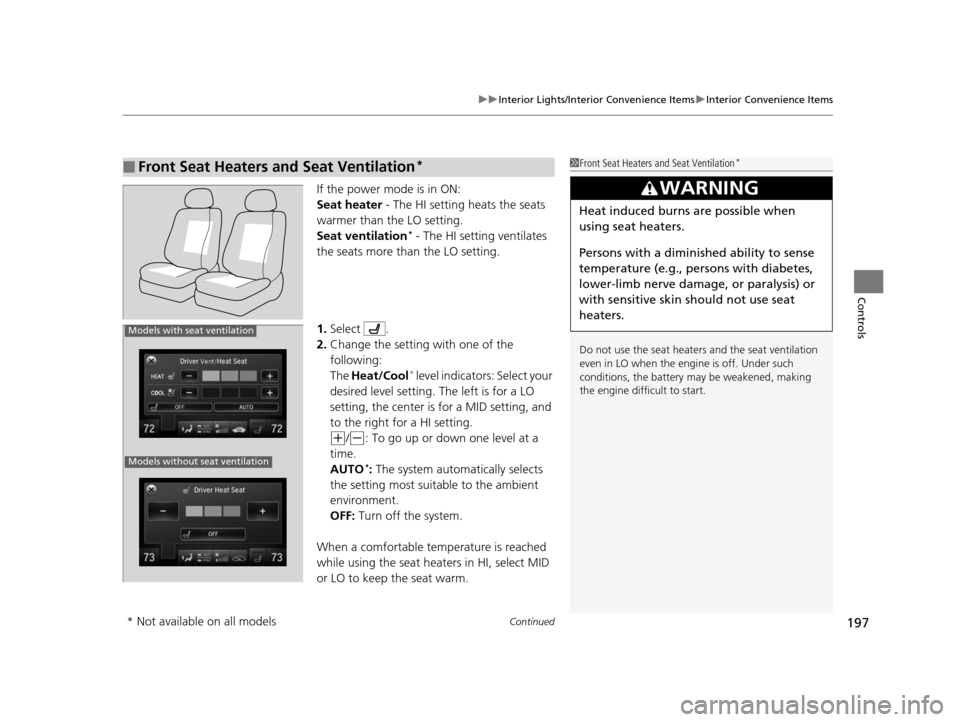

If the power mode is in ON:
Seat heater - The HI setting heats the seats
warmer than the LO setting.
Seat ventilation
* - The HI setting ventilates
the seats more than the LO setting.
1. Select .
2. Change the setting with one of the
following:
The Heat/Cool
* level indicators: Select your
desired level setting. The left is for a LO
setting, the center is for a MID setting, and
to the right for a HI setting.
(+/(-: To go up or down one level at a
time.
AUTO
*: The system automatically selects
the setting most suitable to the ambient
environment.
OFF: Turn off the system.
When a comfortable temperature is reached
while using the seat heaters in HI, select MID
or LO to keep the seat warm.
■Front Seat Heaters and Seat Ventilation*1 Front Seat Heaters and Seat Ventilation*
Do not use the seat heater s and the seat ventilation
even in LO when the engine is off. Under such
conditions, the battery ma y be weakened, making
the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
Models without seat ventilation
Models with seat ventilation
* Not available on all models
16 ACURA TLX-31TZ36100.book 197 ページ ２０１５年８月２６日　水曜日　午後１時５４分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
198
Controls

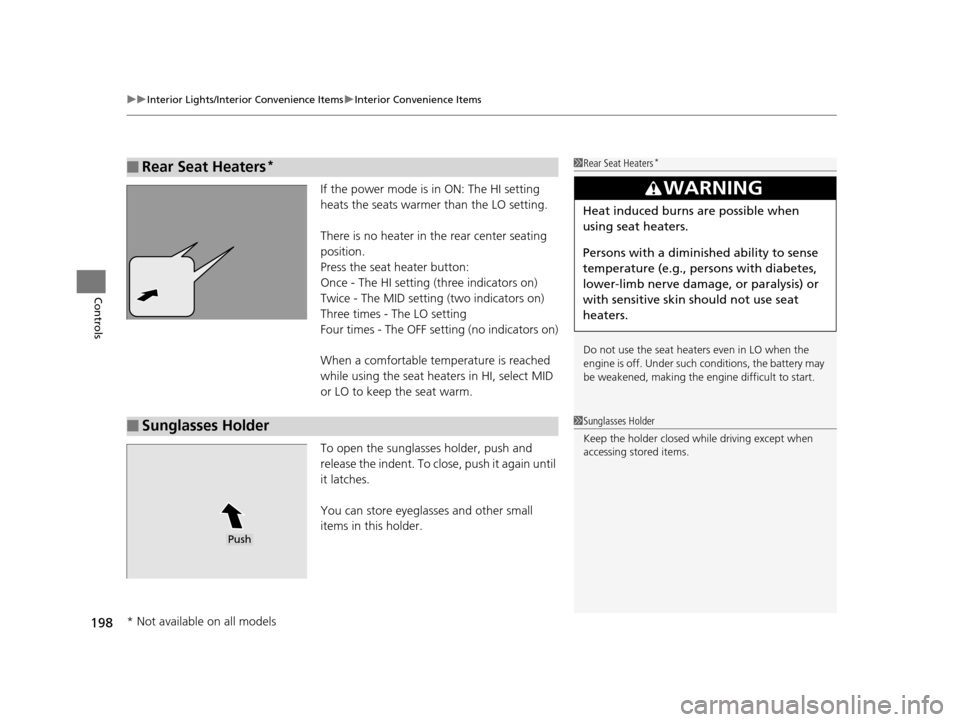

If the power mode is in ON: The HI setting
heats the seats warmer than the LO setting.
There is no heater in the rear center seating
position.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting
Four times - The OFF se tting (no indicators on)
When a comfortable temperature is reached
while using the seat heaters in HI, select MID
or LO to keep the seat warm.
To open the sunglasses holder, push and
release the indent. To clos e, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Rear Seat Heaters*1 Rear Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
■Sunglasses Holder1Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Push
* Not available on all models
16 ACURA TLX-31TZ36100.book 198 ページ ２０１５年８月２６日　水曜日　午後１時５４分

199Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control switch.
3. Press the (On/Off) button to cancel.1Using Automatic Climate Control
See the Navigation System Manual for the operation
of the audio system.
Images shown are for m odels without navigation
system.
If any buttons/icons on the touch screen are pressed
while using the climate control system in AUTO, the
function of the button/icon th at was pressed will take
priority.
The AUTO indicator will go off, but functions
unrelated to the button/icon that was pressed will be
controlled automatically.
During the Auto Idle Stop, the air conditioning
system will be turned off.
To prevent cold air from bl owing in from outside, the
fan may operate at low speed for a while after the
AUTO button has been pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Models with navigation system
Models with Auto Idle Stop
All models
(On/Off) ButtonAUTO Button
On Demand Multi-Use Display
TM
Driver’s Side
Temperature
Control Switch
Passenger’s
Side
Temperature
Control Switch Passenger’s
Side
Temperature
Driver’s Side
Temperature
