Acura TLX 2016 Owner's Manual

uuMaintenance Under the Hood uEngine Coolant
450
Maintenance

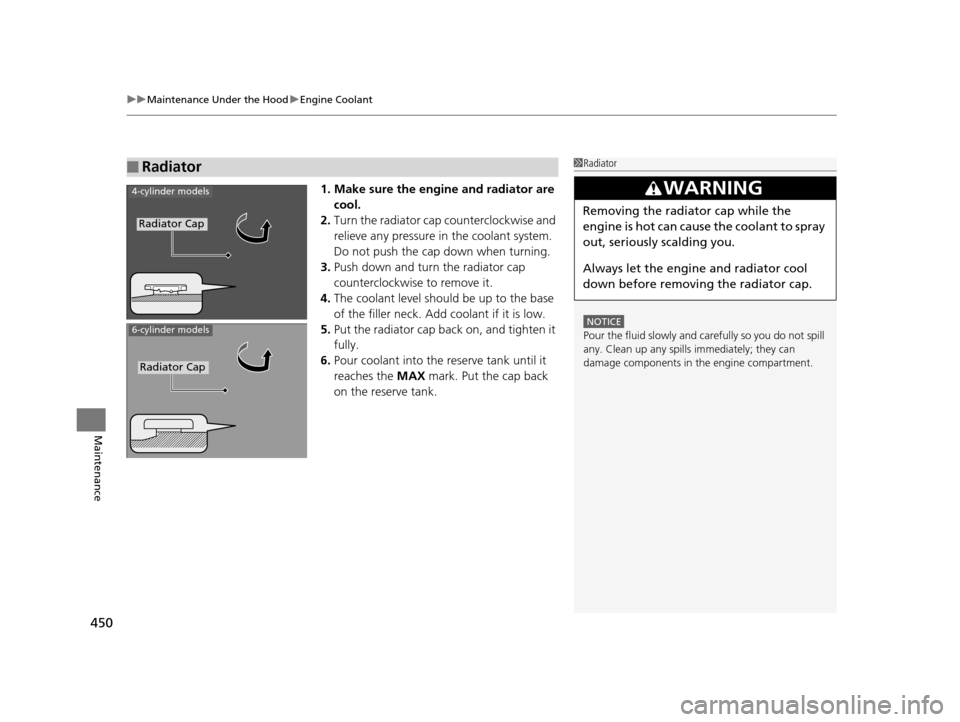

1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system.
Do not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
6. Pour coolant into the reserve tank until it
reaches the MAX mark. Put the cap back
on the reserve tank.
■Radiator1 Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
4-cylinder models
Radiator Cap
6-cylinder models
Radiator Cap
16 ACURA TLX-31TZ36100.book 450 ページ ２０１５年８月２６日　水曜日　午後１時５４分

451
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■Dual Clutch Transmission Fluid*
Specified fluid: Acura Automatic Transmission Fluid ATF-TYPE 2.0
■Automatic Transmission Fluid*
Specified fluid: Acura Automatic Transmission Fluid ATF-TYPE 3.0
1Dual Clutch Transmission Fluid*
NOTICE
Do not mix Acura ATF-TYPE 2.0 with other
transmission fluids.
Using a transmission fluid ot her than Acura ATF-TYPE
2.0 may adversely affect the operation and durability
of your vehicle’s transm ission, and damage the
transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Ac ura ATF-TYPE 2.0 is not
covered by Acura’s new vehicle warranty.
1 Automatic Transmission Fluid*
NOTICE
Do not mix Acura ATF-TYPE 3.0 with other
transmission fluids.
Using a transmission fluid ot her than Acura ATF-TYPE
3.0 may adversely affect the operation and durability
of your vehicle’s transm ission, and damage the
transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Ac ura ATF-TYPE 3.0 is not
covered by Acura’s new vehicle warranty.
* Not available on all models
16 ACURA TLX-31TZ36100.book 451 ページ ２０１５年８月２６日　水曜日　午後１時５４分

452
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the multi-information display.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Acura Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Acura brake fl uid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect for l eaks or worn brake pads as
soon as possible.
MIN
MAX
Brake Reservoir
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Canadian models
16 ACURA TLX-31TZ36100.book 452 ページ ２０１５年８月２６日　水曜日　午後１時５４分

453
Maintenance

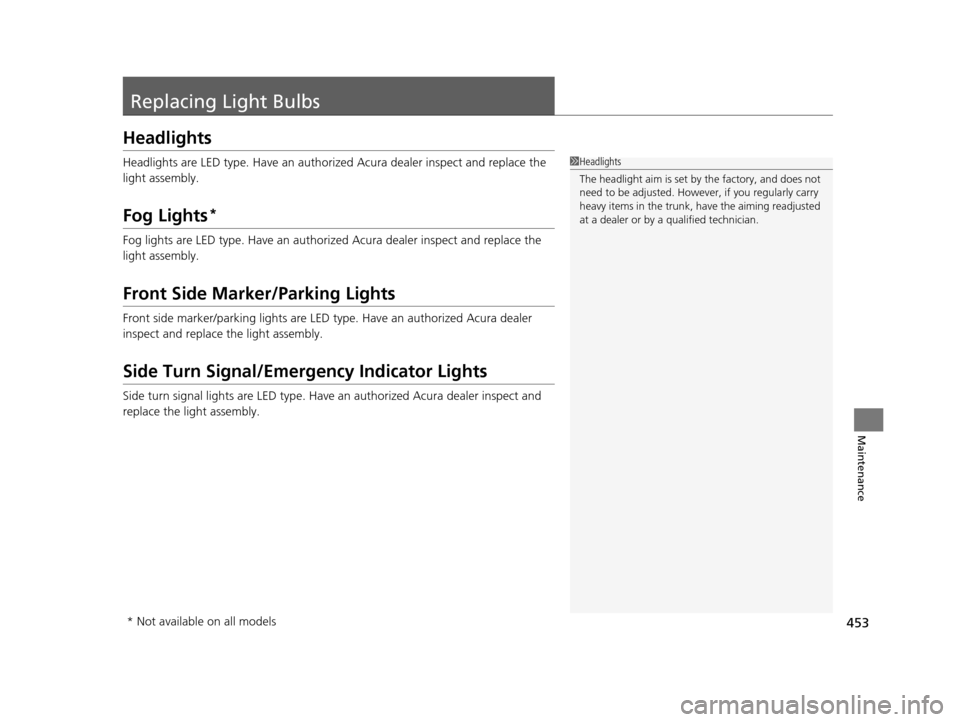

Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Front Side Marker/Parking Lights
Front side marker/parking lights are LED type. Have an authorized Acura dealer
inspect and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights
Side turn signal lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
16 ACURA TLX-31TZ36100.book 453 ページ ２０１５年８月２６日　水曜日　午後１時５４分

454
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger’s side: Turn the steering wheel
to the left.
Driver’s side: Turn the steering wheel to
the right.
2. Remove the holding clips (A) and (B), pull
the inner fender back.
3. Turn the cover to the left and remove it.
Front Turn Signal Light: 24 W (PWY 24W Amber/Silver)
1Front Turn Signal Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Holding clip (A-type)
Push until the
pin is flat.
Inner FenderClip (B)
Clip (A)
Cover
16 ACURA TLX-31TZ36100.book 454 ページ ２０１５年８月２６日　水曜日　午後１時５４分

455
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance

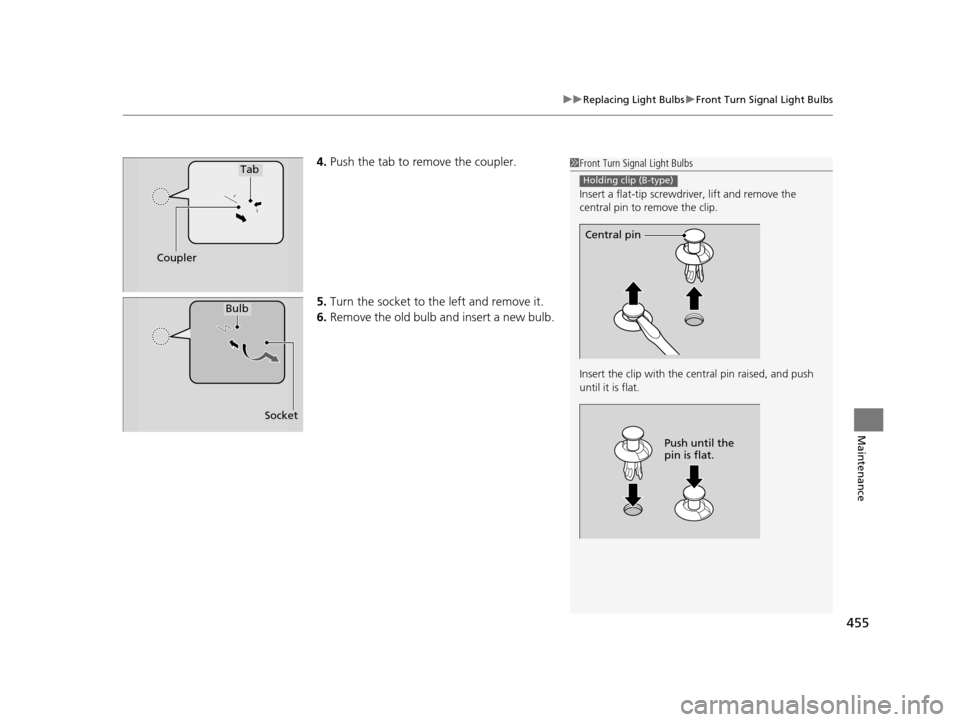

4. Push the tab to remove the coupler.
5. Turn the socket to the left and remove it.
6. Remove the old bulb and insert a new bulb.1Front Turn Signal Light Bulbs
Insert a flat-tip screwdriver, lift and remove the
central pin to remove the clip.
Insert the clip with the central pin raised, and push
until it is flat.
Holding clip (B-type)
Central pin
Push until the
pin is flat.
Tab
Coupler
Bulb
Socket
16 ACURA TLX-31TZ36100.book 455 ページ ２０１５年８月２６日　水曜日　午後１時５４分

456
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance

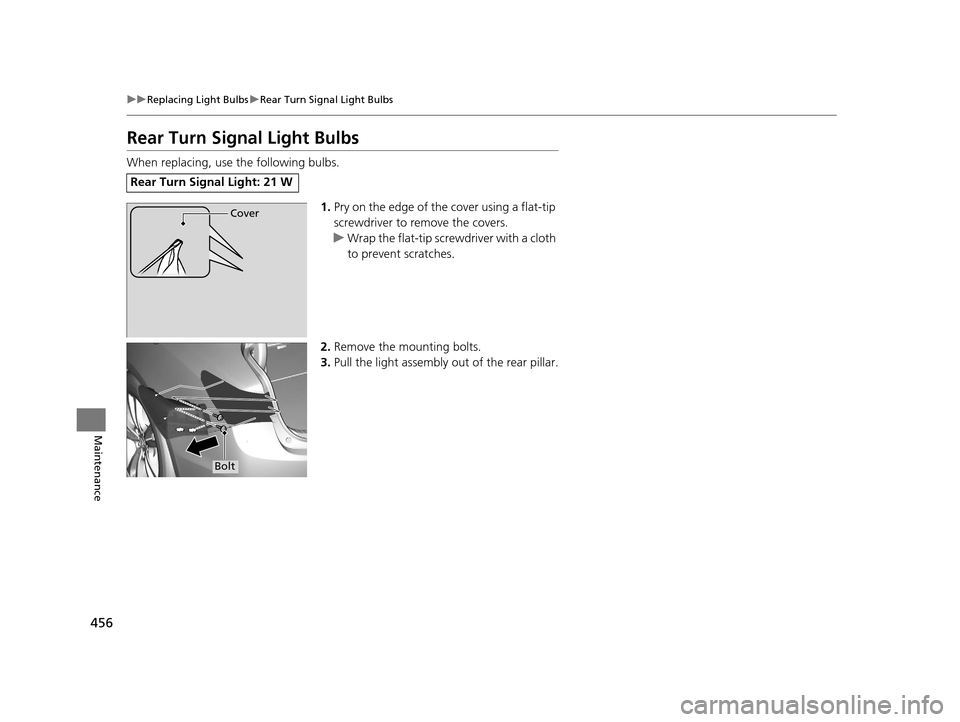

Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to remove the covers.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Remove the mounting bolts.
3. Pull the light assembly out of the rear pillar.
Rear Turn Signal Light: 21 W
Cover
Bolt
16 ACURA TLX-31TZ36100.book 456 ページ ２０１５年８月２６日　水曜日　午後１時５４分

457
uuReplacing Light Bulbs uBrake/Taillight and Rear Side Marker Lights
Maintenance

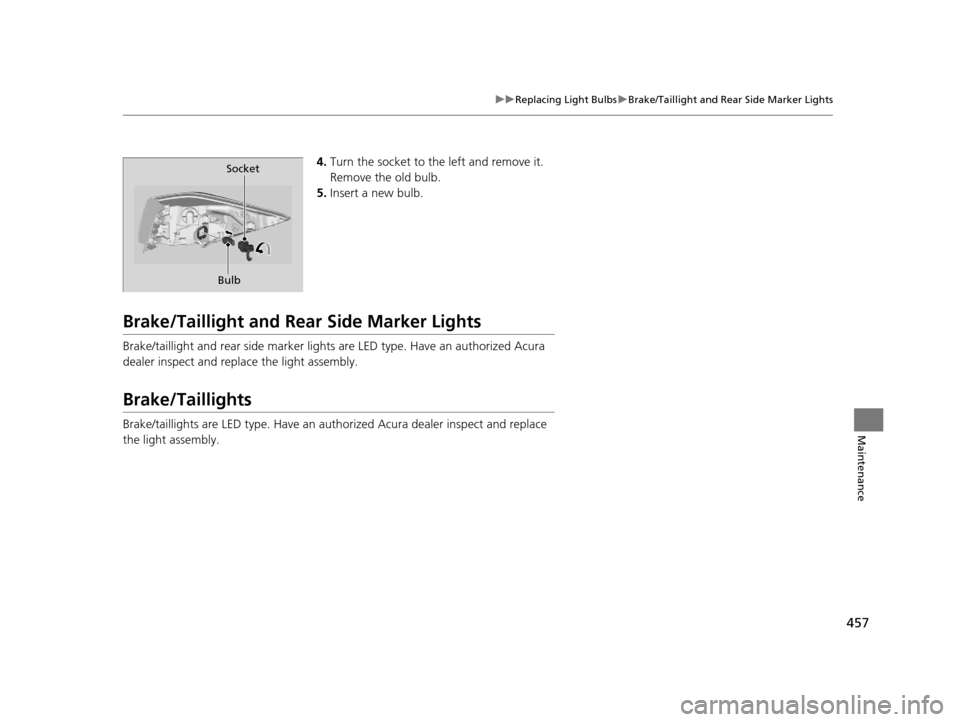

4. Turn the socket to th e left and remove it.
Remove the old bulb.
5. Insert a new bulb.
Brake/Taillight and Rear Side Marker Lights
Brake/taillight and rear side marker lights are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Brake/Taillights
Brake/taillights are LED type. Have an auth orized Acura dealer inspect and replace
the light assembly.
Bulb Socket
16 ACURA TLX-31TZ36100.book 457 ページ ２０１５年８月２６日　水曜日　午後１時５４分

458
uuReplacing Light Bulbs uBack-Up Light Bulbs
Maintenance

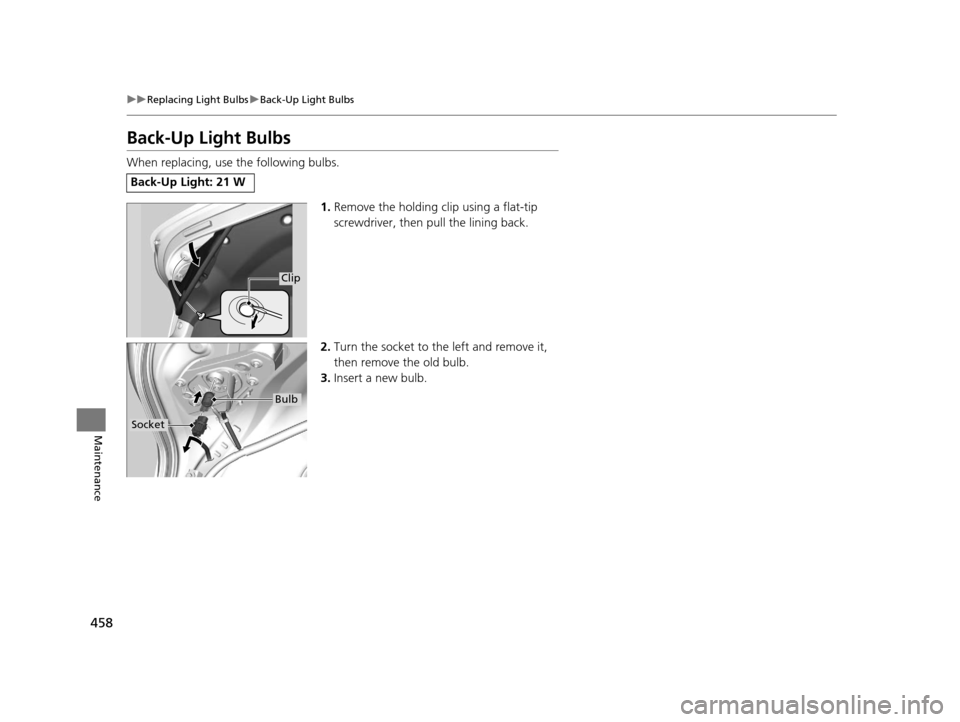

Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding clip using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket to the left and remove it,
then remove the old bulb.
3. Insert a new bulb.
Back-Up Light: 21 W
Clip
Socket
Bulb
16 ACURA TLX-31TZ36100.book 458 ページ ２０１５年８月２６日　水曜日　午後１時５４分

459
uuReplacing Light Bulbs uRear License Plate Lights
Maintenance

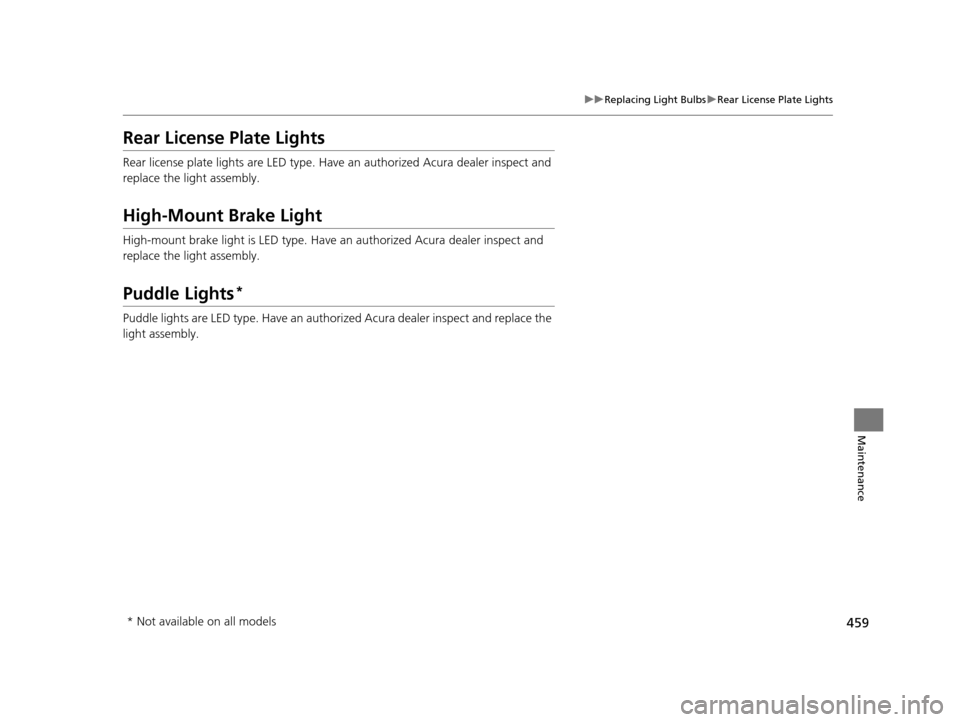

Rear License Plate Lights
Rear license plate lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Puddle Lights*
Puddle lights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
* Not available on all models
