Page 139 of 553

138
Controls
Clock
Adjusting the Clock
You can also adjust the time manually in the audio/information screen, with the
power mode in ON.
■Using the Settings menu on th e audio/information screen
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
u Repeat the procedure to select Clock
Adjustment .
3. Rotate to change hour, then press .
4. Rotate to change minute, then press
.
■Adjusting the Time
1Adjusting the Clock
These indications are used to show how to operate
the interface dial.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 259
You can turn the clock display in the audio/
information screen on and off. 2 Customized Features P. 259
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
16 ACURA TLX-31TZ36100.book 138 ページ 2015年8月26日 水曜日 午後1時54分
Page 225 of 553

uuAudio System Basic Operation uAudio/Information Screen
224
Features
You can change, store, and delete the wa llpaper on the audio/information screen.
■Import wallpaper
You can import up to three images, one at a time, for wallpaper from a USB flash
drive.
1.Connect the USB flash drive to the USB
port.
2 USB Port P. 211
2.Press the SETTINGS button.
3. Rotate to select System Settings, then
press .
u Repeat the procedure to select Clock,
Clock/Wallpaper Type .
4. Move to select Wallpaper.
u The screen will change to the wallpaper
list.
5. Rotate to select Add New, then press .
6. Rotate to select a desired picture.
u The preview is displayed on the left side
on the screen.
7. Press .
u The confirmation message will appear.
Then the display will return to the
wallpaper list.
■Wallpaper Setup1Wallpaper Setup
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory.
Images in a folder cannot be imported.
•The file name must be fewer than 255 characters.•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 6 MB.•The maximum image size is 4,800 x 4,800 pixels.
•If the USB flash drive doe s not have any pictures,
the No files detected message appears.
16 ACURA TLX-31TZ36100.book 224 ページ 2015年8月26日 水曜日 午後1時54分
Page 226 of 553

225
uuAudio System Basic Operation uAudio/Information Screen
Features
■Select wallpaper
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
u Repeat the procedure to select Clock/Wallpaper Type .
3. Move to select Wallpaper.
u The screen changes to the wallpaper list.
4. Rotate to select a desired wallpaper.
u The preview is displayed on the left side on the screen.
5. Press .
u The pop-up menu appears on the screen.
6. Rotate to select Set, then press .
u The display will return to the wallpaper list.
■Delete wallpaper
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
u Repeat the procedure to select Clock/Wallpaper Type .
3. Move to select Wallpaper.
u The screen changes to the wallpaper list.
4. Rotate to select a wallpaper that you want to delete, then press .
u The preview is displayed on the left side on the screen.
u The pop-up menu appears on the screen.
5. Rotate to select Delete, then press .
u The confirmation me ssage will appear.
6. Rotate to select Yes, then press to delete completely.
u The display will return to the wallpaper list.
1Wallpaper Setup
From the pop-up menu, rotate to select Preview
and press to see a preview at full-size screen.
To go back to the previous screen, press to select
OK .
When the file size is large, it takes a while to be
previewed.
16 ACURA TLX-31TZ36100.book 225 ページ 2015年8月26日 水曜日 午後1時54分
Page 261 of 553

260
uuCustomized Features u
Features
■Customization flow
Press the SETTINGS button.
Voice Prompt
Brightness
Contrast
Black Level
Bluetooth Status
Bluetooth Device List
Edit pairing code
Default
Display
System
SettingsBluetooth
Voice
Recognition
Sync Display Brightness
Factory Data Reset
Background Color
Header Clock Display
Clock
Clock Adjustment
Clock Format
Clock
Language
Display Operation Restriction Tips*
Others
Wallpaper
Clock/Wallpaper Type
* Not available on all models
16 ACURA TLX-31TZ36100.book 260 ページ 2015年8月26日 水曜日 午後1時54分
Page 264 of 553

263
uuCustomized Features u
Continued
Features
Add Bluetooth
Device
Disconnect
Default
PhoneConnect Phone
Edit Bluetooth Device
Add Bluetooth Device
Bluetooth Device
List
Edit Speed Dial
Auto Transfer
Auto Answer
Ring Tone
Automatic Phone Sync
Use Contact Photo
Default
Default
Enable Text/Email
Select Account
New Text/Email Alert
Text/Email
Phone
Settings
Message Auto Reading
Info Screen Preference
Clock/Wallpaper Type
Clock Adjustment
Clock
DefaultOther
Info
Settings
Clock Format
16 ACURA TLX-31TZ36100.book 263 ページ 2015年8月26日 水曜日 午後1時54分
Page 266 of 553

265
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System
Settings
Voice
Recog-
nition
Voice Prompt•
Beginner: Explains each option.
• Expert: Turns off voice prompts.Beginner*1/Expert
Clock
Clock/
Wallpaper
Type
ClockChanges the clock display type.Analog /Digital*1/
Small Digital/ Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper.
2Wallpaper Setup P. 224
Blank/Galaxy*1/
Metallic/ Add New
Clock AdjustmentAdjusts Clock.
2Clock P. 138—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1/24H
16 ACURA TLX-31TZ36100.book 265 ページ 2015年8月26日 水曜日 午後1時54分

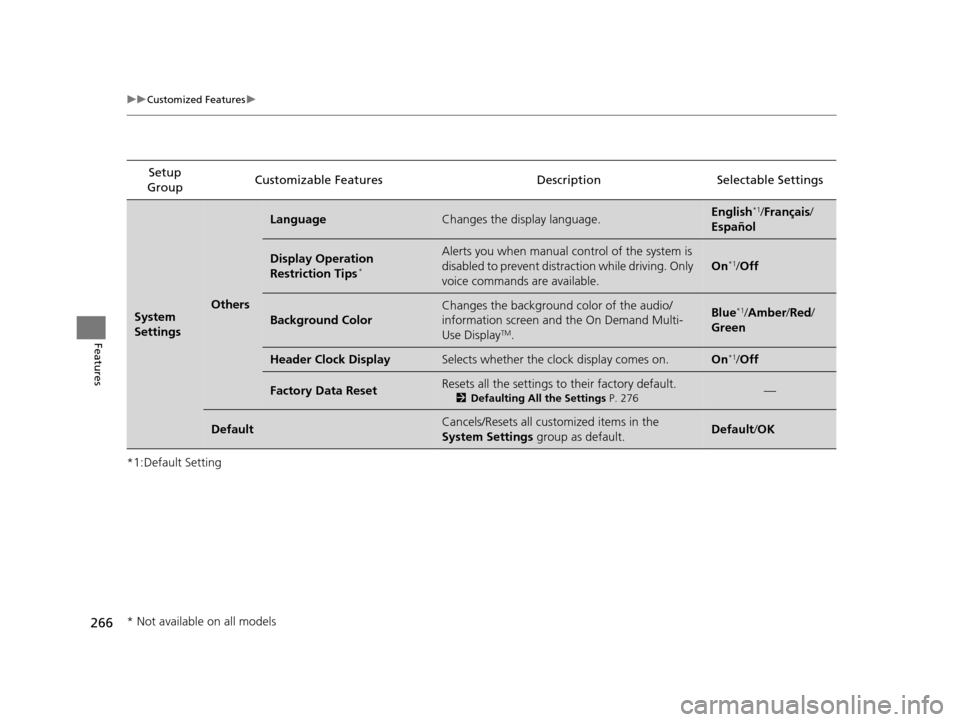

Page 267 of 553

266
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
System
SettingsOthers
LanguageChanges the display language.English*1/Français /
Español
Display Operation
Restriction Tips*
Alerts you when manual control of the system is
disabled to prevent distraction while driving. Only
voice commands are available.
On*1/ Off
Background Color
Changes the background color of the audio/
information screen and the On Demand Multi-
Use Display
TM.
Blue*1/Amber /Red/
Green
Header Clock DisplaySelects whether the clock display comes on.On*1/ Off
Factory Data ResetResets all the settings to their factory default.
2 Defaulting All the Settings P. 276—
DefaultCancels/Resets all customized items in the
System Settings group as default.Default/OK
* Not available on all models
16 ACURA TLX-31TZ36100.book 266 ページ 2015年8月26日 水曜日 午後1時54分

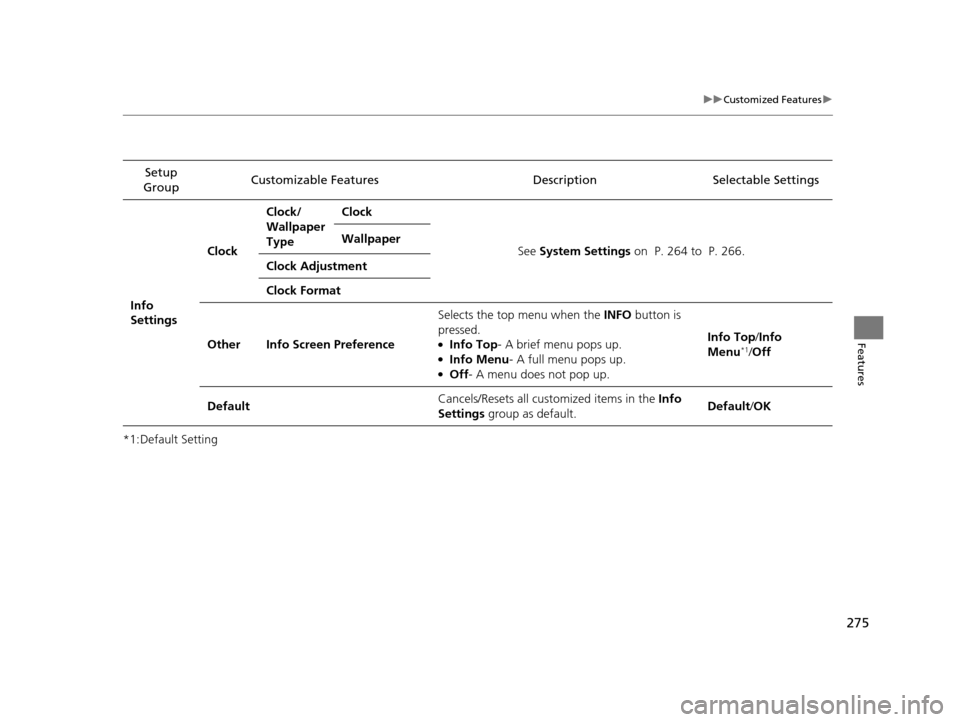

Page 276 of 553

275
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Info
SettingsClock
Clock/
Wallpaper
Type
Clock
See System Settings on P. 264 to P. 266.
Wallpaper
Clock Adjustment
Clock Format
Other Info Screen Preference Selects the top menu when the
INFO button is
pressed.
●Info Top- A brief menu pops up.●Info Menu - A full menu pops up.●Off- A menu does not pop up. Info Top/
Info
Menu
*1/ Off
Default Cancels/Resets all customized items in the
Info
Settings group as default. Default/
OK
16 ACURA TLX-31TZ36100.book 275 ページ 2015年8月26日 水曜日 午後1時54分
Page 550 of 553

549
Index
Sequential Mode...................................... 338
Sequential Mode Operation ................... 339
Sequential Shift Mode ............................. 342
Sequential Shift Mode Operation ........... 343
Setting the Clock ...................................... 138
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 396
SH-AWD ® Torque Distribution
Monitor ................................................... 125
Shift Button ........................................ 18, 333
Shift Lever .......................................... 20, 340
Shift Lever Position Indicator .................. 341
Shifting (Transmission) ........ 18, 20, 333, 340
Shoulder Anchor ........................................ 36
Side Airbags ............................................... 48
Side Curtain Airbags .................................. 50
SiriusXM ® Radio ....................................... 232
Snow Tires ................................................ 470
Spare Tire (Optional) ............... 495, 529, 531
Spark Plugs ....................................... 528, 530
Specifications ........................................... 528
Specified Fuel ........................... 426, 528, 530
SPORT (Sport mode) Indicator .................. 88
Sport Mode .............................................. 348
Sport+ Mode ............................................ 348
SRS Airbags (Airbags) ................................ 42
Starting Assist Brake Function ................ 347
Starting the Engine .................................. 324
Does Not Start ........................................ 502
Engine Switch Buzzer .............................. 163
Jump Starting ......................................... 505 Remote Engine Start ................................ 327
Steering Wheel ......................................... 176
Adjusting ................................................. 176
Stopping .................................................... 417
Summer Tires ............................................ 470
Super Handling-All Wheel Drive
TM
(SH-AWD ®) .............................................. 396
Indicator .................................................... 91
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering Wheel) ............................................. 4, 5, 161
System Message Indicator .......................... 82
T
Temperature Gauge................................. 117
Temperature Sensor ................................. 207
Temporary Tire Repair Kit ........................ 484
Text Message .................................... 308, 310
Time (Setting) ........................................... 138
Tire Fill Assist .................................... 397, 515
Tire Pressure Monitoring System (TPMS) ..................................................... 397
Indicator ............................................ 82, 515
Tire Fill Assist ................................... 397, 515
Tires ........................................................... 462
Air Pressure ............................. 463, 529, 531
Chains ..................................................... 470
Checking and Maintaining ....................... 462
Flat Tire (Puncture) ................................... 483
Inspection ................................................ 462 Labeling .................................................. 463
Puncture (Flat Tire) .......................... 483, 495
Regulations ............................................. 465
Rotation .................................................. 469
Spare (Optional) ...................... 495, 529, 531
Summer .................................................. 470
Temporary Tire Repair Kit ........................ 484
Wear Indicators ....................................... 467
Winter..................................................... 470
Tools .......................................................... 482
Towing a Trailer ....................................... 323
Towing Your Vehicle ................................ 323
Emergency .............................................. 522
TPMS (Tire Pressure Monitoring
System) .................................................... 397
Transmission ......................... 18, 20, 333, 340
Automatic ................................. 18, 332, 333
Dual Clutch ............................... 20, 332, 340
Fluid ........................................................ 451
Gear Position Indicator ...................... 75, 334
Number................................................... 532
Sequential Mode ..................................... 338
Sequential Shift Mode ............................. 342
Shift Lever Position Indicator.................... 341
TRIP Button ....................................... 121, 122
Trip Meter ................................................. 123
16 ACURA TLX-31TZ36100.book 549 ページ 2015年8月26日 水曜日 午後1時54分
