Acura TLX 2018 Owner's Manual

380
uuWhen Driving uShifting
Driving

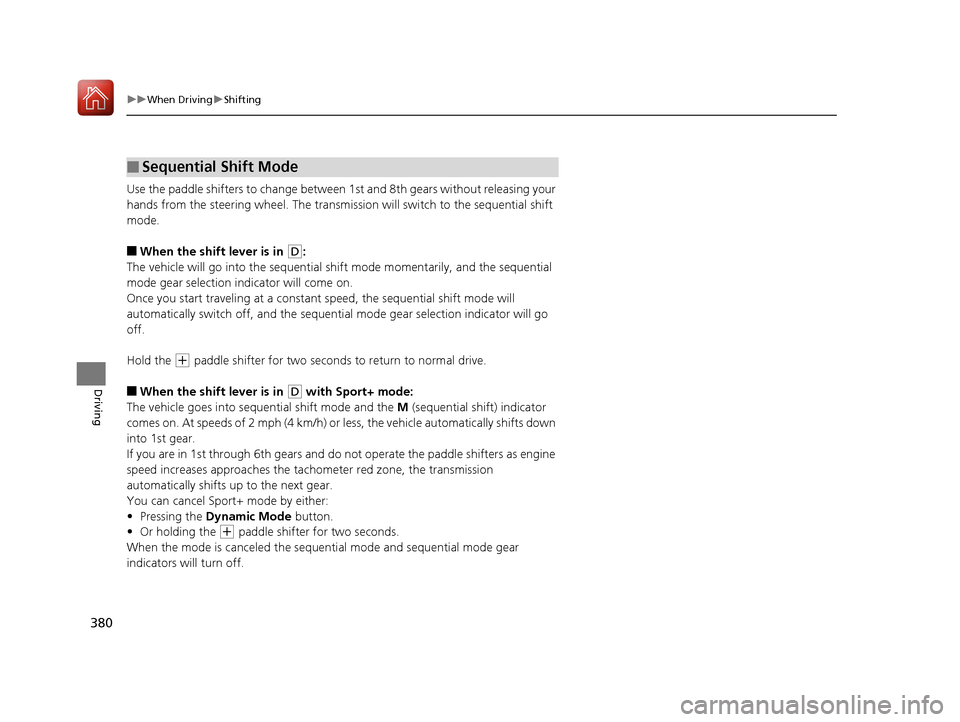

Use the paddle shifters to change betwee n 1st and 8th gears without releasing your
hands from the steering wheel. The transmissio n will switch to the sequential shift
mode.
■When the shift lever is in (D:
The vehicle will go into the sequential shift mode mo mentarily, and the sequential
mode gear selection indicator will come on.
Once you start traveling at a constant speed, the sequential shift mode will
automatically switch off, and the sequential mode gear selection indicator will go
off.
Hold the
(+ paddle shifter for two seconds to return to normal drive.
■When the shift lever is in (D with Sport+ mode:
The vehicle goes into sequential shift mode and the M (sequential shift) indicator
comes on. At speeds of 2 mph (4 km/h) or less, the vehicle automatically shifts down
into 1st gear.
If you are in 1st through 6th gears and do not operate the paddle shifters as engine
speed increases approaches the tach ometer red zone, the transmission
automatically shifts up to the next gear.
You can cancel Sport+ mode by either:
• Pressing the Dynamic Mode button.
• Or holding the
(+ paddle shifter for two seconds.
When the mode is canceled the sequential mode and sequential mode gear
indicators will turn off.
■Sequential Shift Mode
18 ACURA TLX-31TZ36300.book 380 ページ ２０１７年２月２１日　火曜日　午後２時３２分

381
uuWhen Driving uShifting
Driving

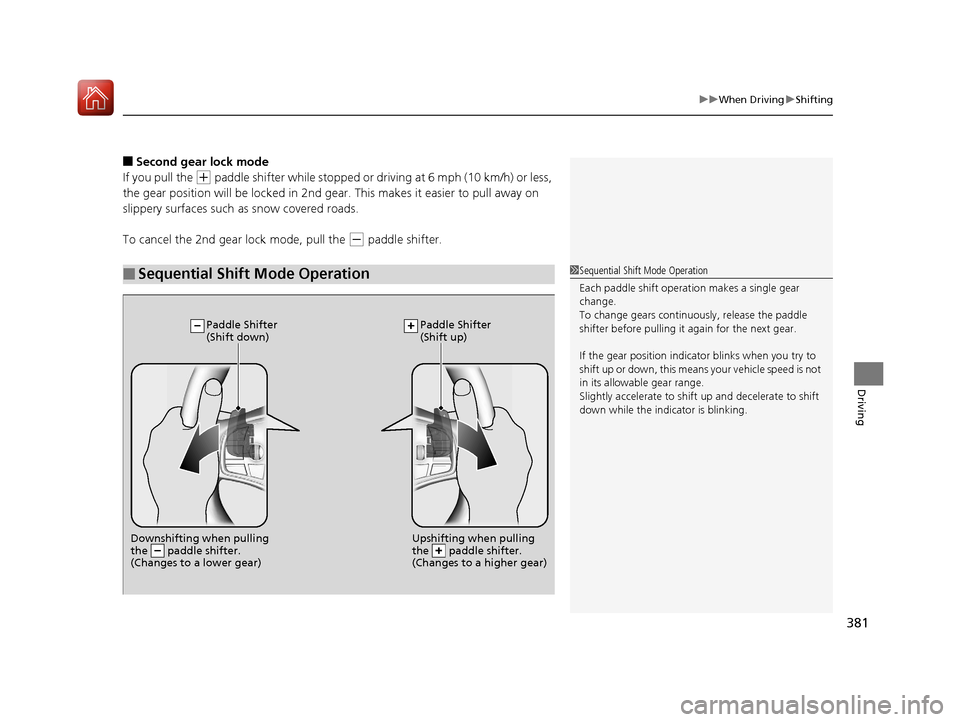

■Second gear lock mode
If you pull the
(+ paddle shifter while stopped or dr iving at 6 mph (10 km/h) or less,
the gear position will be lo cked in 2nd gear. This makes it easier to pull away on
slippery surfaces such as snow covered roads.
To cancel the 2nd gear lock mode, pull the
(- paddle shifter.
■Sequential Shift Mode Operation1 Sequential Shift Mode Operation
Each paddle shift operation makes a single gear
change.
To change gears continuously, release the paddle
shifter before pulling it again for the next gear.
If the gear position indicator blinks when you try to
shift up or down, this means your vehicle speed is not
in its allowabl e gear range.
Slightly accelerate to shift up and decelerate to shift
down while the indi cator is blinking.
Downshifting when pulling
the paddle shifter.
(Changes to a lower gear)Upshifting when pulling
the paddle shifter.
(Changes to a higher gear)
Paddle Shifter
(Shift down) Paddle Shifter
(Shift up)
18 ACURA TLX-31TZ36300.book 381 ページ ２０１７年２月２１日　火曜日　午後２時３２分

382
uuWhen Driving uAuto Idle Stop*
Driving

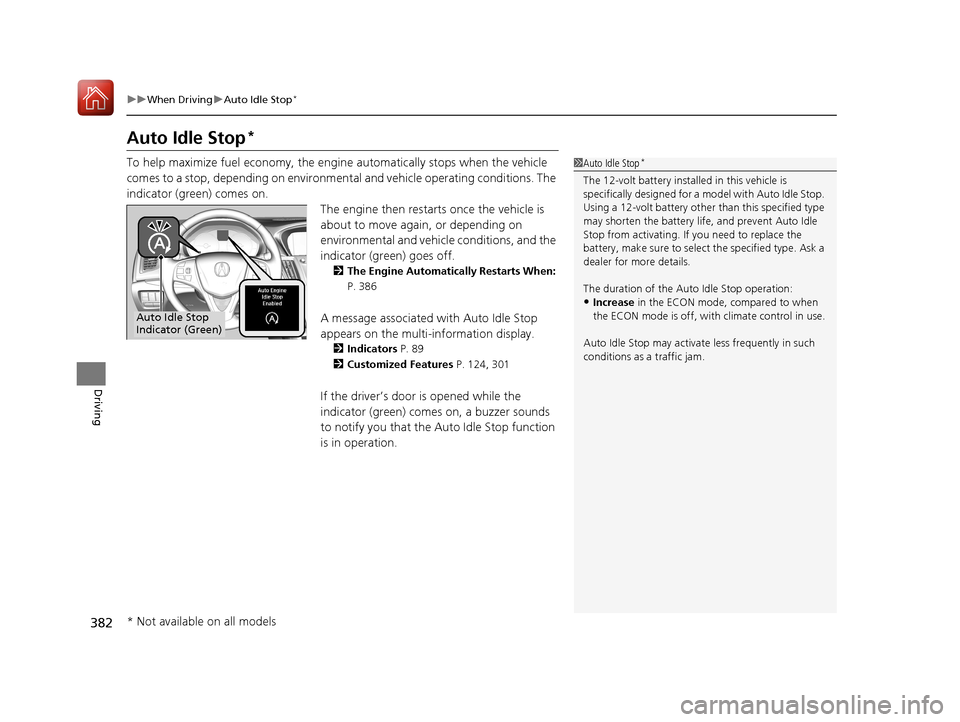

Auto Idle Stop*
To help maximize fuel econ omy, the engine automatica lly stops when the vehicle
comes to a stop, depending on environmental and vehicle operating conditions. The
indicator (green) comes on. The engine then restarts once the vehicle is
about to move again, or depending on
environmental and vehicle conditions, and the
indicator (green) goes off.
2The Engine Automatically Restarts When:
P. 386
A message associated with Auto Idle Stop
appears on the multi-information display.
2Indicators P. 89
2 Customized Features P. 124, 301
If the driver’s door is opened while the
indicator (green) comes on, a buzzer sounds
to notify you that the Auto Idle Stop function
is in operation.
1Auto Idle Stop*
The 12-volt battery insta lled in this vehicle is
specifically designed for a m odel with Auto Idle Stop.
Using a 12-volt battery other than this specified type
may shorten the battery life , and prevent Auto Idle
Stop from activati ng. If you need to replace the
battery, make sure to select the specified type. Ask a
dealer for more details.
The duration of the Au to Idle Stop operation:
•Increase in the ECON mode, compared to when
the ECON mode is off, with climate control in use.
Auto Idle Stop may activate less frequently in such
conditions as a traffic jam.
Auto Idle Stop
Indicator (Green)
* Not available on all models
18 ACURA TLX-31TZ36300.book 382 ページ ２０１７年２月２１日　火曜日　午後２時３２分

Continued383
uuWhen Driving uAuto Idle Stop*
Driving

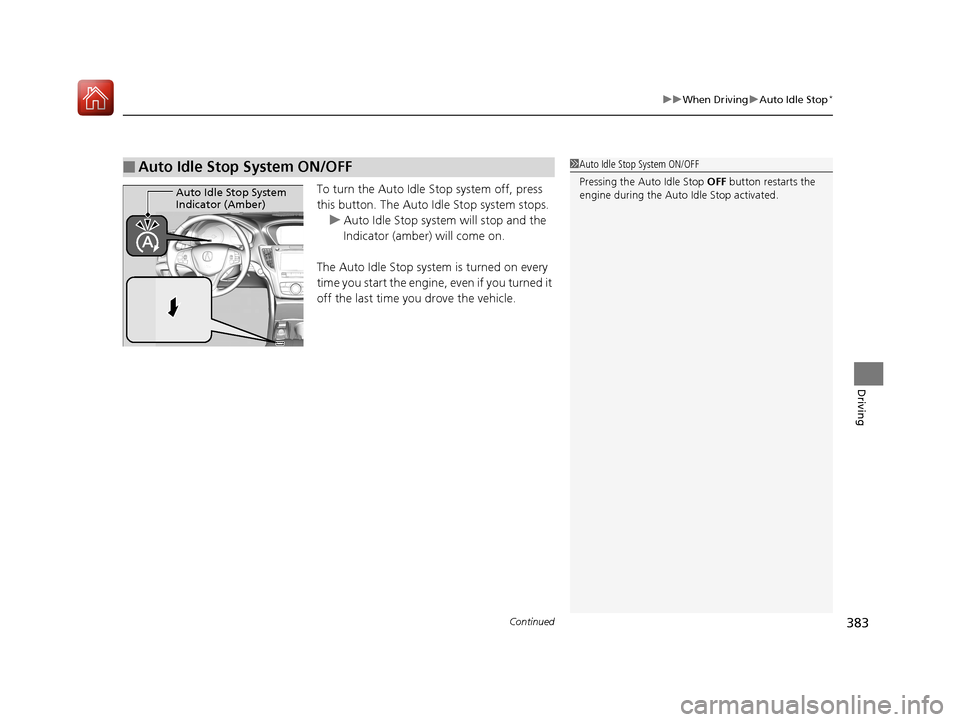

To turn the Auto Idle Stop system off, press
this button. The Auto Id le Stop system stops.
u Auto Idle Stop system will stop and the
Indicator (amber) will come on.
The Auto Idle Stop syst em is turned on every
time you start the engine, even if you turned it
off the last time you drove the vehicle.
■Auto Idle Stop System ON/OFF1 Auto Idle Stop System ON/OFF
Pressing the Auto Idle Stop OFF button restarts the
engine during the Auto Idle Stop activated.
Auto Idle Stop System
Indicator (Amber)
18 ACURA TLX-31TZ36300.book 383 ページ ２０１７年２月２１日　火曜日　午後２時３２分

uuWhen Driving uAuto Idle Stop*
384
Driving

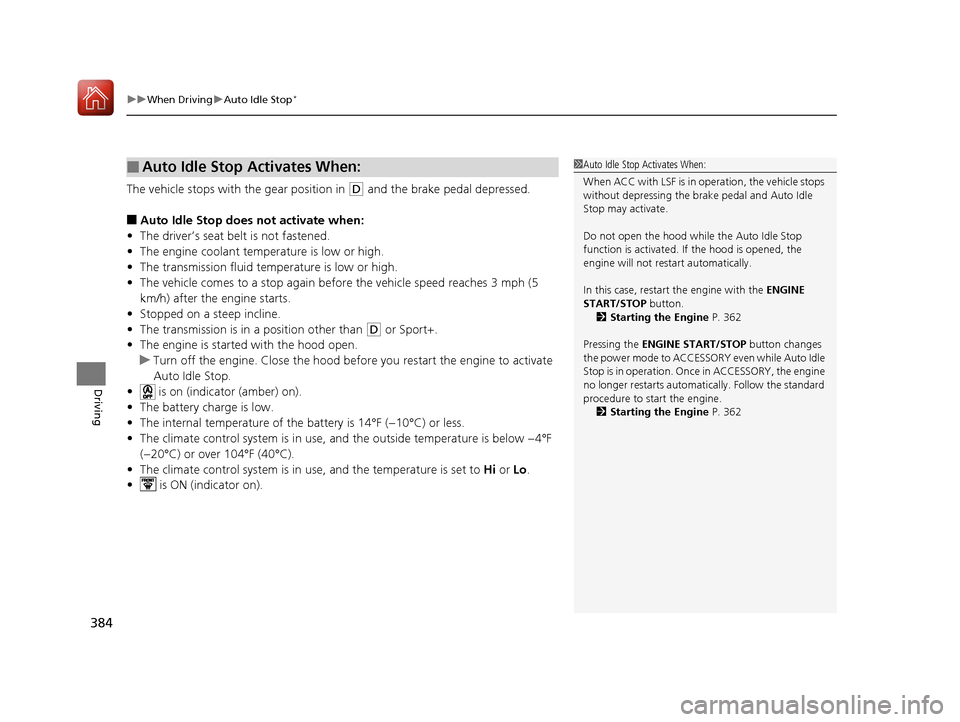

The vehicle stops with the gear position in (D and the brake pedal depressed.
■Auto Idle Stop does not activate when:
• The driver’s seat belt is not fastened.
• The engine coolant temperature is low or high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again befo re the vehicle speed reaches 3 mph (5
km/h) after the engine starts.
• Stopped on a steep incline.
• The transmission is in a position other than
(D or Sport+.
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.
• is on (indicator (amber) on).
• The battery charge is low.
• The internal temperature of the battery is 14°F (−10°C) or less.
• The climate control system is in use, an d the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system is in us e, and the temperature is set to Hi or Lo.
• is ON (indicator on).
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
When ACC with LSF is in operation, the vehicle stops
without depressing the br ake pedal and Auto Idle
Stop may activate.
Do not open the hood while the Auto Idle Stop
function is activated. If the hood is opened, the
engine will not re start automatically.
In this case, restart the engine with the ENGINE
START/STOP button. 2 Starting the Engine P. 362
Pressing the ENGINE START/STOP button changes
the power mode to ACCESSORY even while Auto Idle
Stop is in operation. Once in ACCESSORY, the engine
no longer restarts automatica lly. Follow the standard
procedure to start the engine.
2 Starting the Engine P. 362
18 ACURA TLX-31TZ36300.book 384 ページ ２０１７年２月２１日　火曜日　午後２時３２分

385
uuWhen Driving uAuto Idle Stop*
Continued
Driving

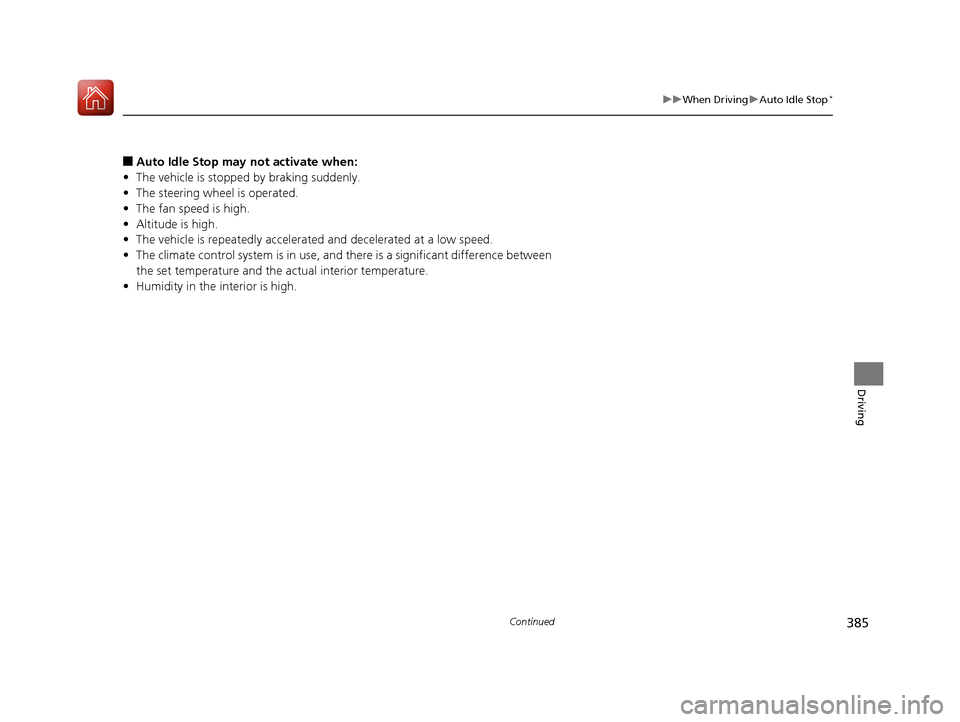

■Auto Idle Stop may not activate when:
• The vehicle is stopped by braking suddenly.
• The steering wheel is operated.
• The fan speed is high.
• Altitude is high.
• The vehicle is repeatedly accelera ted and decelerated at a low speed.
• The climate control system is in use, an d there is a significant difference between
the set temperature and the actual interior temperature.
• Humidity in the interior is high.
18 ACURA TLX-31TZ36300.book 385 ページ ２０１７年２月２１日　火曜日　午後２時３２分

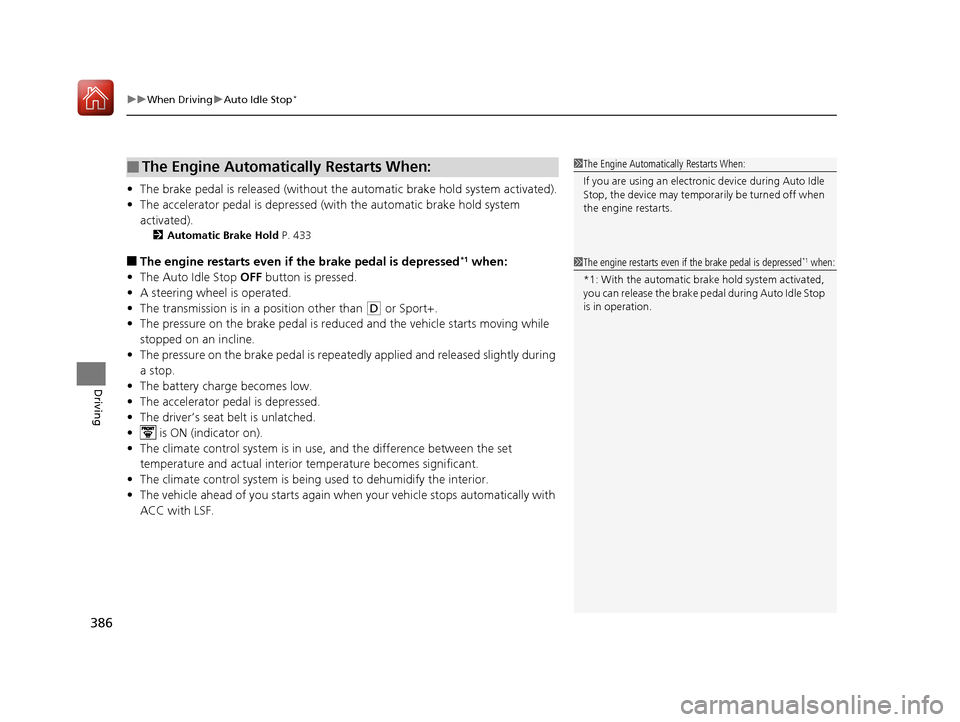

uuWhen Driving uAuto Idle Stop*
386
Driving
• The brake pedal is released (without the automatic brake hold system activated).
• The accelerator pedal is depressed (with the automatic brake hold system
activated).
2 Automatic Brake Hold P. 433
■The engine restarts even if the brake pedal is depressed*1 when:
• The Auto Idle Stop OFF button is pressed.
• A steering wheel is operated.
• The transmission is in a position other than
(D or Sport+.
• The pressure on the brake pedal is redu ced and the vehicle starts moving while
stopped on an incline.
• The pressure on the brake pedal is repeated ly applied and released slightly during
a stop.
• The battery charge becomes low.
• The accelerator pedal is depressed.
• The driver’s seat belt is unlatched.
• is ON (indicator on).
• The climate control system is in us e, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is bein g used to dehumidify the interior.
• The vehicle ahead of you starts again when your vehicle stops automatically with
ACC with LSF.
■The Engine Automatically Restarts When:1 The Engine Automatically Restarts When:
If you are using an electroni c device during Auto Idle
Stop, the device may tempor arily be turned off when
the engine restarts.
1 The engine restarts even if the brake pedal is depressed*1 when:
*1: With the automatic brake hold system activated,
you can release the brake pe dal during Auto Idle Stop
is in operation.
18 ACURA TLX-31TZ36300.book 386 ページ ２０１７年２月２１日　火曜日　午後２時３２分

387
uuWhen Driving uAuto Idle Stop*
Driving

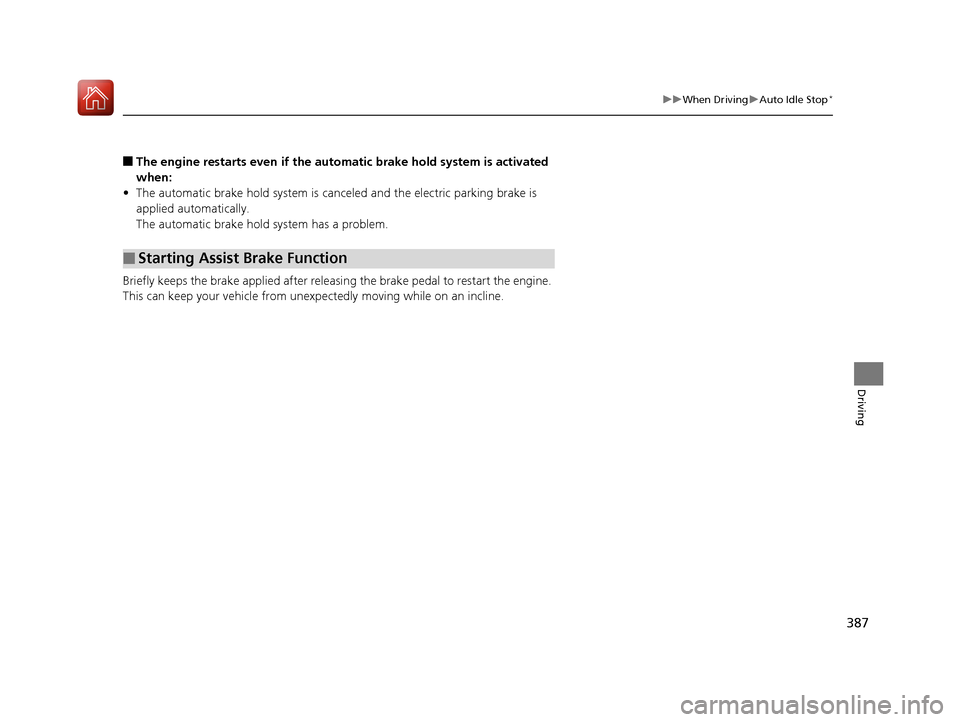

■The engine restarts even if the automatic brake hold system is activated
when:
• The automatic brake hold system is canc eled and the electric parking brake is
applied automatically.
The automatic brake hold system has a problem.
Briefly keeps the brake applied after releasin g the brake pedal to restart the engine.
This can keep your vehicle from unexpe ctedly moving while on an incline.
■Starting Assist Brake Function
18 ACURA TLX-31TZ36300.book 387 ページ ２０１７年２月２１日　火曜日　午後２時３２分

388
uuWhen Driving uIntegrated Dynamics System
Driving
Integrated Dynamics System
Modifies the dynamic character of the vehicl e. There are four modes to select from: Econ, Normal , Sport , and Sport+ .
Press the Dynamic Mode button to select a mode. The mode you have selected appears on the multi-information display.
You can customize the mode default setti ng using the multi-information display.
2Customized Features P. 120, 292
When you restart the engine with Sport+ mode, the mode is changed to Sport automatically.
Dynamic Mode Button
Econ (Econ mode)
Maximizes fuel economy.
Normal (Normal mode)
Provides the best balance of fu el economy and sportiness for
everyday driving.
Sport (Sport mode)
Enhances vehicle response and feel with decreased steering
assist. Also increases th rottle response and SH-AWD
* control.
Sport+ (Sport+ mode)
Adds to Sport mode to allow for increase performance when
using the steering wheel paddle shifters.
* Not available on all models
18 ACURA TLX-31TZ36300.book 388 ページ ２０１７年２月２１日　火曜日　午後２時３２分

389
uuWhen Driving uFront Sensor Camera
Continued
Driving

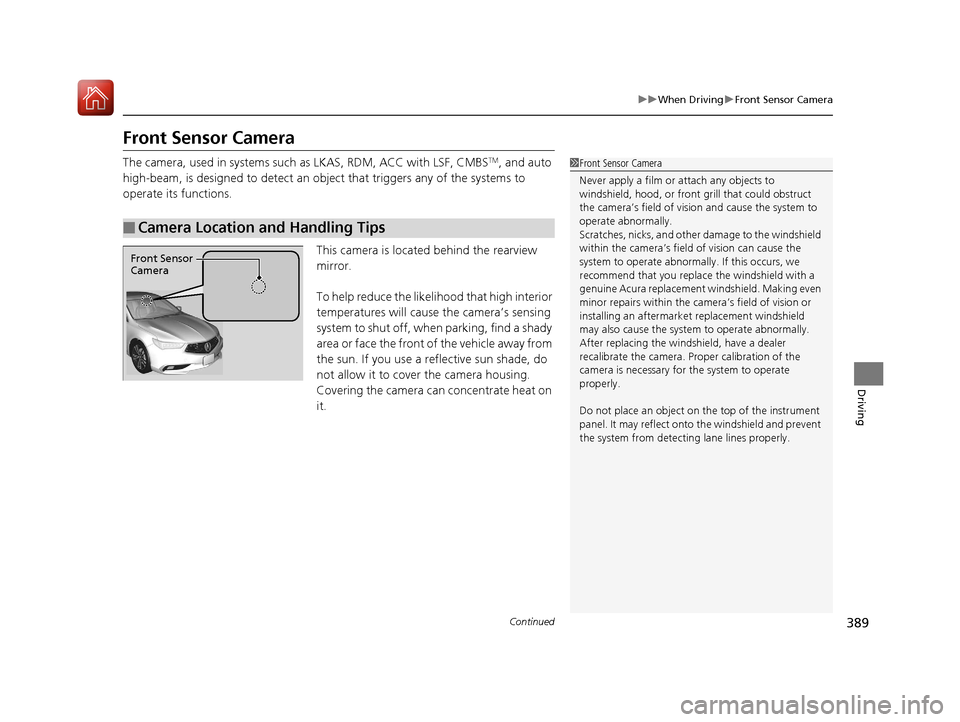

Front Sensor Camera
The camera, used in systems such as LKAS, RDM, ACC with LSF, CMBSTM, and auto
high-beam, is designed to detect an obj ect that triggers any of the systems to
operate its functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
s y s t e m t o s h u t o f f , w h e n p a r k i n g , f i n d a s h a d y
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1Front Sensor Camera
Never apply a film or attach any objects to
windshield, hood, or front grill that could obstruct
the camera’s field of vision and cause the system to
operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the ca mera’s field of vision or
installing an aftermarke t replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Sensor
Camera
18 ACURA TLX-31TZ36300.book 389 ページ ２０１７年２月２１日　火曜日　午後２時３２分
