oil Acura TLX 2018 Owner's Manual

11
Quick Reference Guide
Instrument Panel (P 71)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator Vehicle Stability Assist
(VSA®) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
System Indicators
System Message
Indicator
Gauges (P113)/Display (P114)/System Indicators (P72)
Low Tire Pressure/
TPMS Indicator
Keyless Access System
Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator SPORT
(Sport mode)
Indicator Blind Spot Information
(BSI) Indicator
*
Collision Mitigation Braking
SystemTM (CMBSTM) Indicator
Road Departure Mitigation
(RDM) Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
CanadaFog Light Indicator*
Temperature
Gauge Security System
Alarm IndicatorFuel Gauge
Tachometer
Multi-Information Display
Speedometer
Gear Position Indicator
*/
Shift Lever Position
Indicator
*
M (sequential mode) Indicator/
Sequential Mode Gear Selection
Indicator
System Indicators
Lane Keeping Assist
System ( LKAS) Indicator
Adaptive Cruise Control
(
ACC ) with Low Speed
Follow (LSF) Indicator
Anti-lock Brake System
( ABS ) Indicator
Seat Belt Reminder
Indicator Brake System
Indicator (Red) Supplemental Restraint
System Indicator
Low Fuel Indicator Turn Signal and Hazard
Warning Indicators
Brake System
Indicator (Amber)
U.S.
Canada
U.S.
Canada
Precision All-Wheel
SteerTM (P-AWS ®)
Indicator*
ECON (Econ mode)
Indicator SH-AWD Indicator
*
Auto Idle Stop System
Indicator (Amber)*
Auto Idle Stop
Indicator (Green)*
Auto High-Beam
Indicator
* Not available on all models
18 ACURA TLX-31TZ36300.book 11 ページ ２０１７年２月２１日　火曜日　午後２時３２分

23
Quick Reference Guide
Maintenance (P465)
Under the Hood (P474)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P488)
● Inspect all lights regularly.
Wiper Blades (P493)
● Replace blades if they leave streaks
across the windshield.
Tires (P495)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
18 ACURA TLX-31TZ36300.book 23 ページ ２０１７年２月２１日　火曜日　午後２時３２分

69
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is ma king an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
18 ACURA TLX-31TZ36300.book 69 ページ ２０１７年２月２１日　火曜日　午後２時３２分

74
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the automatic brake
hold system is on.
2Automatic Brake Hold P. 433
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the automatic brake
hold is activated.2Automatic Brake Hold P. 433—
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 549
U.S.
Canada
18 ACURA TLX-31TZ36300.book 74 ページ ２０１７年２月２１日　火曜日　午後２時３２分

115
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Main displays
Roll the right selector wheel to change the display.
■Switching the Display
QTRight Selector Wheel
Engine Oil Life
Vehicle Settings Elapsed Time
OFF
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Compass
Tire Pressure for
Each Tire Turn-by-Turn
Directions
*Integrated
Dynamics System
Integrated
Dynamics System/
SH-AWD®
*
* Not available on all models
18 ACURA TLX-31TZ36300.book 115 ページ ２０１７年２月２１日　火曜日　午後２時３２分

119
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Shows the remaining oil life and Maintenance MinderTM.
2 Maintenance MinderTM P. 469
Shows each tire’s pressure.
2Tire Pressure Monitoring System (TPMS) with Tire Fill Assist P. 425
Shows the current mode for Integrated dynamics system.
2Integrated Dynamics System P. 388
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2Super Handling-All Wheel DriveTM (SH-
AWD ®)* P. 424
■Engine Oil Life and Maintenance Items
■Tire Pressure Monitor
■Current Mode for Integrated Dynamics System
■SH-AWD ® Torque Distribution Monitor*
* Not available on all models
18 ACURA TLX-31TZ36300.book 119 ページ ２０１７年２月２１日　火曜日　午後２時３２分

127
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Dynamic
Mode SetupPreferred Dynamic ModeChanges the Integrated Dynamics System mode
setting for when you set the power mode to ON.Last Used*1/Econ /Normal /
Sport
Wireless
Charger
Setup
*Wireless Charging Turns the wireless charging feature on and off. On*1/Off
Maintenance
Info.Maintenance ResetResets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel /Reset
Default All —Cancels/Resets all the customized settings as
default. Cancel
/Set
* Not available on all models
18 ACURA TLX-31TZ36300.book 127 ページ ２０１７年２月２１日　火曜日　午後２時３２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
196
Controls
To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. Open the center pocket.
2 Center Pocket P. 193
2.Place the device you want to charge on the
charging area.
u The system will automatically start
charging the device, and the green
indicator light will come on.
u Make sure that the device is compatible
with the system, and placed with the
chargeable side in the center of the
charging area.
3. When charging is completed, the green
indicator light will go off.
u If the device is not located on the charge
area correctly, the green indicator light
will blink.
■Wireless Charger*1Wireless Charger*
Using the information scr een or multi-information
display, you can disable th e wireless charger function.
2 Customized Features P. 120, 292
3CAUTION
Metal objects between the charge pad and
the device to be charged will get hot and
can burn you.
•Always remove foreign objects from the
charge pad before charging the device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol, benzine
or thinner for cleaning the charge pad.
• Do not cover the system with towels,
clothing, or other objects while charging
etc.
• Avoid spraying aerosols which may come
in contact with the change pad surface.
Charging Area
Green Indicator
* Not available on all models
18 ACURA TLX-31TZ36300.book 196 ページ ２０１７年２月２１日　火曜日　午後２時３２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
200
Controls
Pull the strap and open the lid.
The reverse side of the cargo floor lid is water
resistant. Flip the lid to use the water resistant
side.
■Under-Floor Storage Area1Under-Floor Storage Area
Do not leave water, soil, sand, or perishable foods in
the storage area. Rotting f ood and dirt on the floor
may cause the breakdown of electrical equipment.
Strap
18 ACURA TLX-31TZ36300.book 200 ページ ２０１７年２月２１日　火曜日　午後２時３２分

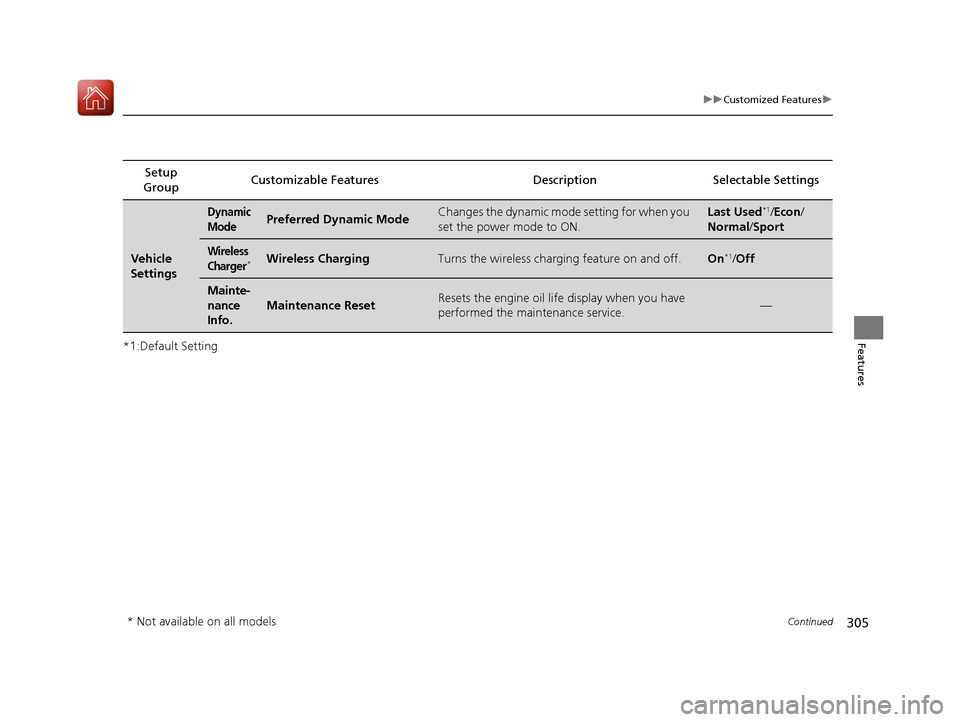

305
uuCustomized Features u
Continued
Features*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings
Dynamic
ModePreferred Dynamic ModeChanges the dynamic mode setting for when you
set the power mode to ON.Last Used*1/
Econ /
Normal /Sport
Wireless
Charger*Wireless ChargingTurns the wireless charging feature on and off.On*1/Off
Mainte-
nance
Info.
Maintenance ResetResets the engine oil life display when you have
performed the maintenance service.—
* Not available on all models
18 ACURA TLX-31TZ36300.book 305 ページ ２０１７年２月２１日　火曜日　午後２時３２分
