518
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.Vehicles with optional spare tire
Jack
Jack Handle Bar Towing Hook
Wheel Nut Wrench/
Jack Handle Funnel
Towing Hook Funnel
Vehicles with temporary tire repair kit
Tool Case
Models with plastic storage bin
Tool Case
18 ACURA TLX-31TZ36300.book 518 ページ ２０１７年２月２１日　火曜日　午後２時３２分

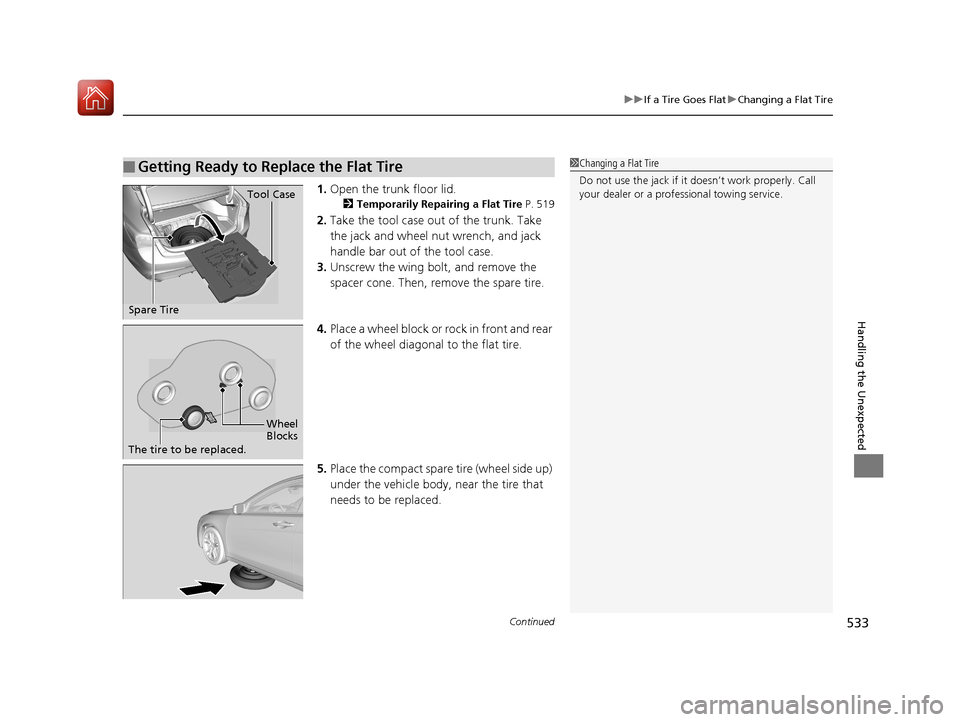

Continued533
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Open the trunk floor lid.
2 Temporarily Repairing a Flat Tire P. 519
2.Take the tool case out of the trunk. Take
the jack and wheel nut wrench, and jack
handle bar out of the tool case.
3. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
4. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
5. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
■Getting Ready to Replace the Flat Tire1 Changing a Flat Tire
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Spare Tire
Tool Case
Wheel
Blocks
The tire to be replaced.
