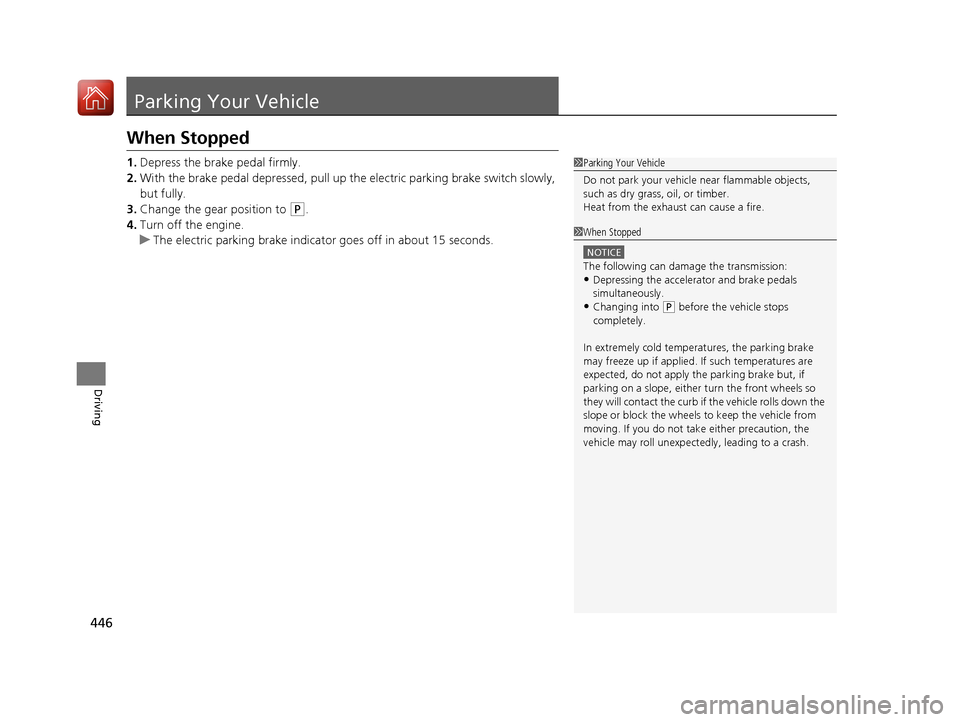

446
Driving
Parking Your Vehicle
When Stopped
1.Depress the brake pedal firmly.
2. With the brake pedal depressed, pull up th e electric parking brake switch slowly,
but fully.
3. Change the gear position to
(P.
4. Turn off the engine.
u The electric parking brake indicator goes off in about 15 seconds.
1Parking Your Vehicle
Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.
1 When Stopped
NOTICE
The following can dama ge the transmission:
•Depressing the accelerator and brake pedals
simultaneously.
•Changing into ( P before the vehicle stops
completely.
In extremely cold temper atures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpect edly, leading to a crash.
18 ACURA TLX-31TZ36300.book 446 ページ ２０１７年２月２１日　火曜日　午後２時３２分

465
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 466
Safety When Performing Maintenance..... 467Parts and Fluids Used in Maintenance Service ........................................... 468
Maintenance Minder
TM..................... 469
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 474Opening the Hood ........................... 476
Recommended Engine Oil ................ 477
Oil Check ......................................... 478
Adding Engine Oil ............................ 480
Changing the Engine Oil and Oil Filter .. 481
Engine Coolant ................................ 484
Transmission Fluid ............................ 486
Brake Fluid ....................................... 487
Refilling Window Washer Fluid......... 487
Replacing Light Bulbs ....................... 488
Checking and Maintaining Wiper
Blades .......................................... 493
Checking and Maintaining Tires
Checking Tires ................................. 495
Tire and Loading Information Label ...... 496Tire Labeling .................................... 496DOT Tire Quality Grading (U.S. Vehicles) .. 498Wear Indicators................................ 500 Tire Service Life ................................ 500
Tire and Wheel Replacement ........... 501
Tire Rotation .................................... 502
Winter Tires ..................................... 503
Battery ............................................... 504
Remote Transmitter Care
Replacing the Button Battery ........... 506
Climate Control System Maintenance.... 508Cleaning
Interior Care .................................... 509
Exterior Care.................................... 511
Accessories and Modifications................ 514
18 ACURA TLX-31TZ36300.book 465 ページ ２０１７年２月２１日　火曜日　午後２時３２分

472
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder Message
System Message
Indicator
Main Item
Sub Items
*1: If a message Maintenance Due Now does not appear more than 12 months after the display is
reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair Kit
bottle (If equipped)
●Inspect tie rod ends, steering gear box, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 40,000 miles (64,000 km), then every 30,000 miles (48,000 km).
*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles/100,000 km.
*6: 6-cylinder models
*7: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (shear) stress to fluid. This requires differential fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the differential
fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission and transfer* fluid*4
4●Replace spark plugs●Replace timing belt and inspect water pump*5, *6
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *7
* Not available on all models
18 ACURA TLX-31TZ36300.book 472 ページ ２０１７年２月２１日　火曜日　午後２時３２分

517
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 518
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 519
Changing a Flat Tire ......................... 532
Engine Does Not Start Checking the Engine ........................ 539
If the Keyless Access Remote Battery is Weak ............................................. 540
Emergency Engine Stop ................... 541
Jump Starting .................................... 542
Shift Lever Does Not Move .............. 546Overheating
How to Handle Overheating............. 547
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On .. 549If the Charging System Indicator Comes On ................................................. 549
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 550
If the Brake System Indicator (Red) Comes On .. 550If the Electric Power Steering (EPS) System Indicator Comes On ........................... 551
If the Electric Parking Brake System Indicator Comes On ....................... 552 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 553
If the Transmission System Indicator Blinks along with the Warning Message .... 554
Fuses Fuse Locations ................................. 555
Inspecting and Changing Fuses ........ 559
Emergency Towing ........................... 560
When You Cannot Unlock the Fuel Fill Door ................................................. 561When You Cannot Open the Trunk ..... 562RefuelingRefueling From a Portable Fuel Container ... 563
18 ACURA TLX-31TZ36300.book 517 ページ ２０１７年２月２１日　火曜日　午後２時３２分

567
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
*
■Automatic Transmission Fluid*
■Rear Differential Fluid*
■Transfer Assembly Fluid*
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 2
Capacity Change 4.1 US qt (3.9 L)
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 3
Capacity Change 3.5 US qt (3.3 L)
SpecifiedAcura DPSF-II
Capacity Change 1.92 US qt (1.82 L)
Specified·Acura Hypoid Gear Oil HGO-1
·Hypoid gear oil SAE 75W-85 or SAE 90 (API
grade GL4 or GL5)
Capacity Change 0.45 US qt (0.43 L)
■ Engine Oil
*1: 4-cylinder models
*2: 6-cylinder models
■Engine Coolant
*1: 4-cylinder models
*2: 6-cylinder models
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
*1
4.5 US qt (4.3 L)*2
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 L)*1
2.22 US gal (8.4 L)*2
(change including the remaining
0.21 US gal (0.8 L) in the reserve tank)
■ Tire
*1: Models with 17 inch wheel
*2: Models with 18 inch wheel
*3: Models with 19 inch wheel
*4: Vehicles with optional spare tire
RegularSize225/55R17 97H*1
225/50R18 95H*2
245/40R19 94V*3
Pressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare*4
SizeT135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 7 1/2J*2
19 x 8J*3
Compact Spare*417 x 4T
* Not available on all models
18 ACURA TLX-31TZ36300.book 567 ページ ２０１７年２月２１日　火曜日　午後２時３２分

Index
579
Index
Index
A
AAC................................................... 244, 252
ABS (Anti-lock Brake System) .................. 435
Accessories and Modifications ................ 514
Accessory Power Sockets ......................... 195
AcuraWatch
TM............................................ 22
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 391
Additives Coolant .................................................. 484
Engine Oil ............................................... 477
Washer ................................................... 487
Additives, Engine Oil ............................... 477
Adjusting
Armrest .................................................. 187
Front Seats.............................................. 179
Head Restraints ....................................... 182
Mirrors.................................................... 176
Steering Wheel ....................................... 175
Temperature ........................................... 117
Agile Handling Assist ............................... 420
Air Conditioning System (Climate
Control System) ...................................... 204
Changing the Mode................................ 207
Defrosting the Windshield and
Windows .............................................. 210
Dust and Pollen Filter .............................. 508
Sensors ................................................... 211
Synchronized Mode ................................ 208
Using Automatic Climate Control............ 204
Air Pressure ...................................... 496, 567 Airbags
........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care ............................................... 55
Driver’s Knee Airbag .................................. 48
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 53, 79
Passenger Airbag Off Indicator .................. 54
Sensors ...................................................... 41
Side Airbags .............................................. 50
Side Curtain Airbags .................................. 52
AM/FM Radio ............................................ 230
Ambient Light Off Switch ........................ 190
Android Auto ............................................ 262
Anti-lock Brake System (ABS) .................. 435
Indicator .................................................... 79
Apple CarPlay ........................................... 258
Armrest ..................................................... 187
Audio Remote Controls ............................ 217
Audio System ............................................ 214
Adjusting the Sound ................................ 228
Auxiliary Input Jack .................................. 216
Error Messages ........................................ 267
General Information ................................ 274
Internet Radio .......................................... 250
iPhone ............................................. 250, 276
iPod ......................................................... 247
MP3/WMA/AAC .............................. 244, 252
Reactivating ............................................. 216
Recommended CDs ................................. 275
Recommended Devices ............................ 276 Remote Controls ..................................... 217
Security Code .......................................... 216
Theft Protection ...................................... 216
USB Flash Drives ...................................... 276
USB Port.................................................. 215
Authorized Manuals ................................ 576
Auto Door Locking/Unlocking ................. 147
Customize ....................................... 126, 304
Auto High-Beam ....................................... 165
Auto Idle Stop .......................................... 382
OFF Button .............................................. 383
Auto Idle Stop Indicator (Green) ............... 89
Auto Idle Stop System Indicator (Amber) ..................................................... 89
Automatic Brake Hold ............................. 433
Indicator............................................ 74, 433
Automatic Brake Hold System
Indicator............................................ 74, 433
Automatic Folding Door Mirror .............. 178
Automatic Lighting .................................. 162
Automatic Transmission ........................... 370
Creeping ................................................. 370
Kickdown ................................................ 370
Operating the Shift Button ................ 18, 372
Shifting ................................................... 371
Auxiliary Input Jack .................................. 216
Average Fuel Economy ............................ 117
Average Speed ......................................... 118
18 ACURA TLX-31TZ36300.book 579 ページ ２０１７年２月２１日　火曜日　午後２時３２分

581
Index
D
Daytime Running Lights.......................... 164
Dead Battery ............................................ 542
Defrosting the Windshield and Windows ................................................. 210
Devices that Emit Radio Waves ............... 569
Dimming Headlights .............................................. 161
Rearview Mirror ...................................... 176
Dipstick (Engine Oil) ................................ 478
Directional Signals (Turn Signal) ............. 160
Door Mirrors ............................................. 177
Doors ........................................................ 133
Auto Door Locking.................................. 147
Auto Door Unlocking .............................. 147
Door Open Indicator ................................. 33
Door Open Message ................................. 97
Keys........................................................ 133
Locking/Unlocking the Doors from the
Inside .............................................. 13, 144
Locking/Unlocking the Doors from the Outside ................................................. 136
Lockout Prevention System ..................... 142
DOT Tire Quality Grading ........................ 498
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 355
Automatic Transmission .......................... 370
Braking ................................................... 429
Dual Clutch Transmission ........................ 370
Shifting Gear .................................. 371, 378
Starting the Engine ................................. 362 Driving Position Memory System
............. 173
Dual Clutch Transmission ......................... 370
Creeping ................................................. 370
Fluid ........................................................ 486
Kickdown ................................................ 370
Operating the Shift Lever ................... 20, 379
Shift Lever Does Not Move ...................... 546
Shifting ................................................... 378
Dust and Pollen Filter ............................... 508
E
ECON (Econ mode) Indicator ..................... 85
Elapsed Time ............................................. 118
Electric Parking Brake Indicator .................................................... 73
Electric Parking Brake System Indicator ............................................ 73, 552
Electric Power Steering (EPS) System Indicator ............................................ 79, 551
Electronic Stability Control (ESC) ............. 418
Emergency ................................................ 560
Emissions Testing (Readiness Codes) ....... 572
Engine ....................................................... 568
Coolant ................................................... 484
Jump Starting .......................................... 542
Oil ........................................................... 477
Remote Engine Start ................................ 365
Starting ................................................... 362
Engine Coolant ......................................... 484
Adding to the Radiator ............................ 485 Adding to the Reserve Tank..................... 484
Overheating ............................................ 547
Temperature Gauge ................................ 113
Engine Oil ................................................. 477
Adding .................................................... 480
Checking................................................. 478
Displaying Oil Life .................................... 470
Low Oil Pressure Indicator ................. 74, 549
Recommended Engine Oil ....................... 477
ENGINE START/STOP Button .................... 157
EPS (Electric Power Steering) System ........ 79
Exhaust Gas Hazard (Carbon Monoxide) .. 69
Exterior Care (Cleaning) ........................... 511
Exterior Mirrors ........................................ 177
F
Features.................................................... 213
Filters Dust and Pollen ....................................... 508
Oil ........................................................... 481
Flat Tire ..................................................... 519
Floor Mats ................................................. 510
Fluids
Automatic Transmission .......................... 486
Brake ...................................................... 487
Dual Clutch Transmission ........................ 486
Engine Coolant ....................................... 484
Windshield Washer ................................. 487
Fog Lights ................................................. 164
Foot Brake ................................................ 432
18 ACURA TLX-31TZ36300.book 581 ページ ２０１７年２月２１日　火曜日　午後２時３２分

583
Index
Auto High-Beam ....................................... 82
Auto Idle Stop (Green) .............................. 89
Auto Idle Stop System (Amber) ................. 89
Automatic Brake Hold ....................... 74, 433
Automatic Brake Hold System ........... 74, 433
Blind Spot Information (BSI) ...................... 88
Brake System (Amber) ............................... 72
Brake System (Red) ........................... 72, 550
Charging System............................... 75, 549
Collision Mitigation Braking System
TM
(CMBSTM) .......................................... 90, 91
Door and Trunk Open ............................... 33
ECON (Econ mode) ................................... 85
Electric Parking Brake ................................ 73
Electric Parking Brake System ............ 73, 552
Electric Power Steering (EPS) System ............................................ 79, 551
Fog Lights ................................................. 82
Gear Position ............................................ 75
High Beam ................................................ 82
Immobilizer System ................................... 83
Keyless Access System............................... 83
Lane Keeping Assist System (LKAS) ... 87, 412
Lights On .................................................. 82
Low Fuel ................................................... 78
Low Oil Pressure ............................... 74, 549
Low Tire Pressure/TPMS ............ 81, 425, 427
M (sequential mode) I ndicator/Sequential
Mode Gear Selection............................... 78
Malfunction Indicator Lamp .............. 75, 550 Precision All-Wheel Steer
TM (P-AWS
®)
System..................................................... 85
Road Departure Mitigation (RDM) .............. 84
Seat Belt Reminder .............................. 35, 78
Security System Alarm ............................... 83
Shift Lever Position .................................... 75
SPORT (Sport mode) .................................. 85
Super Handling-All Wheel Drive
TM
(SH-AWD ®) .............................................. 89
Supplemental Restraint System ............ 53, 79
System Message ........................................ 81
Transmission System ............................ 76, 77
Turn Signal ................................................ 82
Vehicle Stability Assist (VSA ®)
System............................................. 80, 418
VSA ® OFF .......................................... 80, 419
Information ............................................... 565
Information Screen ................................... 223
Instant Fuel Economy ............................... 118
Instrument Panel ........................................ 71
Brightness Control ................................... 171
Integrated Dynamics System .................... 388
Dynamic Mode Button ............................. 388
Interface Dial ............................................ 219
Interior Lights ........................................... 188
Interior Rearview Mirror .......................... 176
Internet Radio ........................................... 250
iPhone ............................................... 250, 276
iPod ................................................... 247, 276
J
Jack (Wheel Nut Wrench) ........................ 535
Jump Starting ........................................... 542
K
Key Number Tag ....................................... 135
Keyless Access System .............................. 136
Keyless Lockout Prevention ..................... 142
Keys ........................................................... 133
Lockout Prevention.................................. 142
Number Tag ............................................ 135
Rear Door Won’t Open............................ 146
Remote Transmitter ................................. 141
Two-way Keyless Access Remote ..... 143, 365
Types and Functions ................................ 133
Kickdown (Automatic Transmission) ....... 370
Kickdown (Dual Clutch Transmission) ..... 370
L
Lane Keeping Assist System (LKAS)......... 410
Language (HFL) ........................................ 318
LATCH (Child Seats) .................................... 61
Legal Information on Apple CarPlay/ Android Auto .......................................... 289
18 ACURA TLX-31TZ36300.book 583 ページ ２０１７年２月２１日　火曜日　午後２時３２分

584
Index
Lights................................................. 161, 488
Automatic ............................................... 162
Bulb Replacement .................................... 488
Daytime Running Lights ........................... 164
Fog Lights ................................................ 164
High Beam Indicator .................................. 82
Interior .................................................... 188
Light Switches ......................................... 161
Lights On Indicator .................................... 82
Turn Signals ............................................. 160
Load Limits ................................................ 359
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 136
Keys ........................................................ 133
Using a Key ............................................. 142
Lockout Prevention System ...................... 142
Low Battery Charge .................................. 549
Low Fuel Indicator ...................................... 78
Low Keyless Access Remote Signal
Strength ................................................... 135
Low Oil Pressure Indicator ................. 74, 549
Lower Anchors ............................................ 61
Lubricant Specifications Chart ................. 567
Luggage (Maximum Load Limit) .............. 359
Lumbar Support ........................................ 179M
Maintenance............................................. 465
Battery .................................................... 504
Brake Fluid .............................................. 487
Cleaning ................................................. 509
Climate Control System ........................... 508
Coolant ................................................... 484
Maintenance Minder
TM............................ 469
Oil ........................................................... 478
Precautions ............................................. 466
Radiator .................................................. 485
Remote Transmitter ......................... 506, 507
Replacing Light Bulbs .............................. 488
Safety...................................................... 467
Service Items ........................................... 472
Tires ........................................................ 495
Transmission Fluid ................................... 486
Under the Hood .............................. 474, 475
Malfunction Indicator Lamp .............. 75, 550
Map Lights ................................................ 189
Maximum Load Limit ............................... 359
Meters, Gauges ......................................... 113
Mirrors ...................................................... 176
Adjusting ................................................ 176
Door ....................................................... 177
Exterior ................................................... 177
Interior Rearview ..................................... 176
Modifications (and Accessories) .............. 514
Moonroof ................................................. 156
MP3 ................................................... 244, 252
Multi-Information Display ....................... 114Multi-View Rear Camera
......................... 457
N
Numbers (Identification)......................... 568
O
Odometer................................................. 117
Oil (Engine) ...................................... 477, 567
Adding ................................................... 480
Checking ................................................ 478
Displaying Oil Life ................................... 470
Low Oil Pressure Indicator ................. 74, 549
Recommended Engine Oil ............... 477, 567
Viscosity.......................................... 477, 567
On Demand Multi-Use Display
TM............. 220
Open Source Licenses .............................. 291
Opening Trunk ...................................................... 562
Opening/Closing Hood ...................................................... 476
Moonroof ............................................... 156
Power Windows...................................... 154
Trunk ...................................................... 148
Operating the Switches Around the
Steering Wheel ....................................... 157
Outside Temperature .............................. 117
Adjusting ................................................ 117
Overheating ............................................. 547
18 ACURA TLX-31TZ36300.book 584 ページ ２０１７年２月２１日　火曜日　午後２時３２分
