Acura TLX 2020 Owner's Guide

20
Quick Reference Guide
Release Button
Depress the brake pedal and press the
release button to move out of
( P.
Move the shift lever without pressing
the release button. Press the release button to move the
shift lever.
Dual Clutch Transmission* (P378)
● Shift to
(P and depress the brake pedal when starting the
engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving. The sequential
shift mode can be used.
Sequential Shift Mode (P381)
Paddle shifters allow you to shift gears much like a manual
transmission (1st through 8th). This is useful for engine braking.
When the shift lever is in (D● The transmission will shift back to
automatic mode once the system
detects that the vehicle is cruising.
When the shift lever is in (D
with Sport+ mode
● Holds the selected gear, and the
M indicator comes on, when the
Sport+ mode is on.
● The selected gear position is
shown in the instrument panel.
M
Indicator
Shift Lever Position Indicator
Shift Lever
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Selected Gear Number
Dynamic Mode
Button
20 ACURA TLX-31TZ36500.book 20 ページ ２０１９年２月７日　木曜日　午後２時２分

21
Quick Reference Guide
VSA® On and Off (P419)
● The Vehicle Stability Assist ® (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P440)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● The CMBS
TM is turned on every time you
start the engine.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P425, 553)
● The TPMS monitors tire pressure.
● TPMS is turned on automatically every time you start the engine.
● TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P460)
aPress the fuel fill
door release button.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Fuel recommendation: Unleaded premium gasoline, pump octane number 91 or
higher
Fuel tank capacity: 17.2 US gal (65 L)
Wait for five seconds
* Not available on all models
20 ACURA TLX-31TZ36500.book 21 ページ ２０１９年２月７日　木曜日　午後２時２分

22
Quick Reference Guide
AcuraWatchTM
AcuraWatchTM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located behind the emblem and a front
sensor camera mounted to the interior side
of the windshield, behind the rearview
mirror.
The camera is located
behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is
behind the emblem.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P390)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Road Departure
Mitigation (RDM) System
(P405)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Lane Keeping Assist
System (LKAS)
(P410)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P437)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
20 ACURA TLX-31TZ36500.book 22 ページ ２０１９年２月７日　木曜日　午後２時２分

23
Quick Reference Guide
Maintenance (P465)
Under the Hood (P474)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P488)
● Inspect all lights regularly.
Wiper Blades (P493)
● Replace blades if they leave streaks
across the windshield.
Tires (P495)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
20 ACURA TLX-31TZ36500.book 23 ページ ２０１９年２月７日　木曜日　午後２時２分

24
Quick Reference Guide
Handling the Unexpected (P517)
Flat Tire (P519)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P549)
●Identify the indicator and consult the
owner’s manual.
Models with tire repair kit
Models with optional spare tire
Engine Won’t Start (P539)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P555)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P547)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P560)
● Call a professional towing service if you
need to tow your vehicle.
20 ACURA TLX-31TZ36500.book 24 ページ ２０１９年２月７日　木曜日　午後２時２分

25
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right after
pressing the ENGINE START/STOP button.
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P435)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Canadian models
Models with shift lever
20 ACURA TLX-31TZ36500.book 25 ページ ２０１９年２月７日　木曜日　午後２時２分

26
Quick Reference Guide
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop* is in operation.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and trunk (Walk away auto lock ®) (P139)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
20 ACURA TLX-31TZ36500.book 26 ページ ２０１９年２月７日　木曜日　午後２時２分

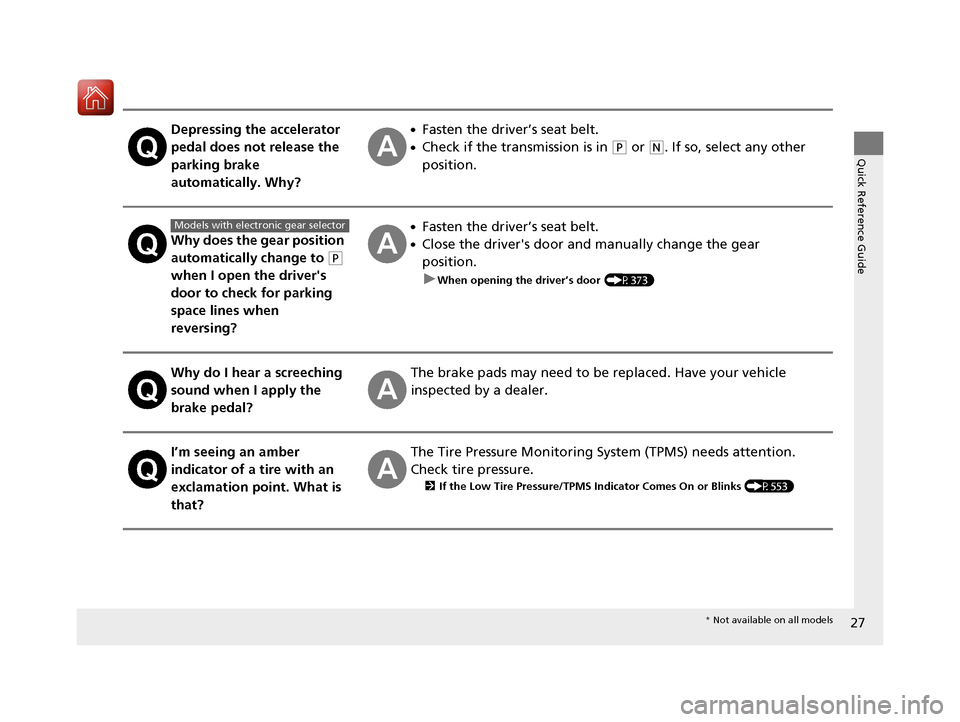

27
Quick Reference Guide
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
Why does the gear position
automatically change to
(P
when I open the driver's
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver's door and manually change the gear
position. u
When opening the driver’s door (P373)
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Sy stem (TPMS) needs attention.
Check tire pressure.
2 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks (P553)
Models with electronic gear selector
* Not available on all models
20 ACURA TLX-31TZ36500.book 27 ページ ２０１９年２月７日　木曜日　午後２時２分

28
Quick Reference Guide
Unleaded gasoline with a
Pump Octane Number
(PON) of 91 or higher is
recommended.
Is it possible to use
unleaded gasoline with a
Pump Octane Number
(PON) of 87 or lower on
this vehicle?Unleaded gasoline with a Pump Octane Number (PON) of 91 or
higher is recommended.
Use of lower octane gasoline can cause occasional metallic
knocking noise in the engine and will result in decreased engine
performance.
Use of gasoline with a pump octane less than 87 can lead to
engine damage.
20 ACURA TLX-31TZ36500.book 28 ページ ２０１９年２月７日　木曜日　午後２時２分

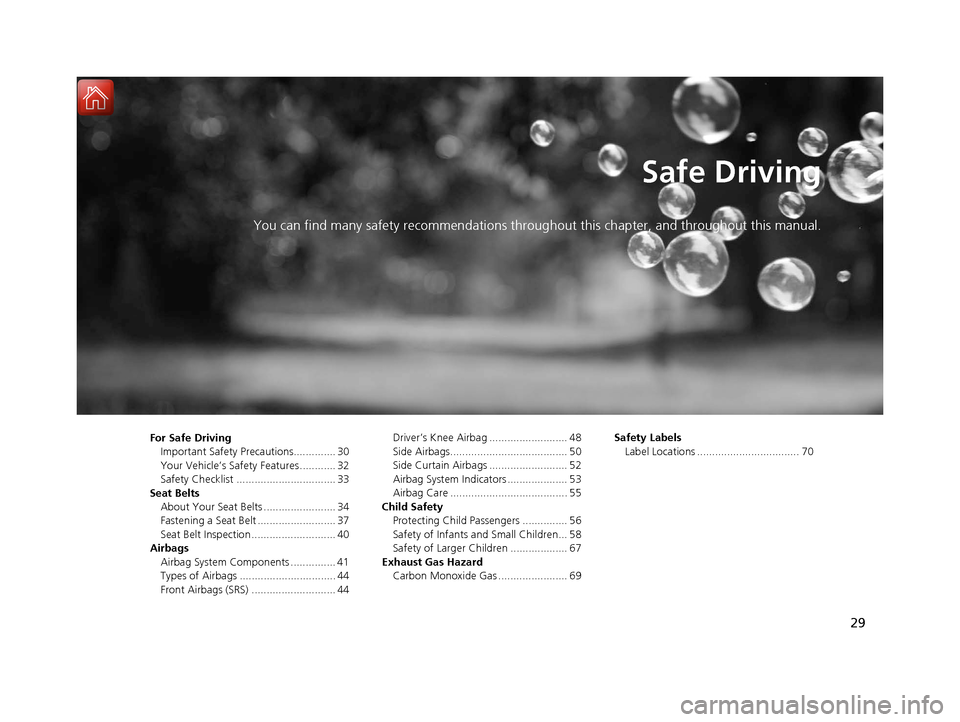

29
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions.............. 30
Your Vehicle’s Safety Features ............ 32
Safety Checklist ................................. 33
Seat Belts About Your Seat Belts ........................ 34
Fastening a Seat Belt .......................... 37
Seat Belt Inspection ............................ 40
Airbags Airbag System Components ............... 41
Types of Airbags ................................ 44
Front Airbags (SRS) ............................ 44 Driver’s Knee Airbag .......................... 48
Side Airbags....................................... 50
Side Curtain Airbags .......................... 52
Airbag System Indicators .................... 53
Airbag Care ....................................... 55
Child Safety Protecting Child Passengers ............... 56
Safety of Infants a nd Small Children... 58
Safety of Larger Children ................... 67
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 69 Safety Labels
Label Locations .................................. 70
