bulb Acura TLX 2020 Owner's Manual

Contents
Child Safety P. 56Exhaust Gas Hazard P. 69Safety Labels P. 70
Opening and Closing the Trunk P. 149 Security System P. 152 Opening and Closing the Windows P. 155
Operating the Switches Around the Steering Wheel P. 158 Adjusting the Mirrors P. 177
Interior Lights/Interior Convenience Items P. 189 Climate Control System P. 205
Audio Error Messages P. 267General Information on the Audio System P. 274
Bluetooth® HandsFreeLink ® P. 317 Compass* P. 352
When Driving P. 362 Braking P. 429Parking Your Vehicle P. 446
Refueling P. 460 Fuel Economy and CO
2 Emissions P. 463
Maintenance Under the Hood P. 474 Replacing Light Bulbs P. 488
Checking and Maintaining Tires P. 495 Battery P. 504 Remote Transmitter Care P. 506
Cleaning P. 509 Accessories and Modifications P. 514
Engine Does Not Start P. 539Jump Starting P. 542 Shift Lever Does Not Move P. 546
Fuses P. 555 Emergency Towing P. 560 When You Cannot Unlock the Fuel Fill Door P. 561
Refueling P. 563
Devices that Emit Radio Waves P. 569 Reporting Safety Defects P. 570
Authorized Manuals P. 575 Client Service Information P. 576
Quick Reference GuideP. 4
Safe DrivingP. 29
Instrument PanelP. 71
ControlsP. 131
FeaturesP. 213
DrivingP. 355
MaintenanceP. 465
Handling the UnexpectedP. 517
InformationP. 565
IndexP. 578
20 ACURA TLX-31TZ36500.book 3 ページ ２０１９年２月７日　木曜日　午後２時２分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals when
you press the hazard warning
button.
●Does not blink or blinks rapidly
2Replacing Light Bulbs P. 488
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch in a
position other than OFF or when the
switch is set to AUTO and the
exterior lights come on.●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
Auto High-Beam
Indicator●Comes on when all the operating
conditions of the Auto high-beam
are met.
2 Auto High-Beam P. 166—
* Not available on all models
20 ACURA TLX-31TZ36500.book 82 ページ ２０１９年２月７日　木曜日　午後２時２分

465
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 466
Safety When Performing Maintenance..... 467Parts and Fluids Used in Maintenance Service ........................................... 468
Maintenance Minder
TM..................... 469
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 474Opening the Hood ........................... 476
Recommended Engine Oil ................ 477
Oil Check ......................................... 478
Adding Engine Oil ............................ 480
Changing the Engine Oil and Oil Filter .. 481
Engine Coolant ................................ 484
Transmission Fluid ............................ 486
Brake Fluid ....................................... 487
Refilling Window Wa sher Fluid......... 487
Replacing Light Bulbs ....................... 488
Checking and Maintaining Wiper
Blades .......................................... 493
Checking and Maintaining Tires
Checking Tires ................................. 495
Tire and Loading Information Label ...... 496Tire Labeling .................................... 496DOT Tire Quality Grading (U.S. Vehicles) .. 498Wear Indicators................................ 500 Tire Service Life ................................ 500
Tire and Wheel Replacement ........... 501
Tire Rotation .................................... 502
Winter Tires ..................................... 503
Battery ............................................... 504
Remote Transmitter Care
Replacing the Button Battery ........... 506
Climate Control System Maintenance.... 508Cleaning
Interior Care .................................... 509
Exterior Care.................................... 511
Accessories and Modifications................ 514
20 ACURA TLX-31TZ36500.book 465 ページ ２０１９年２月７日　木曜日　午後２時２分

466
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance tri ps, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 487
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 495
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 488
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 493
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the multi-in formation display (MID).
2 Maintenance Service Items P. 472
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 575
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
20 ACURA TLX-31TZ36500.book 466 ページ ２０１９年２月７日　木曜日　午後２時２分

488
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Acura dealer inspect and replace the
light assembly.
Front Turn Signal/Parking, Front Side Marker and
Daytime Running Lights
Front turn signal/parking, front side mar ker and daytime running lights are LED type.
Have an authorized Acura dealer in spect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
1Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
20 ACURA TLX-31TZ36500.book 488 ページ ２０１９年２月７日　木曜日　午後２時２分

489
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Continued
Maintenance
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to re move the covers.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. Remove the mounting bolts.
3. Pull the light assembly out of the rear pillar.
Rear Turn Signal Light: 21 W
Cover
Bolt
20 ACURA TLX-31TZ36500.book 489 ページ ２０１９年２月７日　木曜日　午後２時２分

490
uuReplacing Light Bulbs uBrake and Taillight/Rear Side Marker Lights
Maintenance
4. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
5. Insert a new bulb.
Brake and Taillight/Rea r Side Marker Lights
Brake and taillight/rear side marker lights are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Brake Lights and Taillights
Brake lights and taillights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Bulb Socket
20 ACURA TLX-31TZ36500.book 490 ページ ２０１９年２月７日　木曜日　午後２時２分

491
uuReplacing Light Bulbs uBack-Up Light Bulbs
Maintenance
Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding clip using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket counter-clockwise and
remove it, then remove the old bulb.
3. Insert a new bulb.
Back-Up Light: 21 W
Clip
Socket
Bulb
20 ACURA TLX-31TZ36500.book 491 ページ ２０１９年２月７日　木曜日　午後２時２分

492

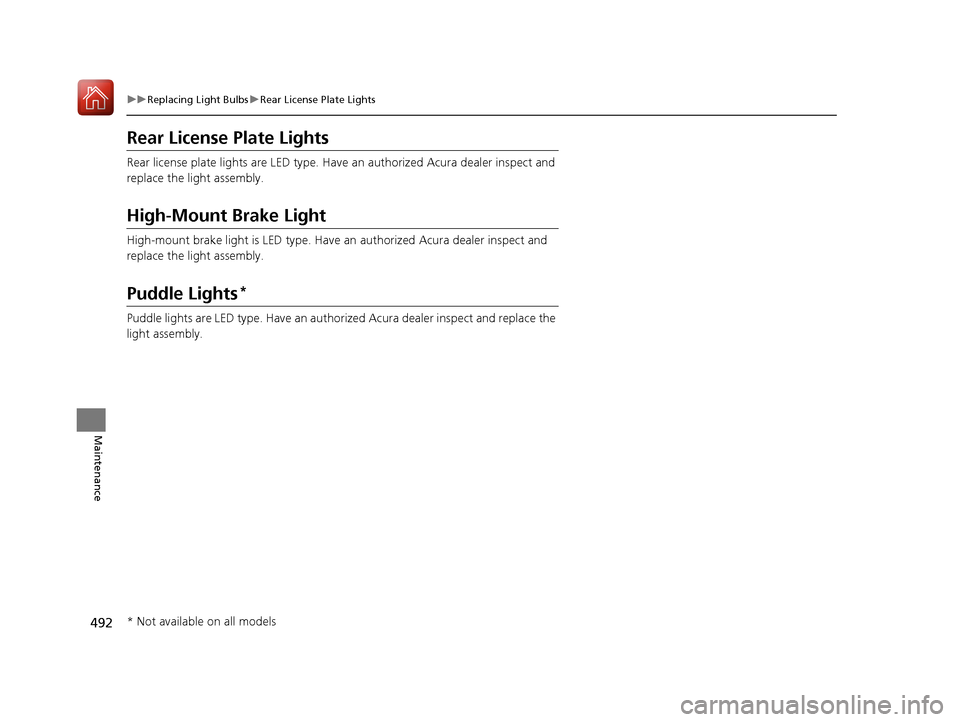

uuReplacing Light Bulbs uRear License Plate Lights
Maintenance
Rear License Plate Lights
Rear license plate lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Puddle Lights*
Puddle lights are LED type. Have an author ized Acura dealer inspect and replace the
light assembly.
* Not available on all models
20 ACURA TLX-31TZ36500.book 492 ページ ２０１９年２月７日　木曜日　午後２時２分

566
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelTLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant TypeND-OIL 8
Quantity 4.27 – 5.19 cu-in (70 – 85 cm3)
■ Engine Specifications
*1: 4-cylinder models
*2: 6-cylinder models
■Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)*1
212 cu-in (3,471 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
DILZKR7B11G*2
DENSO DXE22HQR-D11S*1
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.7 US qt (5.4 L)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal/Parking LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker Lights LED
Brake/TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLED
Puddle Lights*LEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WDoor Courtesy Lights3.4 WConsole Compartment Light1.4 WGlove Box Light1.4 WDoor Inner Handle LightsLEDTrunk Light5 W
* Not available on all models
20 ACURA TLX-31TZ36500.book 566 ページ ２０１９年２月７日　木曜日　午後２時２分
