fog light bulb Acura TLX 2020 Owner's Manual

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals when
you press the hazard warning
button.
●Does not blink or blinks rapidly
2Replacing Light Bulbs P. 488
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch in a
position other than OFF or when the
switch is set to AUTO and the
exterior lights come on.●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
Auto High-Beam
Indicator●Comes on when all the operating
conditions of the Auto high-beam
are met.
2 Auto High-Beam P. 166—
* Not available on all models
20 ACURA TLX-31TZ36500.book 82 ページ ２０１９年２月７日　木曜日　午後２時２分

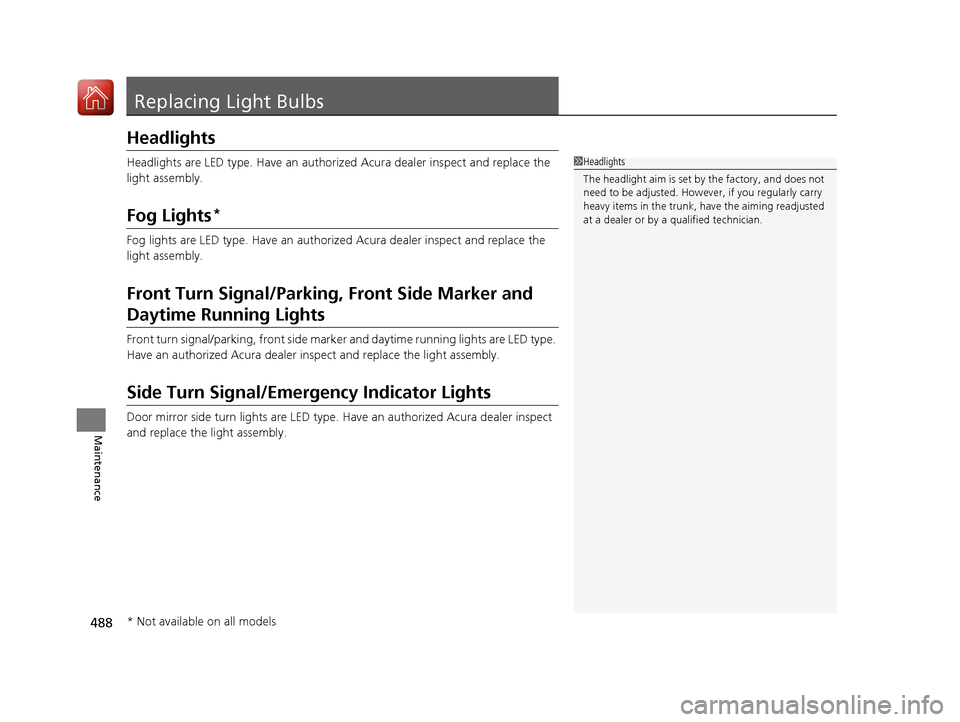

488
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Acura dealer inspect and replace the
light assembly.
Front Turn Signal/Parking, Front Side Marker and
Daytime Running Lights
Front turn signal/parking, front side mar ker and daytime running lights are LED type.
Have an authorized Acura dealer in spect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
1Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
20 ACURA TLX-31TZ36500.book 488 ページ ２０１９年２月７日　木曜日　午後２時２分

566
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelTLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 16.7 – 18.5 oz (475 – 525 g)
Lubricant TypeND-OIL 8
Quantity 4.27 – 5.19 cu-in (70 – 85 cm3)
■ Engine Specifications
*1: 4-cylinder models
*2: 6-cylinder models
■Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)*1
212 cu-in (3,471 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
DILZKR7B11G*2
DENSO DXE22HQR-D11S*1
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 17.2 US gal (65 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.7 US qt (5.4 L)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal/Parking LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker Lights LED
Brake/TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLED
Puddle Lights*LEDInterior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WDoor Courtesy Lights3.4 WConsole Compartment Light1.4 WGlove Box Light1.4 WDoor Inner Handle LightsLEDTrunk Light5 W
* Not available on all models
20 ACURA TLX-31TZ36500.book 566 ページ ２０１９年２月７日　木曜日　午後２時２分

579
Index
B
BatteryCharging (Battery)................................... 505
Charging System Indicator ................ 75, 549
Jump Starting ......................................... 542
Maintenance (Checking the Battery) ....... 504
Belts (Seat) .................................................. 34
Beverage Holders ..................................... 195
Blind spot information System ................ 421
Bluetooth ® Audio ..................................... 255
Bluetooth ® HandsFreeLink ®.................... 317
Booster Seats (For Children) ...................... 68
Brake System ............................................ 429
Anti-lock Brake System (ABS) .................. 435
Automatic Brake Hold ............................. 433
Brake Assist System................................. 436
Fluid ....................................................... 487
Foot Brake .............................................. 432
Parking Brake.......................................... 429
Brake System (Amber) Indicator ................................................... 72
Brake System (Red)
Indicator ........................................... 72, 550
Brightness Control (Instrument Panel) ... 172
Built-in Key ............................................... 134
Bulb Replacement .................................... 488
Back-Up Lights ........................................ 491
Brake/Taillights........................................ 490
Brake/Taillights and Rear Side Marker
Lights .................................................... 490
Fog Lights ............................................... 488 Front Side Marker/Parking Lights ............. 488
Headlights ............................................... 488
High-Mount Brake Light .......................... 492
Puddle Lights ........................................... 492
Rear License Plate Lights .......................... 492
Rear Turn Signal Lights ............................ 489
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 488
Bulb Specifications ................................... 566
C
Carbon Monoxide Gas ................................ 69
Carrying Cargo .................................. 357, 359
CD Player ................................................... 244
Center Pocket ........................................... 194
Certification Label .................................... 568
Changing Bulbs ......................................... 488
Charging System Indicator ................. 75, 549
Child Safety ................................................. 56
Childproof Door Locks ............................. 147
Child Seat .................................................... 56
Booster Seats ............................................. 68
Child Seat for Infants ................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 63
Larger Children .......................................... 67
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60
Using a Tether ........................................... 65 Childproof Door Locks
............................. 147
Cleaning the Exterior ............................... 511
Cleaning the Interior ................................ 509
Client Service Information ....................... 576
Climate Control System ............................ 205
Changing the Mode ................................ 208
Defrosting the Windshield and Windows ............................................... 211
Dust and Pollen Filter............................... 508
Sensors ................................................... 212
Synchronized Mode................................. 209
Using Automatic Climate Control ............ 205
Clock .......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 437
Coat Hooks ............................................... 200
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 437
Compact Spare Tire (Optional) ........ 532, 567
Compass .................................................... 352
Console Compartment ............................. 193
Controls ..................................................... 131
Coolant (Engine) ...................................... 484
Adding to the Radiator ............................ 485
Adding to the Reserve Tank..................... 484
Overheating ............................................ 547
Creeping (Automatic Transmission) ........ 370
Creeping (Dual Clutch Transmission) ...... 370
Cross Traffic Monitor ............................... 452
Cup Holders .............................................. 195
Customized Features ........................ 120, 292
20 ACURA TLX-31TZ36500.book 579 ページ ２０１９年２月７日　木曜日　午後２時２分

582
Index
Indicators..................................................... 72
Adaptive Cruise Control (ACC)
with Low Speed Follow .............. 85, 86, 390
Anti-lock Brake System (ABS) ..................... 79
Auto High-Beam ........................................ 82
Auto Idle Stop (Green) ............................... 89
Auto Idle Stop System (Amber) .................. 89
Automatic Brake Hold........................ 74, 433
Automatic Brake Hold System ............ 74, 433
Blind spot information system .................... 88
Brake System (Amber)................................ 72
Brake System (Red) ............................ 72, 550
Charging System ............................... 75, 549
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 90, 91
Door and Trunk Open ................................ 33
ECON (Econ mode) .................................... 85
Electric Parking Brake................................. 73
Electric Parking Brake System ............. 73, 552
Electric Power Steering (EPS) System .. 79, 551
Fog Lights .................................................. 82
Gear Position ............................................. 75
High Beam................................................. 82
Immobilizer System .................................... 83
Keyless Access System ............................... 83
Lane Keeping Assist System (LKAS) .... 87, 412
Lights On ................................................... 82
Low Fuel .................................................... 78
Low Oil Pressure ................................ 74, 549
Low Tire Pressure/TPMS ............. 81, 425, 427 M (sequential mode)
Indicator/Sequential
Mode Gear Selection ............................... 78
Malfunction Indicator Lamp............... 75, 550
Precision All-Wheel Steer
TM (P-AWS ®)
System .................................................... 85
Road Departure Mitigation (RDM) ............. 84
Seat Belt Reminder .............................. 35, 78
Security System Alarm ............................... 83
Shift Lever Position .................................... 75
SPORT (Sport mode) .................................. 85
Super Handling-All Wheel Drive
TM
(SH-AWD® ) .............................................. 88
Supplemental Restraint System ............ 53, 79
System Message ........................................ 81
Transmission System............................ 76, 77
Turn Signal ................................................ 82
Vehicle Stability Assist ® (VSA ®)
System ............................................ 80, 418
VSA ® OFF .......................................... 80, 419
Information .............................................. 565
Information Screen .................................. 223
Instant Fuel Economy ............................... 118
Instrument Panel ........................................ 71
Brightness Control................................... 172
Integrated Dynamics System ................... 387
Dynamic Mode Button ............................ 387
Interface Dial ............................................ 219
Interior Lights ........................................... 189
Interior Rearview Mirror .......................... 177
iPhone ............................................... 250, 276
iPod ................................................... 247, 276
J
Jack (Wheel Nut Wrench) ........................ 535
Jump Starting ........................................... 542
K
Key Number Tag ...................................... 135
Keyless Access System .............................. 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 133
Lockout Prevention ................................. 143
Number Tag............................................ 135
Rear Door Won’t Open ........................... 147
Remote Transmitter ................................ 141
Two-way Keyless Access Remote..... 144, 365
Types and Functions................................ 133
Kickdown (Automatic Transmission) ...... 370
Kickdown (Dual Clutch Transmission) .... 370
L
Lane Keeping Assist System (LKAS)........ 410
LATCH (Child Seats) ................................... 61
Legal Information on Apple CarPlay/ Android Auto ......................................... 289
Lights ................................................ 162, 488
Automatic............................................... 163
Bulb Replacement ................................... 488
Daytime Running Lights .......................... 165
Fog Lights ............................................... 165
High Beam Indicator ................................. 82
20 ACURA TLX-31TZ36500.book 582 ページ ２０１９年２月７日　木曜日　午後２時２分

586
Index
Troubleshooting....................................... 517
Blown Fuse ...................... 555, 556, 557, 558
Brake Pedal Vibrates .................................. 25
Buzzer Sounds When Opening Door .......... 26
Emergency Towing .................................. 560
Engine Won’t Start .................................. 539
Flat Tire/Puncture ..................................... 519
Noise When Braking .................................. 27
Overheating............................................. 547
Premium Gasoline............................ 460, 566
Puncture/Flat Tire ............................. 519, 532
Rear Door Won’t Open ...................... 25, 147
Select Lever Won’t Move ......................... 546
Warning Indicators .................................... 72
Trunk ......................................................... 149
Lid ........................................................... 149
Light Bulbs............................................... 566
Main Switch ............................................ 151
Open Message........................................... 97
Unable to Open ....................................... 562
Turn Signals ............................................... 161
Indicators (Instrum ent Panel) ...................... 82
Turn-by-Turn Directions ........................... 118
Two-way Keyless Access Remote ..... 144, 365
U
Under-Floor Storage Area........................ 201
Unlocking the Doors ................................. 136
Unlocking the Fron t Doors from the
Inside ................................................. 13, 145 USB Flash Drives
....................................... 276
USB Port .................................................... 215
Using the Keyless Access System ............. 136
V
Valet Mode............................................... 151
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 568
Vehicle Stability Assist ® (VSA ®)................ 418
Off Button............................................... 419
Off Indicator...................................... 80, 419
System Indicator ................................ 80, 418
Viscosity (Oil) .................................... 477, 567
VSA ® (Vehicle Stability Assist ®)................ 418
W
Wallpaper ................................................. 226
Warning and Information Messages ......... 92
Warning Indicator On/Blinking ............... 549
Warning Labels ........................................... 70
Warranties (Warranty Manual provided
separately) .............................................. 573
Watts ......................................................... 566
Wear Indicators (Tire) .............................. 500
Wheel Nut Wrench (Jack Handle) ........... 535
Window Washers ..................................... 169
Adding/Refilling Fluid .............................. 487
Switch ..................................................... 169
Windows (Opening and Closing) ............ 155Windshield
Cleaning ......................................... 510, 512
Defrosting/Defogging ............................. 211
Washer Fluid ........................................... 487
Wiper Blades........................................... 493
Wipers and Washers ............................... 169
Winter Tires .............................................. 503
Snow Tires .............................................. 503
Tire Chains.............................................. 503
Wipers and Washers ................................ 169
Checking and Replacing Wiper Blades..... 493
Wireless Charger ...................................... 197
WMA ................................................. 244, 252
Worn Tires ................................................ 495
20 ACURA TLX-31TZ36500.book 586 ページ ２０１９年２月７日　木曜日　午後２時２分
