Visual Index
6
Quick Reference Guide❙Power Window Switches (P155)
❙Driver’s Front Airbag (P44)
❙Driver’s Knee Airbag (P48)
❙Door Mirror Controls (P178)
❙Power Door Lock Master Switch (P147)
❙Accessory Power Socket (P196)
❙Auxiliary Input Jack (P216)
❙Accessory Power Socket (P196)
❙Rearview Mirror (P177)
❙Hood Release Handle (P476)
❙Memory Buttons (P175)
❙SET Button (P175)
❙Glove Box (P192)
❙Passenger’s Front Airbag (P44)
❙Driver’s Side Interior Fuse Boxes (P557)
❙Electric Parking Brake Switch (P429)
❙Dynamic Mode Button (P387)
❙Shift Button*
Electronic Gear Selector (P371)
❙Automatic Brake Hold Button
(P433)
❙Shift Lever*
Dual Clutch Transmission (P378)
❙Auto Idle Stop OFF Button* (P383)
❙Wireless Charger* (P197)
❙USB Port (P215)
20 ACURA TLX-31TZ36500.book 6 ページ ２０１９年２月７日　木曜日　午後２時２分

555Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Sub Fuse Box60 A
ABS/VSA Motor40 A
ABS/VSA FSR20 A
Main Fan*2, *330 A
Main Fuse125 A
2
IG Main30 A
F/B Main60 A
F/B Main 260 A
Headlight Main30 A
IG Main 230 A
Starter Cut 140 A
Injector*2, *320 ASub Fan*1
Rear Defroster40 A
Main Fan*130 ASub Fan*2, *3
Wiper30 A
Heater Motor40 A
*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD
3
Headlight Washer*2, *3(30 A)
Left Electric Parking Brake30 A
Right Electric Parking Brake30 A
Driver Thigh Support*(30 A)
4− −
5−−
6− −
7−−
8 STRLD*1, *27.5 A
9Interior Lights*1, *25 A
10 Headlight Low/High Main 20 A
11Oil Level7.5 A
12 Front Fog Lights*(7.5 A)
13Passenger’s Power Seat Reclining20 A
14 Hazard 15 A
15IGP215 A
16 IG Coil 15 A
17Stop*1, *210 A
SH-AWD*320 A
Circuit ProtectedAmps
* Not available on all models
20 ACURA TLX-31TZ36500.book 555 ページ ２０１９年２月７日　木曜日　午後２時２分

556
uuFuses uFuse Locations
Handling the Unexpected
*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD
Circuit ProtectedAmps
18 Horn 10 A
19Audio*1, *220 A
Interior Light*35 A
20 ACM*2, *320 A
Injector*1
21FI Main15 A
22 DBW 15 A
23TCU/SBW*2, *310 A
24 Premium AMP 30 A
25MG Clutch7.5 A
26 Passenger’s Power Seat
Sliding 20 A
27Parking Lights*1, *215 A
28 BMS 7.5 A
29Back Up10 A
Located near the washer fluid cap. Push the
tabs to open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Left Headlight Low Beam7.5 A
2Right Headlight Low Beam7.5 A
3Right Headlight High Beam7.5 A
4 Left Headlight High Beam 7.5 A
20 ACURA TLX-31TZ36500.book 556 ページ ２０１９年２月７日　木曜日　午後２時２分

557
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Driver’s Side Interior Fuse Box
Type A
Fuse Label
Fuse Box
Circuit ProtectedAmps
1A/C7.5 A
2DRL7.5 A
3ST Motor(7.5 A)
4−−
5Meter*17.5 AAuto Dimming Mirror*2
6SRS(7.5 A)
7Option7.5 A
8MISS SOL*3(15 A)
9Fuel Pump20 A
10ABS/VSA*1(7.5 A)Smart*2
11Spare Fuse30 A
12Wiper7.5 A
13ACG15 A
14Accessory Power Socket
(Console Compartment)20 A
15Driver’s Power Seat Reclining20 A
16Moonroof20 A
17AVS/Seat Heaters20 A
18−−
19Passenger’s Side Door Unlock10 A
20Driver’s Side Rear Door
Unlock10 A
21Driver’s Side Door Lock(10 A)
22Passenger’s Side Door Lock10 A
23Driver’s Side Door Unlock(10 A)
24SRS10 A
25Instrument Panel Lights7.5 A
26ACC Key Lock7.5 A
Circuit ProtectedAmps
*1:2WD models
*2:AWD models
*3:4-cylinder models
27Parking Lights7.5 A
28Lumbar Support10 A
29Right DRL7.5 A
30Washer20 A
31SMART10 A
32Driver’s Side Power Window20 A
33Passenger’s Side Power Window20 A
34Rear Driver’s Side Power Window20 A
35Rear Passenger’s Side
Power Window20 A
36Driver’s Power Seat Sliding20 A
37ACCESSORY7.5 A
38−−
39Left DRL7.5 A
40Accessory Power Socket (Center Pocket)20 A
41Rear Driver’s Side Door Lock10 A
42Door Lock20 A
Circuit ProtectedAmps
20 ACURA TLX-31TZ36500.book 557 ページ ２０１９年２月７日　木曜日　午後２時２分

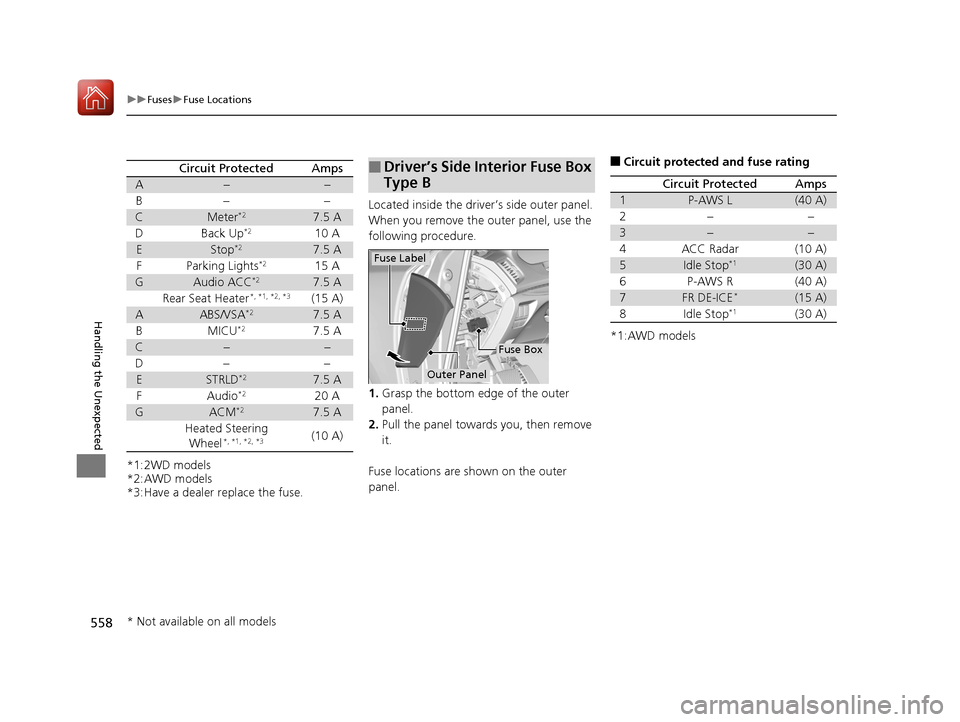

558
uuFuses uFuse Locations
Handling the Unexpected
*1:2WD models
*2:AWD models
*3:Have a dealer replace the fuse.
Circuit ProtectedAmps
A−−
B− −
CMeter*27.5 A
D Back Up*210 A
EStop*27.5 A
F Parking Lights*215 A
GAudio ACC*27.5 A
Rear Seat Heater*, *1, *2, *3(15 A)
AABS/VSA*27.5 A
BMICU*27.5 A
C−−
D− −
ESTRLD*27.5 A
F Audio*220 A
GACM*27.5 A
Heated Steering Wheel
*, *1, *2, *3(10 A)
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Grasp the bottom edge of the outer
panel.
2. Pull the panel towards you, then remove
it.
Fuse locations are shown on the outer
panel.
■Driver’s Side Interior Fuse Box
Type B
Outer Panel
Fuse Box
Fuse Label
■Circuit protected and fuse rating
*1:AWD models
Circuit ProtectedAmps
1P-AWS L(40 A)
2−−
3−−
4ACC Radar(10 A)
5Idle Stop*1(30 A)
6P-AWS R(40 A)
7FR DE-ICE*(15 A)
8Idle Stop*1(30 A)
* Not available on all models
20 ACURA TLX-31TZ36500.book 558 ページ ２０１９年２月７日　木曜日　午後２時２分

559
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified ampe rage using the charts on
the fuse label. 2 Fuse Locations P. 555
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
20 ACURA TLX-31TZ36500.book 559 ページ ２０１９年２月７日　木曜日　午後２時２分

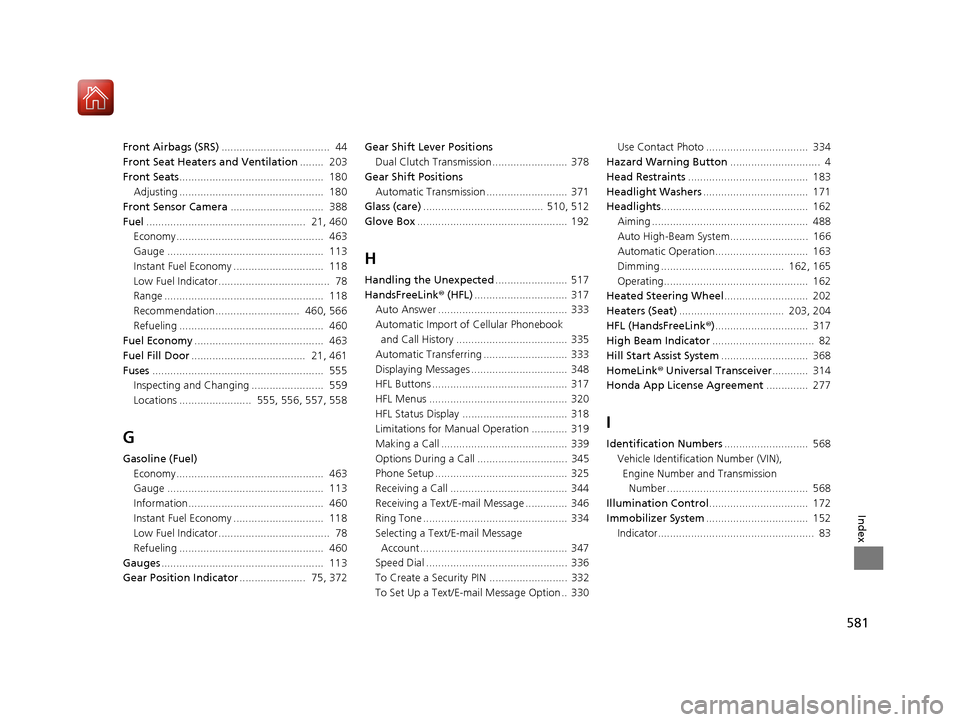

581
Index
Front Airbags (SRS).................................... 44
Front Seat Heaters and Ventilation ........ 203
Front Seats ................................................ 180
Adjusting ................................................ 180
Front Sensor Camera ............................... 388
Fuel ..................................................... 21, 460
Economy................................................. 463
Gauge .................................................... 113
Instant Fuel Economy .............................. 118
Low Fuel Indicator..................................... 78
Range ..................................................... 118
Recommendation............................ 460, 566
Refueling ................................................ 460
Fuel Economy ........................................... 463
Fuel Fill Door ...................................... 21, 461
Fuses ......................................................... 555
Inspecting and Changing ........................ 559
Locations ........................ 555, 556, 557, 558
G
Gasoline (Fuel) Economy................................................. 463
Gauge .................................................... 113
Information............................................. 460
Instant Fuel Economy .............................. 118
Low Fuel Indicator..................................... 78
Refueling ................................................ 460
Gauges ...................................................... 113
Gear Position Indicator ...................... 75, 372 Gear Shift Lever Positions
Dual Clutch Transmission ......................... 378
Gear Shift Positions Automatic Transmission ........................... 371
Glass (care) ........................................ 510, 512
Glove Box .................................................. 192
H
Handling the Unexpected ........................ 517
HandsFreeLink ® (HFL) ............................... 317
Auto Answer ........................................... 333
Automatic Import of Cellular Phonebook
and Call History ..................................... 335
Automatic Transferring ............................ 333
Displaying Messages ................................ 348
HFL Buttons ............................................. 317
HFL Menus .............................................. 320
HFL Status Display ................................... 318
Limitations for Manua l Operation ............ 319
Making a Call .......................................... 339
Options During a Call .............................. 345
Phone Setup ............................................ 325
Receiving a Call ....................................... 344
Receiving a Text/E-mail Message .............. 346
Ring Tone ................................................ 334
Selecting a Text/E-mail Message
Account................................................. 347
Speed Dial ............................................... 336
To Create a Security PIN .......................... 332
To Set Up a Text/E-mail Message Option .. 330 Use Contact Photo .................................. 334
Hazard Warning Button .............................. 4
Head Restraints ........................................ 183
Headlight Washers ................................... 171
Headlights ................................................. 162
Aiming .................................................... 488
Auto High-Beam System.......................... 166
Automatic Operation............................... 163
Dimming ......................................... 162, 165
Operating................................................ 162
Heated Steering Wheel ............................ 202
Heaters (Seat) ................................... 203, 204
HFL (HandsFreeLink ®)............................... 317
High Beam Indicator .................................. 82
Hill Start Assist System ............................. 368
HomeLink ® Universal Transceiver ............ 314
Honda App License Agreement .............. 277
I
Identification Numbers............................ 568
Vehicle Identification Number (VIN), Engine Number and Transmission
Number ............................................... 568
Illumination Control ................................. 172
Immobilizer System .................................. 152
Indicator.................................................... 83
20 ACURA TLX-31TZ36500.book 581 ページ ２０１９年２月７日　木曜日　午後２時２分
