heater Acura TLX 2020 Owner's Manual

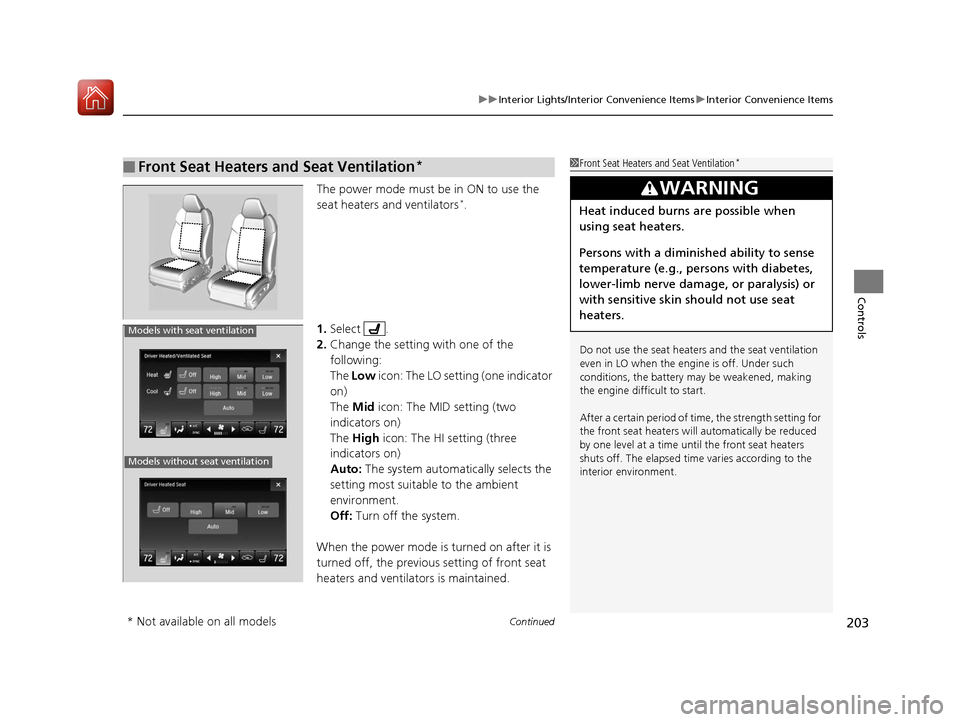

Continued203
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The power mode must be in ON to use the
seat heaters and ventilators*.
1. Select .
2. Change the setting with one of the
following:
The Low icon: The LO setting (one indicator
on)
The Mid icon: The MID setting (two
indicators on)
The High icon: The HI setting (three
indicators on)
Auto: The system automatically selects the
setting most suitable to the ambient
environment.
Off: Turn off the system.
When the power mode is turned on after it is
turned off, the previous setting of front seat
heaters and ventilators is maintained.
■Front Seat Heaters and Seat Ventilation*1 Front Seat Heaters and Seat Ventilation*
Do not use the seat heater s and the seat ventilation
even in LO when the engine is off. Under such
conditions, the battery ma y be weakened, making
the engine difficult to start.
After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a time unt il the front seat heaters
shuts off. The elapsed time varies according to the
interior environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
Models without seat ventilation
Models with seat ventilation
* Not available on all models
20 ACURA TLX-31TZ36500.book 203 ページ ２０１９年２月７日　木曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items

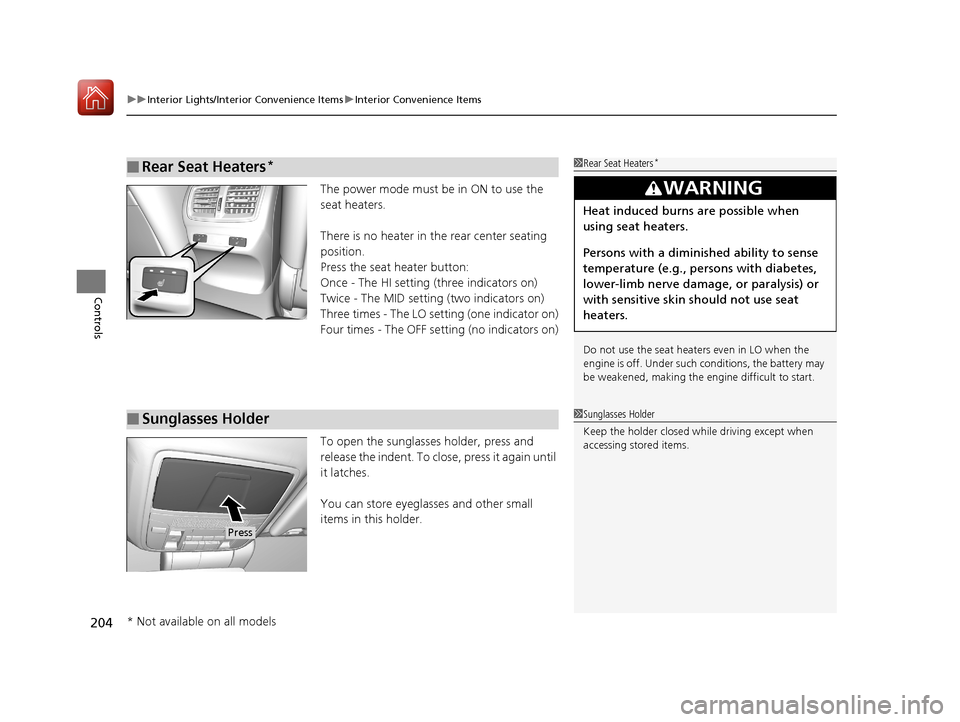

204
Controls
The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Rear Seat Heaters*1 Rear Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
■Sunglasses Holder1Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
* Not available on all models
20 ACURA TLX-31TZ36500.book 204 ページ ２０１９年２月７日　木曜日　午後２時２分

362
Driving
When Driving
Starting the Engine
1.Make sure the parking brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you pull
up the electric parking brake switch.
2. Depress the brake pedal.
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
1 Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.Models with electronic gear selector
Electric Parking
Brake Switch
Brake Pedal
ENGINE START
STOP
20 ACURA TLX-31TZ36500.book 362 ページ ２０１９年２月７日　木曜日　午後２時２分

uuWhen Driving uStarting the Engine
366
Driving
■To stop the engine
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you
know that the engine has stopped.
●Blinks when the remote is out of
the keyless access system range.
The engine will not stop.
1
Remote Engine Start*
•Another registered keyless access remote is in the
vehicle.
•There is any antenna failure.•The door is unlocked with the built-in key.
•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.•The telematics unit malfunctions.
•The security system alarm is not set.
Before starting the engine, make sure to check the
door lock status using the remote. When you press
the button, wait for the green LED to blink. If
the red LED turns on, the doors and trunk did not
lock, and the engine does not start.
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
•The seat ventilation is activated*.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat heaters and heated steering wheel are
activated*.
2 Heated Steering Wheel* P. 202
2 Front Seat Heaters and Seat
Ventilation
* P. 203
* Not available on all models
20 ACURA TLX-31TZ36500.book 366 ページ ２０１９年２月７日　木曜日　午後２時２分

555Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Sub Fuse Box60 A
ABS/VSA Motor40 A
ABS/VSA FSR20 A
Main Fan*2, *330 A
Main Fuse125 A
2
IG Main30 A
F/B Main60 A
F/B Main 260 A
Headlight Main30 A
IG Main 230 A
Starter Cut 140 A
Injector*2, *320 ASub Fan*1
Rear Defroster40 A
Main Fan*130 ASub Fan*2, *3
Wiper30 A
Heater Motor40 A
*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD
3
Headlight Washer*2, *3(30 A)
Left Electric Parking Brake30 A
Right Electric Parking Brake30 A
Driver Thigh Support*(30 A)
4− −
5−−
6− −
7−−
8 STRLD*1, *27.5 A
9Interior Lights*1, *25 A
10 Headlight Low/High Main 20 A
11Oil Level7.5 A
12 Front Fog Lights*(7.5 A)
13Passenger’s Power Seat Reclining20 A
14 Hazard 15 A
15IGP215 A
16 IG Coil 15 A
17Stop*1, *210 A
SH-AWD*320 A
Circuit ProtectedAmps
* Not available on all models
20 ACURA TLX-31TZ36500.book 555 ページ ２０１９年２月７日　木曜日　午後２時２分

557
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Driver’s Side Interior Fuse Box
Type A
Fuse Label
Fuse Box
Circuit ProtectedAmps
1A/C7.5 A
2DRL7.5 A
3ST Motor(7.5 A)
4−−
5Meter*17.5 AAuto Dimming Mirror*2
6SRS(7.5 A)
7Option7.5 A
8MISS SOL*3(15 A)
9Fuel Pump20 A
10ABS/VSA*1(7.5 A)Smart*2
11Spare Fuse30 A
12Wiper7.5 A
13ACG15 A
14Accessory Power Socket
(Console Compartment)20 A
15Driver’s Power Seat Reclining20 A
16Moonroof20 A
17AVS/Seat Heaters20 A
18−−
19Passenger’s Side Door Unlock10 A
20Driver’s Side Rear Door
Unlock10 A
21Driver’s Side Door Lock(10 A)
22Passenger’s Side Door Lock10 A
23Driver’s Side Door Unlock(10 A)
24SRS10 A
25Instrument Panel Lights7.5 A
26ACC Key Lock7.5 A
Circuit ProtectedAmps
*1:2WD models
*2:AWD models
*3:4-cylinder models
27Parking Lights7.5 A
28Lumbar Support10 A
29Right DRL7.5 A
30Washer20 A
31SMART10 A
32Driver’s Side Power Window20 A
33Passenger’s Side Power Window20 A
34Rear Driver’s Side Power Window20 A
35Rear Passenger’s Side
Power Window20 A
36Driver’s Power Seat Sliding20 A
37ACCESSORY7.5 A
38−−
39Left DRL7.5 A
40Accessory Power Socket (Center Pocket)20 A
41Rear Driver’s Side Door Lock10 A
42Door Lock20 A
Circuit ProtectedAmps
20 ACURA TLX-31TZ36500.book 557 ページ ２０１９年２月７日　木曜日　午後２時２分

558
uuFuses uFuse Locations
Handling the Unexpected
*1:2WD models
*2:AWD models
*3:Have a dealer replace the fuse.
Circuit ProtectedAmps
A−−
B− −
CMeter*27.5 A
D Back Up*210 A
EStop*27.5 A
F Parking Lights*215 A
GAudio ACC*27.5 A
Rear Seat Heater*, *1, *2, *3(15 A)
AABS/VSA*27.5 A
BMICU*27.5 A
C−−
D− −
ESTRLD*27.5 A
F Audio*220 A
GACM*27.5 A
Heated Steering Wheel
*, *1, *2, *3(10 A)
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Grasp the bottom edge of the outer
panel.
2. Pull the panel towards you, then remove
it.
Fuse locations are shown on the outer
panel.
■Driver’s Side Interior Fuse Box
Type B
Outer Panel
Fuse Box
Fuse Label
■Circuit protected and fuse rating
*1:AWD models
Circuit ProtectedAmps
1P-AWS L(40 A)
2−−
3−−
4ACC Radar(10 A)
5Idle Stop*1(30 A)
6P-AWS R(40 A)
7FR DE-ICE*(15 A)
8Idle Stop*1(30 A)
* Not available on all models
20 ACURA TLX-31TZ36500.book 558 ページ ２０１９年２月７日　木曜日　午後２時２分

581
Index
Front Airbags (SRS).................................... 44
Front Seat Heaters and Ventilation ........ 203
Front Seats ................................................ 180
Adjusting ................................................ 180
Front Sensor Camera ............................... 388
Fuel ..................................................... 21, 460
Economy................................................. 463
Gauge .................................................... 113
Instant Fuel Economy .............................. 118
Low Fuel Indicator..................................... 78
Range ..................................................... 118
Recommendation............................ 460, 566
Refueling ................................................ 460
Fuel Economy ........................................... 463
Fuel Fill Door ...................................... 21, 461
Fuses ......................................................... 555
Inspecting and Changing ........................ 559
Locations ........................ 555, 556, 557, 558
G
Gasoline (Fuel) Economy................................................. 463
Gauge .................................................... 113
Information............................................. 460
Instant Fuel Economy .............................. 118
Low Fuel Indicator..................................... 78
Refueling ................................................ 460
Gauges ...................................................... 113
Gear Position Indicator ...................... 75, 372 Gear Shift Lever Positions
Dual Clutch Transmission ......................... 378
Gear Shift Positions Automatic Transmission ........................... 371
Glass (care) ........................................ 510, 512
Glove Box .................................................. 192
H
Handling the Unexpected ........................ 517
HandsFreeLink ® (HFL) ............................... 317
Auto Answer ........................................... 333
Automatic Import of Cellular Phonebook
and Call History ..................................... 335
Automatic Transferring ............................ 333
Displaying Messages ................................ 348
HFL Buttons ............................................. 317
HFL Menus .............................................. 320
HFL Status Display ................................... 318
Limitations for Manua l Operation ............ 319
Making a Call .......................................... 339
Options During a Call .............................. 345
Phone Setup ............................................ 325
Receiving a Call ....................................... 344
Receiving a Text/E-mail Message .............. 346
Ring Tone ................................................ 334
Selecting a Text/E-mail Message
Account................................................. 347
Speed Dial ............................................... 336
To Create a Security PIN .......................... 332
To Set Up a Text/E-mail Message Option .. 330 Use Contact Photo .................................. 334
Hazard Warning Button .............................. 4
Head Restraints ........................................ 183
Headlight Washers ................................... 171
Headlights ................................................. 162
Aiming .................................................... 488
Auto High-Beam System.......................... 166
Automatic Operation............................... 163
Dimming ......................................... 162, 165
Operating................................................ 162
Heated Steering Wheel ............................ 202
Heaters (Seat) ................................... 203, 204
HFL (HandsFreeLink ®)............................... 317
High Beam Indicator .................................. 82
Hill Start Assist System ............................. 368
HomeLink ® Universal Transceiver ............ 314
Honda App License Agreement .............. 277
I
Identification Numbers............................ 568
Vehicle Identification Number (VIN), Engine Number and Transmission
Number ............................................... 568
Illumination Control ................................. 172
Immobilizer System .................................. 152
Indicator.................................................... 83
20 ACURA TLX-31TZ36500.book 581 ページ ２０１９年２月７日　木曜日　午後２時２分

584
Index
Parking...................................................... 446
Parking Brake ............................................ 429
Parking Sensor System .............................. 448
Passenger Airbag Off Indicator ................. 54
Passing Indicators ..................................... 162
Power Windows ........................................ 155
Precautions While Driving ........................ 369
Rain ......................................................... 369
Pregnant Women ....................................... 39
Puncture (Tire) .......................................... 519
R
Radiator..................................................... 485
Radio (AM/FM) .......................................... 230
Radio (SiriusXM ®)...................................... 233
Radio Data System (RDS) .......................... 231
Range ........................................................ 118
RDS (Radio Data System) .......................... 231
Readiness Codes (Emissions Testing) ....... 571
Rear Defogger/Heated Door Mirror
Button ...................................................... 173
Rear Seats .................................................. 187
Seat Heaters ............................................ 204
Rearview Mirror ........................................ 177
Refueling ................................................... 460
Fuel Gauge .............................................. 113
Gasoline .......................................... 460, 566
Low Fuel Indicator ..................................... 78
Regulations ............................... 427, 498, 569 Remote Engine Start with Vehicle
Feedback ................................................. 365
Remote Transmitter ................................. 141
Maintenance (Replacing) ......................... 506
Replacement
Battery ............................................ 506, 507
Bulbs ....................................................... 488
Fuses ............................... 555, 556, 557, 558
Tires ........................................................ 501
Wiper Blade Rubber ................................ 493
Reporting Safety Defects ......................... 570
Resetting a Trip Meter ............................. 117
Reverse Tilt Door Mirror .......................... 178
Right Selector Wheel ....................... 115, 120
Road Departure Mitigation (RDM) ......... 405
On and Off.............................................. 407
S
Safe Driving ................................................ 29
Safety Labels ............................................... 70
Safety Message ............................................. 1
Seat Belts .................................................... 34
Adjusting the Shoulder Anchor.................. 38
Automatic Seat Belt Tensioners ................. 36
Checking................................................... 40
Fastening .................................................. 37
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 63
Pregnant Women ...................................... 39
Reminder ............................................ 35, 78 Warning Indicator ............................... 35, 78
Seat Heaters ..................................... 203, 204
Seats .......................................................... 180
Adjusting ................................................ 180
Driver’s Seat Lumbar Support .................. 180
Front Seats.............................................. 180
Rear Seats ............................................... 187
Seat Heaters ................................... 203, 204
Seat Ventilation ...................................... 203
Thigh support ......................................... 181
Security System ........................................ 152
Immobilizer System Indicator..................... 83
Security System Alarm Indicator ................ 83
Select Button ............................................ 371
Operation ............................................... 372
Select Lever ........................................ 20, 378
Operation ......................................... 20, 379
Releasing ................................................ 546
Won’t Move ........................................... 546
Selecting a Child Seat ................................ 60
Sequential Mode ...................................... 376
Sequential Mode Operation ................... 377
Sequential Shift Mode ............................. 380
Sequential Shift Mode Operation ........... 381
Setting the Clock ...................................... 132
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 424
SH-AWD ® Torque Distribution
Monitor ................................................... 119
Shift Button ........................................ 18, 371
Shift Lever .......................................... 20, 378
20 ACURA TLX-31TZ36500.book 584 ページ ２０１９年２月７日　木曜日　午後２時２分
