This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.acura.com
(U.S.) or acura.ca (Canada). If you are the firs t registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.acura.com. In
Canada, please request a copy from your Acura dealer.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s ma nual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 36 Airbags P. 43
2Instrument Panel P. 77
Indicators P. 78 Gauges and Multi-Information Display P. 97
2Controls P. 117
Clock P. 118 Locking and Unlocking the Doors P. 120
Windows P. 142 Moonroof P. 145
Seats P. 168 Interior Convenience Items P. 180
2Features P. 203
Audio System P. 204 Audio System Basic Operation P. 210
Customized Features P. 302 HomeLink® Universal Transceiver P. 326
2 Driving P. 367
Before Driving P. 368 Towing a Trailer P. 373
Parking Your Vehicle P. 494 Multi-View Rear Camera* P. 505
Turbo Engine Vehicle P. 519
2 Maintenance P. 521
Before Performing Maintenance P. 522 Maintenance MinderTM P. 525
Checking and Maintaining Wiper Blades P. 552
Climate Control System Maintenance P. 570
2Handling the Unexpected P. 579
Tools P. 580 If a Tire Goes Flat P. 581
Indicator, Coming On/Blinking P. 612 Fuses P. 620
If You Cannot Open the Trunk P. 629
2Information P. 631
Specifications P. 632 Identification Numbers P. 634
Emissions Testing P. 637 Warranty Coverages P. 640
22 ACURA TLX-31TGV6100.book 4 \b

576
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 620
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a dealer inspect the final installation.
1 Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle\bT
IBOEMJOH

TUBCJMJUZ

BOE
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner\bT
manual regarding accessories and
modifications.
22 ACURA TLX-31TGV6100.book 576 \b

579
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools.................................................. 580
If a Tire Goes Flat
Temporarily Repairi ng a Flat Tire....... 581
Changing a Flat Tire ......................... 596
Engine Does Not Start
Checking the Engine ........................ 603
If the Keyless Remote Battery is Weak.. 604Emergency Engine Stop ................... 605
If the Battery Is Dead Jump Starting Procedure .................. 606
Overheating ...................................... 609
Indicator, Coming On/Blinking If the Engine Oil Pr essure Low Warning
Appears ......................................... 612 If the Charging System Indicator Comes
On ................................................. 613
If the Slow Down! Reduced Stopping Power Warning Appears ................ 613
If the Malfunction Indicator Lamp Comes
On or Blinks ..................................... 614
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 615
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 616
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 617 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 618
If the Transmission System Indicator Blinks along with the Warning Message ...... 619
Fuses .................................................. 620
Emergency Towing ........................... 627If You Cannot Unlock the Fuel Fill Door.. 628If You Cannot Open the Trunk ........ 629
Refueling
Refueling From a Portable Fuel Container ................................... 630
22 ACURA TLX-31TGV6100.book 579 \b

603
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Remote Battery is Weak P. 604
uMake sure the keyless remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 146
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights do not come on at all
2Battery P. 564●If the interior lights come on normally 2 Fuses P. 620
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 374
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 139
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 97
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 626
If the problem continues:
2Emergency Towing P. 627
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the Battery Is Dead P. 606
22 ACURA TLX-31TGV6100.book 603 \b

620
Handling the Unexpected

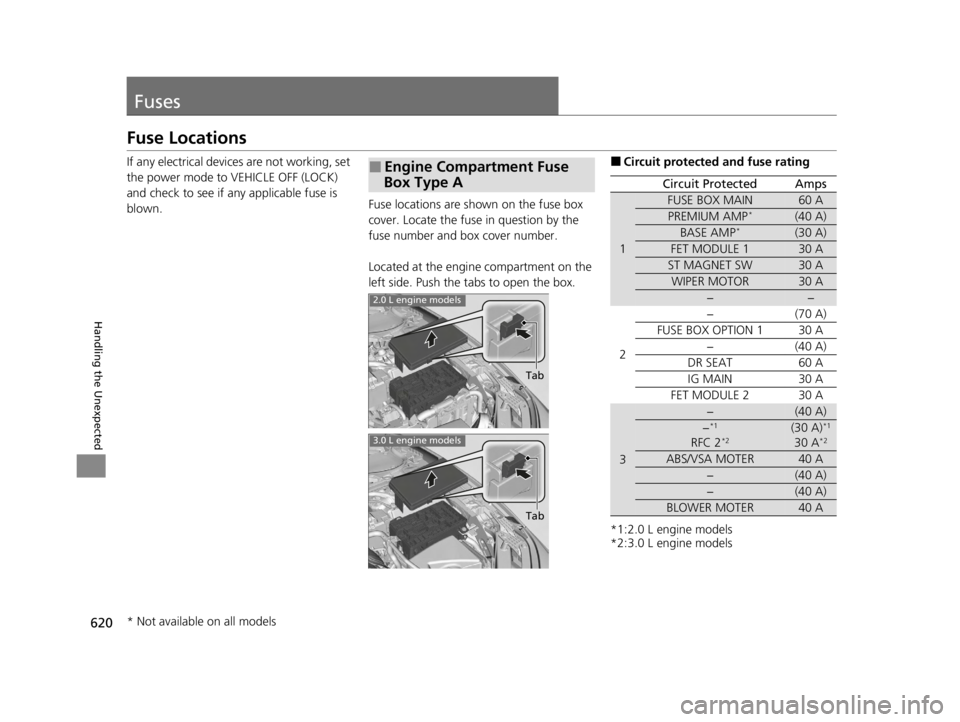

Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown. Fuse locations are sh
own on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located at the engine compartment on the
left side. Push the tabs to open the box.■Engine Compartment Fuse
Box Type A
Tab
2.0 L engine models
3.0 L engine models
Tab
■Circuit protected and fuse rating
*1:2.0 L engine models
*2:3.0 L engine models
Circuit ProtectedAmps
1
FUSE BOX MAIN60 A
PREMIUM AMP*(40 A)
BASE AMP*(30 A)
FET MODULE 130 A
ST MAGNET SW30 A
WIPER MOTOR30 A
−−
2
−(70 A)
FUSE BOX OPTION 130 A
−(40 A)
DR SEAT60 A
IG MAIN30 A
FET MODULE 230 A
3
−(40 A)
−*1
RFC 2*2(30 A)*1
30 A*2
ABS/VSA MOTER40 A
−(40 A)
−(40 A)
BLOWER MOTER40 A
* Not available on all models
22 ACURA TLX-31TGV6100.book 620 \b

621
uuFuses uFuse Locations
Continued
Handling the Unexpected
Circuit ProtectedAmps
4 FET MODULE 3 60 A
VST 1 (30 A)
VST 2 (30 A)
SUB FAN
*1
RFC 1*230 A
5R H/L LO10 A
6 IG COIL 15 A
7DBW*115 A*1
8 DR P/SEAT 2 30 A
9INJECTOR20 A*1
15 A*2
10 TCU 3 10 A
11L H/L LO10 A
12 TCU 2 10 A
13TCU15 A
14 MAIN RLY 15 A*1
20 A*2
15VBS/VBU10 A
16 BRAKE LT 5 A
17BACK UP10 A
18 WASHER 15 A
19−−
20 − −
21RR H/SEAT*1(20 A)*1
22 − −
23RFC RLY*210 A*2
24AVC*2 20 A*2
25−−
26 − −
27−−
28 − −
29−−
30 − −
31FUEL PUMP15 A
32 STARTER CUT 10 A
33VSA/ABS10 A
34 DR P/SEAT 1 30 A
35DR P/SEAT 330 A
36 FR DEICER*(15 A)
37STRLD7.5 A
38 − −
39MISS SOL 2*1
IG FI-ECU*210 A
40 IGPS (LAF)
*1
IGPS (PCS)*210 A
Circuit ProtectedAmps
*1:2.0 L engine models
*2:3.0 L engine models
41IGPS SUB*1
IGPS (ABV)*210 A
42 VBACT
*110 A*1
46ACC (VST)10 A
47 METER (VST) 10 A
48BACK UP (VST)10 A
49 IDAS (VST) 10 A
50BCM (VST)10 A
51 − −
52−−
53 − −
54−−
55 − −
56−−
57 − −
Circuit ProtectedAmps
* Not available on all models
22 ACURA TLX-31TGV6100.book 621 \b

622
uuFuses uFuse Locations
Handling the Unexpected
Located near the fuse box type A.
Push the tabs to open the box.
Locate the fuse in question by the fuse
number and box cover number.
■Engine Compartment Fuse
Box Type B
Tab
2.0 L engine models
3.0 L engine models
Tab
■Circuit protected and fuse rating
*1:2.0 L engine models
*2:3.0 L engine models
Circuit ProtectedAmps
1MAIN FUSE150 A*1
250 A*2
2R/B ACG125 A*1
200 A*2
3EPS80 A
4 VSA 40 A
5ESB40 A
6− (30 A)*1
(60 A)*2
7FAN1*1
−*230 A*1
(60 A)*2
22 ACURA TLX-31TGV6100.book 622 \b

623
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Driver’s Side Interior Fuse Box
Fuse Label
Fuse Box
Circuit ProtectedAmps
1−−
2L SIDE DOOR UNLOCK10 A
3R SIDE DOOR UNLOCK10 A
4ACC10 A
5−−
6SRS10 A
7−−
8R H/L HI10 A
9SMART10 A
10POWER DISTRIBUTION
MODULE10 A
11L SIDE DOOR LOCK10 A
12DR DOOR LOCK(10 A)
13R SIDE DOOR LOCK10 A
14A/C10 A
15DRL10 A
16CTR ACC SOCKET20 A
17HAZARD10 A
18L H/L HI10 A
19HORN15 A
20IMG10 A
21DR DOOR UNLOCK(10 A)
22−−
23−−
24−−
25−−
26−−
27−−
28−−
29FUSE BOX ENGINE COMPARTMENT20 A
30−−
Circuit ProtectedAmps
31−−
32RADIO15 A
33−−
34−−
35ACG10 A
36METER10 A
37OPTION10 A
38MOONROOF20 A
39−−
40−−
41−−
42HEATED STEERING WHEEL*(10 A)
43−−
44−−
45TCU10 A
46SRS10 A
47−−
48SBW10 A
49DOOR LOCK20 A
50FRONT ACC SOCKET20 A
51REAR R P/W20 A
52RR L P/W20 A
53AS P/W20 A
54DRIVER P/W20 A
55−−
Circuit ProtectedAmps
* Not available on all models
22 ACURA TLX-31TGV6100.book 623 \b

624
uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by pushing on the tab.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Fuse Box
Fuse BoxCover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1PASSENGER P/SEAT 230 A
2BMS10 A
3ACTIVE EXHAUST VALVE*(15 A)
44WD*(10 A)
5PASSENGER P/SEAT 130 A
6PASSENGER P/SEAT 330 A
7ACTIVE DAMPER SYSTEM*(15 A)
8−−
9−−
10−−
11−−
12FUEL PUMP30 A
13−−
14REAR DEFROSTER40 A
154WD*(30 A)
16−−
17IG MAIN 230 A
18−−
19−−
* Not available on all models
22 ACURA TLX-31TGV6100.book 624 \b

625
uuFuses uFuse Locations
Handling the Unexpected
Located under the trunk room near the +
terminal on the battery.
■Trunk Room Fuse Box
Positive Battery
Terminal Cover
Pull up on the trunk floor lid strap, and
remove the tool case.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 582
Pull up on the trunk floor lid strap, unscrew
the wing bolt, and remove the tool case.
Then, remove the compact spare tire and
battery cover.
2Checking the Battery P. 564
Remove the cover on the + terminal (as
shown).
Replacement of this fuse should be done by
a dealer.
Models without optional spare tire
Models with optional spare tire
All models
■Circuit protected and fuse rating
Circuit ProtectedAmps
aBattery450 A
b−150 A
cJump Start Box200 A
d−80 A
eRear Box 170 A
fFuse Box 260 A
gRear Box 270 A
22 ACURA TLX-31TGV6100.book 625 \b
