ACURA TLX 2023 Owners Manual

Continued129
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If the lock or unlock button of the key less remote does not work, use the key
instead. Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors, fuel fill door and trunk lock at the same
time. When unlocking, the dr iver’s door and fuel fill
door unlock first. Turn the key a second time within a
few seconds to unlock the remaining doors and
trunk.
You can customize the door unlock mode setting.
2 Customized Features P. 302
Lock
Unlock
23 ACURA TLX-31TGV6200.book 129 ページ ２０２２年８月４日　木曜日　午後１時５９分

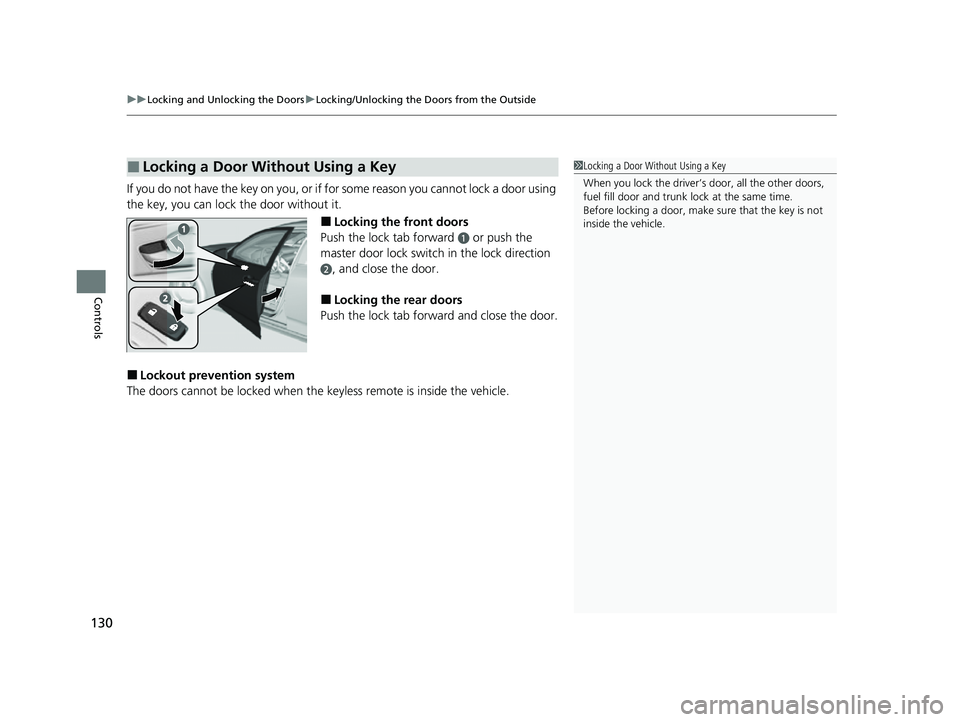

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
130
Controls
If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked when the keyless remote is inside the vehicle.
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors,
fuel fill door and trunk lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
23 ACURA TLX-31TGV6200.book 130 ページ ２０２２年８月４日　木曜日　午後１時５９分

131
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless remote from extended distances.
Press the lock button, the Amber (LEFT) LED blinks once. After th ree seconds, one of
the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status*1 Checking Door Lock Status*
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range
required for unlocking the tr unk and all the doors as
well as activating the pani c function is the same as
that required for operating the standard keyless
remote.
When checking the door lock status, you can also
start or stop the engine.
2 Remote Engine Start
* P. 376
Red
Green
Amber
Lock Button
* Not available on all models
23 ACURA TLX-31TGV6200.book 131 ページ ２０２２年８月４日　木曜日　午後１時５９分

132
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the othe r doors, fuel fill door and
trunk lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driver ’s door and fuel fill door
will unlock.
To Unlock
To LockLock Tab
23 ACURA TLX-31TGV6200.book 132 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued133
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors, fuel fill door and trunk.
To avoid all the doors unlocking, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the audio/information screen.
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided. 2 Childproof Door Locks P. 134
Inner Handle
23 ACURA TLX-31TGV6200.book 133 ページ ２０２２年８月４日　木曜日　午後１時５９分

uuLocking and Unlocking the Doors uChildproof Door Locks
134
Controls
Press the master door lock switch in as shown
to lock or unlock all the doors, fuel fill door
and trunk.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors, fuel fill
door and trunk lock/unlock at the same time.
To Unlock
To LockMaster Door
Lock Switch
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock
23 ACURA TLX-31TGV6200.book 134 ページ ２０２２年８月４日　木曜日　午後１時５９分

135
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks or unlocks all doors, fuel fill door and trunk automatically when a
certain condition is met.
■Drive lock mode
All doors, fuel fill door and trunk lock when the vehicle’s speed reaches about 10
mph (15 km/h).
■Driver’s door open mode
All doors, fuel fill door and trunk unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen. 2 Customized Features P. 302
23 ACURA TLX-31TGV6200.book 135 ページ ２０２２年８月４日　木曜日　午後１時５９分

136
Controls
Opening and Closing the Trunk
Precautions for Closing the Trunk
■Closing the trunk
Keep the trunk lid clos ed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 75
Using the Trunk Opener
Pressing and holding the trunk opener on the
driver’s door unlocks and opens the trunk.
2If You Cannot Open the Trunk P. 631
Trunk Opener
23 ACURA TLX-31TGV6200.book 136 ページ ２０２２年８月４日　木曜日　午後１時５９分

137
uuOpening and Closing the Trunk uUsing the Trunk Release Button
Controls
Using the Trunk Release Button
Press the release button on the right side
trunk lid light after the doors are unlocked.
2 If You Cannot Open the Trunk P. 631
Even if the trunk is locked, you can open the
trunk if you carry the keyless remote.
u Some exterior lights flash twice and the
beeper sounds.
Using the Remote Transmitter
Press and hold the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button
•If you forget the remote inside the trunk, the
beeper will sound and th e trunk will not close.
•A person who is not carryi ng the keyless remote
can unlock the trunk if a pe rson who is carrying it is
within range or if all doors are unlocked.
•If the beeper sounds after you close the trunk,
move the keyless remote away from the trunk and
close again.
•The keyless remote may not operate if it is too close
to the trunk.
When the vehicle is used in cold weather, the trunk
release button could freeze up and using it may not
be possible.
In this case, the trunk may be opened using the
interior trunk opener or tr unk release button on the
remote transmitter.
Trunk Release Button
1 Using the Remote Transmitter
If the driver’s door is locked, the trunk will
automatically lock when yo u close it. Otherwise, you
will have to lock it manually.
•You can lock or unlock th e trunk using the remote
transmitter only when the power mode is in
VEHICLE OFF.
Trunk
Release
Button
Trunk
Release
Button
23 ACURA TLX-31TGV6200.book 137 ページ ２０２２年８月４日　木曜日　午後１時５９分

138
uuOpening and Closing the Trunk uTrunk Main Switch
Controls
Trunk Main Switch
The trunk main switch disables the trunk
release button on the remote transmitter, the
trunk release button on the right side trunk lid
light and trunk opener on the driver’s door to
protect cargo in the trunk.
1. Make sure the rear seat-back is not folded
down.
2. Turn off the trunk main switch in the glove
box.
3. Lock the glove box.
Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Trunk Main Switch
If you need to give the ke y to someone else, remove
the built-in key from the keyless remote by sliding the
release knob, and give th e remote as a valet key.
Main SwitchOFF
ON
1Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
23 ACURA TLX-31TGV6200.book 138 ページ ２０２２年８月４日　木曜日　午後１時５９分
