uuAcuraWatchTMuAdaptive Cruise Control (ACC) with Low Speed Follow
444
Driving
■Automatic cancellation
The beeper sounds and a message appears on the multi-information display when
ACC with Low Speed Follow is automaticall y canceled. Any of these conditions may
cause the ACC with Low Speed Fo llow to automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor behind the emblem gets dirty.
• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road for extended periods, or driving off road.
• Abrupt steering wheel movement.
• When the ABS, VSA ®, or CMBS
TM is activated.
• When the ABS or VSA ® system indicator comes on.
• When the vehicle is stopped on a very steep slope.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC with Low Speed Follow range is too
close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• When the Maximum Load Limit is exceeded.
• The vehicle has repeatedly applied the brakes to maintain the set speed (for
example, you are descending a long slope).
The ACC with Low Speed Follow automatic ca ncellation can be also triggered by the
following causes. In these cases, the pa rking brake will be automatically applied.
• The driver’s seat belt is unfasten ed when the vehicle is stationary.
• The vehicle stops for mo re than 10 minutes.
• The engine is turned off.
1To Cancel
The set speed cannot be set or resumed when ACC
with Low Speed Follow has been turned off using the button. Press the button to activate the
system, then set the desired speed.
(white)
Prior Set Speed (Gray)
23 ACURA TLX-31TGV6200.book 444 ページ ２０２２年８月４日　木曜日　午後１時５９分

454
uuAcuraWatchTMuLane Keeping Assist System (LKAS)
Driving
■The LKAS may be automa tically suspended when:
• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exis t, the LKAS automatically resumes.
■The LKAS may be automatically canceled when:
• The camera temperature gets extremely high or low.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• The ABS or VSA ® system engages.
The beeper sounds if the LKAS is automatically canceled.
23 ACURA TLX-31TGV6200.book 454 ページ ２０２２年８月４日　木曜日　午後１時５９分

465
uuAcuraWatchTMuTraffic Jam Assist
Continued
Driving
■When Traffic Jam Assist may au tomatically be canceled when:
It is possible that under any of the following circumstances, broken lines
representing traffic lane lines will appear in the multi-information display, a buzzer
will sound, and Traffic Jam Assist will be canceled.
• The temperature of the camera is too high.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, is dirty.
Under the following circumst ances, some features of Traffic Jam Assist may not
work.
■Vehicle conditions
• The front grille is dirty.
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.
• The inside of the wind shield is fogged up.
• Your vehicle is fitted with tires or wheels of differing size, type, or structure, or the
tires are not properly inflated.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The interval between your vehicle and th e detected vehicle ahead of you is too
short.
• Snow chains are inst alled on the tires.
■Traffic Jam Assist: Conditions and limitations
23 ACURA TLX-31TGV6200.book 465 ページ ２０２２年８月４日　木曜日　午後１時５９分

470
uuAcuraWatchTMuRoad Departure Mitigation System
Driving
Road Departure Mitigation System
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected la ne markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close to
detected lane markings without a turn signal
activated, the system, in addition to a visual
alert, applies steering torque and alerts you
with rapid vibrations on the steering wheel, to
help you remain within the detected lane.
2 Customized Features P. 302
As a visual alert, the Lane Departure
message appears on the multi-information
display.
If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking. u Braking is applied only when the lane
markings are solid continuous lines.
The system cancels assisting operations when you turn th e steering wheel to avoid
crossing over detected lane markings.
If the system operates several times without detecting driver response, the system
beeps to alert you.
■How the System Works
1 Road Departure Mitigation System
Important Safety Reminder
Like all assistance systems, the Road Departure
Mitigation system has limitations.
Overreliance on the Road Departure Mitigation
system may result in a collision. It is always your
responsibility to keep the ve hicle within your driving
lane.
The Road Departure Mitigation system only alerts you
when lane drift is detected without a turn signal in
use. The Road Departure Mitigation system may not
detect all lane markings or lane or roadway
departures; accuracy will vary based on weather,
speed and lane marker condi tion. It is always your
responsibility to sa fely operate the vehicle and avoid
collisions.
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 481
The Road Departure Mitigati on system may not work
properly or may work im properly under the certain
conditions:
2 Road Departure Mitigation Conditions and
Limitations P. 473
There are times when you may not notice the Road
Departure Mitigation functions due to your operation
of the vehicle, or road surface conditions.
23 ACURA TLX-31TGV6200.book 470 ページ ２０２２年８月４日　木曜日　午後１時５９分

481
uuAcuraWatchTMuFront Sensor Camera
Continued
Driving
Front Sensor Camera
The camera, used in systems such as Lane Keeping Assist System (LKAS), Road
Departure Mitigation system, Adaptive Cruise Control (ACC) with Low Speed
Follow, Collision Mitigation Braking System
TM (CMBSTM), Traffic Sign Recognition
system, and Traffic Jam Assist is designed to detect an object that triggers any of the
systems to operate its functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1 Front Sensor Camera
Never apply a film or attach any objects to the
windshield, the hood, or th e front grille that could
obstruct the camera’s fiel d of vision and cause the
system to operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the ca mera’s field of vision or
installing an aftermarke t replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Sensor
Camera
23 ACURA TLX-31TGV6200.book 481 ページ ２０２２年８月４日　木曜日　午後１時５９分

Continued511
uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
Driving
■Checking for Obstacles at the Back of Your Vehicle
The display automatically changes to the rear view when the gear position is
changed to
(R.
■Using the Surround View Camera System1 Using the Surround View Camera System
The ground view can be displayed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Folded
Not folded
Rear Wide View Rear Ground View
When the
steering wheel
is turned more
than 90
degrees.
The projection lines
appear approx. 10
inches (25 cm) outside
the vehicle body.
Blind spots
Press the CAMERA
button.
Approximate distances
the guidelines indicate
Approximate distances the
projection lines indicate 39 inches
(1 m)
20 inches
(50 cm)
5.9 – 9.8 feet
(1.8 – 3 m)
Ground View Icon
Click the ground
view icon.
1 Checking for Obstacles at the Back of Your Vehicle
When changing the gear position from/to
(R, you
may experience a delay in switching between the
audio/information screen and a rear view image.
23 ACURA TLX-31TGV6200.book 511 ページ ２０２２年８月４日　木曜日　午後１時５９分

514
uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
Driving
■Surround view camera system limitations
The system may not work properly under the following conditions.
ConditionsSolutions
The images may not
appear clearly when:●You activate the system in bad weather (heavy rain,
snow, fog, etc.) or in the dark.
●Camera temperatures are high.●A sudden change between lig ht and dark such as an
entrance or exit of a tunnel.
●You drive into the sunlight (e.g., at dawn or dusk.)
Do not use the surround view camera system but rely
only on visual confirmation until the conditions allow
the system to work properly.
●A camera lens is covered with dirt, moisture, or
debris.
●A camera lens is scratched.
Clean rear camera lenses wi th a soft cloth moisturized
with water, mild detergent or glass cleaner.
The audio/information screen is dirty.Wipe off the screen using a soft dry cloth.
A camera angle is
altered.A camera or the area around the camera has been
severely impacted.Do not use the surround view camera system and
contact a dealer.
The parts are replaced such as the fro nt grille, trunk, doors, or door mirrors.
An error message is displayed while the surround view camera system is in use.
23 ACURA TLX-31TGV6200.book 514 ページ ２０２２年８月４日　木曜日　午後１時５９分

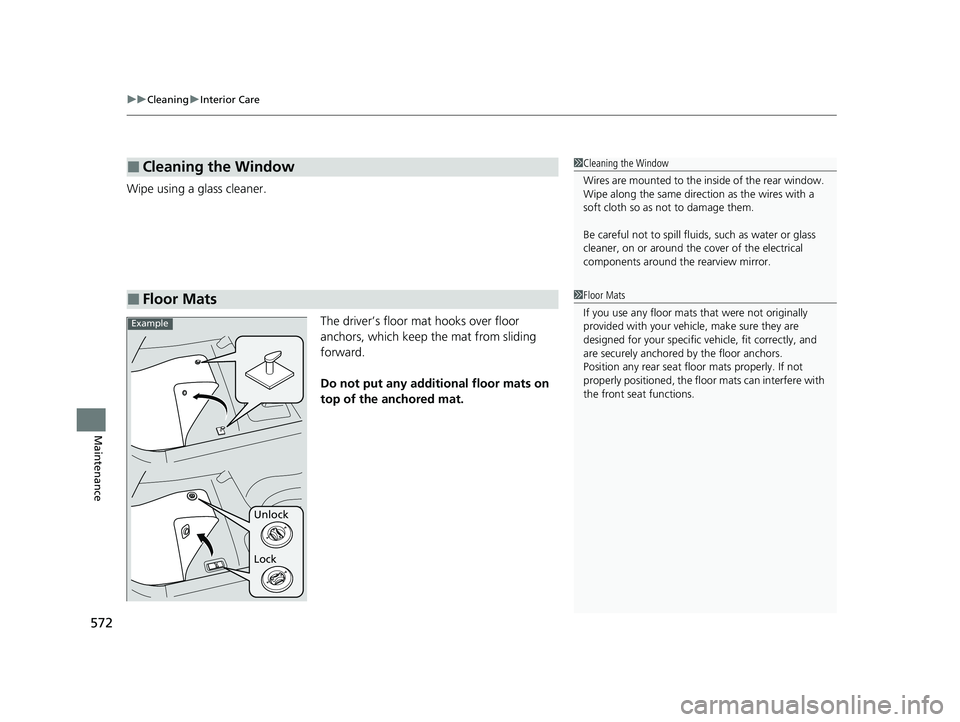

uuCleaning uInterior Care
572
Maintenance
Wipe using a glass cleaner.
The driver’s floor mat hooks over floor
anchors, which keep the mat from sliding
forward.
Do not put any additional floor mats on
top of the anchored mat.
■Cleaning the Window
■Floor Mats
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the cover of the electrical
components around the rearview mirror.
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position any rear seat floor mats properly. If not
properly positioned, the floor mats can interfere with
the front seat functions.
Unlock
Lock
Example
23 ACURA TLX-31TGV6200.book 572 ページ ２０２２年８月４日　木曜日　午後１時５９分

649
Index
Defrosting the Windshield and Windows ................................................. 199
Devices that Emit Radio Waves ............... 637
Dimming Headlights .............................................. 150
Rearview Mirror ...................................... 165
Dipstick (Engine Oil) ................................ 537
Directional Signals (Turn Signal) ............. 149
Door Mirrors ............................................. 166
Doors ........................................................ 120
Auto Door Locking.................................. 135
Auto Door Unlocking .............................. 135
Door Open Indicator ................................. 35
Keys........................................................ 120
Locking/Unlocking the Doors from the Inside .............................................. 15, 132
Locking/Unlocking the Doors from the
Outside ................................................. 123
Lockout Prevention System ..................... 130
DOT Tire Quality Grading ........................ 558
Driver Attention Monitor ........................ 108
Driving ...................................................... 367
Automatic Transmission .......................... 380
Braking ................................................... 484
Shifting Gear .......................................... 381
Starting the Engine ................................. 374
Driving Position Memory System ............ 162
Dust and Pollen Filter .............................. 570
Dynamic Mode Switch ............................. 391E
Electric Power Steering (EPS) System
Indicator ............................................ 88, 618
Electronic Stability Control (ESC) ............. 404
Emergency ................................................ 629
Emissions Testing (Readiness Codes) ....... 639
Engine ....................................................... 636
Coolant ........................................... 544, 546
If the Battery Is Dead ............................... 608
Oil ........................................................... 536
Remote Engine Start ................................ 376
Starting ................................................... 374
Engine Coolant ................................. 544, 546
Adding the Coolant ................................. 547
Adding to the Radiator ............................ 545
Adding to the Reserve Tank ..................... 544
Overheating ............................................ 611
Temperature Gauge .................................. 97
Engine Oil ................................................. 536
Adding .................................................... 539
Checking ................................................. 537
Displaying Oil Life .................................... 525
Engine Oil Pressure Low Warning ............ 614
Recommended Engine Oil ........................ 536
Engine Oil Pressure Low Warning ........... 614
ENGINE START/STOP Button .................... 146
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 574
Exterior Mirrors ........................................ 166
F
Features.................................................... 203
Filters Dust and Pollen ....................................... 570
Oil ........................................................... 540
Flat Tire ..................................................... 583
Floor Mats ................................................. 572
Fluids
Automatic Transmission .......................... 548
Brake ...................................................... 549
Engine Coolant ............................... 544, 546
Windshield Washer ................................. 549
FM/AM Radio ............................................ 238
Fog Lights ................................................. 153
Indicator.................................................... 90
Foot Brake ................................................ 488
Front Airbags (SRS) ..................................... 46
Front Seats ................................................ 168
Adjusting ................................................ 168
Front Sensor Camera ................................ 481
Fuel ...................................................... 22, 515
Economy ................................................. 518
Gauge ....................................................... 97
Instant Fuel Economy .............................. 103
Low Fuel Indicator ..................................... 87
Range ..................................................... 103
Recommendation ............................ 515, 634
Refueling................................................. 515
Fuel Economy ........................................... 518
Fuel Fill Door ...................................... 22, 516
23 ACURA TLX-31TGV6200.book 649 ページ ２０２２年８月４日　木曜日　午後１時５９分

651
Index
Lane Keeping Assist System (LKAS) (Amber) .................................................. 93
Lane Keeping Assist System (LKAS) (White/ Green) .................................................... 93
Lights On .................................................. 90
Low Fuel ................................................... 87
Low Tire Pressure/TPMS ............ 89, 408, 410
M (sequential mode) Indicator/Gear
Selection Indicator................................... 83
Maintenance Minder................................. 92
Malfunction Indicator Lamp .............. 83, 616
Parking Brake and Brake System (Amber) .......................................... 82, 619
Parking Brake and Brake
System (Red) ..................... 80, 81, 617, 619
Safety Support Indicator (Amber) .............. 94
Safety Support Indicator (Green/Gray) ....... 96
Seat Belt Reminder.............................. 37, 87
Security System Alarm............................... 91
Shift Position............................................. 83
Super Handling-All Wheel Drive
TM
(SH-AWD ®) ............................................. 92
Supplemental Restraint System ........... 57, 88
System Message ....................................... 92
Transmission System ................................. 84
Turn Signal and Hazard Warning............... 90
Vehicle Stability Assist
TM (VSA ®) OFF .. 89, 405
Vehicle Stability AssistTM (VSA ®)
System ............................................ 89, 404
Information .............................................. 633
Instant Fuel Economy .............................. 103 Instrument Panel
........................................ 77
Brightness Control ................................... 159
Interior Convenience Items ...................... 189
Interior Lights ........................................... 180
Interior Rearview Mirror .......................... 165
iPad ............................................................ 280
iPhone ....................................................... 280
iPod ................................................... 255, 280
J
Jack (Wheel Nut Wrench) ........................ 601
Jump Starting ........................................... 608
K
Key Number Tag ....................................... 122
Keyless Access System ............................... 123
Keyless Lockout Prevention ..................... 130
Keys ........................................................... 120
Lockout Prevention .................................. 130
Number Tag ............................................ 122
Rear Door Won’t Open ............................ 134
Remote Transmitter ................................. 128
Two-way Keyless Remote ................ 131, 376
Types and Functions ................................ 120
Kickdown (Automatic Transmission) ....... 380
Knee Airbags .............................................. 51
L
Lane Keeping Assist System (LKAS) ......... 449LATCH (Child Seats)
.................................... 66
Legal Information .................................... 294
License Information ................................. 297
Lights ................................................. 150, 550
Automatic ............................................... 151
Bulb Replacement ................................... 550
Chicane
TM Daytime Running Lights .......... 153
Fog Lights ............................................... 153
High Beam Indicator .................................. 90
Interior .................................................... 180
Light Switches ......................................... 150
Lights On Indicator .................................... 90
Turn Signals ............................................ 149
Load Limits ................................................ 371
Locking/Unlocking .................................... 120
Auto Door Locking/Unlocking.................. 135
Childproof Door Locks............................. 134
From Inside ............................................. 132
From Outside .......................................... 123
Keys ........................................................ 120
Using a Key ............................................. 129
Lockout Prevention System ..................... 130
Low Battery Charge ................................. 615
Low Fuel Indicator ...................................... 87
Low Keyless Remote Signal Strength ...... 122
Lower Anchors ............................................ 66
Lubricant Specifications Chart ................. 635
Luggage (Maximum Load Limit) ............. 371
Lumbar Support ....................................... 168
23 ACURA TLX-31TGV6200.book 651 ページ ２０２２年８月４日　木曜日　午後１時５９分
