ACURA TLX 2023 Owner's Manual

19
Quick Reference Guide
Audio System (P 210)
(Home) Button (Cards List) Button
(Back) Button
Audio/Information Screen
For navigation system operation
() See the Navigation System Manual
A-Zone Touchpad VOL
(Volume/Power) Knob
B-Zone Touchpad/ (Seek/Skip) Button
* Not available on all models
23 ACURA TLX-31TGV6200.book 19 ページ ２０２２年８月４日　木曜日　午後１時５９分

20
Quick Reference Guide
Driving (P367)
Automatic Transmission (P381)
●Select (P and depress the brake pedal when starting the engine.
Park
Press the
(P button.
Used when parking, before turning
off or starting the engine.
Transmission is locked.
Reverse
Pull back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Gear Position Indicator
The gear position indicator and the
shift button indicator indicate the
current gear selection.
Gear Position
Indicator Shift Button
Indicator
Shifting
Drive/S Position
Each time you press the button, the mode
switches between Drive and S Position mode.
●Normal driving (gears change between 1st
and 10th automatically)
●Temporarily driving in the sequential mode
●Automatically changing gears between 1st
and 8th (8th gear is used only at high speed)
●Driving in the sequential mode
D/S
Drive
S Position
23 ACURA TLX-31TGV6200.book 20 ページ ２０２２年８月４日　木曜日　午後１時５９分

21
Quick Reference Guide
Sequential Mode (P389)
Paddle shifters allow you to shift gears much like a manual
transmission (1st through 10th). This is useful for engine braking.
When the transmission is in (D●The transmission will shift back to
automatic mode once the system
detects that the vehicle is cruising.
When the transmission is in (S●Holds the selected gear, and the M
(sequential mode) indicator comes
on.
●The sequential mode gear selection
is shown in the instrument panel.
Gear Position Indicator
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Selected Gear Number M
Indicator
23 ACURA TLX-31TGV6200.book 21 ページ ２０２２年８月４日　木曜日　午後１時５９分

22
Quick Reference Guide
CMBSTM On and Off
(P423)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support switch.
VSA ® On and Off (P405)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA ®
function, press and hold the (VSA ®
OFF ) button until you hear a beep.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P408, 620)
●The TPMS monitors tire pressure.●TPMS is turned on automatically every time you start the engine.●TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P515)
aUnlock the driver’s door.
(P132)
bPress on the edge of
the fuel fill door to
make it pop up
slightly.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Fuel recommendation: Unleaded premium gasoline, pump octane number 91 or
higher
Fuel tank capacity: 15.9 US gal (60 L)
Wait for five seconds
23 ACURA TLX-31TGV6200.book 22 ページ ２０２２年８月４日　木曜日　午後１時５９分

23
Quick Reference Guide
AcuraWatchTM (P415)
AcuraWatch
TM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located behind the emblem and a front
sensor camera mounted to the interior side
of the windshield, behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor
Collision Mitigation
Braking System
TM
(CMBS
TM) (P419)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle or a
pedestrian detected in front of your vehicle.
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P430)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P449)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Traffic Jam Assist (P 458)
The Traffic Jam Assist system uses a radar
sensor mounted inside the front grille and a
camera mounted to the upper portion of
the windshield to detect and monitor left
and right white (yellow) traffic lane lines as
well as any vehicle ahead. Based on inputs
from the radar sensor and camera, the
system can adjust the speed of your vehicle
to maintain a set interval between your
vehicle and the one detected ahead. It also
can apply steering torque to keep your
vehicle in the center of the detected lane
when you are driving in heavy traffic.
23 ACURA TLX-31TGV6200.book 23 ページ ２０２２年８月４日　木曜日　午後１時５９分

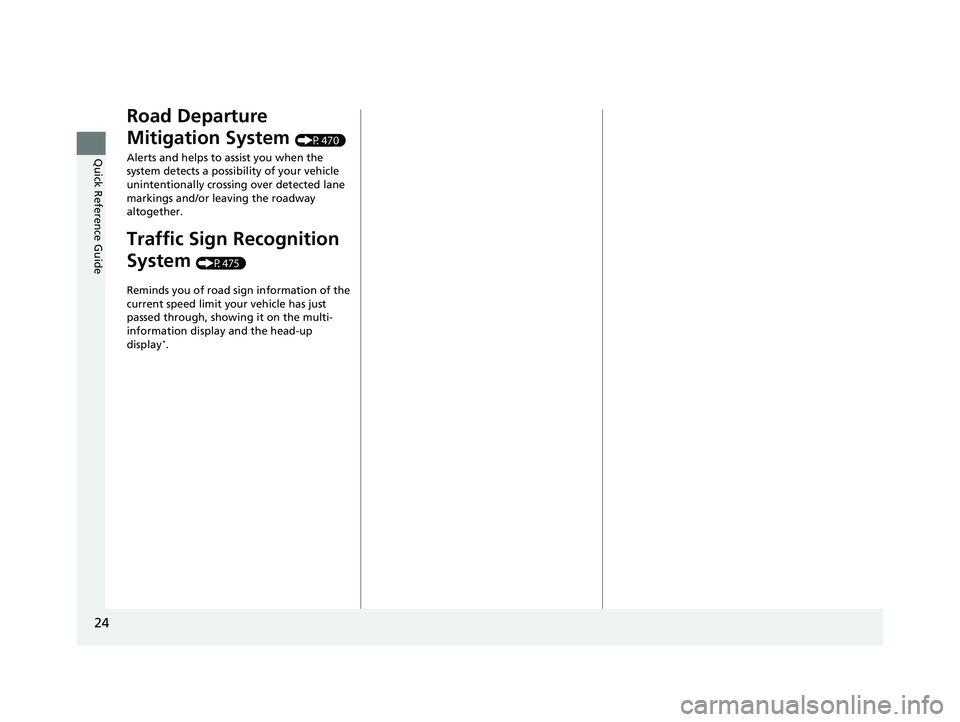

24
Quick Reference Guide
Road Departure
Mitigation System
(P470)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Traffic Sign Recognition
System
(P475)
Reminds you of road sign information of the
current speed limit your vehicle has just
passed through, showing it on the multi-
information displa y and the head-up
display
*.
23 ACURA TLX-31TGV6200.book 24 ページ ２０２２年８月４日　木曜日　午後１時５９分

25
Quick Reference Guide
Maintenance (P521)
Under the Hood (P532)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P550)
●Inspect all lights regularly.
Wiper Blades (P552)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P555)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
* Not available on all models
23 ACURA TLX-31TGV6200.book 25 ページ ２０２２年８月４日　木曜日　午後１時５９分

26
Quick Reference Guide
Handling the Unexpected (P581)
Flat Tire (P583)
●
Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P614)
●Identify the indicator and consult the
owner’s manual.
Models with tire repair kit
Models with optional spare tire
Engine Won’t Start (P605)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P622)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P611)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P629)
●Call a professional towing service if you
need to tow your vehicle.
23 ACURA TLX-31TGV6200.book 26 ページ ２０２２年８月４日　木曜日　午後１時５９分

27
Quick Reference Guide
What to Do If
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P492)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop is in operation.
23 ACURA TLX-31TGV6200.book 27 ページ ２０２２年８月４日　木曜日　午後１時５９分

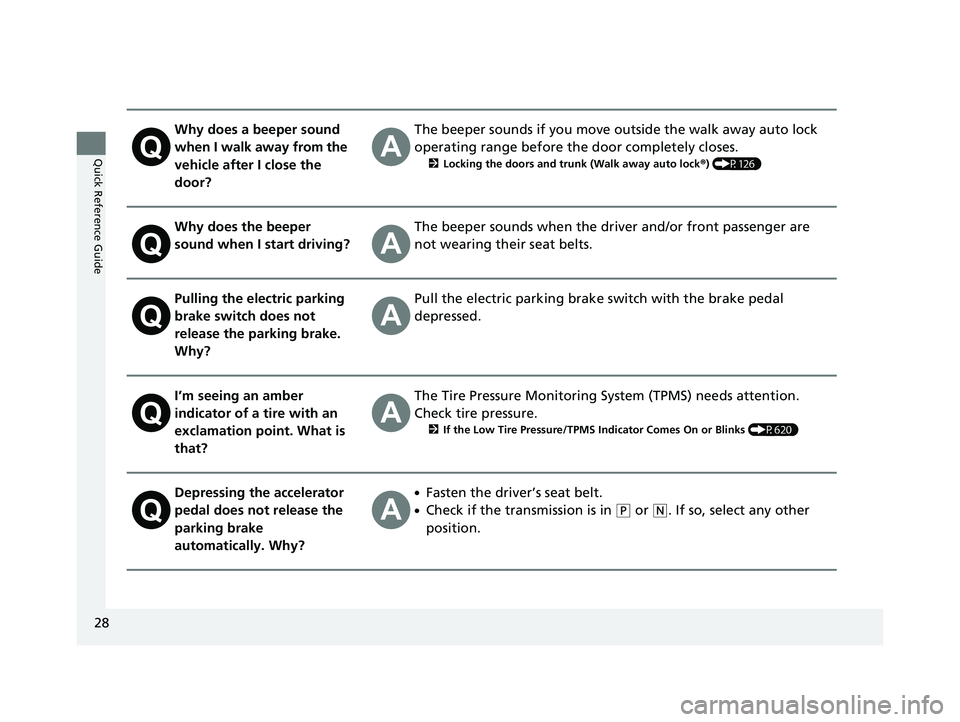

28
Quick Reference Guide
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and trunk (Walk away auto lock ®) (P126)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pulling the electric parking
brake switch does not
release the parking brake.
Why?Pull the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Sy stem (TPMS) needs attention.
Check tire pressure.
2 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks (P620)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
