The car speeds drops below
5 4:33mph(52km/h)
4 3:20mph(32km/h) The transmission will also shif t
automatically as the car comes to a
complete stop. It will downshif t to
f irst gear when the car speed is
under 6 mph (10 km/h).
If you try to manually downshif t at a
speed that would cause the engine to
exceed the redline in a lower gear,
the transmission will not downshif t.
Thegearindicatorwillflashthe
numberof thelowergearseveral
times, then return to the higher gear. If the car speed slows to below the
redline of the selected lower gear
position while the indicator is
f lashing, the transmission will
downshif t and the display will show
the selected lower gear.
The table shows the speed ranges
f or upshif ting and downshif ting.
Speed rangeover 0 mph (0 km/h)
over 6 mph (10 km/h)
over 20 mph (32 km/h)
over 33 mph (52 km/h)
The transmission may automatically
downshif t f rom the higher gear to a
lower gear under the f ollowing
conditions:
If you drive uphill between54:4533mph
(72 52 km/h)
43:3320mph
(52 32 km/h)
32:2010mph
(32 16 km/h)
If you press the brake pedal as you
drive downhill. Downshif ting gives you more power
when climbing, and provides engine
braking when going down a steep hill.
To shift from12
23
34
45
Automatic Transmission
Driving208

à
à
à
àIf you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
When you are in Sequential
Sportshif t mode, and the vehicle is
stopped, push f orward on the shif t
lever to shif t to second gear. You will
see ‘‘2’’ in the display. Starting out in
second gear will help to reduce
wheelspin in deep snow or on a
slippery surf ace.
To shift form
21
32
43
54 Speed range
under 31 mph (50 km/h)
under 69 mph (110 km/h)
under 88 mph (140 km/h)
under 131 mph (210 km/h)
Automatic Transmission
Driving
Engine Speed L imiter
Starting in Second Gear
209

Set the Parking brake.
Make sure the key is in the
ignition switch LOCK (0) position.Push down on the key while you
move the shift lever out of Park to
Neutral.Remove the key from the Shift
Lock Release slot, then install a
new cover. Depress the brake
pedal and restart the engine.
If you need to use the Shif t Lock
Release, it means your car is
developing a problem. Have the car
checked by your Acura dealer.
This allows you to move the shif t
lever out of Park if the normal
method of pushing on the brake
pedal does not work. This procedure
is also used to release the Reverse
Lockout.
[To release the Reverse Lockout,
make sure the ignition switch is in
the ACCESSORY (I) position.]
Put a cloth on the edge of the Shif t
Lock Release slot cover next to
theshiftlever.Useasmallflat-
tipped screwdriver or small metal
plate (neither are included in the
tool kit) to remove the cover by
caref ully prying on its edge. Insert the ignition key in the Shif t
Lock Release slot.
5.
1.
2.
3.
4.
6.
Shif t L ock Release
Automatic Transmission
Driving210
SHIFT LOCK RELEASE SLOT

µMake sure the parking brake is f ully
released bef ore driving away.
Driving with the parking brake
partially set can overheat or damage
the rear brakes.
Always use the parking brake when
you park your car. The indicator on
the instrument panel shows that the
parking brake is not f ully released; it
does not indicate that the parking
brakeisfirmlyset.Makesurethe
parking brake is set f irmly or your
car may roll if it is parked on an
incline.
If your car has an automatic
transmission, set the parking brake
bef ore you put the transmission in
Park.Thiskeepsthecarfrom
moving and putting pressure on the
parking mechanism in the
transmission making it easier to
move the shift lever out of Park
when you want to drive away. If the car is f acing uphill, turn the
f ront wheels away f rom the curb. If
you have a manual transmission, put
it in f irst gear.
If the car is f acing downhill, turn the
f ront wheels toward the curb. If you
have a manual transmission, put it in
reverse gear.
Make sure the moonroof and the
windows are closed.
Turn of f the lights.
Place any packages, valuables, etc.,
in the trunk or take them with you.
Lockthedoorswiththekeyorthe
remote transmitter.
Check the indicator on the
instrument panel to verif y that the
security system is set.
Never park over dry leaves, tall
grass, or other f lammable
materials. The three way catalytic
converter gets very hot, and could
cause these materials to catch on
fire.
Parking T ips
Parking
Driving211

Put your f oot on the brake pedal only
when you intend to brake. Resting
your f oot on the pedal keeps the
brakes applied lightly, causing them
to build up heat. Heat build-up can
reduce how well your brakes work. It
also keeps your brake lights on all
the time, conf using drivers behind
you.Constant application of the brakes
when going down a long hill builds
up heat and reduces their ef f ective-
ness. Use the engine to assist the
brakes by downshif ting to a lower
gear and taking your f oot of f the
accelerator pedal.
Check your brakes af ter driving
through deep water. Apply the
brakes moderately to see if they f eel
normal. If not, apply them gently and
f requently until they do. Since a
longer distance is needed to stop
with wet brakes, be extra cautious
and alert in your driving.
Your Acura is equipped with disc
brakes at all f our wheels. A power
assist helps reduce the ef f ort needed
on the brake pedal. The ABS helps
you retain steering control when
braking very hard.
All f our brakes have audible brake
wear indicators.
When the brake pads need replacing,
you will hear a distinctive metallic
‘‘screeching’’ sound when you apply
the brakes. If you do not have the
brake pads replaced, they will begin
screeching all the time.
Your brakes may sometimes squeal
or squeak when you apply them
lightly. Do not conf use this with the
brakewearindicators.Theymakea
very audible ‘‘screeching.’’ Brake Wear Indicators
The Braking System
Driver and Passenger Saf ety212

this defeats the
purpose of the ABS. Let the ABS
work f or you by always keeping f irm,
steady pressure on the brake pedal
as you steer away from the hazard.
This is sometimes ref erred to as
You will f eel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal; it is the ABS rapidly
pumping the brakes.
Activation varies with the amount of
traction your tires have. On dry
pavement, you will need to press on
thebrakepedalveryhardbeforeyou
activate the ABS. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the car (the lef t-f ront brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
Your car has an Anti-lock Brake
System (ABS) as standard
equipment. ABS helps to prevent the
wheels f rom locking up and skidding
during hard braking, allowing you to
retain steering control.
When the f ront tires skid, you lose
steering control; the car continues
straightaheadeventhoughyouturn
the steering wheel. The ABS helps to
prevent lock-up and helps you retain
steering control by pumping the
brakes rapidly; much f aster than a
person can do it.
The ABS also balances the f ront-to
rear braking distribution according
to car loading.
‘‘stomp and steer.’’
CONT INUED
A nti-lock Brakes
You should never pump the
brake pedal;
Brake System Design
The Braking System
Driving213
Front

such as trying to take a
corner too f ast or making a sudden
lane change. Always drive at a safe,
prudent speed f or the road and
weather conditions.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your car to veer into
oncoming traffic or off the road. it
only helps with steering control
during braking. You should always
maintain a saf e f ollowing distance
f rom other vehicles. on loose or
uneven surf aces, such as gravel or
snow, than a car without anti-lock.
Slow down and allow a greater
distance between cars under those
conditions.
The ABS is self -checking. If anything
goes wrong, the ABS indicator on
the instrument panel comes on (see
page ). This means the anti-lock
f unction of the braking system has
shut down. The brakes still work like
a conventional system without anti-
lock, providing normal stopping
ability. You should have the dealer
inspect your car as soon as possible.61
Import ant Saf et y Reminders
A BS Indicat or
A BS will not prevent a skid that
results f rom changing direction
abruptly,
A BS cannot prevent a loss of
stability. A BS does not reduce the time or
distance it takes to stop the car;A car with ABS may require a
longer distance to stop
The Braking System
Driving214

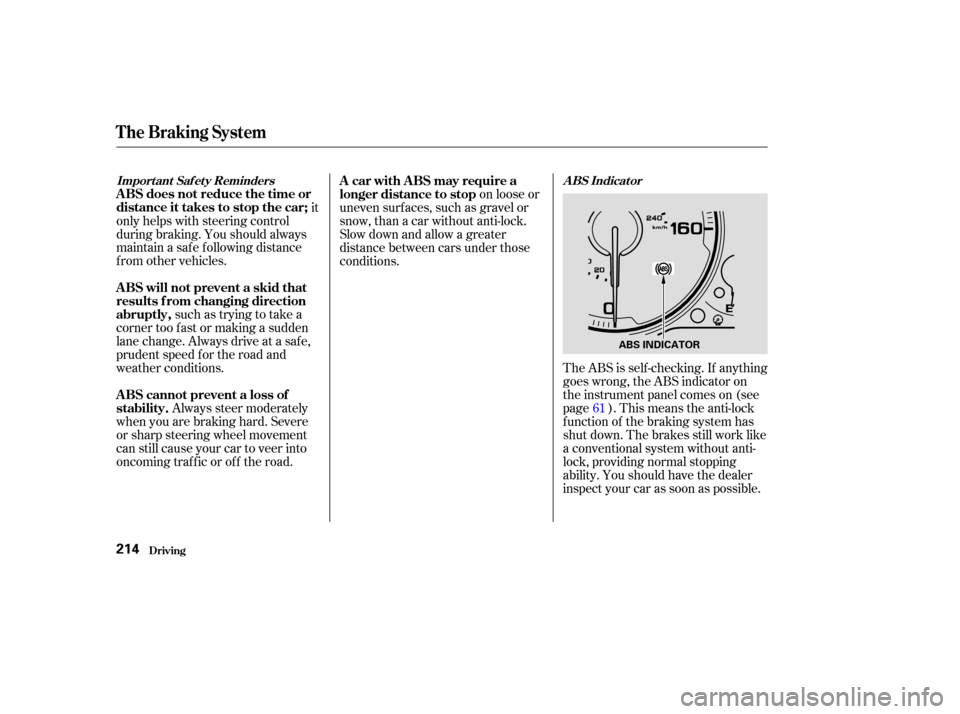

ABS INDICATOR

If the ABS indicator and the brake
system indicator come on together,
and the parking brake is f ully
released, the front-to-rear braking
distribution system may also shut
down.
Test your brakes as instructed on
page . If the brakes f eel normal,
drive slowly and have your car
repaired by your dealer as soon as
possible. Avoid sudden hard braking
which could cause the rear wheels to
lock up and possibly lead to a loss of
control.321
The Braking System
Driving215

The Vehicle Stability Assist system
helps to stabilize the car during
cornering if the car turns more or
less than desired. It also assists you
in maintaining traction while
accelerating on loose or slippery
road surf aces. It does this by
regulating the engine’s output, and
by selectively applying braking.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times. You will also see
the VSA Activation Indicator blink.The VSA system cannot enhance the
car’s driving stability in all situations
and does not control your car’s entire
braking system. It is still your
responsibility to drive and corner at
reasonable speeds and to leave a
suf f icient margin of saf ety.
Vehicle Stability Assist (VSA) System
Driving
VSA A ct ivat ion Indicat or
216
VSA ACTIVATION INDICATOR

The VSA system indicator (see page) comes on and stays on when
there is a problem with the VSA
system. The VSA Activation
indicator will also come on.
The VSA system indicator may come
on along with the ABS indicator if
there is a problem with the anti-lock
brake system. If the VSA indicator comes on while
driving, pull to the side of the road
when it is saf e and turn of f the
engine. Reset the system by
restarting the engine, and watch the
VSA system indicator. If the
indicator remains on, or comes back
on while driving, have the VSA
system inspected by your Acura
dealer.
If the indicator does not come on
when the ignition switch is turned
ON(II),theremaybeaproblem
with the VSA system. Have your
dealer inspect your car as soon as
possible.
When VSA is off, the VSA Activation
Indicator light comes on as a
reminder. Pressing the switch again
turns the system back on. This switch is under the lef t vent.
Press it to turn the Vehicle Stability
Assist system on and of f .
Without VSA, your car will have
normal braking and cornering ability,
but it will not have VSA traction and
stability enhancement.
61
CONT INUED
VSA Syst em Indicat or
Vehicle Stability Assist (VSA) System
Driving
VSA Of f Switch
217
VSA SYSTEM INDICATOR
VSA OFF SWITCH
