buttons Acura TSX 2008 User Guide

µ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, the
preset buttons or icons, and AUTO
SELECT.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the FM/AM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
XM satellite radio inf ormation is
available on page .
The audio system f or your vehicle
can also be operated using the voice
control system. See the Navi section
in your Quick Start Guide f or an
overview of this system, and the
Navigation System manual f or
complete details.
Use the TUNE/SOUND
knob to tune the radio to a desired
f requency. Turn the knob right to
tune to a higher f requency, and turn
theknoblefttotunetoalower
f requency.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushingtheVOL/PWRknoborthe
AM/FM button. Adjust the volume
by turning the same knob.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK/SKIP bar, then release it.
Pushing the AUDIO button will also
turn on the system.
179
On vehicles with navigation system On vehicles with navigation system
On U.S. models
Playing the AM/FM Radio
To Select a Station
To Play the AM/FM Radio
Voice Control System
TUNE
SEEK
172
——
y


y
(y
y
2008 TSX

µ
µ If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons or icons. Use the TUNE,
SEEK, or SCAN f unction to f ind
stations, then store them in the
preset buttons or icons as described
previously.
Press the A. SEL button or touch the
A. SEL icon. A. SEL will appear in
the display, and the system will go
into scan mode f or several seconds.
It stores the f requencies of six AM,
and twelve FM stations in the preset
buttons (1 6) or icons. You will
see a ‘‘0’’ displayed af ter pressing a
preset button or icon if Auto Select
cannot f ind a strong station f or every
preset button or icon. press the
A.SEL button or touch the A.SEL
icon. This restores the presets you
originally set.
To turn of f Auto Select,
AUTO SELECT
Playing the AM/FM Radio
174
\f—\f—
y

\fy
(\fy\f
y
2008 TSX

Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
XM
is a registered trade mark of
XM Satellite Radio, Inc.
XM Satellite Radio receives signals
f rom two satellites to produce clear,
high-quality digital reception. It
of f ers many channels in several
categories. Along with a large
selection of dif f erent types of music,
XM Satellite Radio also allows you to
view channel and category selections
in the audio display.
U.S. Models only
Satellite Digital Radio
Playing the XMSatellite Radio (U.S. Models)
Features
179
SCAN
BUTTON
TUNE/
SOUND
KNOB
SCAN BUTTON
MODE
ICONUPPER DISPLAY
without navigation system with navigation system
SEEK/SKIP
CATEGORY BAR
DISP/MODE BUTTON
PRESET ICONS
SEEK/SKIP
CATEGORY BAR AUDIO BUTTONSCAN
ICON
SOUND
ICON
TUNE/
SOUND
KNOB
VOL/PWR KNOB PRESET
BUTTONS
XM BUTTON
CATEGORY/CHANNEL MODE
INDICATOR
XM BUTTON
VOL/PWR KNOB
\f—\f—
y

y
(\fy\f
y
2008 TSX

µ
µ µ
To switch between the
category mode and channel mode,
press and hold the DISP/MODE
button until the mode changes. On
models with navigation system,
touch the MODE icon on the display.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
Each time you press and
release the DISP/MODE button, the
display changes in the f ollowing
sequence: Channel name, category,
artist name, and music title.
To operate the XM Radio, Press the
AUDIO button to view the XM Radio
control display.
To listen to the XM satellite Radio,
turn the ignition switch to the
ACCESSORY (I) or ON (II) position.
Push the VOL/PWR knob to turn on
the audio system, and press the XM
button. Adjust the volume turning
the VOL/PWR knob. The last
channel you listened to will show in
the display.
Turn the TUNE knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
When in the satellite radio mode,
you can use any of f our methods to
f ind channels: TUNE, SEEK/SKIP
(CATEGORY), SCAN, and the
preset buttons.
On vehicles without navigation system
On vehicles with navigation system
Playing the XMSatellite Radio (U.S. Models)
Operating the XM Radio
MODE
DISP T o Select a Channel
TUNE
180
\f—\f—
y

y
(\fy\f
y
2008 TSX

Playing Discs
Features
185
CD LOAD INDICATORLOAD BUTTONCD SLOTEJECT BUTTON RANDOM BUTTON
REPEAT BUTTON
DISC NUMBER
Without navigation system
AM/FM BUTTON
CD BUTTON TRACK NUMBER
SEEK/SKIP BAR
U.S. model is shown. PRESET BUTTONS
\f—\f—
y

y
(\fy\f
\fy
2008 TSX

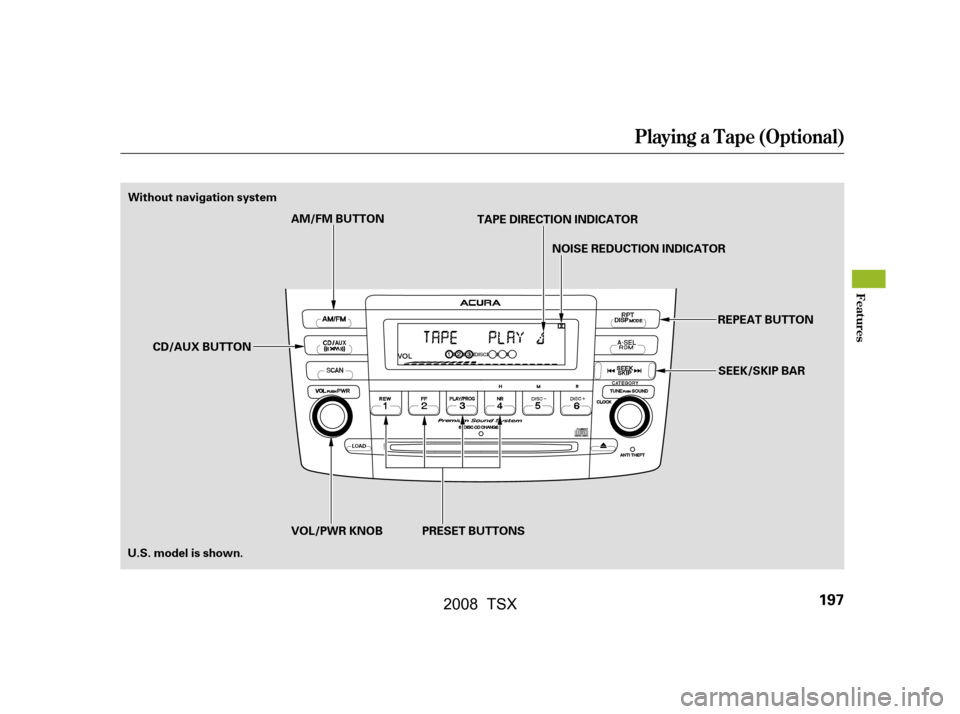

Playing a T ape (Optional)
Features
197
AM/FM BUTTON
CD/AUX BUTTON TAPE DIRECTION INDICATOR
NOISE REDUCTION INDICATOR
REPEAT BUTTONSEEK/SKIP BAR
Without navigation system
PRESET BUTTONS
VOL/PWR KNOB
U.S. model is shown.
\f—\f—
y

y
(\fy\f\fy
2008 TSX

µ
Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic digit code using the
preset buttons (icon on vehicle’s with
navigation system). Because there
are hundreds of number
combinations possible f rom specif ic
digits, making the system work
without knowing the exact code is
nearly impossible. If your vehicle’s battery is discon-
nected or goes dead, the audio
system will disable itself . If this
happens, you will see ‘‘CODE’’ on the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons (icons on vehicles with
navigation system) to enter the f ive-
digit code. The code is on the radio
code card included in your owner’s
manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have 10 tries to
enter the correct code. If you are
unsuccessf ul in 10 attempts, you
must then leave the system on for 1
hour bef ore trying again.If the code card is lost, a dealer can
access your code with your radio’s
serial number. To access the serial
number, turn the radio on. It must
display ‘‘CODE’’, then turn the radio
of f . Push the preset 1, preset 6, and
power buttons at the same time, then
quickly release.
You will have to store your favorite
stations on each side of the preset
buttons (1 6) after the system
begins working. Your original
settings were lost when power was
disconnected.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
Radio T hef t Protection
Features
203
\f—\f—
y

\fy
(\fy\f\fy
2008 TSX

µ
·
CONT INUED
Todothis,pressandholdthetwo
outside buttons on the HomeLink
transceiver for about 20 seconds,
until the red indicator f lashes.
Release the buttons, then proceed to
step 1. If you just
received your vehicle and have not
trained any of the buttons in
HomeLink bef ore, you should erase
any previously learned codes bef ore
training the f irst button.
The HomeLink
Universal
Transceiver built into your vehicle
canbeprogrammedtooperateupto
three remote controlled devices
around your home, such as garage
doors, lighting, or home security
systems.
Bef ore programming your
HomeLink to operate a garage door
opener, conf irm that the opener has
an external entrapment protection
system, such as an ‘‘electronic eye,’’
or other saf ety and reverse stop
f eatures.
If your garage door was
manuf actured bef ore April 1, 1982,
you may not be able to program
HomeLink to operate it. These units
do not have safety features that
cause the motor to stop and reverse
it if an obstacle is detected during
closing, increasing the risk of injury.
Do not use HomeLink with any garage door opener that lacks saf ety
stop and reverse f eatures.
Units manuf actured between April 1,
1982 and January 1, 1993 may be
equipped with saf ety stop and
reverse f eatures. If your unit does
not have an external entrapment
protection system, an easy test to
conf irm the f unction and
perf ormance of the saf ety stop and
reverse f eature is to lay a 2 4
under the closing door. The door
should stop and reverse upon
contacting the piece of wood.
As an additional safety feature,
garage door openers manuf actured
af ter January 1, 1993 are required to
have external entrapment protection
systems, such as an electronic eye,
which detect an object obstructing
the door.
Refer to the safety information that
came with your garage door openerto test that the safety features are
f unctioning properly. If you do not
have this information, contact the
manuf acturer of the equipment.
Bef ore programming HomeLink to a
garage door or gate opener, make
sure that people and objects are out
of the way of the device to prevent
potential injury or damage.
When programming a garage door
opener, park just outside the garage.
HomeL inkUniversal Transceiver
Bef ore you begin
T raining HomeL ink
General Saf ety Inf ormation
Important Saf ety Precautions
Features
209
\f—\f—
y

y
(\fy\f
y
2008 TSX

If the red indicator in HomeLink
begins to f lash slowly at f irst,
then rapidly, release both
buttons, and go to step 4.
Press and hold the remote
transmitter button and one of the
HomeLink buttons at the same
time. While continuing to hold the
HomeLink button, press and
release the remote transmitter
button every 2 seconds. If the red indicator in HomeLink
continues to f lash slowly (does
not f lash rapidly), your remote
transmitter may stop
transmitting after a short time.
Go to step 3.
If the red indicator in HomeLink
begins to f lash slowly at f irst,
then rapidly, release both
buttons, and go to step 4.
If you are training the second or
third buttons, go directly to step 1.
Press and hold the remote
transmitter button and one of the
HomeLink buttons at the same
time. If the red indicator in HomeLink
continues to f lash slowly (does
not begin to f lash rapidly),
repeat steps 1 thru 3.Test the HomeLink button by
pushing it f or about 1 second.
If the button works,
programming is complete.
If the button does not work go
to step 5.
PushandholdtheHomeLink
button and watch the red indicator
on HomeLink. If the indicator stays on, press
the HomeLink button again; the
remotely controlled device
should operate.
If the indicator flashes rapidly
f or 2 seconds then stays on, you
have a rolling code transmitter:
go to ‘‘Training with a Rolling
Code System’’ (see page ).
Holdtheendof thegaragedoor
opener remote transmitter 1 to 3
inches f rom HomeLink. Make
sure you are not blocking your
view of the red indicator in
HomeLink.
2. 3.4.
5.
1.
211
HomeL inkUniversal Transceiver
210
\f—\f—
y

\fy
(\fy\f
y
2008 TSX

Find the ‘‘learn’’ button on your
garage door opener unit. The
location will vary, depending on
the manufacturer.
Pressthelearnbuttononthe
garage door opener unit until the
indicator next to the button comes
on. The indicator may blink, or
comeonandstayon.Youthenhave approximately 30 seconds to
complete the following steps.
Press the HomeLink button again
f or about 1 second. It should
operate the garage door.
Press and hold the button on
HomeLink f or 3 to 4 seconds.
Make sure you have properly
completed the ‘‘Training
HomeLink’’ procedure.
Repeat these steps to train the
other two HomeLink buttons to
operate any other compatible
remotely controlled devices
around your home (lighting,
automatic gate, security system,
etc.).
For security purposes, newer garage
door opening systems use a ‘‘rolling’’
or variable code. Information from
the remote control and the garage
door opener is needed bef ore
HomeLink can operate the garage
door opener.
The ‘‘Training HomeLink’’
procedure trains HomeLink to the
proper garage door opener code.
The f ollowing procedure
synchronizes HomeLink to the
garage door opener so it sends and
receives the correct codes. 2.
4.
5.
1.
3.
6.
HomeL inkUniversal Transceiver
T raining With a Rolling Code
System
Features
211
LEARN BUTTON
\f—\f—
y


y
(\fy\f
y
2008 TSX
