This shows how much f uel you
have. It may show slightly more
or less than the actual amount.
The needle returns to the
bottom after you turn off the
ignition.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, such as
very hot weather or a long period of
uphill driving, the pointer may rise to
the upper zone. If it reaches the red (Hot) mark, pull saf ely to the side of
the road. See page f or
instructions and precautions on
checking the engine’s cooling
system.
333
Gauges
Temperature Gauge Fuel Gauge
68
TACHOMETER
SPEEDOMETER
TEMPERATURE
GAUGE
INFO KNOB SELECT/RESET KNOBFUEL GAUGE
U.S. model is shown.
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—
y

y
(\fy\f\fy
2008 TSX

The multi-inf ormation display
consists of two segments; an upper
segment and a lower segment.
In normal display mode, the upper
segment displays trip computer. The
lower segment displays the
odometer, Trip A/B, outside
temperature, and engine oil lif e and
maintenance message.
Multi-Inf ormation Display
70
SECONDARY DISPLAYLOWER SEGMENT
PRIMARY DISPLAY
UPPER SEGMENT
: Press SEL/RESET Button.
: Press INFO Button.
U.S. model is shown
\f—\f—
y
\fy
(\fy\f\fy
2008 TSX

RANGE: The estimated distance
you can travel on the fuel
remaining in the tank. This
distance is estimated from the fuel
economy you received over the
last several miles, so it will vary
with changes in speed, traf f ic, etc.
ELAPSED TIME: The time
traveled since you last reset the
trip computer.
AVG. SPEED: The average speed
you are traveling.
TIRE PRESSURE MONITOR:
You can see the pressure of each
tire in this monitor. If the tire
pressure is low on one or more
tires, inf late them to the correct
pressure. For more inf ormation,
see page .
The primary display always shows its
def ault setting, ‘‘INST. MPG’’ (U.S.
models) or ‘‘INST. L/100 km’’
(Canadian models) even if you press
the INFO button. It only changes the
secondary display. You can
customize this setting to your liking
(see page ).
The upper segment is divided into
two displays; primary and secondary.
After you turn the ignition switch to
the ON (II) position, press the INFO
button on the steering wheel or the
INFO knob in the instrument panel.
What you last selected appears on
the secondary display of the trip
computer. Pressing the INFO
button/knob repeatedly changes the
display as shown in the example on
the previous page. Messages in the trip computer
include:
When you turn the ignition switch
to the ON (II) position, ELAPSED
TIME is reset.
INST.MPG(U.S.models)/
INST.L/100 km (Canadian
models): Your vehicle’s current
f uel mileage.
AVG. FUEL A/AVG. FUEL B:
Your vehicle’s average fuel
economy since you last reset the
Trip A or Trip B. When you select
Trip B in the lower segment by
pressing the SEL/RESET button
on the steering wheel or select/
reset knob in the instrument panel,
the AVG. FUEL B appears in the
secondary display. 102
264
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
71
INFO KNOBINFO BUTTON
——
y
y
(yy
2008 TSX

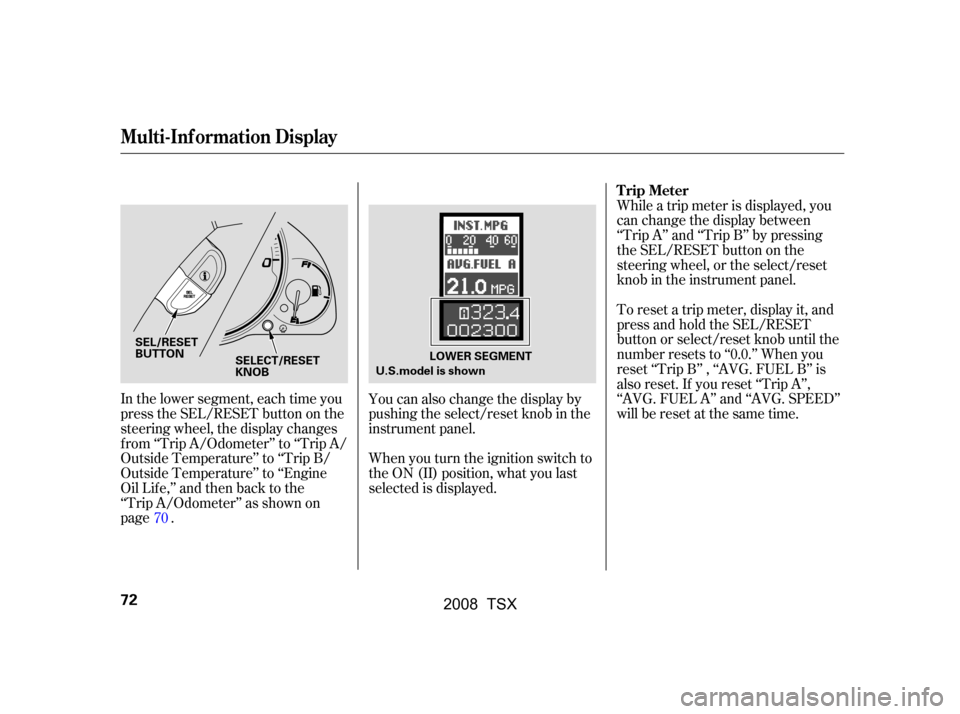

While a trip meter is displayed, you
can change the display between
‘‘Trip A’’ and ‘‘Trip B’’ by pressing
the SEL/RESET button on the
steering wheel, or the select/reset
knob in the instrument panel.
To reset a trip meter, display it, and
press and hold the SEL/RESET
button or select/reset knob until the
number resets to ‘‘0.0.’’ When you
reset ‘‘Trip B’’ , ‘‘AVG. FUEL B’’ is
also reset. If you reset ‘‘Trip A’’,
‘‘AVG. FUEL A’’ and ‘‘AVG. SPEED’’
willberesetatthesametime.
In the lower segment, each time you
press the SEL/RESET button on the
steering wheel, the display changes
f rom ‘‘Trip A/Odometer’’ to ‘‘Trip A/
Outside Temperature’’ to ‘‘Trip B/
Outside Temperature’’ to ‘‘Engine
OilLife,’’andthenbacktothe
‘‘Trip A/Odometer’’ as shown on
page . When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed. You can also change the display by
pushing the select/reset knob in the
instrument panel.
70
Multi-Inf ormation Display
Trip Meter
72
SELECT/RESET
KNOB
SEL/RESET
BUTTON
LOWER SEGMENT
U.S.model is shown
——
y

y
(yy
2008 TSX

This shows the outside Fahrenheit
temperature in U.S. models, and
Centigrade temperature in Canadian
models.The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
You can adjust the outside
temperature display (see page ).
This shows the remaining lif e of the
engine oil. It shows 100% af ter the
engine oil is replaced and the display
is reset. The engine oil lif e is
calculated based on engine operating
conditions and accumulated engine
revolutions. For more inf ormation,
see page .
96
280
Multi-Inf ormation Display
Outside Temperature Engine Oil Lif e
Inst rument s and Cont rols
73
OUTSIDE TEMPERATURE
U.S.model is shown U.S.model is shownENGINE OIL LIFE
\f—\f—
y
y
(\fy\f\fy
2008 TSX

When the engine oil lif e reaches 15 %,
the display shows ‘‘SERVICE DUE
SOON’’ and the code f or the
maintenance items to be perf ormed.
When the engine oil lif e reaches 5 %,
the display shows ‘‘SERVICE DUE
NOW’’ along with the same
maintenance items.Have your dealer do the indicated
maintenance as soon as you see this
message, and have them reset the
display af ter completing the service.
If you do not perf orm the indicated
maintenance or do not reset the
display, the message changes to
‘‘SERVICE PAST DUE’’ when the
engine oil lif e becomes 0 %.These messages appear on the multi-
inf ormation display each time you
turn the ignition switch to the ON
(II) position.
For more inf ormation about
Maintenance Messages, see
‘‘
’’ on page
.
Also ref er to page f or important
maintenance saf ety precautions. 280
278
Multi-Inf ormation Display
Maintenance Messages
Maintenance Minder
74
U.S.model is shown
\f—\f—
y
y
(\fy\f\fy
2008 TSX

To change the settings, stop the
vehicle, and make sure to set the
parking brake and put the
transmission in Park (A/T) or
neutral (M/T). If you try to enter the
customizing mode while the vehicle
is moving, the above message
appears and you cannot change the
settings.The f irst customizing menu is:
DEFAULT ALL
CHANGE SETTING
EverytimeyoupresstheINFO
button, the display cycles from
‘‘CHANGE SETTING,’’ ‘‘DEFAULT
ALL,’’ ‘‘EXIT’’ and then back to
‘‘CHANGE SETTING.’’ Press the
SEL/RESET button to enter your
selection.
If you want the settings as they were
when the vehicle lef t the f actory,
select ‘‘DEFAULT ALL,’’ as
described on page . If you want to change any vehicle
control settings, select ‘‘CHANGE
SETTING,’’ and f ollow the
instructions on page .
You can also use the select/reset
knob in the instrument panel. Turn
the knob to select a setting and press
it to enter your selection.
If you do not make any changes,
select ‘‘EXIT,’’ the display returns to
normal display.
90 92
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
87
AT model MT model
\f—\f—
y
\f
y
(\fy\f\fy
2008 TSX

ÎÎÎ
Î Î
Î
Î
µ™¶ ™´
µ™¶ ™´
Î Page
94
96
98
100
102
104
LANGUAGE
SELECTION
ADJUST OUTSIDE
TEMP. DISPLAY
TRIP A & AVG. FUEL
RESET with REFUEL
ELAP. TIME RESET
CONDITION
PRIMARY DISP
SELECTION
MEMORY POSIT ION
LINK Customize Menu
Description
Changes the language used in the
display.
Changes the outside temperature
reading above or below its current
reading.
Causes trip meter A and the average
fuel economy to reset when you
refuel.
Resets the elapsed time of your
current trip.
Changes the trip computer’s main
display from its default setting.
Causes the driver’s seat position to be
stored in memory.
Customize Group
MET ER SET UP
(P.93)
POSITION SETUP
(P.104) Customize Setup
ENGLISH
FRENCH
SPANISH 5°F 0°F 5°F
3°C 0°C 3°C
ON
OFF
IGN RESET
TRIP A RESET
TRIP B RESET
INST. FUEL
AVG. FUEL
RANGE
ELAPSED TIME
AVG. SPEED
ON
OFF
Customize Entry
CHG SETTING
(P.92)
: Default setting
Multi-Inf ormation Display
88
——
y
y
(yy
2008 TSX

If you want to set the customizable
vehicle control settings to the default
setting, press the INFO button on
the steering wheel until ‘‘DEFAULT
ALL’’ is displayed.
Press the SEL/RESET button to
enter ‘‘DEFAULT ALL.’’ You can
change the display between
‘‘CANCEL,’’ ‘‘OK’’ and ‘‘EXIT’’ each
time you press the INFO button.If you want to cancel ‘‘DEFAULT
ALL,’’ press the SEL/RESET button
while ‘‘CANCEL’’ is shown. The
display goes back to ‘‘CUSTOMIZE
ENTRY.’’
To set the def ault settings, press the
INFO button until the display
changesasshownabove.Pressthe
SEL/RESET button to select
‘‘DEFAULT ALL.’’
DEFAUL T AL L
Multi-Inf ormation Display
90
\f—\f—
y
y
(\fy\f\fy
2008 TSX

To exit ‘‘DEFAULT ALL,’’ press the
INFO button until you see ‘‘EXIT,’’
then press the SEL/RESET button.
When ‘‘DEFAULT ALL’’ is
completed successf ully, you will see
the above display f or several seconds,
and the display will return to
‘‘CUSTOMIZE ENTRY.’’ If ‘‘DEFAULT ALL’’ is not completed
successf ully, you will see the above
display f or several seconds, then the
display goes back to ‘‘CUSTOMIZE
ENTRY.’’ Repeat the procedure to
select ‘‘DEFAULT ALL.’’
