When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle and remove any slack f rom
the lap portion of the belt.
1.
2.
3.
Installing a Child Seat with a L ap/
Shoulder Belt
Installing a Child Seat
48
2010 TSX

Af ter conf irming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract f ully, then repeat these
steps.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt. To deactivate the lockable retractor
andremoveachildseat,unlatchthe
buckle, unroute the seat belt, and let
the belt fully retract.
4. 5.
Installing a Child Seat
Driver and Passenger Saf ety
49
2010 TSX

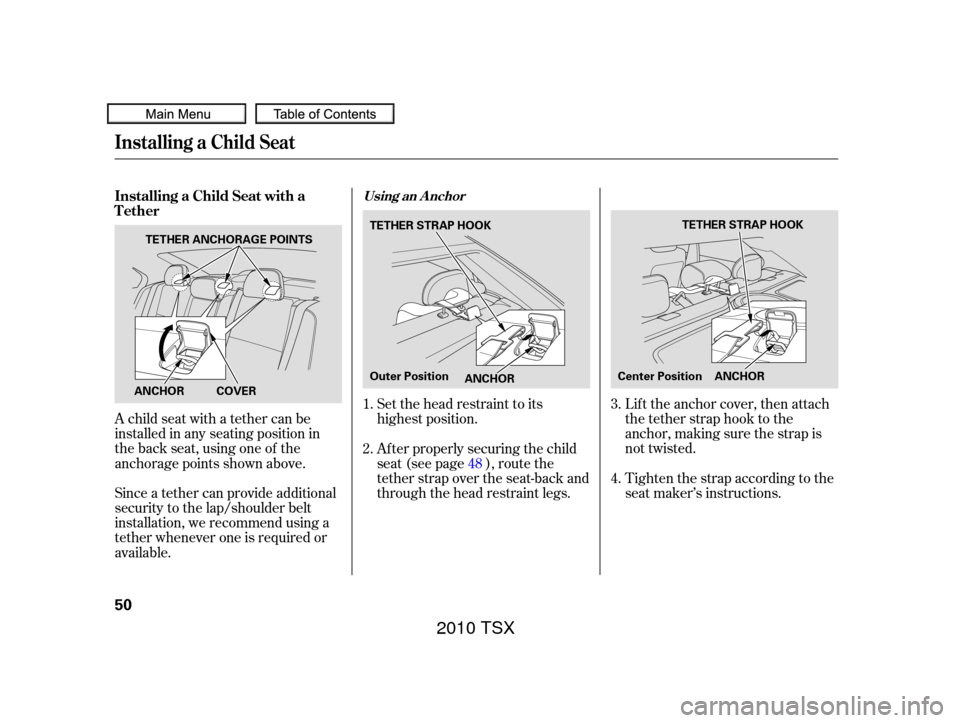

Lift the anchor cover, then attach
the tether strap hook to the
anchor, making sure the strap is
not twisted.
Tighten the strap according to the
seat maker’s instructions.
A child seat with a tether can be
installed in any seating position in
the back seat, using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available. Af ter properly securing the child
seat (see page ), route the
tether strap over the seat-back and
through the head restraint legs. Set the head restraint to its
highest position.
1.
2. 3.
4.
48
Installing a Child Seat
Installing a Child Seat with a
TetherUsing an A nchor
50
TETHER STRAP HOOK
ANCHOR
ANCHOR
ANCHOR COVER
TETHER ANCHORAGE POINTS
Center Position
Outer Position TETHER STRAP HOOK
2010 TSX

Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could result
in serious neck injuries during a
crash.
If they do, they
could be very seriously injured in a
crash.
If you decide that a child can saf ely
ride up f ront, be sure to:
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly positioned and secured.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
Do not put any accessories on a
seat belt.
Do not let a child wear a seat belt
across t he neck.
T wo children should never use thesame seat belt .
Do not let a child put the shoulder
part of a seat belt behind t he backor under t he arm.Additional Saf ety Precautions
Protecting L arger Children
54
2010 TSX

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
59
FOG LIGHT INDICATOR
SECURITY SYSTEM
INDICATOR VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
CHARGING SYSTEM
INDICATOR
ELECTRIC POWER
STEERING (EPS)
INDICATOR LIGHTS ON INDICATOR
MALFUNCTION INDICATOR
LAMP
LOW OIL PRESSURE
INDICATOR SEAT BELT REMINDER
INDICATOR
VEHICLE STABILITY ASSIST (VSA)
ACTIVATION INDICATOR
LOW FUEL INDICATORIMMOBILIZER SYSTEM
INDICATOR
SIDE AIRBAG OFF
INDICATOR
SYSTEM MESSAGE INDICATOR
HIGH BEAM INDICATOR
CRUISE CONTROL INDICATOR
DOOR/TRUNK OPEN
INDICATOR LOW TIRE PRESSURE/TPMS
INDICATOR
(P.63)
(P.66)
(P.62) (P.66)
(P.65) (P.67) (P.63)
(P.19,60) (P.65)
(P.67) (P.
61)(P.
62)
(P.62) SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
(P.
67)
(P.66)
CRUISE MAIN INDICATOR (P.66)
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR (P.66)
(P.60, 472)
(P .61, 471)
(P.60, 471)
(P.61,473) (P.64,
386)
2010 TSX

This indicator is in the f uel gauge. It
comesonasareminderthatyou
must ref uel soon. You will also see a
‘‘FUEL LOW’’ message on the multi-
inf ormation display.
When the needle reaches E, there is
a very small amount of f uel in the
tank.This indicator comes on when there
is a system message on the multi-
inf ormation display. Press the INFO
button on the steering wheel (see
page ) to see the message (see
page ).
Most of the time, this indicator
comes on along with other indicators
in the instrument panel such as the
seat belt reminder indicator, SRS
indicator, VSA system indicator, etc.
This indicator comes on when the
security system is set. For more
inf ormation, see page .
When the indicator comes on, there
are about 2.8 U.S. gal (10.5
)of fuel
remaining in the tank. 71
79
292
L ow Fuel Indicator
System Message
Indicator Security System Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
67
LOW FUEL INDICATOR
SECURITY SYSTEM INDICATOR
2010 TSX

ÎÎ
Î
Î
Î
ÎÎ
Î
Î
Î
Description
Menu Item Page
Group Setup Setting Option
Changes when the doors automatically lock.
Changes which doors unlock with the remote
transmitter in a first push.
The exterior lights flash each time you press the
LOCK or UNLOCK button. A beeper will also
sound when you press the LOCK button twice.
Changes how long it takes (in seconds) for the
doors to relock and the security system to set after
you unlock but do not open the door.
Changes when the doors automatically unlock.
Set/Cancel all the customized settings as default.
AUTO DOOR LOCK
DOOR LOCK MODE
KEYLESS LOCK
ACKNOWLEDGMENT
SECURITY RELOCK
TIMER
AUTO DOOR UNLOCK
100
101
103
104
106
108
DOOR SETUP
(P.99)
DEFAULT ALL
(P.108)
With IGN OFF
SHIFT FROM P (A/T only)
WITH VEH SPD
OFF
DRIVER DOOR
ALL DOORS
ON
OFF
90 sec
60 sec
30 sec
OFF
SET
CANCEL
1:
2:
3: Default setting
Default setting for automatic transmission
Default setting for manual transmission
With SHIFT to P2
3
1
1
1
1DRIVER DOOR /
AL L DOORS1
Multi-Inf ormation Display
Inst rument s and Cont rols
83
2010 TSX

Û
Ý
ÛÝ
ÛÝ
CONT INUED
AUTO DOOR LOCK
Here are the five custom settings for
the door setup:
DOOR LOCK MODE
KEYLESS LOCK
ACKNOWLEDGMENT
SECURITY RELOCK TIMER
AUTO DOOR UNLOCK
While ‘‘DOOR SETUP’’ is shown,
press the SEL/RESET button to
enter the customize mode.
Each time you press the INFO ( / ) button, the screen changes as
shown in the illustration. Press the
INFO ( / ) button until you see
the setting you want to customize,
then press the SEL/RESET button
to enter your selection.
Multi-Inf ormation Display
Door Setup
Inst rument s and Cont rols
99
: Press the INFO button ( / ).
: Press the SEL/
RESET button.
2010 TSX

ÛÝ
ÛÝ
Keyless Lock Acknowledgment
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
When you push the LOCK button on
the remote transmitter, some
exterior lights f lash, and a beeper
sounds when you push the LOCK
button again within 5 seconds to
verify that the doors and the trunk
arelockedandthesecuritysystem
has set (see page ). You can
customize the exterior lights not to
f lash and the beeper not to sound.
You can choose this item to
customize f rom ‘‘DOOR SETUP’’ by
pressing the INFO ( / ) button
repeatedly.Press the SEL/RESET button to
enter the selecting mode.
To turn this feature on or off, follow
these instructions. 292
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
103
2010 TSX

ÛÝ
Security Relock Timer
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘KEYLESS LOCK
ACKNOWLEDGMENT’’ and repeat
the procedure again.You can choose this item to
customize f rom ‘‘DOOR SETUP’’ by
pressing the INFO ( / ) button
repeatedly.
If you unlock the doors with the
remote transmitter, but do not open
any of the doors within 30 seconds,
the doors and the f uel f ill door,
automatically relock, and the
security system sets.
You can change this relock time
f rom 30 seconds to 60 or 90 seconds.
Multi-Inf ormation Display
104
2010 TSX
