Fuses
Inspecting and Changing Fuses
297
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK 0
. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
Blown Fuse
Fuse
Blown Fuse
Combined Fuse
Inspecting and Changing Fuses NOTICE Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system. If you do not have a replacement
fuse with the proper rating for the circuit, install
one with a lower rating.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 2 9 4 t o P. 2 9 6 .
There is a fuse puller on the back of the engine
compartment fuse box.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
Fuse Puller

Specifications ...................................... 302
Identification Numbers ...................... 306
Vehicle Identification Number (VIN) ... 306
Engine Number and Transmission
Number ............................................ 306
Devices that Emit Radio Waves ......... 307
Reporting Safety Defects .................. 308
Emissions Testing
Testing of Readiness Codes ................ 309
Warranty Coverages ...........................311
Authorized Manuals .......................... 313
Client Service Information ................. 314
301
Information
This chapter includes your vehicle's specifications, locations of identification numbers,
and other information required by regulation.

Specifications
302Information
4-cylinder models O Vehicle SpecificationsModel Acura TSX
No. of Passengers:
Front
Rear
Tot al2
3
5
Weights:
Gross Vehicle Weight
RatingU.S.: 4,475 lbs (2,030 kg)
*1
Canada: 2,030 kg
*1
U.S.: 4,395 lbs (1,995 kg)
*2
Canada: 1,995 kg
*2
Gross Axle Weight
Rating (Front) U.S.: 2,410 lbs (1,095 kg)
*1
Canada: 1,095 kg
*1
U.S.: 2,325 lbs (1,055 kg)
*2
Canada: 1,055 kg
*2
Gross Axle Weight
Rating (Rear) U.S.: 2,090 lbs (950 kg)
Canada: 950 kg
Air Conditioning:
Refrigerant Type
Charge Quantity
Lubricant TypeH F C-13 4 a ( R -13 4 a)
15.8 – 17.6 oz (450 – 500 g)
SP-10*1: Automatic transmission models
*2: Manual transmission models
O Engine SpecificationsDisplacement 144 cu-in (2,354 cm
3)
Spark PlugsNGK ILZKR7B-11S
DENSO SXU22HCR11S
O FuelFuel:
Ty peUnleaded gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)O BatteryCapacity/Type 36AH(5)/45AH(20)/47AH(20)O Washer FluidTank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
O Light BulbsHeadlights (Low Beam)35W (D2S)*
3
55W (H1)*
4
Headlights (High Beam) 60W (HB3)
Fog Lights 55W (H11)
Front Turn Signal/Parking/Side
Marker Lights21/5W
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights 21/5W
Rear Turn Signal Lights 21W
Back-Up Lights 21W
Rear Side Marker Lights 3CP
High-Mount Brake Light 21W
License Plate Lights 5W
Trunk Light 5W
Interior Lights
Spotlight
Ceiling Light 8W
8W
Vanity Mirror Lights 2W
Courtesy Lights 3.8W*3: Vehicle with discharge headlights
*4: Vehicle with halogen bulb low beam headlights

303
Information
Specifications
4-cylinder models
O Brake/Clutch FluidSpecified Honda Heavy Duty Brake Fluid DOT 3O Transmission FluidSpecified
*1
Acura ATF DW-1
(automatic transmission
fluid)2.6 US qt
(2.5 ℓ)
(Change)
Specified
*2
Acura Manual
Transmission Fluid2.0 US qt
(1.9 ℓ)
(Change)
*1: Automatic transmission models
*2: Manual transmission models
O Engine OilRecommendedAcura
Genuine
Motor OilAPI Premium grade
0W-20
CapacityChange 4.0 US qt (3.8 ℓ)
Change
including
filter4.2 US qt (4.0 ℓ)O Engine CoolantSpecifiedHonda Long-Life Antifreeze/Coolant
Ty pe2
Ratio 50/50 with distilled water
Capacity
*1
1.64 US gal (6.2 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
Capacity
*2
1.66 US gal (6.3 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
*1: Automatic transmission models
*2: Manual transmission models
O TireRegularSize P225/50R17 93V
Pressure
psi (kPa[kgf/cm
2])33 (230 [2.3])
Compact
SpareSize T135/80D16 101M
Pressure
psi (kPa[kgf/cm2])60 (420 [4.2])
Wheel SizeRegular 17 x 7.5J
Compact Spare 16 x 4T

Specifications
304Information
6-cylinder models O Vehicle SpecificationsModel Acura TSX
No. of Passengers:
Front
Rear
Tot al2
3
5
Weights:
Gross Vehicle Weight
RatingU.S.: 4,630 lbs (2,100 kg)
Canada: 2,100 kg
Gross Axle Weight
Rating (Front) U.S.: 2,557 lbs (1,160 kg)
Canada: 1,160 kg
Gross Axle Weight
Rating (Rear) U.S.: 2,083 lbs (945 kg)
Canada: 945 kg
Air Conditioning:
Refrigerant Type
Charge Quantity
Lubricant TypeH F C-13 4 a ( R -13 4 a)
15.8 – 17.6 oz (450 – 500 g)
SP-10
O Engine SpecificationsDisplacement 212 cu-in (3,471 cm
3)
Spark PlugsNGK ILZKR7B11
DENSO SXU22HCR11
O FuelFuel:
Ty peUnleaded gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)O BatteryCapacity/Type 55AH(5)/72AH(20)O Washer FluidTank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
O Light BulbsHeadlights (Low Beam) 35W (D2S)
Headlights (High Beam) 60W (HB3)
Fog Lights 55W (H11)
Front Turn Signal/Parking/Side
Marker Lights21/5W
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights 21/5W
Rear Turn Signal Lights 21W
Back-Up Lights 21W
Rear Side Marker Lights 3CP
High-Mount Brake Light 21W
License Plate Lights 5W
Trunk Light 5W
Interior Lights
Spotlight
Ceiling Light 8W
8W
Vanity Mirror Lights 2W
Courtesy Lights 3.8W

305
Information
Specifications
6-cylinder models
O Brake/Clutch FluidSpecified Honda Heavy Duty Brake Fluid DOT 3O Transmission FluidSpecifiedAcura ATF DW-1
(automatic transmission
fluid)3.5 US qt
(3.3 ℓ)
(Change)
O Engine OilRecommendedAcura
Genuine
Motor OilAPI Premium grade
0W-20
CapacityChange 4.2 US qt (4.0 ℓ)
Change
including
filter4.5 US qt (4.3 ℓ)O Engine CoolantSpecifiedHonda Long-Life Antifreeze/Coolant
Ty pe2
Ratio 50/50 with distilled water
Capacity1.77 US gal (6.7 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
O TireRegularSize P235/45R18 94V
Pressure
psi (kPa[kgf/cm
2])33 (230 [2.3])
Compact
SpareSize T135/80D16 101M
Pressure
psi (kPa[kgf/cm2])60 (420 [4.2])
Wheel SizeRegular 18 x 8J
Compact Spare 16 x 4T

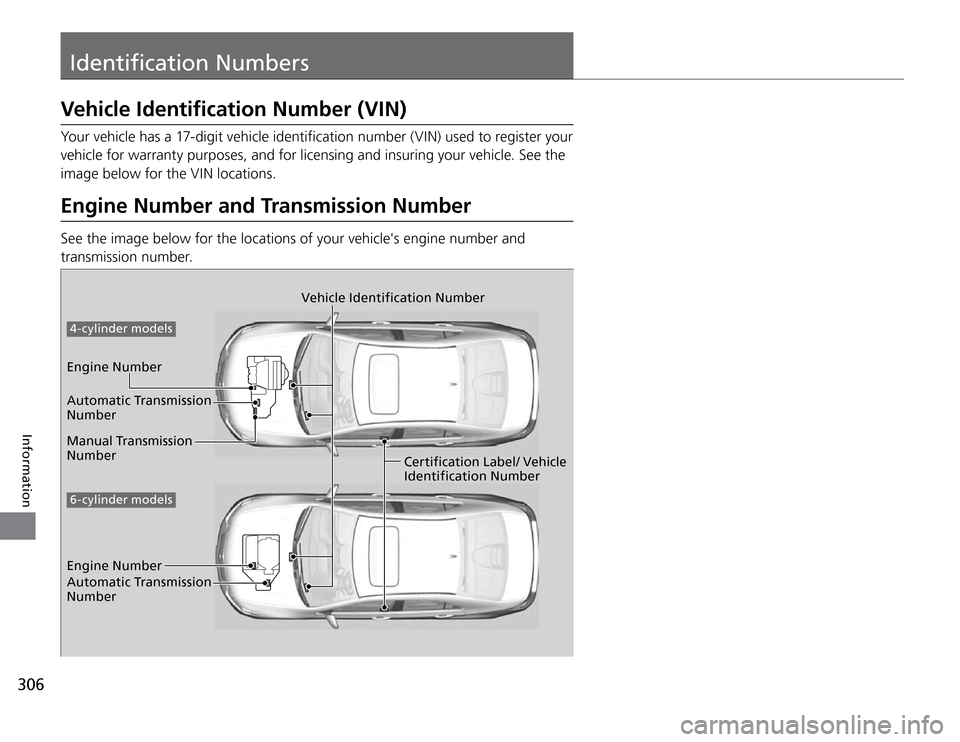

Identification Numbers
306Information
Vehicle Identification Number (VIN)Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.Engine Number and Transmission NumberSee the image below for the locations of your vehicle's engine number and
transmission number.
Vehicle Identification Number
Certification Label/ Vehicle
Identification Number Automatic Transmission
Number
Automatic Transmission
Number Manual Transmission
Number Engine Number
4-cylinder models 6-cylinder models Engine Number

309
Emissions Testing
Continued
Information
Your vehicle uses "readiness codes," as part of it's onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle's emissions
components are working properly.
The codes may not be read if you go through the testing just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
II
, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle tested before the readiness codes are
ready, prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40 °F and 95 °F (4 °C and 35
°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
P
(automatic transmission) or
N
(manual transmission).
Increase the engine speed to 2,000 rpm, and hold it there until the temperature
gauge rises to at least 1/4 of the scale (about 3 minutes).
6. Let the engine idle with your foot off the accelerator for 20 seconds.
Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days
of driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return
at a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
Testing of Readiness Codes

Emissions Testing
Testing of Readiness Codes
310Information
7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in
D
(automatic) or 5th (manual). Do not use cruise control. When traffic
allows, drive for 90 seconds without moving the accelerator pedal. (Vehicle
speed may vary slightly; this is okay.) If you cannot do this for a continuous 90
seconds because of traffic conditions, drive for at least 30 seconds, then repeat
it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

313
Authorized Manuals
Information
O

For U.S. Owners:
The publications listed below can be purchased from Helm Incorporated. You can
order a manual by phone at (800) 782-4356 (credit card orders only), or online at
www.helminc.com.
Make an inquiry to Helm Inc. at (800) 782-4356 if you are interested in ordering
other models' or other years' manuals.
Publication Form
NumberForm Description
61TL202 2011 Acura TSX Service Manual
61TP101 2011 Acura TSX V6 Service Manual
61TL202EL2009-2011 Acura TSX
Electrical Troubleshooting Manual
61T P101EL2011 Acura TSX V6
Electrical Troubleshooting Manual
61TL231 2009-2011 Acura TSX Body Repair Manual
31TL1620 2011 Acura TSX Owner’s Manual
31T L18202011 Acura TSX Navigation
System Owner’s Manual
31TL1M20 2011 Acura TSX Maintenance Journal
31TL1Q20 2011 Acura TSX Advanced Technology Guide
ACU -R
Order Form for Previous Years-
Indicate Year and Model Desired
Authorized Manuals
Service Manual:
Covers maintenance and recommended procedures
for repair to engine and chassis components. It
is written for the journeyman technician, but it
is simple enough for most mechanically inclined
owners to understand.
Electrical Troubleshooting Manual:
Complements the Service Manual by providing
in-depth troubleshooting information for each
electrical circuit in your vehicle.
Body Repair Manual:
Describes the procedures involved in the
replacement of damaged body parts.
For Canadian Owners:
Si vous avez besoin d'un Manuel du Conducteur en
français, veuillez demander à votre concessionnaire
de commander le numéro de pièce 33TL1C20
