283
Handling the Unexpected

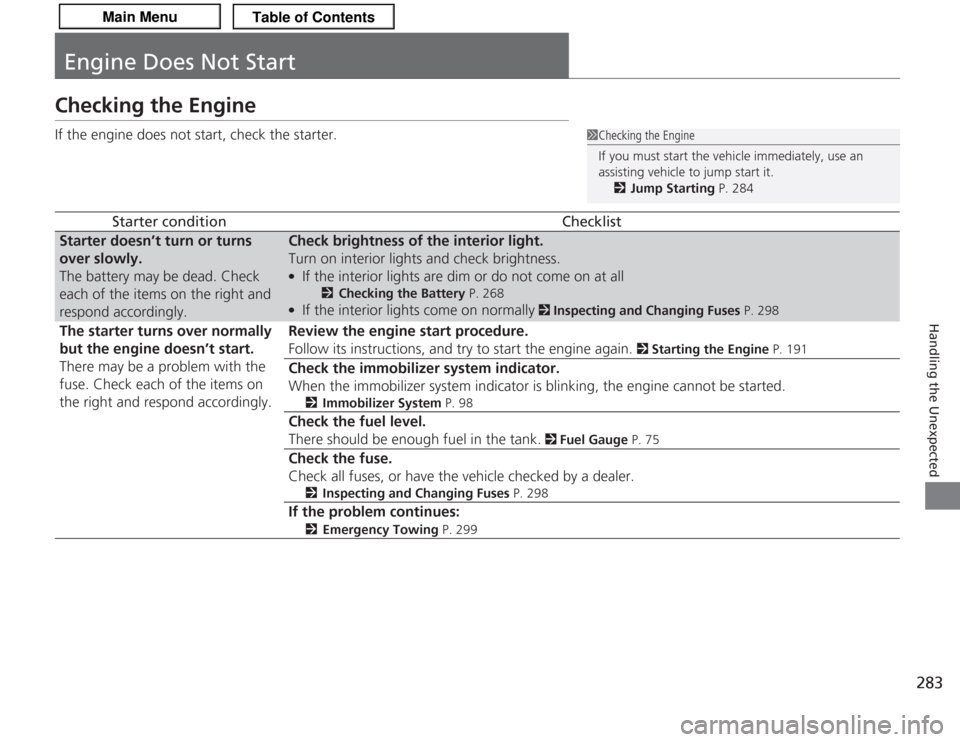

Engine Does Not StartChecking the EngineIf the engine does not start, check the starter.
Starter condition
Checklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check brightness of the interior light.
Turn on interior lights and check brightness.●
If the interior lights are dim or do not come on at all
2Checking the Battery P. 268
●
If the interior lights come on normally
2 Inspecting and Changing Fuses P. 298
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.
Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 191
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 98
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 75
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 298
If the problem continues:
2Emergency Towing P. 299
1Checking the Engine
If you must start the vehicle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 284

Continued
285
uuJump Starting u
Handling the Unexpected
5.Connect the other end of the second
jumper cable:
Engine mounting bolt
Transmission mounting bolt
Engine hanger
Do not connect this jumper cable to any
other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
1Jump Starting
Battery performance degrades in cold conditions and
may prevent the engine from starting.
6-cylinder modelsBooster Battery4-cylinder models with
automatic transmission
4-cylinder models with automatic transmission4-cylinder models with manual transmission6-cylinder models
4-cylinder models with
manual transmission

290Handling the Unexpected
Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On
■
Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■
What to do as soon as the indicator comes on
1. Immediately park the vehicle in a safe place.
2. If necessary, turn the hazard warning lights on.
■
What to do after parking the vehicle
1. Stop the engine and let it sit for about one minute.
2. Open the hood and check the oil level.
u Add oil as necessary.
3. Start the engine and check the low oil pressure indicator.
u The light goes out: Start driving again.
u The light does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■
Reasons for the indicator to come on
Comes on when the battery is not being charged.
■
What to do when the indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICERunning the engine with low oil pressure can cause
serious mechanical damage almost immediately.1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

292
uuIndicator, Coming On/Blinking uIf the Brake System Indicator Comes On
Handling the Unexpected
If the Brake System Indicator Comes On
■
Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■
What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the EPS System Indicator Comes On
■
Reasons for the indicator to come on
• Comes on when there is a problem with EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■
What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator Comes On
Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the brake distribution system is
not working. This can result in vehicle instability
under sudden braking.
Have your vehicle inspected by a dealer immediately.
U.S.
Canada
1 If the EPS System Indicator Comes On
NOTICEIf you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel on
the full left or right position for a while, the system
heats up. The system goes into a protective mode,
and limits its performance. The steering wheel
becomes harder and harder to operate. Once the
system cools down, EPS system is restored. Repeated
operation under these conditions can eventually
damage the system.

298
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK
(0
. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system. If you do not have a replacement
fuse with the proper rating fo r the circuit, install one
with a lower rating.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 296 and P. 297.
There is a fuse puller on the back of the engine
compartment fuse box.
Fuse Blown FuseCombined Fuse
Blown FuseFuse Puller

Index
317
Index
Index
AABS (Anti-lock Brake System).................. 212
Accessories and Modifications ................ 219
Accessory Power Sockets ......................... 129
Active Head Restraints ............................. 122
Additives Coolant .................................................. 240
Engine Oil ............................................... 234
Washer ................................................... 246
Additives, Engine Oil ............................... 234
Adjusting
Armrest .................................................. 124
Front Seats.............................................. 116
Head Restraints ....................................... 118
Headlights .............................................. 247
Mirrors.................................................... 114
Rear Seats ............................................... 123
Steering Wheel ....................................... 113
Temperature ............................................. 78
Air Conditioning System (Climate Control System) .................................................... 133
Changing the Mode................................ 133
Defrosting the Windshield and Windows .............................................. 134
Dust and Pollen Filter .............................. 270
Recirculation/Fresh Air Mode................... 133
Sensor .................................................... 136
Synchronized Mode ................................ 135
Using Automatic Climate Control............ 133
Air Pressure .............................. 260, 305, 307 Airbags
........................................................ 33
Advanced Airbags ..................................... 39
After a Collision ......................................... 37
Airbag Care ............................................... 47
Event Data Recorder .................................. 19
Front Airbags (SRS) .................................... 36
Indicator ........................................ 44, 67, 70
Passenger Airbag Off Indicator .................. 45
Sensors ...................................................... 33
Side Airbag Cutoff System ......................... 42
Side Airbag Off Indicator ........................... 46
Side Airbags .............................................. 40
Side Curtain Airbags .................................. 43
AM/FM Radio ............................................ 143
Anti-lock Brake System (ABS) .................. 212
Indicator .................................................... 66
Armrest ..................................................... 124
Audio System ............................................ 138
Adjusting the Sound ................................ 142
Auxiliary Input Jack .................................. 140
Error Messages ........................................ 158
General Information ................................ 161
MP3/WMA/AAC ...................................... 153
Recommended CDs ................................. 162
Recommended Devices ............................ 164
Remote Controls ..................................... 160
Security Code .......................................... 140
Theft Protection ....................................... 140
USB Adapter Cable .................................. 139
USB Flash Drives ...................................... 164
Authorized Manuals ................................. 315 Auto Door Lock/Unlock
.............................. 94
Customize ........................................... 81, 83
Automatic Lighting .................................. 106
Automatic Transmission ........................... 194
Creeping ................................................. 194
Fluid ........................................................ 242
Kickdown ................................................ 194
Operating the Shift Lever................... 13, 196
Sequential Shift Mode ............................. 197
Shift Lever Does Not Move ...................... 287
Shifting ................................................... 195
Auxiliary Input Jack .................................. 140
Average Fuel Economy .............................. 78
Average Speed ........................................... 79
BBattery...................................................... 268
Charging System Indicator................. 65, 290
Jump Starting .......................................... 284
Maintenance (Checking the Battery) ........ 268
Maintenance (Replacing) ......................... 269
Belts (Seat) .................................................. 26
Beverage Holders ..................................... 128
Bluetooth® Audio..................................... 156
Bluetooth® HandsFreeLink® ..................... 167
Booster Seats (For Children) ...................... 59
Brake System ............................................ 210
Anti-lock Brake System (ABS)................... 212
Brake Assist System ................................. 213
Fluid ........................................................ 244

319
Index
Locking/Unlocking the Doors from the Inside ...................................................... 93
Locking/Unlocking the Doors from the Outside ................................................... 91
Lockout Prevention System ....................... 92
DOT Tire Quality Grading ........................ 262
Driving ...................................................... 181
Automatic Transmission .......................... 194
Braking ................................................... 210
Cruise Control ........................................ 201
Shifting Gear .................................. 195, 199
Starting the Engine ................................. 191
Driving Position Memory System ............ 111
Dust and Pollen Filter .............................. 270
EElapsed Time.............................................. 79
Electric Power Steering (EPS) System Indicator ........................................... 68, 292
Electronic Stability Control (ESC) ............ 204
Emergency ................................................ 299
Emergency Trunk Opener ......................... 97
Emissions Testing (Readiness Codes) ...... 311
Engine ....................................................... 308
Coolant .................................................. 240
Jump Starting ......................................... 284
Oil .......................................................... 234
Starting................................................... 191
Switch Buzzer ......................................... 104 Engine Coolant
......................................... 240
Adding to the Radiator ............................ 241
Adding to the Reserve Tank ..................... 240
Overheating ............................................ 288
Temperature Gauge .................................. 75
Engine Oil ................................................. 234
Adding .................................................... 237
Checking ................................................. 235
Displaying Oil Life .................................... 225
Low Oil Pressure Indicator .................. 64, 290
Recommended Engine Oil ........................ 234
EPS (Electric Power Steering) System ............................................... 68, 292
Exhaust Gas Hazard (Carbon Monoxide) .. 60
Exterior Care (Cleaning) ........................... 273
Exterior Mirrors ........................................ 114
FFeatures..................................................... 137
Filters
Dust and Pollen ....................................... 270
Oil ........................................................... 238
Flat Tire ..................................................... 277
Floor Mats ................................................. 272
Fluids Automatic Transmission ........................... 242
Brake/Clutch ............................................ 244
Engine Coolant ........................................ 240
Manual Transmission ............................... 243
Windshield Washer .................................. 246 Fog Light Indicator
..................................... 70
Folding Down the Rear Seats .................. 123
Foot Brake ................................................ 211
Front Airbags (SRS) ..................................... 36
Front Seats ................................................ 116
Adjusting ................................................ 116
Fuel ...................................................... 14, 215
Economy ................................................. 218
Gauge ....................................................... 75
Instant Fuel Economy ................................ 78
Low Fuel Indicator ..................................... 66
Range ....................................................... 78
Recommendation .................................... 215
Refueling................................................. 215
Fuel Economy ........................................... 218
Fuel Fill Cap ........................................ 14, 217
Message.................................................. 291
Fuel Fill Door ...................................... 14, 216
Unable to Unlock .................................... 300
Fuses .......................................................... 294
Inspecting and Changing......................... 298
Locations................................................. 294
GGasoline (Fuel) Economy ................................................. 218
Gauge ....................................................... 75
Information ............................................. 215
Instant Fuel Economy ................................ 78
Low Fuel Indicator ..................................... 66

321
Index
Number Tag.............................................. 90
Rear Door Won’t Open ............................. 94
Remote Transmitter .................................. 91
Retractable Master Keys ............................ 89
Types and Functions.................................. 89
Valet Key .................................................. 90
Won’t Turn ............................................... 17
Kickdown (Automatic Transmission) ...... 194
LLanguage (HFL)........................................ 178
LATCH (Child Seats) ................................... 53
Lights ................................................ 105, 247
Automatic............................................... 106
Bulb Replacement ................................... 247
Daytime Running Lights .......................... 107
Fog Lights ............................................... 107
High-Beam Indicator ................................. 69
Interior.................................................... 125
Light Switches......................................... 105
Lights On Indicator.................................... 69
Turn Signals ............................................ 105
Load Limits ............................................... 185
Locking/Unlocking ..................................... 89
Auto Door Lock/Unlock ............................. 94
Childproof Door Locks .............................. 94
From Inside ............................................... 93
From Outside ............................................ 91
Keys.......................................................... 89
Lockout Prevention System ....................... 92 Using a Key ............................................... 92
Lockout Prevention System ........................ 92
Low Battery Charge .................................. 290
Low Fuel Indicator ...................................... 66
Low Oil Pressure Indicator ................. 64, 290
Lower Anchors ............................................ 53
Lubricant Specifications Chart ......... 305, 307
Luggage (Maximum Load Limit) ............. 185
MMaintenance............................................. 221
Battery .................................................... 268
Brake/Clutch Fluid ................................... 244
Cleaning .................................................. 271
Climate Control ....................................... 270
Coolant ................................................... 240
Maintenance Minder
TM
............................ 225
Oil ........................................................... 235
Precautions .............................................. 222
Radiator .................................................. 241
Remote Transmitter ................................. 269
Replacing Light Bulbs ............................... 247
Safety ...................................................... 223
Service Items ........................................... 227
Tires ........................................................ 259
Transmission Fluid ................................... 242
Under the Hood ...................................... 229
Malfunction Indicator Lamp .............. 65, 291
Manual Transmission ................................ 199
Map Lights ................................................ 125 Maximum Load Limit
............................... 185
Meters, Gauges ........................................... 75
Mirrors ...................................................... 114
Adjusting ................................................ 114
Automatic Dimming ................................ 114
Door ....................................................... 114
Exterior ................................................... 114
Interior Rearview ..................................... 114
Modifications (and Accessories) .............. 219
Moonroof ................................................. 103
MP3 ................................................... 147, 153
Multi-Information Display ......................... 76
NNumbers (Identification).......................... 308OOdometer................................................... 77
Oil (Engine) ............................................... 234
Adding .................................................... 237
Checking................................................. 235
Displaying Oil Life .................................... 225
Low Oil Pressure Indicator ................. 64, 290
Recommended Engine Oil ....................... 234
Viscosity .................................................. 234
Opening/Closing Hood....................................................... 231
Moonroof ............................................... 103
Power Windows ...................................... 100

323
Index
Spare Tire................................. 277, 305, 307
Spark Plugs ....................................... 304, 306
Specifications ........................................... 304
Specified Fuel ........................... 215, 304, 306
Speedometer .............................................. 75
SRS Airbags (Airbags) ................................ 36
Starting the Engine .................................. 191
Does Not Start ........................................ 283
Engine Switch Buzzer .............................. 104
Jump Starting ......................................... 284
Steering Wheel ........................................ 113
Adjusting ................................................ 113
Stopping ................................................... 214
Sunglasses Holder .................................... 131
Supplemental Restraint System (SRS) ....... 36
Switches (Around the Steering Wheel) ............................................ 2, 3, 104
SYNC Mode .............................................. 135
System Message Indicator ......................... 69TTachometer................................................ 75
Temperature .............................................. 78
Gauge ........................................................ 8
Outside Temperature Display .................... 78
Temperature Sensor ................................ 136
Time (Setting) ............................................. 88
Tire Pressure Monitoring System (TPMS) ..................................................... 206
Indicator ........................................... 68, 293 Tires
........................................................... 259
Air Pressure ............................. 260, 305, 307
Checking and Maintaining ....................... 259
Inspection ................................................ 259
Labeling .................................................. 260
Puncture (Flat Tire) ................................... 277
Regulations ............................................. 262
Rotation .................................................. 266
Spare Tire ................................ 277, 305, 307
Tire Chains .............................................. 267
Wear Indicators ....................................... 264
Winter ..................................................... 267
Tools .......................................................... 276
Towing a Trailer ....................................... 187
Equipment and Accessories ..................... 188
Load Limits .............................................. 187
Towing Your Vehicle ................................ 190
Emergency .............................................. 299
TPMS (Tire Pressure Monitoring
System) .................................................... 206
Indicator ............................................ 68, 293
Transmission ..................................... 195, 199
Automatic ............................................... 195
Fluid ................................................ 242, 243
Manual .................................................... 199
Number ................................................... 308
Sequential Shift Mode ............................. 197
Shift Position Indicator ....................... 13, 196
Trip Meter ................................................... 77
Trip/Reset Switch ........................................ 77 Troubleshooting
....................................... 275
Blown Fuse.............................................. 294
Brake Pedal Vibrates .................................. 17
Buzzer Sounds When Opening Door.......... 18
Emergency Towing .................................. 299
Engine Won’t Start .................................. 283
Noise When Braking .................................. 18
Overheating ............................................ 288
Premium Gasoline ................... 215, 304, 306
Puncture/Flat Tire .................................... 277
Rear Door Won’t Open........................ 17, 94
Select Lever Won’t Move ......................... 287
Warning Indicators .................................... 64
Trunk ........................................................... 95
Lid............................................................. 95
Light Bulb........................................ 304, 306
Main Switch .............................................. 97
Unable to Open....................................... 301
Turn Signals .............................................. 105
Indicators (Instrument Panel) ..................... 69
UUnlocking the Doors .................................. 91
USB Adapter Cable ........................... 138, 139
USB Flash Drives ....................................... 164VValet Key..................................................... 90
Vanity Mirrors ............................................... 5
