check engine light Acura TSX 2014 User Guide

241
uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter

6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter rubber seal.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque: 29 lbf∙ft (39 N∙m,
4.0 kgf∙m)
9. Pour the recommended engine oil into
the engine.
u Engine oil change capacity (including
filter):
4.2 US qt (4.0 L)
4.5 US qt (4.3 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three
minutes, and then check the oil level on
the dipstick.
u If necessary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter follow the
instructions supplied with the oil filter.
Reinstall the engine oil f ill cap. Start the engine.
The low oil pressure indi cator should go off within
five seconds. If it does not , turn off the engine, and
check your work.
6-cylinder models
6-cylinder models
4-cylinder models
Washer Drain Bolt
Oil Filter
Oil Filter4-cylinder models
6-cylinder models
14 ACURA TSX 4D-31TL16500.book 241 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

287


Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check brightness of the interior light.
Turn on interior lights and check brightness.
●If the interior lights are dim or do not come on at all
2Checking the Battery P. 270●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 302
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.
Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 193
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 99
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 75
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 302
If the problem continues:
2Emergency Towing P. 303
1 Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 288
14 ACURA TSX 4D-31TL16500.book 287 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

Continued289
uu Jump Starting u


5.Connect the other end of the second
jumper cable:
Engine mounting bolt
Transmission mounting bolt
Engine hanger
Do not connect this jumper cable to any
other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
1 Jump Starting
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.6-cylinder models
Booster Battery
4-cylinder models with
automatic transmission
4-cylinder models with automatic transmission
4-cylinder models with manual transmission
6-cylinder models
4-cylinder models with
manual transmission
14 ACURA TSX 4D-31TL16500.book 289 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

294



Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 237
3. Start the engine and check the low oil pressure indicator.
u The light goes out: Start driving again.
u The light does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
14 ACURA TSX 4D-31TL16500.book 294 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

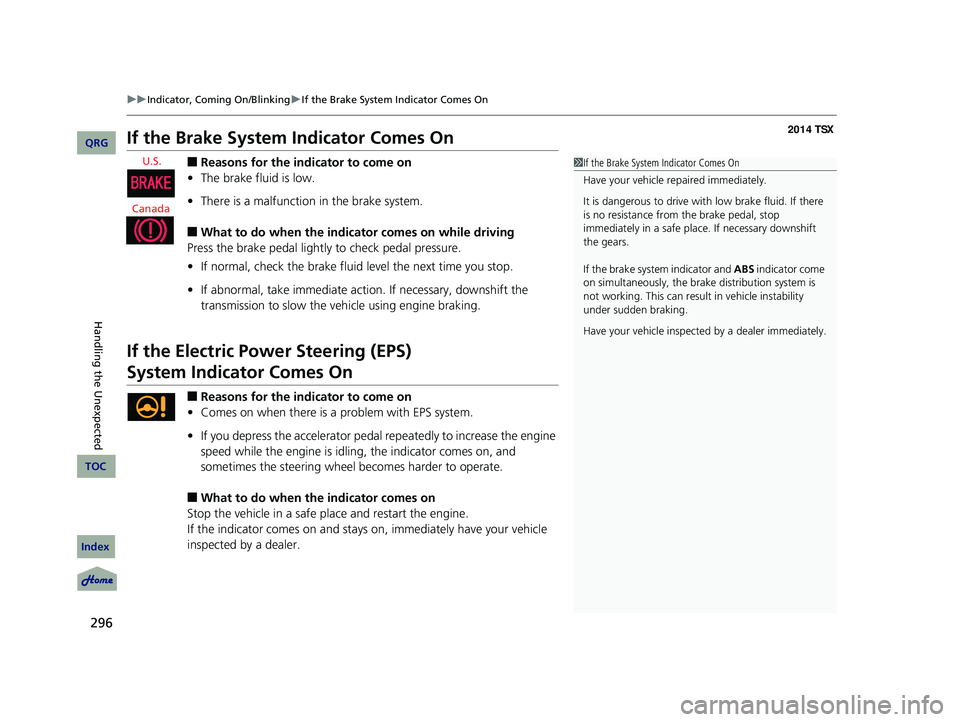

296
uu Indicator, Comin g On/Blinking u If the Brake System Indicator Comes On



If the Brake System Indicator Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steering (EPS)
System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the brake distribution system is
not working. This can result in vehicle instability
under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
14 ACURA TSX 4D-31TL16500.book 296 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC
U.S.
Canada

302
uu Fuses u Inspecting and Changing Fuses



Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0
. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the
engine compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system. If you do not have a replacement
fuse with the proper rating for the circuit, install one
with a lower rating.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 300 and P. 301.
There is a fuse puller on the back of the engine
compartment fuse box.
Fuse Blown Fuse
Combined Fuse
Blown Fuse
Fuse Puller
14 ACURA TSX 4D-31TL16500.book 302 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

321
Index
A
ABS (Anti-lock Brake System).................. 214
Accessories and Modifications ................ 221
Accessory Power Sockets ......................... 130
Active Head Restraints ............................. 123
Additives Coolant .................................................. 242
Engine Oil ............................................... 236
Washer ................................................... 248
Additives, Engine Oil .......
........................ 236
Adjusting
Armrest .................................................. 125
Front Seats.............................................. 117
Head Restraints ....................................... 119
Headlights .............................................. 249
Mirrors.................................................... 115
Rear Seats ............................................... 124
Steering Wheel ....................................... 114
Temperature ............................................. 78
Air Conditioning System (Climate Control Sys tem) .................................................... 134
Changing the Mode................................ 134
Defrosting the Windshield and 
Windows .............................................. 135
Dust and Pollen Filter .............................. 273
Recirculation/Fresh Air Mode................... 134
Sensor .................................................... 137
Synchronized Mode ................................ 136
Using Automatic Climate Control............ 134
Air Pressure .
............................. 262 , 309, 311Airbags
........................................................ 33
Advanced Airbags ..................................... 39
Airbag Care ............................................... 47
Event Data Recorder .................................. 19
Front Airbags (SRS) .................................... 36
Indicator ........................................ 44, 67, 70
Passenger Airbag Off Indicator .................. 45
Sensors ...................................................... 33
Side Airbag Cutoff System ......................... 42
Side Airbag Off Indicator ........................... 46
Side Airbags .............................................. 40
Side Curtain Airbags .................................. 43
AM/FM Radio ..
.......................................... 146
Anti-lock Brake System (ABS) .................. 214
Indicator .................................................... 66
Armrest ..................................................... 125
Audio System ............................................ 140
Adjusting the Sound ................................ 145
Auxiliary Input Jack .................................. 142
Error Messages ........................................ 161
General Information ................................ 163
MP3/WMA/AAC ...................................... 156
Recommended CDs ................................. 164
Recommended Devices ............................ 166
Remote Controls ..................................... 144
Security Code .......................................... 142
Theft Protection ....................................... 142
USB Adapter Cable .................................. 141
USB Flash Drives ...................................... 166
Authorized Manuals ............
..................... 319 Auto Door Lock/Unlock
.............................. 95
Customize ........................................... 81, 83
Automatic Lighting .................................. 107
Automatic Transmission ........................... 196
Creeping ................................................. 196
Fluid ........................................................ 244
Kickdown ................................................ 196
Operating the Shift Lever................... 13, 198
Sequential Shift Mode ............................. 199
Shift Lever Does Not Move ...................... 291
Shifting ................................................... 197
Auxiliary Input Jack ................
.................. 142
Average Fuel Economy .............................. 78
Average Speed ........................................... 79
B
Battery...................................................... 270
Charging System Indicator................. 65, 294
Jump Starting .......................................... 288
Maintenance (Checki ng the Battery) ........ 270
Maintenance (Replacing) ......................... 272
Belts (Seat) .................................................. 26
Beverage Holders ..................................... 129
Bluetooth ® Audio ..................................... 159
Bluetooth ® HandsFreeLink ®..................... 169
Booster Seats (For Children) ...................... 59
Brake System ............................................ 212
Anti-lock Brake System (ABS)................... 214
Brake Assist System ................................. 215
Fluid ........................................................ 246
14 ACURA TSX 4D-31TL16500.book 321 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A
B

323
Lockout Prevention System ....................... 92
DOT Tire Quality Grading........................ 264
Driving ...................................................... 183
Automatic Transmission .......................... 196
Braking ................................................... 212
Cruise Control ........................................ 203
Shifting Gear .................................. 197, 201
Starting the Engine ................................. 193
Driving Position Memory System .........
... 112
Dust and Pollen Filter .............................. 273
E
Elapsed Time.............................................. 79
Electric Power Steering (EPS) System Indicator ........................................... 68, 296
Electronic Stability Control (ESC) ............ 206
Emergency ................................................ 303
Emergency Trunk Opener ......................... 98
Emissions Testing (Readiness Codes) ...... 315
Engine ....................................................... 312
Coolant .................................................. 242
Jump Starting ......................................... 288
Oil .......................................................... 236
Starting................................................... 193
Switch Buzzer ......................................... 105
Engine Coolant ................
........................ 242
Adding to the Radiator ........................... 243
Adding to the Reserve Tank .................... 242
Overheating ............................................ 292
Temperature Gauge .................................. 75Engine Oil
.......
.......................................... 236
Adding .................................................... 239
Checking ................................................. 237
Displaying Oil Life .................................... 227
Low Oil Pressure Indicator .................. 64 , 294
Recommended Engine Oil ........................ 236
EPS (Electric Power Steering) 
System ...........
.................................... 68 , 296
Exhaust Gas Hazard (Carbon Monoxide) .. 60
Exterior Care (Cleaning) ........................... 276
Exterior Mirrors ........................................ 115F
Features..................................................... 139
Filters
Dust and Pollen ....................................... 273
Oil ........................................................... 240
Flat Tire ...........
.......................................... 281
Floor Mats ................................................. 275
Fluids
Automatic Transmission ........................... 244
Brake/Clutch ............................................ 246
Engine Coolant ........................................ 242
Manual Transmission ............................... 245
Windshield Washer .................................. 248
Fog Light Indicator ..............
....................... 70
Folding Down the Rear Seats .................. 124
Foot Brake ................................................. 213
Front Airbags (SRS) ..................................... 36 Front Seats
................................................ 117
Adjusting ................................................ 117
Fuel ...................................................... 14, 217
Economy ................................................. 220
Gauge ....................................................... 75
Instant Fuel Economy ................................ 78
Low Fuel Indicator ..................................... 66
Range ....................................................... 78
Recommendation ....................................
217
Refueling................................................. 217
Fuel Economy ........................................... 220
Fuel Fill Cap ........................................ 14, 219
Message.................................................. 295
Fuel Fill Door ...................................... 14, 218
Unable to Unlock .................................... 304
Fuses .......................................................... 298
Inspecting and Changing......................... 302
Locations................................................. 298
G
Gasoline (Fuel)
Economy ................................................. 220
Gauge ....................................................... 75
Information ............................................. 217
Instant Fuel Economy ................................ 78
Low Fuel Indicator ..................................... 66
Refueling................................................. 217
Gauges ...............
......................................... 75
Gear Shift Lever Positions
Automatic Transmission .......................... 197
14 ACURA TSX 4D-31TL16500.book 323 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
E
F
G

325
Types and Functions.................................. 89
Valet Key .................................................. 90
Won’t Turn ............................................... 17
Kickdown (Automatic Transmission) ...... 196
L
Language (HFL)........................................ 180
LATCH (Child Seats) ................................... 53
Lights ................................................ 106, 249
Automatic............................................... 107
Bulb Replacement ................................... 249
Daytime Running Lights .......................... 108
Fog Lights ............................................... 108
High-Beam Indicator ................................. 69
Interior.................................................... 126
Light Switches......................................... 106
Lights On Indicator.................................... 69
Turn Signals ............................................ 106
Load Limits ..
............................................. 187
Locking/Unlocking ..................................... 89
Auto Door Lock/Unlock ............................. 95
Childproof Door Locks .............................. 95
From Inside ............................................... 93
From Outside ............................................ 91
Keys.......................................................... 89
Lockout Prevention System ....................... 92
Using a Key............................................... 92
Lockout Prevention System ..................
..... 92
Low Battery Charge ................................. 294
Low Fuel Indicator ..................................... 66 Low Oil Pressure Indicator
................. 64, 294
Lower Anchors ............................................ 53
Lubricant Specifications Chart ......... 309, 311
Luggage (Maximum Load Limit) ............. 187
M
Maintenance............................................. 223
Battery .................................................... 270
Brake/Clutch Fluid ................................... 246
Cleaning .................................................. 274
Climate Control ....................................... 273
Coolant ................................................... 242
Maintenance Minder
TM............................ 227
Oil ........................................................... 237
Precautions .............................................. 224
Radiator .................................................. 243
Remote Transmitter ................................. 272
Replacing Light Bulbs ............................... 249
Safety ...................................................... 225
Service Items ........................................... 229
Tires ........................................................ 261
Transmission Fluid ................................... 244
Under the Hood ...................................... 231
Malfunction Indicator Lamp ..............
65, 295
Manual Transmission ................................ 201
Map Lights ................................................ 126
Maximum Load Limit ............................... 187
Meters, Gauges ........................................... 75
Mirrors ....................................................... 115
Adjusting ................................................. 115 Automatic Dimming ................................
115
Door ....................................................... 115
Exterior ................................................... 115
Interior Rearview ..................................... 115
Modifications (and Accessories) ..............
221
Moonroof ................................................. 104
MP3 ................................................... 150, 156
Multi-Information Display ......................... 76
N
Numbers (Identification).......................... 312
O
Odometer................................................... 77
Oil (Engine) ............................................... 236
Adding .................................................... 239
Checking................................................. 237
Displaying Oil Life .................................... 227
Low Oil Pressure Indicator ................. 64, 294
Recommended Engine Oil ....................... 236
Viscosity .................................................. 236
Opening/Closing Hood....................................................... 233
Moonroof ............................................... 104
Power Windows ...................................... 101
Trunk ........................................................ 96
Overheating .......
....................................... 292
14 ACURA TSX 4D-31TL16500.book 325 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
LM
N
O

327
Specified Fuel........................... 217 , 308, 310
Speedometer.............................................. 75
SRS Airbags (Airbags) ................................ 36
Starting the Engine .................................. 193
Does Not Start ........................................ 287
Engine Switch Buzzer .............................. 105
Jump Starting ......................................... 288
Steering Wheel ........................................ 114
Adjusting ................................................ 114
Stopping ................................................... 216
Sunglasses Holder .................................... 132
Supplemental Restraint System (SRS) ....... 36
Switches (Around the Steering 
Wheel) ............................................ 2, 3, 105
SYNC Mode .............................................. 136
System Message Indicator ......................... 69
T
Tachometer................................................ 75
Temperature .............................................. 78
Gauge ........................................................ 8
Outside Temperature Display .................... 78
Temperature Sensor ................................ 137
Tie-down Anchor ..................................... 131
Time (Setting) ............................................. 88
Tire Pressure Monitoring System 
(TPMS) ..................................................... 208
Indicator ........................................... 68, 297
Tires .......................................................... 261
Air Pressure............................. 262, 309, 311 Checking and Maintaining .......................
261
Inspection ................................................ 261
Labeling .................................................. 262
Puncture (Flat Tire) ................................... 281
Regulations ............................................. 264
Rotation .................................................. 268
Spare Tire ................................ 281, 309, 311
Tire Chains .............................................. 269
Wear Indicators ....................................... 266
Winter ..................................................... 269
Tools ................
.......................................... 280
Towing a Trailer ....................................... 189
Equipment and Accessories ..................... 190
Load Limits .............................................. 189
Towing Your Vehicle ................................ 192
Emergency .............................................. 303
TPMS (Tire Pressure Monitoring 
System) .................................................... 208
Indicator ............................................ 68, 297
Transmission ..................................... 197 , 201
Automatic ............................................... 197
Fluid ................................................ 244, 245
Manual .................................................... 201
Number ................................................... 312
Sequential Shift Mode ............................. 199
Shift Position Indicator ....................... 13 , 198
Trip Meter .......
............................................ 77
Trip/Reset Switch ........................................ 77
Troubleshooting .......................................
279
Blown Fuse .............................................. 298
Brake Pedal Vibrates .................................. 17Buzzer Sounds When Opening Door.......... 18
Emergency Towing ..................................
303
Engine Won’t Start .................................. 287
Noise When Braking .................................. 18
Overheating ............................................ 292
Premium Gasoline ................... 217, 308, 310
Puncture/Flat Tire .................................... 281
Rear Door Won’t Open........................ 17, 95
Select Lever Won’t Move ......................... 291
Warning Indicators .................................... 64
Trunk ........................................................... 96
Lid............................................................. 96
Light Bulb........................................ 308, 310
Main Switch .............................................. 98
Unable to Open....................................... 305
Turn Signals .......
....................................... 106
Indicators (Instrument Panel) ..................... 69
U
Unlocking the Doors.................................. 91
Unlocking the Fron t Doors from the 
Inside ......................................................... 10
USB Adapter Cable ........................... 140, 141
USB Flash Drives ....................................... 166
V
Valet Key..................................................... 90
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 312
14 ACURA TSX 4D-31TL16500.book 327 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
T
U
V
