maintenance Acura TSX 2014 Owner's Guide

232
uu Maintenance Under the Hood u Maintenance Items Under the Hood


6-cylinder models
Loop)
Engine Coolant
Reservoir
*
Radiator Cap*
Engine Oil Fill Cap
*: Located under the cover
14 ACURA TSX 4D-31TL16500.book 232 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Brake Fluid ( Black Cap)
Engine Oil Dipstick
(Orange
Washer Fluid (Blue Cap)
Automatic Transmission
Fluid
Dipstick
(Yellow Loop)
MaintenanceTOC

233
uu Maintenance Under the Hood u Opening the Hood
Continued

Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
lower left corner of the dashboard.
u The hood will pop up slightly.
3. Push up the hood latch lever in the center
of the hood to release the lock mechanism,
and open the hood.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cleaned and lubricated.
Hood Release Handle
Pull
Lever
Support Rod
Grip
Clamp4-cylinder models
14 ACURA TSX 4D-31TL16500.book 233 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

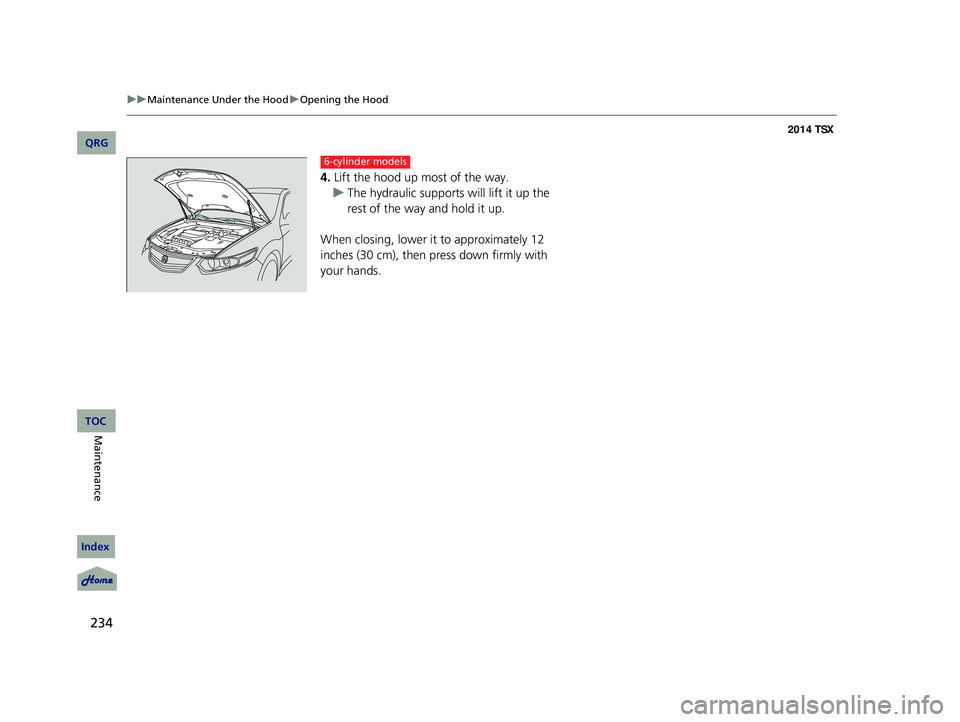

234
uu Maintenance Under the Hood u Opening the Hood


4. Lift the hood up most of the way.
u The hydraulic supports will lift it up the
rest of the way and hold it up.
When closing, lower it to approximately 12
inches (30 cm), then pr ess down firmly with
your hands.
6-cylinder models
14 ACURA TSX 4D-31TL16500.book 234 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

235
uu Maintenance Under the Hood u Engine Compartment Covers *

Engine Compartment Covers *
The component parts in the engine comp artment are protected by three covers.
You may need to remove the covers when you perform certain maintenance work.
To remove the covers:1 Engine Compartment Covers *
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the
pin is flat
Right Engine Compartment Cover
Remove the holding clips
Left Engine Compartment Cover
Remove the holding clips
Bulkhead Cover Remove the holding clips
* Not available on all models
14 ACURA TSX 4D-31TL16500.book 235 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

236
uu Maintenance Under the Hood u Recommended Engine Oil


Recommended Engine Oil
Oil is a major contributor to your engine’s
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use Genuine Acura Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown below.
■Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
• Genuine Acura Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on
the container.1Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature
14 ACURA TSX 4D-31TL16500.book 236 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

237
uu Maintenance Under the Hood u Oil Check
Continued

Oil Check
We recommend that you check the engi ne oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turning the engine off before you check
the oil.
1.Remove the dipstick (orange handle).
1. Remove the dipstick (orange loop).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into
its hole.1 Oil Check
If the oil level is near or below the lower mark, slowly
add oil being careful not to overfill.
6-cylinder models
4-cylinder models4-cylinder models
6-cylinder models
All models
14 ACURA TSX 4D-31TL16500.book 237 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

238
uu Maintenance Under the Hood u Oil Check


4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.
Upper Mark
Lower Mark
4-cylinder models
Upper Mark
Lower Mark
6-cylinder models
14 ACURA TSX 4D-31TL16500.book 238 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

239
uu Maintenance Under the Hood u Adding Engine Oil

Adding Engine Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick.1Adding Engine Oil
If any oil spills, wipe it up immediately. Spilled oil may
damage the engine compartment components.
NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.
Engine Oil Fill Cap
4-cylinder models
Engine Oil Fill Cap
6-cylinder models
14 ACURA TSX 4D-31TL16500.book 239 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

240
uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter


Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the maintenance message on the multi-
information display. 1.Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the bolts on the undercarriage
and remove the under cover.
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
5. Remove the oil filter and dispose of the
remaining oil.1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Under Cover
Bolt
4-cylinder models
4-cylinder models
Drain Bolt
Washer
4-cylinder models
All models
14 ACURA TSX 4D-31TL16500.book 240 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

241
uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter

6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter rubber seal.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque: 29 lbf∙ft (39 N∙m,
4.0 kgf∙m)
9. Pour the recommended engine oil into
the engine.
u Engine oil change capacity (including
filter):
4.2 US qt (4.0 L)
4.5 US qt (4.3 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three
minutes, and then check the oil level on
the dipstick.
u If necessary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter follow the
instructions supplied with the oil filter.
Reinstall the engine oil f ill cap. Start the engine.
The low oil pressure indi cator should go off within
five seconds. If it does not , turn off the engine, and
check your work.
6-cylinder models
6-cylinder models
4-cylinder models
Washer Drain Bolt
Oil Filter
Oil Filter4-cylinder models
6-cylinder models
14 ACURA TSX 4D-31TL16500.book 241 ページ ２０１３年６月１７日　月曜日　午前９時４０分
