Acura TSX 2014 Owner's Manual

310
uu Specifications u




■Vehicle Specifications
ModelAcura TSX
No. of Passengers:
Front 2
Rear 3
Total
5Weights:Gross Vehicle Weight
Rating U.S.: 4,630 lbs (2,100 kg)Canada: 2,100 kgGross Axle Weight
Rating (Front)U.S.: 2,557 lbs (1,160 kg)Canada: 1,160 kgGross Axle Weight
Rating (Rear)U.S.: 2,083 lbs (945 kg)
Canada: 945 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.8 – 17.6 oz (450 – 500 g)
Lubricant Type SP-10
6-cylinder models■Engine Specifications
■Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK
ILZKR7B11
DENSO SXU22HCR11
Fuel:TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■Light Bulbs
Headlights (Low Beam)35W (D2S)
Headlights (High Beam)60W (HB3)Fog Lights55W (H11)
Front Turn Signal/Parking/Side
Marker Lights
21/5W
Side Turn Signal Lights (on Door Mirrors)LED
Brake/Taillights
21/5WRear Turn Signal Lights21W
Back-Up Lights21WRear Side Marker Lights3CP
High-Mount Brake Light21WLicense Plate Lights5W
Trunk Light5WInterior LightsSpotlight8WCeiling Light8W
Vanity Mirror Lights2WCourtesy Lights3.8W
14 ACURA TSX 4D-31TL16500.book 310 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC

311
uu Specifications u



■Brake/Clutch Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF DW-1
(automatic
transmission fluid)3.5 US qt (3.3 ℓ)
(Change)
■ Engine Oil
■ Engine Coolant
Recommended·Acura Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change
4.2 US qt (4.0 ℓ)
Change
including
filter 4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio50/50 with distilled water
Capacity1.77 US gal (6.7 ℓ) 
(change including the remaining 
0.196 US gal (0.74 ℓ) in the reserve tank)
■ Tire
RegularSizeP235/45R18 94VPressure 
psi (kPa [kgf/cm2])33 (230 [2.3])
Compact
Spare Size
T135/80D16 101M
Pressure 
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel SizeRegular18 x 8JCompact Spare16 x 4T
14 ACURA TSX 4D-31TL16500.book 311 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC

312




Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licen sing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle’s engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number Automatic Transmission
Number
6-cylinder models
4-cylinder models
Engine Number
Automatic Transmission
Number
14 ACURA TSX 4D-31TL16500.book 312 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC

313



Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when
in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any inte rference, including interference that may
cause undesired operation of the device.
AcuraLinkAudio System
Bluetooth ® AudioBluetooth ® HandsFreeLink ®
HomeLink® Universal TransceiverImmobilizer System
Remote TransmitterTire Pressure Monitoring System (TPMS)
U.S. models
14 ACURA TSX 4D-31TL16500.book 313 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC

314





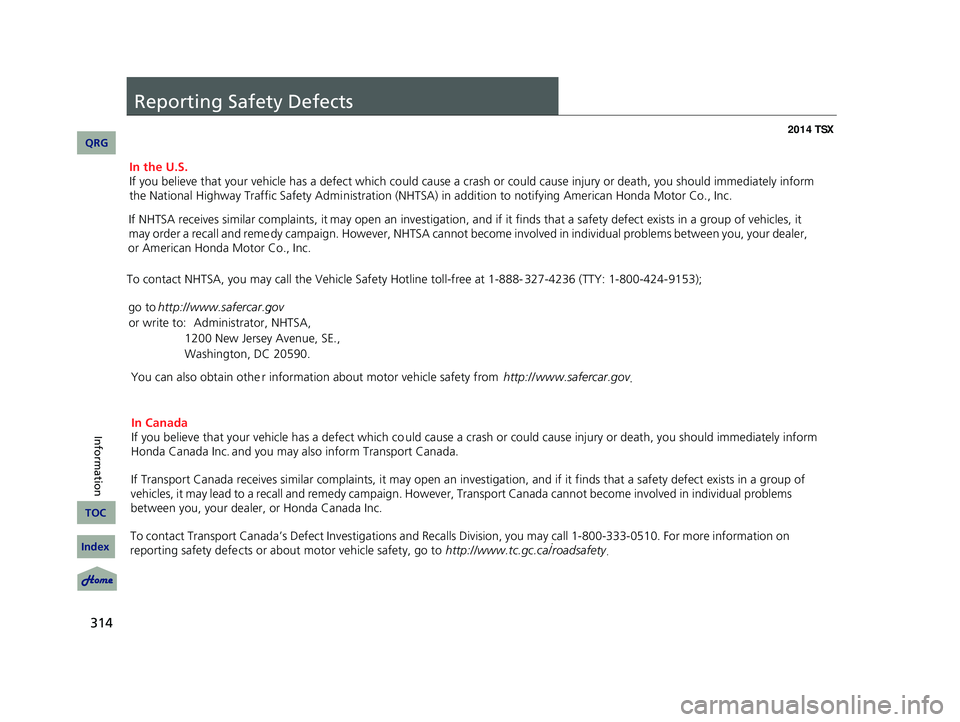

Reporting Safety Defects
14 ACURA TSX 4D-31TL16500.book 314 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Admi nistration (NHTSA) in addition to notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and reme dy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer,
or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888- 327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov ;
or write to: Administrator, NHTS A,
1200 New Jersey Avenue, SE., Washington, DC 20590.
You can also obtain othe r information about motor vehicle safety from http://www.safercar.gov
.
In Canada
If you believe that your vehicle has a defect which co uld cause a crash or could cause injury or death, you should immediately inform
Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of
vehicles, it may lead to a recall and remedy campaign. However, Transport Canada cannot become involved in individual problems
between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For more information on
reporting safety defe cts or about motor vehicle safety, go to http://www.tc.gc.ca/roadsafety
.
.

315Continued



Emissions Testing
Testing of Readiness Codes
Your vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle’s emissions
components are working properly.
The codes may not be read if you go thro ugh the testing just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(
w
, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40 °F and 95 °F (4 °C and 35 °C).
4. Start the engine without touching the accelerator pedal, and let it idle for
20 seconds.
5. Keep the vehicle in
(
P
(automatic transmission) or (N
(manual transmission).
Increase the engine speed to 2,000 rpm, and hold it there until the temperature
gauge rises to at least 1/4 of the scale (about 3 minutes).
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
14 ACURA TSX 4D-31TL16500.book 315 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC

316
uu Emissions Testing u Testing of Readiness Codes




7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
(automatic) or 5th (manual). Do not us e cruise control. When traffic allows,
drive for 90 seconds without moving the accelerator pedal. (Vehicle speed may
vary slightly; this is okay.) If you cannot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then repeat it two
more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
14 ACURA TSX 4D-31TL16500.book 316 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC

317Continued



Warranty Coverages
■U.S. Owners
Your new vehicle is cove red by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time peri od with no mileage limit.
Accessory Limite d Warranty – Acura accessories are covered under this warranty.
Time and mileage limits depend on the type of accessory and other factors. Please
read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Acura replacement parts
against defects in materials and workmanship.
14 ACURA TSX 4D-31TL16500.book 317 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC

318
uu Warranty Coverages u




Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
14 ACURA TSX 4D-31TL16500.book 318 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Information
TOC

319



Authorized Manuals
■For U.S. Owners:
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.1Authorized Manuals
For Canadian Owners:
Please contact a dealer to order any manuals that you
may require.
