Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools.................................................. 280
Types of Tools .................................. 280
If a Tire Goes Flat .............................. 281
Changing a Flat Tire ......................... 281
Engine Does Not Start Checking the Engine ........................ 287
Jump Starting ..........
.......................... 288
Shift Lever Does Not Move .............. 291
Overheating ...................................... 292
How to Handle Overheating ............. 292 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On.................................................. 294
If the Charging System Indicator Comes
On ................................................. 294
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 295
If the Brake System Indicator Comes On .. 296
If the Electric Power Steering (EPS) System
Indicator Comes On ............................ 296
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 297 Fuses
Fuse Locations ................................. 298
Circuit Protected and Amps for Each Fuse........................................... . 300
Inspecting and Changing Fuses ........ 302
Emergency Towing ........................... 303
When You Cannot Unlock the Fuel Fill Door ................................................. 304
When You Cannot Open the Trunk .. 305
14 ACURA TSX 4D-31TL16500.book 279 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index2014 TSX

uu If a Tire Goes Flat u Changing a Flat Tire
284



1. Place the jack under the jacking point
closest to the tire to be changed.
2.Turn the end bracket (as shown in the
image) clockwise until the top of the jack
contacts the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off
the ground.
■How to Set Up the Jack1
How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
their shape may not match.
The following instructions must be followed to use
the jack safely.
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3 WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
14 ACURA TSX 4D-31TL16500.book 284 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

287


Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check brightness of the interior light.
Turn on interior lights and check brightness.
●If the interior lights are dim or do not come on at all
2Checking the Battery P. 270●If the interior lights come on normally 2 Inspecting and Changing Fuses P. 302
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.
Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 193
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 99
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 75
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 302
If the problem continues:
2Emergency Towing P. 303
1 Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 288
14 ACURA TSX 4D-31TL16500.book 287 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

288



Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.
1.Slide out the battery terminal cover.
2. Connect the first jump er cable to your
vehicle’s battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
3 WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Cover
6-cylinder models6-cylinder models
4-cylinder models
Booster Battery
All models
14 ACURA TSX 4D-31TL16500.book 288 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

Continued289
uu Jump Starting u


5.Connect the other end of the second
jumper cable:
Engine mounting bolt
Transmission mounting bolt
Engine hanger
Do not connect this jumper cable to any
other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
1 Jump Starting
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.6-cylinder models
Booster Battery
4-cylinder models with
automatic transmission
4-cylinder models with automatic transmission
4-cylinder models with manual transmission
6-cylinder models
4-cylinder models with
manual transmission
14 ACURA TSX 4D-31TL16500.book 289 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

290
uu Jump Starting u



Once your vehicle’s engine has started, remove the jumper cables in the
following order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster
battery + terminal.
Have your vehicle inspected by a n earby service station or a dealer.
6-cylinder models
■What to Do After the Engine Starts
14 ACURA TSX 4D-31TL16500.book 290 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC
battery + terminal.

292




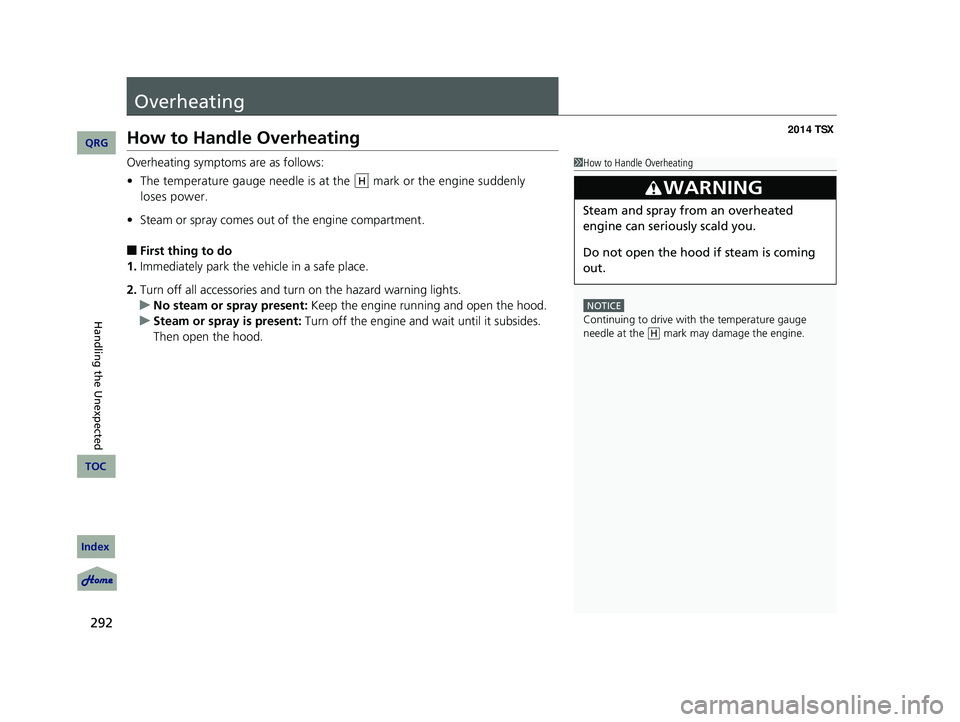

Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge needle is at the mark or the engine suddenly
loses power.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
needle at the mark may damage the engine.
3 WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
H
H
14 ACURA TSX 4D-31TL16500.book 292 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

293
uu Overheating u How to Handle Overheating


■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge. 
If the temperature gauge needle has gone dow n, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3 WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MAXReserve Tank
MIN
14 ACURA TSX 4D-31TL16500.book 293 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

294



Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 237
3. Start the engine and check the low oil pressure indicator.
u The light goes out: Start driving again.
u The light does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
14 ACURA TSX 4D-31TL16500.book 294 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC

295
uu Indicator, Coming On/Blinking u If the Malfunction Indicator Lamp Comes On or Blinks


If the Malfunction Indicator
Lamp Comes On or Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at
a dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
ten minutes or more with the engine stopped until it cools.
■The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■What to do when the message appears:
1. Stop the engine.
2. Check that the fuel fill cap is fully installed.
u If not, loosen the cap, and then retight en it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■When the malfunction indicator lamp comes on:
Malfunction indicator lamp comes on if the system continues to detect a leak of
gasoline vapor. If this happens, check the fuel fill cap using the procedures
described above.
■Tighten Fuel Fill Cap Message
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
14 ACURA TSX 4D-31TL16500.book 295 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Handling the Unexpected
TOC
