brake fluid Acura TSX 2014 Owner's Manual

15
Maintenance (P 223)
Under the Hood (P 231)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P249)
● Inspect all lights regularly.
Wiper Blades (P259)
● Replace blades if they leave streaks
across the windshield.
Tires (P261)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
14 ACURA TSX 4D-31TL16500.book 15 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Quick Reference Guide - 2014 TSX

64
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake and
Brake System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
, then goes off.●Comes on when the parking brake
is applied, and goes off when it is
released.
●Come on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 296
●Comes on along with the ABS
indicator - Have the vehicle checked by
a dealer.
2 If the Brake System Indicator
Comes On P. 296
Low Oil Pressure
Indicator
●Comes on when you turn the
ignition switch to ON
(w
, and goes
off when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 294
Shift Position
Indicator *
●Indicates the current shift lever
position.
2 Shifting P. 197—
U.S.
Canada
U.S.Canada
* Not available on all models
14 ACURA TSX 4D-31TL16500.book 64 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
TOC

195
uu When Driving u Precautions While Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel on
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the ignition switch is turned to ACCESSORY
(
q
or
LOCK (
0
while driving, the e ngine will shut down
and all steering and brake pow er assist functions will
stop, making it difficult to control the vehicle.
Do not put the shift lever in
(
N
, as you will lose
engine braking (and acce leration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as to not damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
14 ACURA TSX 4D-31TL16500.book 195 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
DrivingTOC

223
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 224
Safety When Performing Maintenance... 225
Parts and Fluids Used in Maintenance
Service ........................................... 226
Maintenance Minder
TM.....................227
Maintenance Under the Hood Maintenance Items Under the Hood .. 231
Opening the Hood ........................... 233
Recommended Engine Oil ................ 236
Oil Check ......................................... 237
Adding Engine Oil ............................ 239Engine Coolant ................................
242
Transmission Fluid ............................ 244
Brake/Clutch Fluid ............................ 246
Refilling Window Washer Fluid......... 248
Replacing Light Bulbs ....
................... 249Checking and Maintaining Wiper
Blades .......................................... 259
Checking and Maintaining Tires
Checking Tires ................................. 261
Tire and Loading Information Label .. 262
Tire Labeling .................................... 262
DOT Tire Quality Grading (U.S. Vehicles) .. 264
Wear Indicators ...............................266
Tire Service Life ................................ 266
Tire and Wheel Replacement ........... 267
Tire Rotation .................................... 268
Winter Tires ..................................... 269
Battery .............
.................................. 270
Remote Transmitter Care ................. 272
Replacing the Battery ....................... 272
Climate Control System Maintenance.. 273
Cleaning
Interior Care .................................... 274
Exterior Care.................................... 276
14 ACURA TSX 4D-31TL16500.book 223 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index 2014 TSX

224


Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the automatic transmi ssion fluid level monthly.
2Automatic Transmission Fluid P. 244
• Check the brake fluid level monthly.
2 Brake/Clutch Fluid P. 246
• Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 261
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 249
• Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 259
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the mult i-information display.
2 Maintenance Service Items P. 229
If you want to perform complex maintenance tasks
that require more skills and tools, purchase the
service manual. 2 Authorized Manuals P. 319
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
14 ACURA TSX 4D-31TL16500.book 224 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
TOC

229
uu Maintenance MinderTM u
Continued

■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Items
*1: If message, SERVICE DUE NOW does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive primarily in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gear box, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed at 60,000 miles (100,000 km), then every 30,000 miles (48,000 km). (For A/T only.)
*5: If you drive regularly in very high temperatures (over 110°F, 43 °C), in very low temperatures (under -20°F, -29°C), or tow a trailer, replace every 60,000 miles (U.S.)/100,000 km (Canada). (6-cylinder
models only)
# : See information on maintenance and emissions warranty.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Replace timing belt and inspect water pump*5
●Inspect valve clearance
5
●Replace engine coolant
14 ACURA TSX 4D-31TL16500.book 229 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

231Continued

Maintenance Under the Hood
Maintenance Items Under the Hood
4-cylinder models
Brake Fluid
(Black Cap)
Engine Coolant
Reservoir
Radiator Cap Washer Fluid
(Blue Cap) Engine Oil Dipstick
(Orange Handle) Clutch Fluid

(Light Gray Cap)
Manual transmission models
Engine Oil Fill Cap
Automatic Transmission Fluid
Dipstick (Yellow Loop)
Automatic transmission models
14 ACURA TSX 4D-31TL16500.book 231 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

232
uu Maintenance Under the Hood u Maintenance Items Under the Hood


6-cylinder models
Loop)
Engine Coolant
Reservoir
*
Radiator Cap*
Engine Oil Fill Cap
*: Located under the cover
14 ACURA TSX 4D-31TL16500.book 232 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Brake Fluid ( Black Cap)
Engine Oil Dipstick
(Orange
Washer Fluid (Blue Cap)
Automatic Transmission
Fluid
Dipstick
(Yellow Loop)
MaintenanceTOC

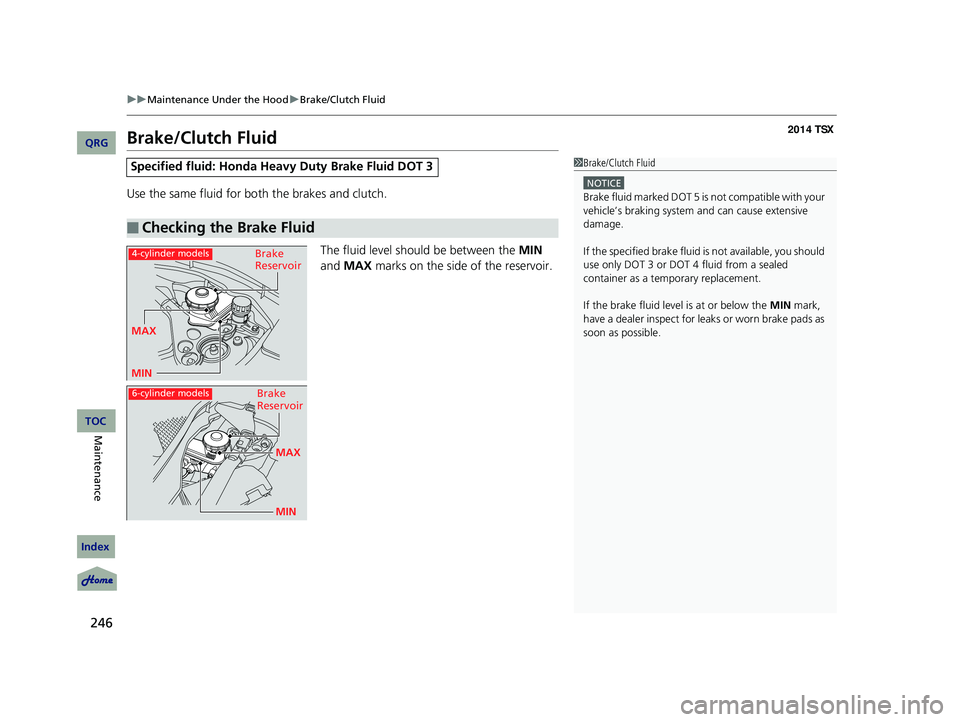

246
uu Maintenance Under the Hood u Brake/Clutch Fluid


Brake/Clutch Fluid
Use the same fluid for bo th the brakes and clutch.
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake/Clutch Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect for l eaks or worn brake pads as
soon as possible.
Brake
Reservoir
MIN MAX4-cylinder models
6-cylinder modelsBrake
Reservoir
MAX
MIN
14 ACURA TSX 4D-31TL16500.book 246 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

247
uu Maintenance Under the Hood u Brake/Clutch Fluid

The fluid level should be between the MIN
and MAX marks on the side of the reservoir.

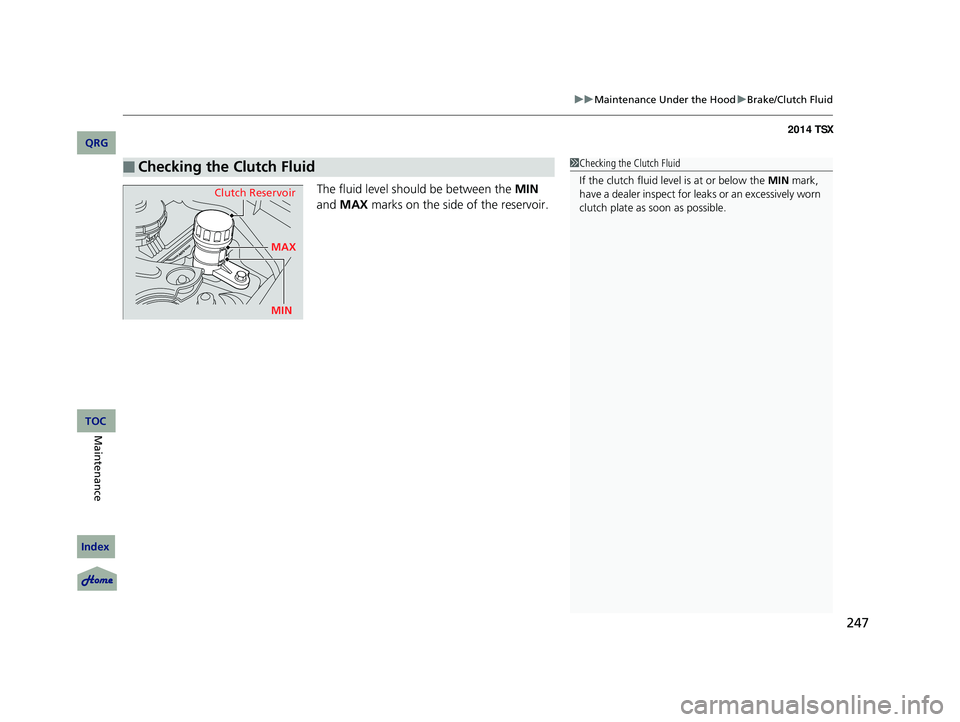

■Checking the Clutch Fluid1Checking the Clutch Fluid
If the clutch fluid level is at or below the MIN mark,
have a dealer inspect for leaks or an excessively worn
clutch plate as soon as possible.
Clutch Reservoir
MIN MAX
14 ACURA TSX 4D-31TL16500.book 247 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC
