climate control Acura TSX 2014 User Guide

143

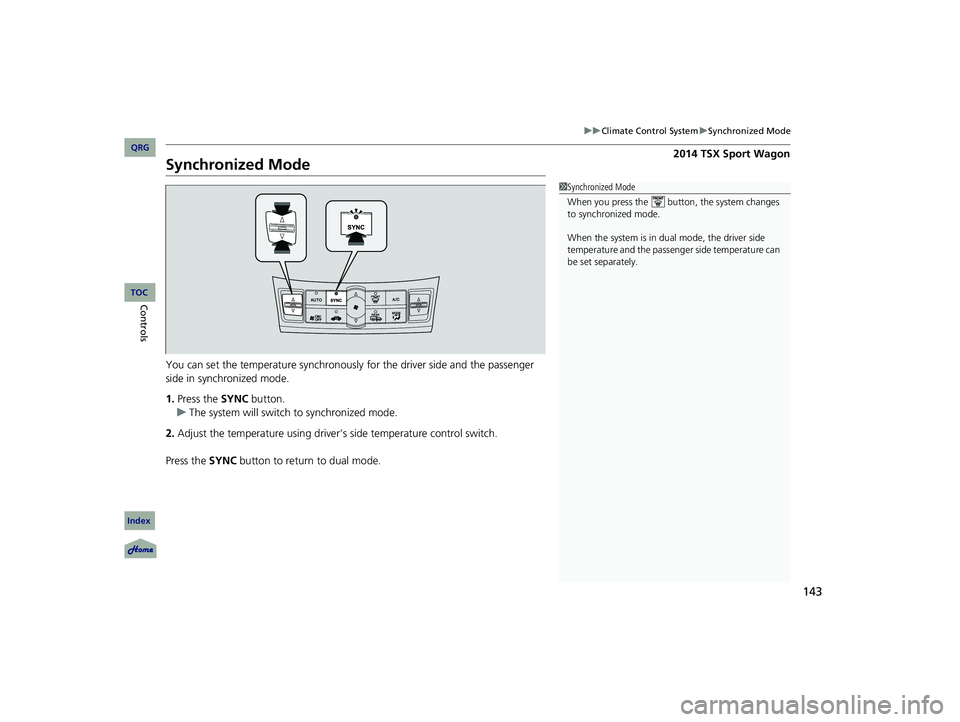

uu Climate Control System u Synchronized Mode
Synchronized Mode
You can set the temperature synchronously for the driver side and the passenger
side in synchronized mode.
1. Press the SYNC button.
u The system will switch to synchronized mode.
2. Adjust the temperature using driver’s side temperature control switch.
Press the SYNC button to return to dual mode.
1Synchronized Mode
When you press the butto n, the system changes
to synchronized mode.
When the system is in dual mode, the driver side
temperature and the passeng er side temperature can
be set separately.
14 ACURA TSX 5D-31TL76300.book 143 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

144
uu Climate Control System u Automatic Climate Control Sensors
Automatic Climat e Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
14 ACURA TSX 5D-31TL76300.book 144 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

199Continued

When Driving
Starting the Engine
1.Make sure the parking brake is applied.
2. Check that the shift lever is in
(P
, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N
, it is safer to start it in (P
.
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to start in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear defogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. If temperatures consistently
below -22°F (-30°C) are expected, the coolant
mixture should be changed to a higher concentration
to prevent freezing. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Brake Pedal
14 ACURA TSX 5D-31TL76300.book 199 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

227
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 228
Safety When Performing Maintenance...229Parts and Fluids Used in Maintenance
Service ........................................... 230
Maintenance Minder
TM..................... 231
Maintenance Under the Hood Maintenance Items Under the Hood .. 235
Opening the Hood ........................... 236
Recommended Engine Oil ................ 237
Oil Check ......................................... 238
Adding Engine Oil ............................ 239Engine Coolant ................................
242
Transmission Fluid ............................ 244
Brake Fluid ....................................... 245
Refilling Window Washer Fluid......... 246
Replacing Light Bulbs ....................... 247Checking and Maintaining Wiper
Blades .......................................... 255
Checking and Maintaining Tires
Checking Tires ................................. 259
Tire and Loading Information Label .. 260
Tire Labeling .................................... 260
DOT Tire Quality Grading ................. 262Wear Indicators ...............................
264
Tire Service Life ................................ 264
Tire and Wheel Replacement ........... 265
Tire Rotation .................................... 266
Winter Tires ..................................... 267
Battery ............................................... 268
Remote Transmitter Care ................. 270
Replacing the Battery ....................... 270Climate Control System Maintenance.. 271Cleaning
Interior Care .................................... 272
Exterior Care.................................... 274
14 ACURA TSX 5D-31TL76300.book 227 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
2014 TSX Sport Wagon

262
uu Checking and Maintaining Tires u DOT Tire Quality Grading



DOT Tire Quality Grading
■Uniform Tire Quality Grading
■Treadwear
1Uniform Tire Quality Grading
14 ACURA TSX 5D-31TL76300.book 262 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are
also graded for treadwear, traction, and temperature performance according to
Department of Transportation (DOT) standards. The following explains these gradings.
Quality grades can be found where applicable on the tire sidewall between tread
houlder and maximum section width.
The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practi ces and differences in road characteristics and climate.
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform to Federal
Safety Requirements in addition to these grades.
2014 TSX Sport Wagon

271


Climate Control System Maintenance
Dust and Pollen Filter
The climate control system is equipped with a dust and po llen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1 Dust and Pollen Filter
Using an air freshener may reduce the deodorizing
effect of the dust and pollen filter, and may reduce its
life.
If the air flow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.
14 ACURA TSX 5D-31TL76300.book 271 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
MaintenanceTOC
2014 TSX Sport Wagon

299



Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 238
3. Start the engine and check th e low oil pressure indicator.
u The light goes out: Start driving again.
u The light does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICERunning the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1 If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
14 ACURA TSX 5D-31TL76300.book 299 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Handling the Unexpected
TOC
2014 TSX Sport Wagon

Index
323
Index
ABS (Anti-lock Brake System).................. 218
Accessories and Modifications ................ 225
Accessory Power Sockets ......................... 135
Active Head Restraints ............................. 125
Additives Coolant .................................................. 242
Engine Oil ............................................... 237
Washer ................................................... 246
Additives, Engine Oil ............................... 237
Adjusting
Armrest .................................................. 127
Front Seats.............................................. 119
Head Restraints ....................................... 121
Headlights .............................................. 247
Mirrors.................................................... 117
Rear Seats ............................................... 126
Steering Wheel ....................................... 116
Temperature ............................................. 77
Air Conditioning System (Climate Control
System) .................................................... 141
Changing the Mode................................ 141
Defrosting the Windshield and 
Windows .............................................. 142
Dust and Pollen Filter .............................. 271
Recirculation/Fresh Air Mode................... 141
Sensor .................................................... 144
Synchronized Mode ................................ 143
Using Automatic Climate Control............ 141
Air Pressure ...................................... 260, 313 Airbags
........................................................ 34
Advanced Airbags ..................................... 40
Airbag Care ............................................... 48
Event Data Recorder .................................. 19
Front Airbags (SRS) .................................... 37
Indicator ........................................ 45, 67, 70
Passenger Airbag Off Indicator .................. 46
Sensors...................................................... 34
Side Airbag Cutoff Syst em ......................... 43
Side Airbag Off Indicator ........................... 47
Side Airbags .............................................. 41
Side Curtain Airbags .................................. 44
AM/FM Radio ............................................ 152
Anti-lock Brak e System (ABS) .................. 218
Indicator .................................................... 66
Armrest ..................................................... 127
Audio System ............................................ 146
Adjusting the Sound ................................ 151
Auxiliary Input Jack ...... ............................ 148
Error Messages ........................................ 167
General Information ................................ 169
MP3/WMA/AAC ...................................... 162
Recommended CDs ................................. 170
Recommended Devices ............................ 172
Remote Controls ..................................... 150
Security Code .......................................... 148
Theft Protection....................................... 148
USB Adapter Cable .................................. 147
USB Flash Drives ...................................... 172
Authorized Manuals ................................. 321Auto Door Lock/Unlock
.............................. 93
Customize ........................................... 80, 82
Automatic Lighting .................................. 108
Automatic Transmission ........................... 202
Creeping ................................................. 202
Fluid ........................................................ 244
Kickdown ................................................ 202
Operating the Shift Lever................... 13, 204
Sequential Shift Mode ............................. 205
Shift Lever Does Not Move ...................... 296
Shifting ................................................... 203
Auxiliary Input Jack .................................. 148
Average Fuel Economy .............................. 77
Average Speed ........................................... 78
Battery ...................................................... 268
Charging System Indi cator................. 65, 299
Jump Starting .......................................... 294
Maintenance (Checking the Battery) ........ 268
Maintenance (Replacing) ......................... 270
Belts (Seat) .................................................. 26
Beverage Holders ..................................... 134
Bluetooth ® Audio ..................................... 165
Bluetooth ® HandsFreeLink ®..................... 175
Booster Seats (For Children) ...................... 60
Brake System ............................................ 216
Anti-lock Brake System (ABS)................... 218
Brake Assist System ................................. 219
Fluid ........................................................ 245
14 ACURA TSX 5D-31TL76300.book 323 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A
B
2014 TSX Sport Wagon

324
Foot Brake ............................................... 217
Indicator ............................................ 64, 301
Parking Brake .......................................... 216
Brightness Control (Instrument Panel) .... 112
Bulb Replacement..................................... 247
Back-Up Lights......................................... 252
Brake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Lights................... 251
Fog Lights ................................................ 248
Front Turn Signal/Parking/Side Marker 
Lights..................................................... 249
Headlights ............................................... 247
High-Mount Brake Light . ......................... 251
License Plate ............................................ 253
Side Turn Signal/Emergency Indicator 
Lights..................................................... 250
Bulb Specifications .................................... 312
Carbon Monoxide Gas ................................ 61
Cargo Hooks .............................................. 137
Carrying Cargo .................................. 191, 193
CD Player ................................................... 156
Certification Label .................................... 314
Changing Bulbs ......................................... 247
Charging System Indicator ................. 65, 299
Child Safety ................................................. 49
Childproof Door Locks .... ........................... 93
Child Seat .................................................... 49
Booster Seats ........ ..................................... 60Child Seat for Infants.................................
51
Child Seat for Small Children ..................... 52
Installing a Child Seat with a Lap/Shoulder 
Seat Belt .................................................. 56
Larger Children ......................................... 59
Rear-facing Child Seat ............................... 51
Selecting a Child Seat ................................ 53
Using a Tether ........................................... 58
Childproof Door Locks ............................... 93
Cleaning the Exterior ............................... 274
Cleaning the Interior ................................ 272
Client Service Information ....................... 322
Climate Control System ............................ 141
Changing the Mode ................................ 141
Defrosting the Windshield and 
Windows ............................................... 142
Dust and Pollen Filter............................... 271
Recirculation and Fres h Air Mode ............ 141
Sensors ................................................... 144
Synchronized Mode................................. 143
Using Automatic Climate Control ............ 141
Clock ............................................................ 86
Coat Hook ................................................. 136
Compact Spare Tire .......................... 287, 313
Compass .................................................... 187
Console Compartment ............................. 131
Controls ....................................................... 85
Coolant (Engine) ...................................... 242
Adding to the Radiator ............................ 243
Adding to the Reserve Tank..................... 242
Overheating ............................................ 297Temperature Gauge ..................................
74
Creeping (Automatic Transmission) ........ 202
Cruise Control .......................................... 207
Indicator ................................................... 71
Cup Holders .............................................. 134
Customized Features ................................. 79
Daytime Running Lights .......................... 109
Dead Battery ............................................ 294
Defrosting the Windshield and 
Windows ................................................. 142
Detachable Shelf ...................................... 130
Devices that Emit Radio Waves ............... 315
Dimming
Headlights .............................................. 107
Rear View Mirror..................................... 117
Dipstick (Engine Oil) ................................ 238
Directional Signals (Turn Signal) ............. 107
Door Mirrors ............................................. 117
Doors .......................................................... 87
Auto Door Lock ........................................ 93
Auto Door Unlock ..................................... 93
Door and Tailgate Open Indicator ....... 25 , 68
Keys.......................................................... 87
Locking/Unlocking the Doors from the 
Inside ................................................ 10, 91
Locking/Unlocking the Doors from the 
Outside ................................................... 89
Lockout Prevention System ....................... 90
14 ACURA TSX 5D-31TL76300.book 324 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
C
D
2014 TSX Sport Wagon

327
LATCH (Child Seats)................................... 54
Lights ................................................ 107, 247
Automatic............................................... 108
Bulb Replacement ................................... 247
Daytime Running Lights .......................... 109
Fog Lights ............................................... 109
High-Beam Indicator ................................. 69
Interior.................................................... 128
Light Switches......................................... 107
Lights On Indicator.................................... 69
Turn Signals ............................................ 107
Load Limits ............................................... 193
Locking/Unlocking ..................................... 87
Auto Door Lock/Unlock ............................. 93
Childproof Door Locks .............................. 93
From Inside ............................................... 91
From Outside ............................................ 89
Keys.......................................................... 87
Lockout Prevention Syst em ....................... 90
Using a Key............................................... 90
Lockout Prevention System ....................... 90
Low Battery Charge ................................. 299
Low Fuel Indicator ..................................... 66
Low Oil Pressure Indicator ................. 64, 299
Lower Anchors ........................................... 54
Lubricant Specifications Chart ................ 313
Luggage (Maximum Load Limit) ............. 193Maintenance
............................................. 227
Battery .................................................... 268
Brake Fluid .............................................. 245
Cleaning.................................................. 272
Climate Control ....................................... 271
Coolant ................................................... 242
Maintenance Minder
TM............................ 231
Oil ........................................................... 238
Precautions.............................................. 228
Radiator .................................................. 243
Remote Transmitter ................................. 270
Replacing Light Bulbs... ............................ 247
Safety ...................................................... 229
Service Items ........................................... 233
Tires ........................................................ 259
Transmission Fluid ................................... 244
Under the Hood ...................................... 235
Malfunction Indicator Lamp .............. 65, 300
Map Lights ................................................ 128
Maximum Load Limit ............................... 193
Meters, Gauges ........................................... 74
Mirrors ....................................................... 117
Adjusting................................................. 117
Automatic Dimming ................................ 117
Door........................................................ 117
Exterior.................................................... 117
Interior Rearview ..................................... 117
Modifications (and Accessories) .............. 225
Moonroof .................................................. 105
MP3 ................................................... 156, 162 Multi-Information Display
......................... 75
Numbers (Identification) .......................... 314
Odometer ................................................... 76
Oil (Engine) ............................................... 237
Adding .................................................... 239
Checking................................................. 238
Displaying Oil Life .................................... 231
Low Oil Pressure Indicator ................. 64, 299
Recommended Engine Oil ....................... 237
Viscosity .................................................. 237
Opening/Closing Hood....................................................... 236
Moonroof ............................................... 105
Power Windows ...................................... 102
Tailgate ..................................................... 94
Outside Temperature Display .................... 77
Overheating .............................................. 297
Paddle Shifters (S equential Shift 
Mode) ................................................ 13, 205
Panic Mode ............................................... 101
Parking ...................................................... 220
Parking Brake ........................................... 216
14 ACURA TSX 5D-31TL76300.book 327 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
LM
N
O
P Q
2014 TSX Sport Wagon
