49Continued

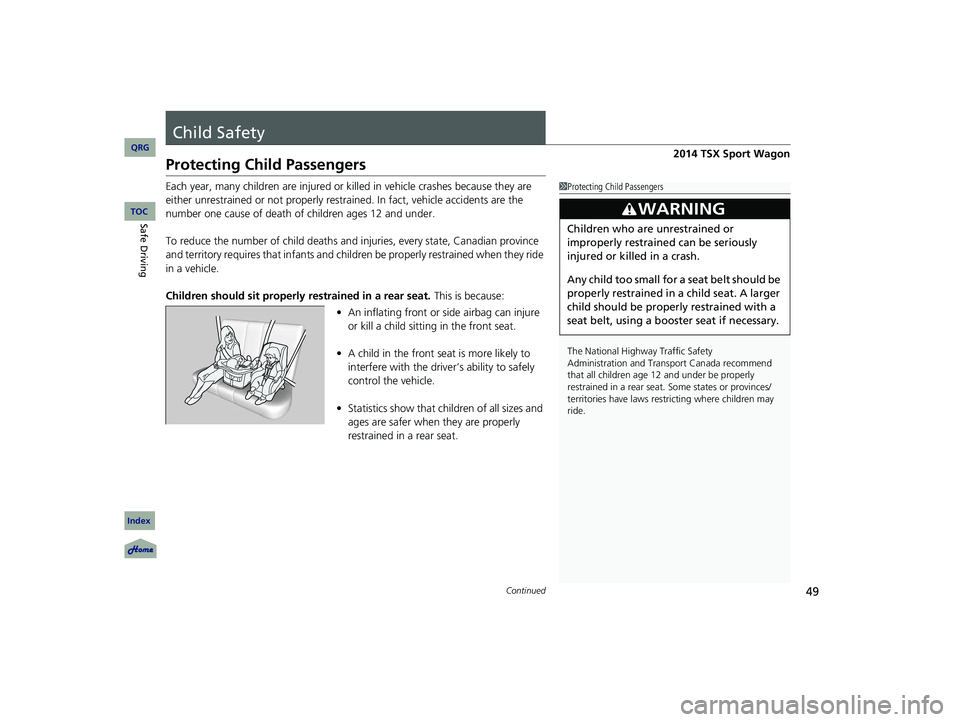

Child Safety
Protecting Child Passengers
Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle accidents are the
number one cause of death of children ages 12 and under.
To reduce the number of child deaths and injuries, every state, Canadian province
and territory requires that infants and children be properly restrained when they ride
in a vehicle.
Children should sit properly restrained in a rear seat. This is because:
• An inflating front or side airbag can injure
or kill a child sitting in the front seat.
• A child in the front seat is more likely to
interfere with the driver’s ability to safely
control the vehicle.
• Statistics show that children of all sizes and
ages are safer when they are properly
restrained in a rear seat.1Protecting Child Passengers
The National Highway Traffic Safety
Administration and Transport Canada recommend
that all children age 12 and under be properly
restrained in a rear seat. Some states or provinces/
territories have laws restricting where children may
ride.
3 WARNING
Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be properly restrained with a
seat belt, using a booster seat if necessary.
14 ACURA TSX 5D-31TL76300.book 49 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

uu Child Safety u Protecting Child Passengers
50
• Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using either the lap belt
portion of the lap/shoulder belt or the lower anchors of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child an d cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1Protecting Child Passengers
To deactivate a lockable re tractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the passenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard and on the front visors.
Please read and follow the instructions on these
labels. 2 Safety Labels P. 62
3 WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.
14 ACURA TSX 5D-31TL76300.book 50 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

51
uu Child Safety u Safety of Infants and Small Children
Continued
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat maker’s weight or he ight limit for the seat, and the infant is
at least one year old.
■Positioning a rear-facing child seat
Child seats must be placed and secured in a
rear seating position.
When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the wa y back, or from locking their seat-back
in the desired position.
It can also interfere with proper operation of the passenger’s advanced front
airbag system.
2 Airbags P. 34
If this occurs, we re commend that you install the child seat directly behind the front
passenger’s seat, move the seat as far fo rward as needed, and leave it unoccupied.
Or, you may wish to get a smaller rear-facing child seat.
■Protecting Infants1 Protecting Infants
Rear-facing child seats should never be installed in a
forward facing position.
Always refer to the child seat manufacturer’s
instructions before installation.
3 WARNING
Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.
Always place a rear-facing child seat in the
rear seat, not the front.
14 ACURA TSX 5D-31TL76300.book 51 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

uu Child Safety u Safety of Infants and Small Children
52
If a child is at least one year old and within the weight range indicated by the child
seat manufacturer, the child should be pr operly restrained in a firmly secured
forward-facing child seat.
■Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger’s front airbag off. A
rear seat is the safest place for a child.
■Protecting Smaller Children1Protecting Smaller Children
Educate yourself about the laws and regulations
regarding child seat use where you are driving, and
follow the child seat manufacturer’s instructions.
Many experts recommend us e of a rear-facing seat
for a child up to age two years old, if the child’s
height and weight are appropriate for a rear-facing
seat.
3 WARNING
Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.
14 ACURA TSX 5D-31TL76300.book 52 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

59
uu Child Safety u Safety of Larger Children
Continued
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too bi g for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all thes e questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fi ts properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1Safety of Larger Children
3 WARNING
Allowing a child age 12 or under to sit in
front can result in serious injury or death if
the passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
14 ACURA TSX 5D-31TL76300.book 59 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

61
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system inspected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailgate open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control sy stem in the same manner if you sit in your parked
vehicle with the engine running.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3 WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
14 ACURA TSX 5D-31TL76300.book 61 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Safe DrivingTOC
2014 TSX Sport Wagon

63
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 64
Multi-Information Display Warning and Information Messages ...................... 72
Gauges and Multi-Information Display Gauges .............................................. 74
Multi-Information Disp lay ..................
75
14 ACURA TSX 5D-31TL76300.book 63 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
2014 TSX Sport Wagon

69
uu Indicators u
Continued
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on along with a beep when
a problem is detected. A system
message on the multi-information
display appears at the same time.●While the indicator is on, press the
(information) button to see the
message again.
●Refer to the Indicator information in this
chapter when a system message appears
on the multi-information display. Take
the appropriate action for the message.
●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
—
Turn Signal
Indicators
●The turn signal indicators blink
when you operate the turn signal
lever.
●If you press the hazard warning
button, both indicators and all turn
signals blink at the same time.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs  P.
249
P. 251
—
High Beam
Indicator
●Comes on when the high beam
headlights are on.
●Comes on with reduced brightness
when Daytime Running Lights
(DRL) are on.——
Lights On Indicator
●Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on.●If you remove the key from the ignition
switch while the lights are on, a chime
sounds when the driver’s door is opened.—
14 ACURA TSX 5D-31TL76300.book 69 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Instrument PanelTOC
2014 TSX Sport Wagon

72
uu Indicators u Multi-Information Display Warning and Information Messages
Multi-Information Display Warning and Information Messages
The following messages appear only on th e multi-information display. Press the (information) button to see the message again
with the system me ssage indicator on.
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 297
●Appears when the fuel fill cap is loose or is not
installed.
2 Tighten Fuel Fill Cap Message P. 300
●Appears if there is a problem with the DRL system.●Have your vehicle ch ecked by a dealer.2Daytime Running Lights (DRL) P. 109
●Appears when the scheduled maintenance is due
soon.
●Consequently, SERVICE DUE NOW and SERVICE
PAST DUE follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 232
14 ACURA TSX 5D-31TL76300.book 72 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Instrument PanelTOC
2014 TSX Sport Wagon

73
uu Indicators u Multi-Information Display Warning and Information Messages
MessageConditionExplanation
●Appears when you open the driver’s door while the
ignition key is in ACCESSORY (q
.
●Turn the ignition switch to LOCK (0
, then remove the
key.
●Appears when the igniti on key is turned to
ACCESSORY (q from ON (w
. (The driver’s door is
closed.)—
●Appears when you open the driver’s door while the
ignition key is in LOCK (0
.
●Remove the key from the ignition switch.
●Appears if there is a problem with the power
tailgate system.●Manually open or close the power tailgate.●Have your vehicle checked by a dealer.
Model with
power tailgate
14 ACURA TSX 5D-31TL76300.book 73 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Instrument PanelTOC
2014 TSX Sport Wagon
