engine Acura TSX 2014 Owner's Guide

100

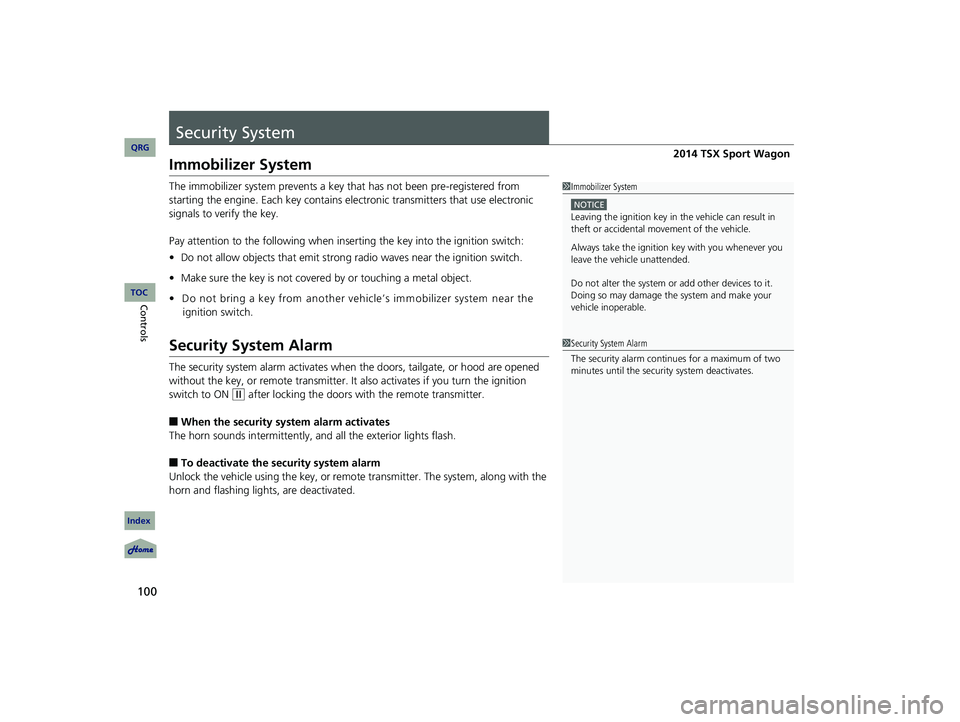

Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the follow ing when inserting the key into the ignition switch:
• Do not allow objects that emit strong radio waves near the ignition switch.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the
ignition switch.
Security System Alarm
The security system alarm activates when the doors, tailgate, or hood are opened
without the key, or remote transmitter. It also activates if you turn the ignition
switch to ON
(w after locking the doors with the remote transmitter.
■When the security system alarm activates
The horn sounds intermittently, an d all the exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, or remote transmitter. The system, along with the
horn and flashing lights, are deactivated.
1Immobilizer System
NOTICELeaving the ignition key in the vehicle can result in
theft or accidental movement of the vehicle.
Always take the ignition key with you whenever you
leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
14 ACURA TSX 5D-31TL76300.book 100 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

106
Operating the Switches Around the Steering Wheel
Ignition Switch
1Ignition Switch
You cannot take the key out unless the shift lever is
in (P
.
If you open the driver’s door when the key is in LOCK
(0
or ACCESSORY (q
, a warning buzzer will sound
to remind you to take the key out.
When this happens, the following messages appear
on the multi-information display:
•In LOCK (0
: REMOVE KEY .•In ACCESSORY (q
: REMOVE KEY . The buzzer will
stop when you take the key out.
If the key won’t turn from LOCK
(0
to ACCESSORY
(q , turn the key while moving the steering wheel left
and right. The steering wheel will unlock, allowing
the key to turn.
0
LOCK: Insert and remove the key in this
position.
q
ACCESSORY: Operate the audio system and
other accessories in this position.
w
ON: This is the position when driving.
e
START: This position is for starting the engine.
The switch returns to ON w when you let go of
the key.
14 ACURA TSX 5D-31TL76300.book 106 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

107
uu Operating the Switches Around the Steering Wheel u Turn Signals
Continued
Turn Signals
The turn signals can be used when the ignition
switch is in ON
(w
.
Light Switches
Rotating the light swit ch turns the lights on
and off, regardless of the position of the
ignition switch.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
Right Turn
Left Turn
■Manual Operation
1Light Switches
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s
door is opened.
Repeatedly turning the headlights on and off reduces
the life of the HID headlight bulbs.
If you sense that the level of the headlights is
abnormal, have the vehicle inspected by a dealer.
Do not leave the lights on when the engine is off
because it will cause th e battery to discharge.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail and license plate lights
Turns on headlights, parking, side
marker, tail, and license plate
lights
14 ACURA TSX 5D-31TL76300.book 107 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

113
uu Operating the Switches Around the Steering Wheel u Rear Defogger/Heated Door Mirror Button
Rear Defogger/Heated Door Mirror Button
Press the rear defogger and heated door
mirror button to defog the rear window and
mirrors when the ig nition is in ON
(w
.
The rear defogger and heated door mirrors
automatically switch of f after 10-30 minutes
depending on the outside temperature.
However, if the outside temperature is 32°F
(0°C) or below, they do not automatically
switch off.
1Rear Defogger/Heated Door Mirror Button
NOTICEWhen cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
14 ACURA TSX 5D-31TL76300.book 113 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

uu Adjusting the Seats u Adjusting the Seat Positions
124
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine
is off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of posit ion in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
■Maintain a Proper Sitting Position1Maintain a Proper Sitting Position
3 WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
14 ACURA TSX 5D-31TL76300.book 124 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

Continued135
uu Interior Lights/Inter ior Convenience Items u Interior Convenience Items

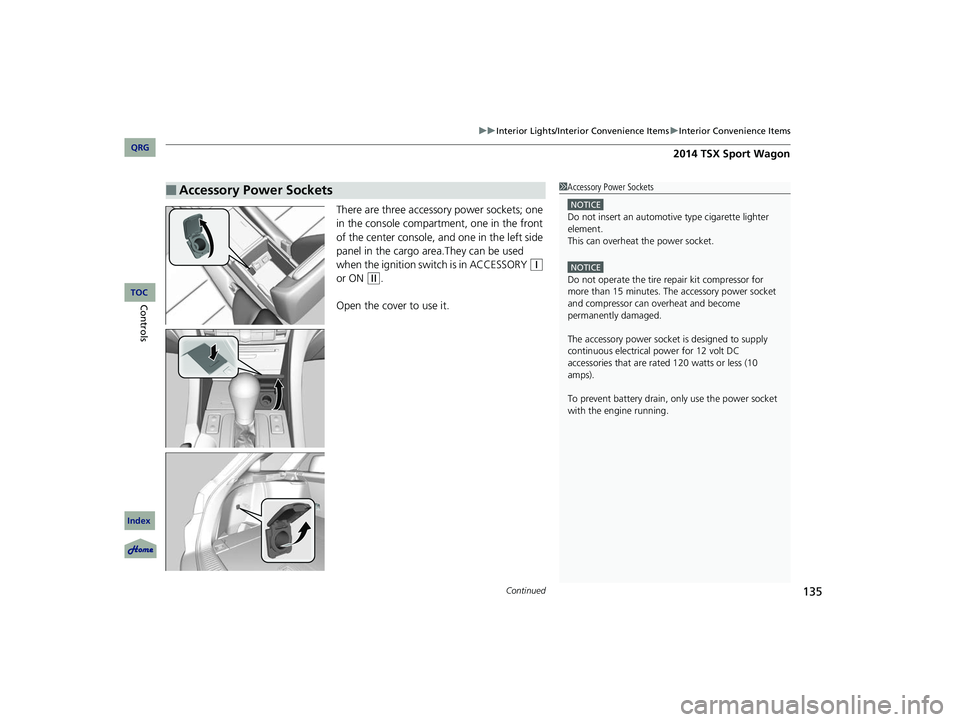

There are three accessory power sockets; one
in the console compartment, one in the front
of the center console, and one in the left side
panel in the cargo area.They can be used
when the ignition switch is in ACCESSORY
(q

or ON
(w
.
Open the cover to use it.
■Accessory Power Sockets1Accessory Power Sockets
NOTICEDo not insert an automoti ve type cigarette lighter
element.
This can overheat the power socket.
NOTICEDo not operate the tire re pair kit compressor for
more than 15 minutes. The accessory power socket
and compressor can ov erheat and become
permanently damaged.
The accessory power socket is designed to supply
continuous electrical power for 12 volt DC
accessories that are rate d 120 watts or less (10
amps).
To prevent battery drain, only use the power socket
with the engine running.
14 ACURA TSX 5D-31TL76300.book 135 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

Continued139
uu Interior Lights/Inter ior Convenience Items u Interior Convenience Items
The ignition switch must be in ON (w
to use
the seat heaters. The HI setting heats the seats
faster than the LO setting.
There is no heater in the passenger’s seat-
back due to the side airbag cutoff system.
While in HI , the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly
press the button on the opposite side
to turn the heater off. The indicator
will be off. When a comfortable
temperature is reached, select LO to
keep the seat warm.
■Seat Heaters1Seat Heaters
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3 WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
14 ACURA TSX 5D-31TL76300.book 139 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

141Continued
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as qui ckly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
switch.
3. Press the button to cancel.
■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recircul ates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains out side ventilation. Keep the system in
fresh air mode in normal situations.
1Using Automatic Climate Control
If any buttons are pressed while using the climate
control system in AUTO, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that was pressed will be
controlled automatically.
To prevent cold air from blowing in from outside, the
fan may not start immediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partially opening the windows,
turning the system on AUTO, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on a nd off. When turned on,
the system returns to your last selection.
Floor and
defroster
vents
Floor vents
Dashboard and floor
vents, and back of
the center console
Dashboard vents
and back of the
center console
AUTO Button
Driver’s Side
Temperature
Control Switch (Recirculation) Button
(Fan Control) Bar
A/C (Air Conditioning)
Button
Passenger’s Side
Temperature
Control Switch
14 ACURA TSX 5D-31TL76300.book 141 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
ControlsTOC
2014 TSX Sport Wagon

189
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 190
Maximum Load Limit........................ 193
Towing a Trailer Towing Preparation .... ......................195
Driving Safely with a Trailer .............. 197
Towing Your Vehicle ........................ 198
When Driving
Starting the Engine .......................... 199
Precautions While Driv ing.................
201
Automatic Transmission ................... 202
Shifting ............................................ 203Cruise Control ................................
. 207Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System ............... 210
Tire Pressure Monitoring System (TPMS) ... 212
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ........... 214
Braking
Brake System ................................... 216
Anti-lock Brake System (ABS) ........... 218
Brake Assist System......................... . 219
Parking Your Vehicle
When Stopped............ ..................... 220 Refueling
Fuel Information .............................. 221
How to Refuel ................................. 222
Fuel Economy .................................... 224
Improving Fuel Econom y ..................224
Accessories and Modifications
Accessories ...................................... 225
Modifications................................... 225
14 ACURA TSX 5D-31TL76300.book 189 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
2014 TSX Sport Wagon

190


Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
•Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid, remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood
is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, check for damage and excessive wear.
2 Checking and Maintaining Tires P. 259
• Make sure there are no people or objects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICEWhen doors are frozen shut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert key if the water freezes in
the hole.
Heat from the engine an d exhaust can ignite
flammable materials left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
14 ACURA TSX 5D-31TL76300.book 190 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
TOC
2014 TSX Sport Wagon
