cruise control Acura TSX 2014 Owner's Manual

3
❙Headlights/Turn Signals (P107)
❙Fog Lights (P109)
❙Paddle Shifter (Shift down) (P205)
❙Navigation System Voice Control Buttons * () See the Navigation System Manual
❙Bluetooth ® HandsFreeLink® System Voice Control Buttons (P175)
❙Horn
❙Remote Audio Control Buttons (P150)
❙Paddle Shifter (Shift up) (P205)
❙SEL/RESET Button (P75)
❙ (Information) Button (P75)
❙Wipers/Washers (P110)
❙Cruise Control Buttons (P207)
* Not available on all models
14 ACURA TSX 5D-31TL76300.book 3 ページ ２０１３年６月１７日　月曜日　午後３時２１分
(P206)
(P206)
Index
Quick Reference Guid e - 2014 TSX Sport WagonQRG

14
VSA® OFF Button (P211 )
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ®
comes on automati cally every time
you start the engine.
● To turn V SA® on or off, press and hold
the button until you hear a beep.
Cruise Control (P 207)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use crui
se control, press the CRUISE
button, then press DECEL /SET once you
have achieved the desired speed (above
25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P212)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically
every time you st art the engine.
Refueling (P 221)
Fuel recommendation: Premium unleaded gasoline with a pump octane number
91 or higher recommended
Fuel tank capacity: 18.5 US gal (70 L)
aUnlock the driver’s door.
bPress on the edge of the
fuel fill door to make it
pop up slightly.
cTurn the fuel fill cap
slowly to remove the
cap.
dPlace the cap in the
holder on the fuel fill
door.
eAfter refueling, screw
the cap back on until it
clicks at least once.
14 ACURA TSX 5D-31TL76300.book 14 ページ ２０１３年６月１７日　月曜日　午後３時２１分
Index
Quick Reference Guid e - 2014 TSX Sport WagonQRG

71
uu Indicators u
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator●Blinks when the security system
alarm has been set.
2 Security System Alarm P. 100—
CRUISE MAIN
Indicator●Comes on when you press the
CRUISE button.2 Cruise Control P. 207—
CRUISE CONTROL
Indicator●Comes on if you have set a speed
for cruise control.2 Cruise Control P. 207—
Indicator
14 ACURA TSX 5D-31TL76300.book 71 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Instrument PanelTOC
2014 TSX Sport Wagon

189
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 190
Maximum Load Limit........................ 193
Towing a Trailer Towing Preparation .... ......................195
Driving Safely with a Trailer .............. 197
Towing Your Vehicle ........................ 198
When Driving
Starting the Engine .......................... 199
Precautions While Driv ing.................
201
Automatic Transmission ................... 202
Shifting ............................................ 203Cruise Control ................................
. 207Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System ............... 210
Tire Pressure Monitoring System (TPMS) ... 212
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ........... 214
Braking
Brake System ................................... 216
Anti-lock Brake System (ABS) ........... 218
Brake Assist System......................... . 219
Parking Your Vehicle
When Stopped............ ..................... 220 Refueling
Fuel Information .............................. 221
How to Refuel ................................. 222
Fuel Economy .................................... 224
Improving Fuel Econom y ..................224
Accessories and Modifications
Accessories ...................................... 225
Modifications................................... 225
14 ACURA TSX 5D-31TL76300.book 189 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
2014 TSX Sport Wagon

207
uu When Driving u Cruise Control
Continued

Cruise Control
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open roads where you can travel at a
constant speed with little ac celeration or deceleration.1Cruise Control
It may not be possible to maintain a constant speed
when driving uphill or downhill.
3 WARNING
Improper use of the cruise control can lead
to a crash.
Use the cruise control only when traveling
on open highways in good weather.
■Shift positions for cruise control: 
In (D
or (S

When to use
Always keep sufficient distance
between you and the vehicle in
front of you.
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
How to use
■CRUISE MAIN is on in the
instrument panel.
Cruise control is ready to use.■Press the CRUISE button on
the steering wheel.
14 ACURA TSX 5D-31TL76300.book 207 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

uu When Driving u Cruise Control
208



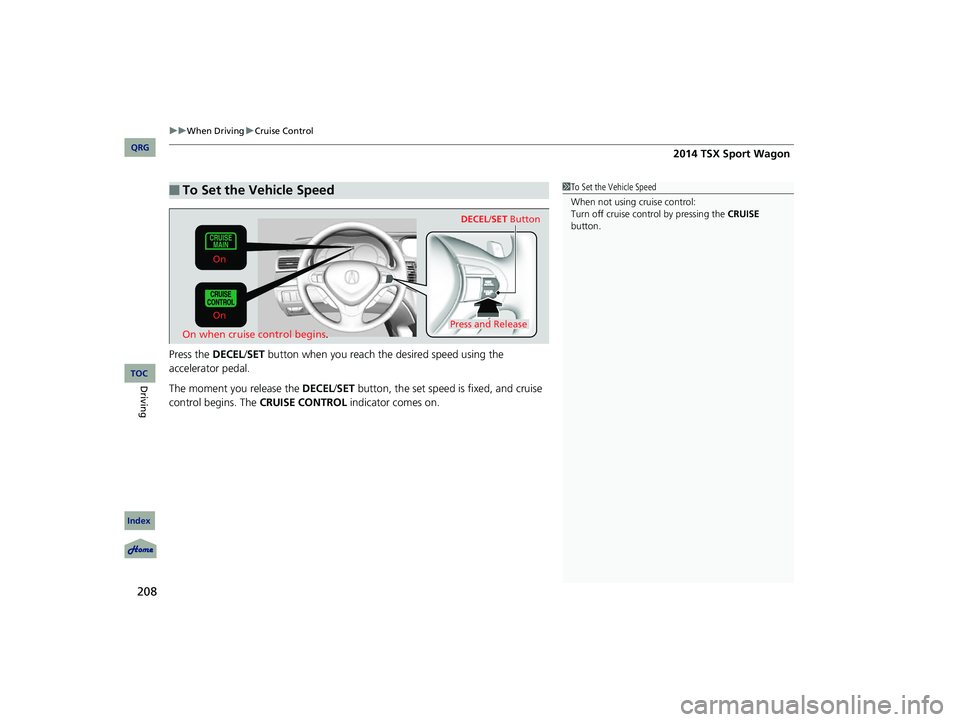

Press the DECEL /SET button when you reach the desired speed using the
accelerator pedal.
The moment you release the DECEL/SET button, the set speed is fixed, and cruise
control begins. The CRUISE CONTROL indicator comes on.
■To Set the Vehicle Speed1To Set the Vehicle Speed
When not using cruise control:
Turn off cruise control by pressing the CRUISE
button.
DECEL /SET Button
On when cruise control begins.Press and Release
On On
14 ACURA TSX 5D-31TL76300.book 208 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

209
uu When Driving u Cruise Control

Increase or decrease the vehicle speed using the RES/ACCEL or DECEL /SET button
on the steering wheel.
• Each time you press the button, the vehicl e speed is increased or decreased by
about 1 mph (1.6 km/h).
• If you keep the button pressed, the vehicle speed increases or decreases until you
release it. This speed is then set.
To cancel cruise control, do any of the
following:
•Press the CANCEL button.
• Press the CRUISE button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.
■To Adjust the Vehicle Speed1To Adjust the Vehicle Speed
You can set the vehicle speed using the DECEL/SET
button on the steering wheel when adjusting the
speed with the accelera tor and brake pedals.
■To Cancel
To increase speed
To decrease speed
1To Cancel
Resuming the prior set speed:
After cruise control has b een canceled, you can still
resume the prior set speed by pressing the RES/
ACCEL button while driving at a speed of at least 25
mph (40 km/h) or more.
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h)•When the CRUISE button is turned off
At vehicle speeds of 22 mph (35 km/h) or less, cruise
control is canceled automatically.
CRUISE Button
CANCEL Button
14 ACURA TSX 5D-31TL76300.book 209 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
DrivingTOC
2014 TSX Sport Wagon

318
uu Emissions Testing u Testing of Readiness Codes





7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
. Do not use cruise control. When traffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
14 ACURA TSX 5D-31TL76300.book 318 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
Information
TOC
2014 TSX Sport Wagon

324
Foot Brake ............................................... 217
Indicator ............................................ 64, 301
Parking Brake .......................................... 216
Brightness Control (Instrument Panel) .... 112
Bulb Replacement..................................... 247
Back-Up Lights......................................... 252
Brake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Lights................... 251
Fog Lights ................................................ 248
Front Turn Signal/Parking/Side Marker 
Lights..................................................... 249
Headlights ............................................... 247
High-Mount Brake Light . ......................... 251
License Plate ............................................ 253
Side Turn Signal/Emergency Indicator 
Lights..................................................... 250
Bulb Specifications .................................... 312
Carbon Monoxide Gas ................................ 61
Cargo Hooks .............................................. 137
Carrying Cargo .................................. 191, 193
CD Player ................................................... 156
Certification Label .................................... 314
Changing Bulbs ......................................... 247
Charging System Indicator ................. 65, 299
Child Safety ................................................. 49
Childproof Door Locks .... ........................... 93
Child Seat .................................................... 49
Booster Seats ........ ..................................... 60Child Seat for Infants.................................
51
Child Seat for Small Children ..................... 52
Installing a Child Seat with a Lap/Shoulder 
Seat Belt .................................................. 56
Larger Children ......................................... 59
Rear-facing Child Seat ............................... 51
Selecting a Child Seat ................................ 53
Using a Tether ........................................... 58
Childproof Door Locks ............................... 93
Cleaning the Exterior ............................... 274
Cleaning the Interior ................................ 272
Client Service Information ....................... 322
Climate Control System ............................ 141
Changing the Mode ................................ 141
Defrosting the Windshield and 
Windows ............................................... 142
Dust and Pollen Filter............................... 271
Recirculation and Fres h Air Mode ............ 141
Sensors ................................................... 144
Synchronized Mode................................. 143
Using Automatic Climate Control ............ 141
Clock ............................................................ 86
Coat Hook ................................................. 136
Compact Spare Tire .......................... 287, 313
Compass .................................................... 187
Console Compartment ............................. 131
Controls ....................................................... 85
Coolant (Engine) ...................................... 242
Adding to the Radiator ............................ 243
Adding to the Reserve Tank..................... 242
Overheating ............................................ 297Temperature Gauge ..................................
74
Creeping (Automatic Transmission) ........ 202
Cruise Control .......................................... 207
Indicator ................................................... 71
Cup Holders .............................................. 134
Customized Features ................................. 79
Daytime Running Lights .......................... 109
Dead Battery ............................................ 294
Defrosting the Windshield and 
Windows ................................................. 142
Detachable Shelf ...................................... 130
Devices that Emit Radio Waves ............... 315
Dimming
Headlights .............................................. 107
Rear View Mirror..................................... 117
Dipstick (Engine Oil) ................................ 238
Directional Signals (Turn Signal) ............. 107
Door Mirrors ............................................. 117
Doors .......................................................... 87
Auto Door Lock ........................................ 93
Auto Door Unlock ..................................... 93
Door and Tailgate Open Indicator ....... 25 , 68
Keys.......................................................... 87
Locking/Unlocking the Doors from the 
Inside ................................................ 10, 91
Locking/Unlocking the Doors from the 
Outside ................................................... 89
Lockout Prevention System ....................... 90
14 ACURA TSX 5D-31TL76300.book 324 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
C
D
2014 TSX Sport Wagon

325
Driving...................................................... 189
Automatic Transmission .......................... 202
Braking ................................................... 216
Cruise Control ........................................ 207
Shifting Gear .......................................... 203
Starting the Engine ................................. 199
Driving Position Memory System ............ 114
Dust and Po llen Filter.............................. 271
Elapsed Time .............................................. 78
Electric Power Steering (EPS) System
Indicator ........................................... 68, 301
Electronic Stability Control (ESC) ............ 210
Emergency ................................................ 308
Emissions Testing (Readiness Codes) ...... 317
Engine ....................................................... 314
Coolant .................................................. 242
Jump Starting ......................................... 294
Oil .......................................................... 237
Starting................................................... 199
Switch Buzzer ......................................... 106
Engine Coolant ........................................ 242
Adding to the Radiator ........................... 243
Adding to the Reserve Tank .................... 242
Overheating ............................................ 297
Temperature Gauge .................................. 74
Engine Oil ................................................. 237
Adding ................................................... 239
Checking ................................................ 238Displaying Oil Life ....................................
231
Low Oil Pressure Indicator.................. 64, 299
Recommended Engine Oil........................ 237
EPS (Electric Power Steering) 
System ............................................... 68, 301
Exhaust Gas Hazard (Carbon Monoxide) .. 61
Exterior Care (Cleaning) ........................... 274
Exterior Mirrors ........................................ 117
Features ..................................................... 145
Filters
Dust and Pollen ....................................... 271
Oil ........................................................... 240
Flat Tire ............................................. 278, 287
Floor Mats ................................................. 273
Fluids Automatic Transmission........................... 244
Brake....................................................... 245
Engine Coolant........................................ 242
Windshield Washer.................................. 246
Fog Light Indicator ..................................... 70
Folding Down the Rear Seats .................. 126
Foot Brake ................................................. 217
Front Airbags (SRS) ..................................... 37
Front Seats ................................................ 119
Adjusting................................................. 119
Fuel ...................................................... 14, 221
Economy ................................................. 224
Gauge ....................................................... 74Instant Fuel Economy .....
........................... 77
Low Fuel Indicator ..................................... 66
Range ....................................................... 77
Recommendation .................................... 221
Refueling................................................. 221
Fuel Economy ........................................... 224
Fuel Fill Cap ........................................ 14, 223
Message.................................................. 300
Fuel Fill Door ...................................... 14, 222
Unable to Unlock .................................... 309
Fuses .......................................................... 303
Inspecting and Changing......................... 307
Locations................................................. 303
Gasoline (Fuel) Economy ................................................. 224
Gauge ....................................................... 74
Information ............................................. 221
Low Fuel Indicator ..................................... 66
Refueling................................................. 221
Gauges ........................................................ 74
Gear Shift Lever Positions Automatic Transmission .......................... 203
Glass (care) ................................................ 275
Glove Box .................................................. 130
Halogen Bulbs .................................. 247, 248
14 ACURA TSX 5D-31TL76300.book 325 ページ ２０１３年６月１７日　月曜日　午後３時２１分
QRG
Index
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
E
G
F
G
H
2014 TSX Sport Wagon
